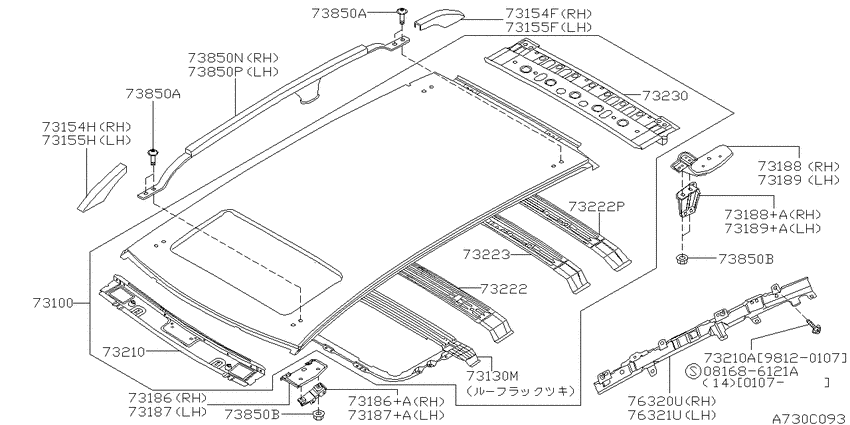

Roof panel & fitting (2000-03-01 ~ 2000-04-01; サン ルーフ; *W) Diagram Nissan TINO
- Year
- 2000 - 2002
- Sales region
- Japan
- Engine
- QG18DE
- transmission
- AT.R4
- grade
- J
- body
- W
- capacity
- 6P
- gas/hyb
- GAS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
73100
|
73100
73100-4U030 Roof Assy9812--01 ~ 0003--01; *W |
73100-4U030 |
US $1,029.43 |
||
|
73100
|
73100
73100-4U035 Roof Assy9812--01 ~ 0003--01; *W |
73100-4U035 |
US $1,029.43 |
||
|
73130M
|
73130M
73120-4U010 Reinforce Assy-Roof9812--01 ~ 0003--01; *W |
73120-4U010 |
US $187.20 |
||
|
73130M
|
73130M
73256-4U000 Reinforce Assy-Roof9812--01 ~ 0003--01; W |
73256-4U000 |
US $52.42 |
||
|
73154F
|
73154F
73886-4U010 End Cap-Rear, Rh9812--01 ~ 0003--01; *W |
73886-4U010 |
US $54.14 |
||
|
73154H
|
73154H
73882-4U010 End Cap-Front, Rh9812--01 ~ 0003--01; *W |
73882-4U010 |
US $54.14 |
||
|
73155F
|
73155F
73887-4U010 End Cap-Rear, Lh9812--01 ~ 0003--01; *W |
73887-4U010 |
US $54.14 |
||
|
73155H
|
73155H
73883-4U010 End Cap-Front, Lh9812--01 ~ 0003--01; *W |
73883-4U010 |
US $54.14 |
||
|
73186
|
73186
738A0-4U000 Bracket-Roof Rack, Front Rh9812--01 ~ 0003--01; *W |
738A0-4U000 |
US $19.73 |
||
|
73186
|
73186
738A4-4U000 Bracket-Roof Rack, Front Rh9812--01 ~ 0003--01; *W |
738A4-4U000 |
US $19.73 |
||
|
73186+A
|
73186+A
738A4-4U000 Bracket-Roof Rack, Front Rh9812--01 ~ 0003--01; *W |
738A4-4U000 |
US $19.73 |
||
|
73187
|
73187
738A1-4U000 Bracket Roof Rack, Front Lh9812--01 ~ 0003--01; *W |
738A1-4U000 |
US $19.73 |
||
|
73187
|
73187
738A5-4U000 Bracket Roof Rack, Front Lh9812--01 ~ 0003--01; *W |
738A5-4U000 |
US $19.73 |
||
|
73187+A
|
73187+A
738A5-4U000 Bracket Roof Rack, Front Lh9812--01 ~ 0003--01; *W |
738A5-4U000 |
US $19.73 |
||
|
73188
|
73188
738B0-4U000 Bracket Roof Rack, Rear Rh9812--01 ~ 0003--01; *W |
738B0-4U000 |
US $19.73 |
||
|
73188
|
73188
738B4-4U000 Bracket Roof Rack, Rear Rh9812--01 ~ 0003--01; *W |
738B4-4U000 |
US $19.73 |
||
|
73188+A
|
73188+A
738B4-4U000 Bracket Roof Rack, Rear Rh9812--01 ~ 0003--01; *W |
738B4-4U000 |
US $19.73 |
||
|
73189
|
73189
738B1-4U000 Bracket Roof Rack, Rear Lh9812--01 ~ 0003--01; *W |
738B1-4U000 |
US $19.73 |
||
|
73189
|
73189
738B5-4U000 Bracket Roof Rack, Rear Lh9812--01 ~ 0003--01; *W |
738B5-4U000 |
US $19.73 |
||
|
73189+A
|
73189+A
738B5-4U000 Bracket Roof Rack, Rear Lh9812--01 ~ 0003--01; *W |
738B5-4U000 |
US $19.73 |
||
|
73210
|
73210
73210-4U000 Rail-Front Roof9812--01 ~ 0003--01; W |
73210-4U000 |
US $86.54 |
||
|
73210
|
73210
01456-00641 SCREW9812--01 ~ 0003--01; W |
01456-00641 |
US $0.86 |
||
|
73210A
|
73210A
01456-00641 SCREW9812--01 ~ 0003--01; W |
01456-00641 |
US $0.86 |
||
|
73222
|
73222
73262-4U000 Bow-Roof, No 39812--01 ~ 0003--01; W |
73262-4U000 |
US $77.62 |
||
|
73222
|
73222
73285-4U000 Bow-Roof, Rear9812--01 ~ 0003--01; W |
73285-4U000 |
US $101.23 |
||
|
73222P
|
73222P
73285-4U000 Bow-Roof, Rear9812--01 ~ 0003--01; W |
73285-4U000 |
US $101.23 |
||
|
73223
|
73223
73270-4U000 Bow-Roof, No 49812--01 ~ 9902--01; W.6P.QG18DE +W.SR20DE |
73270-4U000 |
US $101.23 |
||
|
73223
|
73223
73272-4U000 Bow-Roof, No 49812--01 ~ 0003--01; *W |
73272-4U000 |
US $101.23 |
||
|
73230
|
73230
73230-4U000 Rail-Rear Roof9812--01 ~ 0003--01; W |
73230-4U000 |
US $240.48 |
||
|
73850A
|
73850A
20606-0W000 Bolt-Special9812--01 ~ 0003--01; *W |
20606-0W000 |
US $5.47 |
||
| replacement | |||||
|
73850A
|
73850A
206060W00A
ﾎﾞﾙﾄ,ｽﾍﾟｼﾔﾙ
9812--01 ~ 0003--01; *W |
206060W00A |
— | ||
|
73850A
|
73850A
20606-0W000 Bolt-Special9812--01 ~ 0003--01; *W |
20606-0W000 |
US $5.47 |
||
| replacement | |||||
|
73850A
|
73850A
206060W00A
ﾎﾞﾙﾄ,ｽﾍﾟｼﾔﾙ
9812--01 ~ 0003--01; *W |
206060W00A |
— | ||
|
73850B
|
73850B
0122500371 NUT9812--01 ~ 0003--01; *W |
0122500371 |
US $1.73 |
||
|
73850B
|
73850B
0122500371 NUT9812--01 ~ 0003--01; *W |
0122500371 |
US $1.73 |
||
|
73850N
|
73850N
73820-4U010 Finisher Assy-Roof Side, Rh9812--01 ~ 0003--01; *W |
73820-4U010 |
US $325.68 |
||
|
73850P
|
73850P
73821-4U010 Finisher Assy-Roof Side, Lh9812--01 ~ 0003--01; *W |
73821-4U010 |
US $325.68 |
||
|
76320U
|
76320U
763B0-4U000 Bracket-Side Rail Inner, Rh9812--01 ~ 0003--01; W |
763B0-4U000 |
US $17.57 |
||
|
76321U
|
76321U
763B1-4U000 Bracket-Side Rail Inner, Lh9812--01 ~ 0003--01; W |
763B1-4U000 |
US $17.57 |
||
