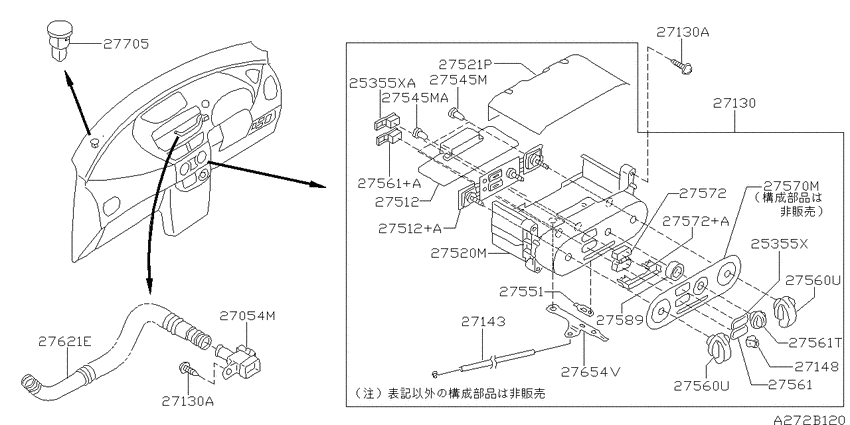

Control unit (2000-03-01 ~ 2000-04-01; オート エアコン; W.(QG18DE+SR20DE).X +W.XS) Diagram Nissan TINO
- Year
- 1998 - 2002
- Sales region
- Japan
- Engine
- QG18DE
- transmission
- AT.R4
- grade
- X
- body
- W
- capacity
- 6P
- gas/hyb
- GAS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25355X
|
25355X
25355-4M460 Knob-Rear Defoger Switch9812--01 ~ 0003--01; !*W.6P.QG18DE.G +*W.SR20DE.G +*W.X |
25355-4M460 |
US $1.87 |
||
|
25355X
|
25355X
25355-4U010 Knob-Rear Defoger Switch9812--01 ~ 0003--01; W.(X+XS) |
25355-4U010 |
US $32.11 |
||
|
25355X
|
25355X
25355-4M460 Knob-Rear Defoger Switch0003--01 ~ 0004--01; W.(QG18DE+SR20DE).X +W.XS |
25355-4M460 |
US $1.87 |
||
|
25355X
|
25355X
25355-4U010 Knob-Rear Defoger Switch9812--01 ~ 0003--01; !*W.6P.QG18DE.G +*W.SR20DE.G +*W.X |
25355-4U010 |
US $32.11 |
||
|
25355XA
|
25355XA
25355-4M460 Knob-Rear Defoger Switch0003--01 ~ 0004--01; W.(QG18DE+SR20DE).X +W.XS |
25355-4M460 |
US $1.87 |
||
|
25355XA
|
25355XA
25355-4U010 Knob-Rear Defoger Switch9812--01 ~ 0003--01; !*W.6P.QG18DE.G +*W.SR20DE.G +*W.X |
25355-4U010 |
US $32.11 |
||
|
27054M
|
27054M
2772015U00 Sensor-Incar9812--01 ~ 0003--01; W.(X+XS) |
2772015U00 |
US $56.37 |
||
| replacement | |||||
|
27054M
|
27054M
27720-3AA0A Sensor-Incar9812--01 ~ 0003--01; W.(X+XS) |
27720-3AA0A |
from US $31.10 |
||
|
27130
|
27130
27500-4U070 Control Assy9812--01 ~ 0003--01; W.(X+XS) |
27500-4U070 |
US $873.67 |
||
|
27130
|
27130
27510-4U010 Control Assy9812--01 ~ 0003--01; *W.6P.QG18DE.X +*W.SR20DE.X |
27510-4U010 |
US $543.74 |
||
|
27130
|
27130
275104U011 Control Assy9812--01 ~ 0003--01; *W.6P.QG18DE.X +*W.SR20DE.X |
275104U011 |
US $526.75 |
||
|
27130
|
27130
0145100581 SCREW9812--01 ~ 0003--01; W.(X+XS) |
0145100581 |
from US $0.78 |
||
|
27130A
|
27130A
0145100581 SCREW9812--01 ~ 0003--01; W.(X+XS) |
0145100581 |
from US $0.78 |
||
|
27130A
|
27130A
0145100581 SCREW9812--01 ~ 0003--01; W.(X+XS) |
0145100581 |
from US $0.78 |
||
|
27143
|
27143
27540-4U010 Cable-Control, Air Intake Door9812--01 ~ 0003--01; *W.6P.QG18DE.X +*W.SR20DE.X |
27540-4U010 |
US $7.20 |
||
|
27148
|
27148
27560-4U010 Knob-Control9812--01 ~ 0003--01; W.(X+XS) |
27560-4U010 |
US $21.17 |
||
|
27148
|
27148
27559-4U010 Knob-Control9812--01 ~ 0003--01; *W.6P.QG18DE.X +*W.SR20DE.X |
27559-4U010 |
US $23.18 |
||
|
27512
|
27512
27512-4M460
Amplifier-Control
0003--01 ~ 0004--01; *W.(QG18DE+SR20DE).X; [B517] |
27512-4M460 |
— | ||
|
27512
|
27512
27512-4U075 Amplifier-Control0003--01 ~ 0004--01; W.(QG18DE+SR20DE).X +W.XS |
27512-4U075 |
US $729.24 |
||
|
27512
|
27512
27512-4U070 Amplifier-Control0003--01 ~ 0004--01; W.(QG18DE+SR20DE).X +W.XS |
27512-4U070 |
US $729.24 |
||
|
27512+A
|
27512+A
27512-4U070 Amplifier-Control0003--01 ~ 0004--01; W.(QG18DE+SR20DE).X +W.XS |
27512-4U070 |
US $729.24 |
||
|
27520M
|
27520M
27520-4U010 Base-Control9812--01 ~ 0003--01; *W.6P.QG18DE.X +*W.SR20DE.X |
27520-4U010 |
US $24.34 |
||
|
27520M
|
27520M
27520-4U070 Base-Control9812--01 ~ 0003--01; W.(X+XS) |
27520-4U070 |
US $24.34 |
||
|
27521P
|
27521P
27518-4M400 Cover-Control0003--01 ~ 0004--01; *W.(QG18DE+SR20DE).X |
27518-4M400 |
US $6.19 |
||
|
27521P
|
27521P
27518-4U070 Cover-Control9812--01 ~ 0003--01; W.(X+XS) |
27518-4U070 |
US $19.44 |
||
|
27545M
|
27545M
27545-4M410
Lamp Assy-Heater Control
9812--01 ~ 0003--01; W.6P.QG18DE.X +W.SR20DE.X +W.XS |
27545-4M410 |
— | ||
|
27545M
|
27545M
275454M411 Lamp Assy-Heater Control0003--01 ~ 0004--01; W.(QG18DE+SR20DE).X +W.XS |
275454M411 |
from US $6.66 |
||
|
27545M
|
27545M
27545-4M420
Lamp Assy-Heater Control
9812--01 ~ 0003--01; W.6P.QG18DE.X +W.SR20DE.X +W.XS |
27545-4M420 |
— | ||
|
27545M
|
27545M
275454M421 Lamp Assy-Heater Control0003--01 ~ 0004--01; W.(QG18DE+SR20DE).X +W.XS |
275454M421 |
US $8.50 |
||
|
27545MA
|
27545MA
27545-4M420
Lamp Assy-Heater Control
9812--01 ~ 0003--01; W.6P.QG18DE.X +W.SR20DE.X +W.XS |
27545-4M420 |
— | ||
|
27545MA
|
27545MA
275454M421 Lamp Assy-Heater Control0003--01 ~ 0004--01; W.(QG18DE+SR20DE).X +W.XS |
275454M421 |
US $8.50 |
||
|
27551
|
27551
27635-01A00 Clip9812--01 ~ 0003--01; W.(X+XS) |
27635-01A00 |
US $1.15 |
||
|
27551
|
27551
27551-4M410 Spring9812--01 ~ 0003--01; *W.6P.QG18DE.X +*W.SR20DE.X |
27551-4M410 |
US $1.87 |
||
|
27560U
|
27560U
27559-4U070 Knob-Control9812--01 ~ 0003--01; W.(X+XS) |
27559-4U070 |
US $25.63 |
||
|
27560U
|
27560U
27559-4U070 Knob-Control9812--01 ~ 0003--01; W.(X+XS) |
27559-4U070 |
US $25.63 |
||
|
27561
|
27561
27568-4U010 Button-Air Conditioner9812--01 ~ 0003--01; !*W.6P.QG18DE.G +*W.SR20DE.G +*W.X |
27568-4U010 |
US $32.11 |
||
|
27561
|
27561
275684M460 Button-Air Conditioner9812--01 ~ 0003--01; *W.6P.QG18DE.X +*W.SR20DE.X |
275684M460 |
US $1.87 |
||
|
27561
|
27561
275A1-4U010 Button-Fan9812--01 ~ 0003--01; *W.6P.QG18DE.X +*W.SR20DE.X |
275A1-4U010 |
US $25.63 |
||
|
27561
|
27561
275A1-4U070 Button-Fan9812--01 ~ 0003--01; W.(X+XS) |
275A1-4U070 |
US $25.63 |
||
|
27561+A
|
27561+A
275684M460 Button-Air Conditioner9812--01 ~ 0003--01; *W.6P.QG18DE.X +*W.SR20DE.X |
275684M460 |
US $1.87 |
||
|
27561T
|
27561T
275A1-4U010 Button-Fan9812--01 ~ 0003--01; *W.6P.QG18DE.X +*W.SR20DE.X |
275A1-4U010 |
US $25.63 |
||
|
27561T
|
27561T
275A1-4U070 Button-Fan9812--01 ~ 0003--01; W.(X+XS) |
275A1-4U070 |
US $25.63 |
||
|
27570M
|
27570M
27570-4U010 Finisher Assy-Control9812--01 ~ 0003--01; *W.6P.QG18DE.X +*W.SR20DE.X |
27570-4U010 |
US $11.81 |
||
|
27570M
|
27570M
27570-4U070 Finisher Assy-Control9812--01 ~ 0003--01; W.(X+XS) |
27570-4U070 |
US $30.53 |
||
|
27572
|
27572
27572-4M410 Panel-Finisher0003--01 ~ 0004--01; *W.(QG18DE+SR20DE).X |
27572-4M410 |
US $2.02 |
||
|
27572
|
27572
27572-4M420 Panel-Finisher0003--01 ~ 0004--01; *W.(QG18DE+SR20DE).X |
27572-4M420 |
US $1.87 |
||
|
27572+A
|
27572+A
27572-4M420 Panel-Finisher0003--01 ~ 0004--01; *W.(QG18DE+SR20DE).X |
27572-4M420 |
US $1.87 |
||
|
27589
|
27589
27589-4M400 Mask-Ring, Fan0003--01 ~ 0004--01; *W.(QG18DE+SR20DE).X |
27589-4M400 |
US $1.30 |
||
|
27621E
|
27621E
27727-4U070 Duct-Aspirator9812--01 ~ 0003--01; W.(X+XS) |
27727-4U070 |
US $13.68 |
||
|
27654V
|
27654V
27525-4M460 Lever-Intake9812--01 ~ 0003--01; *W.X |
27525-4M460 |
US $3.74 |
||
|
27705
|
27705
27721-4P000
Sensor Assy-Sun
9812--01 ~ 0003--01; W.(X+XS) |
27721-4P000 |
— | ||
| replacement | |||||
|
27705
|
27705
27721-3AA0A Sensor Assy-Sun9812--01 ~ 0003--01; W.(X+XS) |
27721-3AA0A |
from US $33.17 |
||
