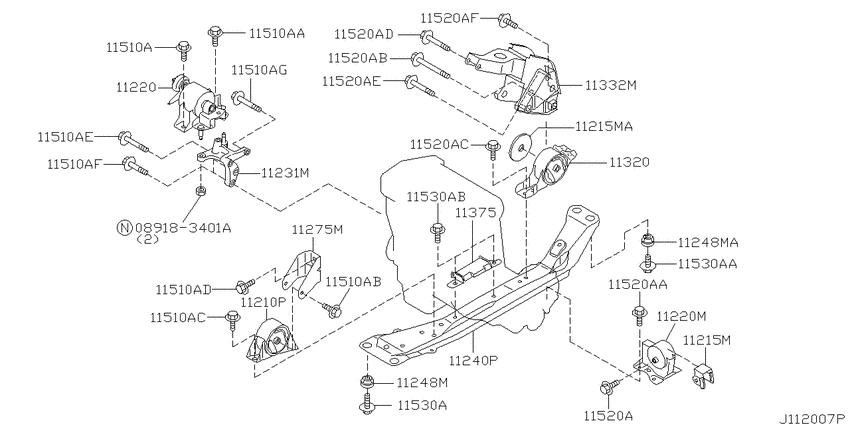

Engine & transmission mounting (2002-10-01 ~ ; QG18DE) Diagram Nissan TINO
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QG18DE
- transmission
- AT.R4
- grade
- J
- body
- W
- capacity
- 5P
- gas/hyb
- GAS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
11210P
|
11210P
11270-4U000 Insulator Assy-Engine Mounting, Front Rh9812--01 ~ 0210--01; QG18DE |
11270-4U000 |
US $103.25 |
||
|
11215M
|
11215M
112150L700 Stopper-Engine Mounting9812--01 ~ 0210--01; QG18DE |
112150L700 |
US $8.64 |
||
|
11215M
|
11215M
1121550A00 Stopper-Engine Mounting9812--01 ~ 0210--01; QG18DE |
1121550A00 |
US $11.38 |
||
|
11215MA
|
11215MA
1121550A00 Stopper-Engine Mounting9812--01 ~ 0210--01; QG18DE |
1121550A00 |
US $11.38 |
||
|
11220
|
11220
11210-4M705 Insulator-Engine Mounting, Front9812--01 ~ 0003--01; QG18DE |
11210-4M705 |
US $203.04 |
||
|
11220
|
11220
11210-4M706 Insulator-Engine Mounting, Front0003--01 ~ 0101--01; QG18DE |
11210-4M706 |
US $198.72 |
||
|
11220
|
11220
11210-6N000
Insulator-Engine Mounting, Rh
0101--01 ~ 0210--01; QG18DE |
11210-6N000 |
— | ||
| replacement | |||||
|
11220
|
11220
112106N00A Insulator-Engine Mounting, Front0101--01 ~ 0210--01; QG18DE |
112106N00A |
US $75.65 |
||
|
11220
|
11220
112204M412
Insulator Assy-Engine Mounting, Front Lh
9812--01 ~ 0210--01; QG18DE |
112204M412 |
— | ||
| replacement | |||||
|
11220
|
11220
11220-95F0B
Insulator Assy-Engine Mounting, Front Lh
9812--01 ~ 0210--01; QG18DE |
11220-95F0B |
— | ||
|
11220M
|
11220M
112204M412
Insulator Assy-Engine Mounting, Front Lh
9812--01 ~ 0210--01; QG18DE |
112204M412 |
— | ||
| replacement | |||||
|
11220M
|
11220M
11220-95F0B
Insulator Assy-Engine Mounting, Front Lh
9812--01 ~ 0210--01; QG18DE |
11220-95F0B |
— | ||
|
11231M
|
11231M
11231-4M400 Bracket-Engine Mounting9812--01 ~ 0210--01; QG18DE |
11231-4M400 |
US $62.93 |
||
|
11240P
|
11240P
11240-5M300 Member Assy-Engine Mounting9812--01 ~ 0210--01; QG18DE |
11240-5M300 |
US $141.12 |
||
|
11248M
|
11248M
112485M300 Pad-Engine Mounting Member9812--01 ~ 0210--01; QG18DE |
112485M300 |
US $7.91 |
||
|
11248M
|
11248M
112484M410 Pad-Engine Mounting Member9812--01 ~ 0210--01; QG18DE |
112484M410 |
from US $7.31 |
||
|
11248MA
|
11248MA
112484M410 Pad-Engine Mounting Member9812--01 ~ 0210--01; QG18DE |
112484M410 |
from US $7.31 |
||
|
11275M
|
11275M
112744M400 Bracket-Engine Mounting Block, Front9812--01 ~ 0210--01; QG18DE |
112744M400 |
US $28.22 |
||
|
11320
|
11320
11320-5U101 Insulator-Engine Mounting, Rear9812--01 ~ 0210--01; QG18DE |
11320-5U101 |
US $103.25 |
||
|
11332M
|
11332M
11332-4U701 Bracket-Engine Mounting, Rear9812--01 ~ 0210--01; QG18DE |
11332-4U701 |
US $106.70 |
||
|
11375
|
11375
11375-6M000 Damper Assy-Dynamic9812--01 ~ 0210--01; QG18DE |
11375-6M000 |
US $37.15 |
||
|
11510A
|
11510A
11298-4M417 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M417 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M419 Bolt0210--01 ~ ; QG18DE |
11298-4M419 |
from US $1.81 |
||
|
11510A
|
11510A
01125-03311 BOLT9812--01 ~ 0210--01; QG18DE |
01125-03311 |
US $3.46 |
||
|
11510A
|
11510A
112984M420 Bolt9902--01 ~ 0210--01; QG18DE |
112984M420 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M419 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M419 |
from US $1.81 |
||
|
11510A
|
11510A
112984M407 Bolt9812--01 ~ 0210--01; QG18DE |
112984M407 |
from US $2.02 |
||
|
11510A
|
11510A
11298-4M405 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M405 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M406 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M406 |
US $4.03 |
||
|
11510A
|
11510A
01125-03211 BOLT9812--01 ~ 0210--01; QG18DE |
01125-03211 |
US $3.31 |
||
|
11510AA
|
11510AA
01125-03311 BOLT9812--01 ~ 0210--01; QG18DE |
01125-03311 |
US $3.46 |
||
|
11510AB
|
11510AB
112984M420 Bolt9902--01 ~ 0210--01; QG18DE |
112984M420 |
US $3.46 |
||
|
11510AC
|
11510AC
11298-4M419 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M419 |
from US $1.81 |
||
|
11510AD
|
11510AD
112984M407 Bolt9812--01 ~ 0210--01; QG18DE |
112984M407 |
from US $2.02 |
||
|
11510AE
|
11510AE
11298-4M405 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M405 |
US $3.46 |
||
|
11510AF
|
11510AF
11298-4M406 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M406 |
US $4.03 |
||
|
11510AG
|
11510AG
01125-03211 BOLT9812--01 ~ 0210--01; QG18DE |
01125-03211 |
US $3.31 |
||
|
11520A
|
11520A
11298-4M500 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M500 |
US $8.06 |
||
|
11520A
|
11520A
112982J206 Bolt9812--01 ~ 0210--01; QG18DE |
112982J206 |
from US $1.76 |
||
|
11520A
|
11520A
112984M420 Bolt9902--01 ~ 0210--01; QG18DE |
112984M420 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M419 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M419 |
from US $1.81 |
||
|
11520A
|
11520A
11298-4M412 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M412 |
US $3.46 |
||
|
11520A
|
11520A
11298-2J215 Bolt9812--01 ~ 0210--01; QG18DE |
11298-2J215 |
US $3.46 |
||
|
11520A
|
11520A
112982J206 Bolt9812--01 ~ 0210--01; QG18DE |
112982J206 |
from US $1.76 |
||
|
11520AA
|
11520AA
112982J206 Bolt9812--01 ~ 0210--01; QG18DE |
112982J206 |
from US $1.76 |
||
|
11520AB
|
11520AB
112984M420 Bolt9902--01 ~ 0210--01; QG18DE |
112984M420 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-4M419 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M419 |
from US $1.81 |
||
|
11520AD
|
11520AD
11298-4M412 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M412 |
US $3.46 |
||
|
11520AE
|
11520AE
11298-2J215 Bolt9812--01 ~ 0210--01; QG18DE |
11298-2J215 |
US $3.46 |
||
|
11520AF
|
11520AF
112982J206 Bolt9812--01 ~ 0210--01; QG18DE |
112982J206 |
from US $1.76 |
||
|
11530A
|
11530A
112982J220 Bolt9812--01 ~ 0210--01; QG18DE |
112982J220 |
US $3.46 |
||
|
11530A
|
11530A
112982J221 Bolt9812--01 ~ 0210--01; QG18DE |
112982J221 |
from US $1.67 |
||
|
11530A
|
11530A
11298-4M419 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M419 |
from US $1.81 |
||
|
11530AA
|
11530AA
112982J221 Bolt9812--01 ~ 0210--01; QG18DE |
112982J221 |
from US $1.67 |
||
|
11530AB
|
11530AB
11298-4M419 Bolt9812--01 ~ 0210--01; QG18DE |
11298-4M419 |
from US $1.81 |
||
