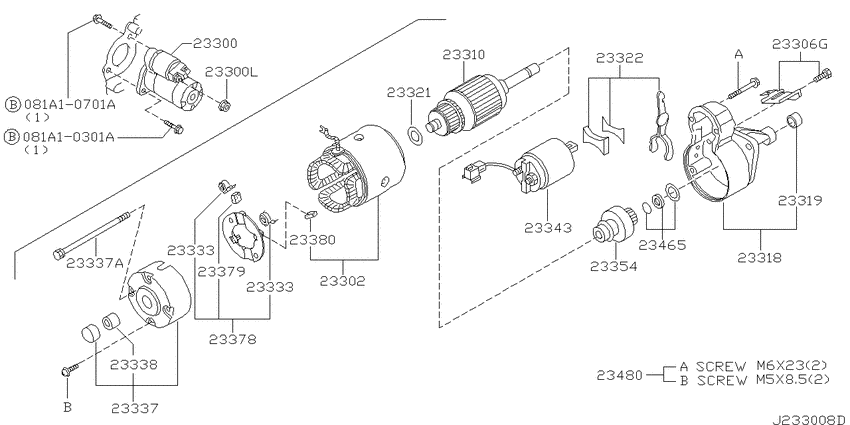

Starter motor (2002-10-01 ~ ; 三菱; QG18DE) Diagram Nissan TINO
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QG18DE
- transmission
- AT.R4
- grade
- J
- body
- W
- capacity
- 5P
- gas/hyb
- GAS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A10301A
|
081A10301A
081A10301A ﾎﾞﾙﾄ |
081A10301A |
US $3.22 |
||
|
081A10701A
|
081A10701A
081A1-0701A
ﾎﾞﾙﾄ
|
081A1-0701A |
— | ||
|
23300
|
23300
23300-0M302 Motor Assy-Starter9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23300-0M302 |
US $994.03 |
||
|
23300
|
23300
23300-73Y10 Motor Assy-Starter9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23300-73Y10 |
US $634.37 |
||
|
23300
|
23300
0122100381 NUT9812--01 ~ 9912--01; QG18DE |
0122100381 |
US $7.91 |
||
|
23300L
|
23300L
0122100381 NUT9812--01 ~ 9912--01; QG18DE |
0122100381 |
US $7.91 |
||
|
23302
|
23302
23302-2J200 Yoke Assy9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23302-2J200 |
US $253.44 |
||
| replacement | |||||
|
23302
|
23302
23302-0M30A Yoke Assy9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23302-0M30A |
US $253.44 |
||
|
23302
|
23302
23302-73Y10 Yoke Assy9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23302-73Y10 |
US $233.28 |
||
|
23306G
|
23306G
23347-73Y00 Plate-Connecting9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23347-73Y00 |
US $28.51 |
||
|
23306G
|
23306G
23347-81N10 Plate-Connecting9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23347-81N10 |
US $26.21 |
||
|
23310
|
23310
2331031U00 Armature Assy9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
2331031U00 |
US $283.68 |
||
|
23310
|
23310
23310-41B70 Armature Assy9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23310-41B70 |
US $298.78 |
||
|
23318
|
23318
23318-0M200 Case Assy-Gear9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23318-0M200 |
US $139.68 |
||
|
23318
|
23318
23318-73Y12 Case Assy-Gear9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23318-73Y12 |
US $111.74 |
||
|
23319
|
23319
23319-97E00 METAL-GEAR CASE9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23319-97E00 |
US $11.66 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23321
|
23321
233200M300 Washer Set-Thrust9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
233200M300 |
US $6.34 |
||
|
23321
|
23321
23460-M8011 Washer Set-Thrust9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23460-M8011 |
US $7.92 |
||
|
23322
|
23322
23322-06E10 LEVER SET-SHIFT9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23322-06E10 |
US $11.23 |
||
|
23322
|
23322
233220M300 Lever Set-Shift9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
233220M300 |
from US $19.30 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23333
|
23333
23333M1510 Spring-Brush9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23333
|
23333
23333M1510 Spring-Brush9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23337
|
23337
23337-0M300 Cover Assy-Rear9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23337-0M300 |
US $51.70 |
||
|
23337
|
23337
23337M8011 Cover Assy-Rear9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23337M8011 |
US $34.99 |
||
|
23337
|
23337
23340-M4900 Bolt-Through9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337
|
23337
23340-M8011 Bolt-Through9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23340-M8011 |
US $4.61 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-M8011 Bolt-Through9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23340-M8011 |
US $4.61 |
||
|
23338
|
23338
23338-M8011 Metal-Rear Cover9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23338-M8011 |
US $5.76 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23338
|
23338
2333897E00 BEARING-REAR COVER9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23343
|
23343
23343-73Y10 Switch Assy-Magnetic9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23343-73Y10 |
US $141.98 |
||
|
23343
|
23343
2334384A07 Switch Assy-Magnetic9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
2334384A07 |
US $155.52 |
||
| replacement | |||||
|
23343
|
23343
23343-0M30A Switch Assy-Magnetic9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23343-0M30A |
US $155.52 |
||
|
23354
|
23354
23354-42L11 Clutch Assy9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23354-42L11 |
US $110.45 |
||
|
23378
|
23378
23378-0M300 Holder Assy-Brush9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23378-0M300 |
US $54.43 |
||
|
23378
|
23378
23378-M8011 Holder Assy-Brush9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23378-M8011 |
from US $37.87 |
||
|
23379
|
23379
23379-0M300 Brush-Minus9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23379-0M300 |
US $10.08 |
||
|
23379
|
23379
23380M8311 Brush-Minus9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23380M8311 |
US $11.09 |
||
|
23380
|
23380
23380-0M300 Brush-Plus9812--01 ~ 9912--01; QG18DE; ﾋﾀﾁ |
23380-0M300 |
US $15.98 |
||
|
23380
|
23380
23380M8310 Brush-Plus9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23380M8310 |
US $9.36 |
||
|
23465
|
23465
23465M8011 Stopper Set-Pinion9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23465M8011 |
US $8.35 |
||
|
23480
|
23480
23480-M0110 Screw Set9912--01 ~ 0210--01; QG18DE; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
