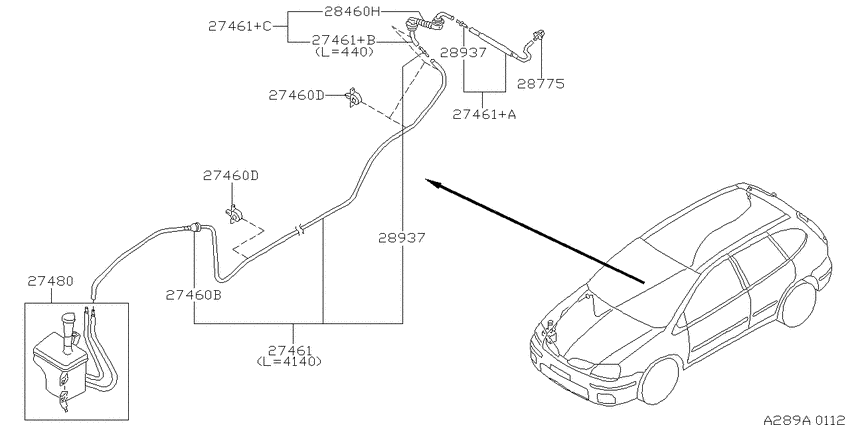

Windshield washer (2002-10-01 ~ ; リヤウォッシャー; W) Diagram Nissan TINO
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QG18DE
- transmission
- AT.R4
- grade
- J
- body
- W
- capacity
- 5P
- gas/hyb
- GAS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27460B
|
27460B
01651-00601 GROMMET9812--01 ~ 0003--01; W |
01651-00601 |
US $2.45 |
||
|
27460D
|
27460D
2894501E00 CLIP9902--01 ~ 0003--01; W; ﾌﾛﾝﾄ |
2894501E00 |
US $0.86 |
||
|
27460D
|
27460D
28945-30Y00
Clip
9902--01 ~ 0003--01; W; ｾﾝﾀｰ |
28945-30Y00 |
— | ||
| replacement | |||||
|
27460D
|
27460D
2894530Y10 Clip9902--01 ~ 0003--01; W; ｾﾝﾀｰ |
2894530Y10 |
US $4.30 |
||
|
27460D
|
27460D
2894501E00 CLIP9902--01 ~ 0003--01; W; ﾌﾛﾝﾄ |
2894501E00 |
US $0.86 |
||
|
27460D
|
27460D
28945-30Y00
Clip
9902--01 ~ 0003--01; W; ｾﾝﾀｰ |
28945-30Y00 |
— | ||
| replacement | |||||
|
27460D
|
27460D
2894530Y10 Clip9902--01 ~ 0003--01; W; ｾﾝﾀｰ |
2894530Y10 |
US $4.30 |
||
|
27461
|
27461
28975-4U000
Hose-Washer
9812--01 ~ 0003--01; W; L=4140S/#B8940-89910 |
28975-4U000 |
— | ||
|
27461
|
27461
28975-4U010 Hose-Washer9812--01 ~ 0003--01; W |
28975-4U010 |
US $16.70 |
||
|
27461
|
27461
28940-4U000 Hose-Washer9812--01 ~ 0003--01; W; L=440 S/#B8940-89910 |
28940-4U000 |
US $21.31 |
||
|
27461
|
27461
28975-4U020 Hose-Washer9812--01 ~ 0003--01; W |
28975-4U020 |
US $23.18 |
||
|
27461+A
|
27461+A
28975-4U010 Hose-Washer9812--01 ~ 0003--01; W |
28975-4U010 |
US $16.70 |
||
|
27461+B
|
27461+B
28940-4U000 Hose-Washer9812--01 ~ 0003--01; W; L=440 S/#B8940-89910 |
28940-4U000 |
US $21.31 |
||
|
27461+C
|
27461+C
28975-4U020 Hose-Washer9812--01 ~ 0003--01; W |
28975-4U020 |
US $23.18 |
||
|
27480
|
27480
28910-4U000 Tank Assy-Windshield Washer9812--01 ~ 0003--01; W |
28910-4U000 |
US $195.84 |
||
|
27480
|
27480
28913-4U005 Cap-Windshield Washer Tank0210--01 ~ ; W |
28913-4U005 |
US $4.32 |
||
|
27480
|
27480
28913-65F10 Cap-Windshield Washer Tank9902--01 ~ 0003--01; W |
28913-65F10 |
US $3.60 |
||
| replacement | |||||
|
27480
|
27480
B891365F00 ｷﾔﾂﾌﾟ9902--01 ~ 0003--01; W |
B891365F00 |
US $4.03 |
||
|
28460H
|
28460H
24267-4U000 Grommet0003--01 ~ 0004--01; W.(QG18DE+SR20DE) |
24267-4U000 |
US $4.61 |
||
|
28775
|
28775
28970-4U010 Nozzle Assy-Rear Window Washer9812--01 ~ 0003--01; W |
28970-4U010 |
US $26.06 |
||
|
28937
|
28937
28937-40F00 Connector-Hose9812--01 ~ 0003--01; W |
28937-40F00 |
US $2.45 |
||
|
28937
|
28937
28937-40F00 Connector-Hose9812--01 ~ 0003--01; W |
28937-40F00 |
US $2.45 |
||
