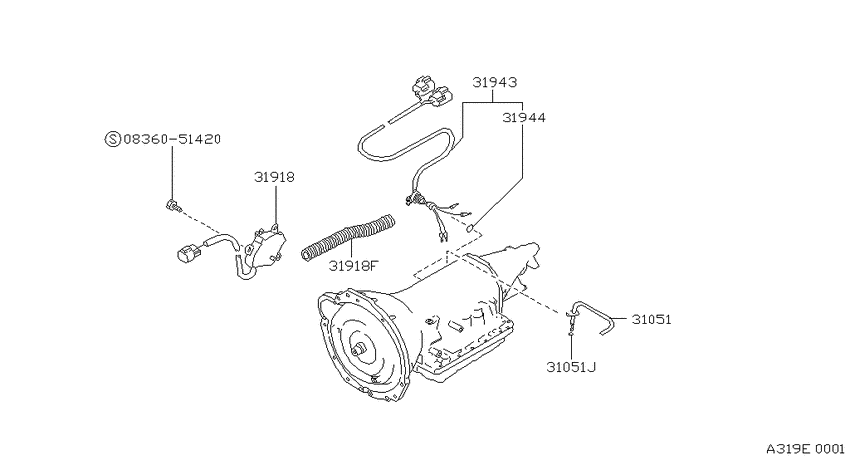

Control switch & system (1989-08-01 ~ ; KA24E.AT) Diagram Nissan TRUCK-HARDBODY
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Engine
- KA24E
- drive
- 2WD
- transmission
- AT
- body
- KC
- trim lvl
- DX/E
- length
- LB
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836051420
|
0836051420
08360-51420
M/screws
|
08360-51420 |
— | ||
|
31051
|
31051
31051-48X08
Wire Assy-Throttle
1992-07-01 ~ ; AT.R4 +KA24E.AT.F4; , |
31051-48X08 |
— | ||
|
31051
|
31051
31526-48X00 Seal-O Ring1992-07-01 ~ ; AT.R4 +KA24E.AT.F4; , |
31526-48X00 |
US $2.45 |
||
|
31051J
|
31051J
31526-48X00 Seal-O Ring1992-07-01 ~ ; AT.R4 +KA24E.AT.F4; , |
31526-48X00 |
US $2.45 |
||
|
31918
|
31918
31918-41X17 Switch Assy-Pnp(Inhibitor)1992-07-01 ~ ; AT.R4 +KA24E.AT.F4; , |
31918-41X17 |
US $82.66 |
||
| replacement | |||||
|
31918
|
31918
31918-43X04
Park/neutral position switch
1992-07-01 ~ ; AT.R4 +KA24E.AT.F4; , |
31918-43X04 |
— | ||
|
31918
|
31918
01121-00381 BOLT1985-11-01 ~ 1989-08-01; 2WD.AT; , |
01121-00381 |
US $1.73 |
||
|
31918
|
31918
24270-41X03 Protector-Harness1992-07-01 ~ ; AT.R4 +KA24E.AT.F4; , |
24270-41X03 |
US $10.80 |
||
|
31918F
|
31918F
24270-41X03 Protector-Harness1992-07-01 ~ ; AT.R4 +KA24E.AT.F4; , |
24270-41X03 |
US $10.80 |
||
|
31943
|
31943
31943-48X04 Terminal Assy1992-07-01 ~ 1993-07-01; AT.R4 +KA24E.AT.F4; , |
31943-48X04 |
US $110.59 |
||
|
31943
|
31943
31943-48X14 Terminal Assy1993-07-01 ~ ; AT.R4 +KA24E.AT.F4; , |
31943-48X14 |
US $110.59 |
||
|
31943
|
31943
31376-41X04 Clip-Harness1992-07-01 ~ 1993-07-01; :AT.R4 +2WD.LB.SE.AT.F4 +(FED.HD+CAL.HD).AT.F4 +KA24E.AT.F4; , |
31376-41X04 |
US $4.03 |
||
|
31944
|
31944
3152641X04 Seal-O Ring, Terminal1992-07-01 ~ ; AT.R4 +KA24E.AT.F4; , |
3152641X04 |
US $3.88 |
||
