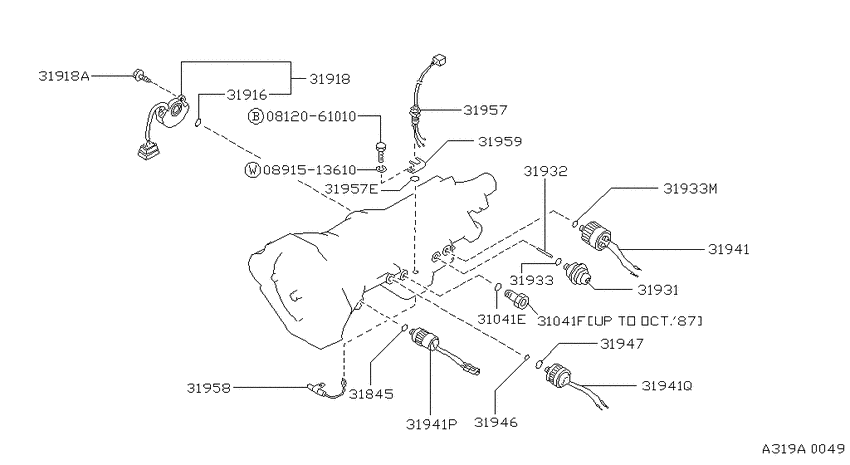

Control switch & system (1985-11-01 ~ 1989-08-01; 2WD.AT.F4+AT.R4) Diagram Nissan TRUCK-HARDBODY
- Year
- 1985 - 1989
- Sales region
- U.S.A.
- Engine
- VG30
- drive
- 2WD
- transmission
- AT
- body
- T
- trim lvl
- GST/SE
- length
- SB
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061010
|
0812061010
0812061010
Bolt-hexagon
|
0812061010 |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
31041E
|
31041E
31042-X8600 Seal-Ring, Oil Pressure Switch1985-11-01 ~ 1987-10-01; 2WD.AT; , |
31042-X8600 |
US $1.82 |
||
|
31041F
|
31041F
31041-X8570
Plug
1985-11-01 ~ 1987-10-01; 2WD.AT; , |
31041-X8570 |
— | ||
|
31845
|
31845
31947-X8600 Seal-O Ring, Overdrive Release Solenoid1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31947-X8600 |
US $2.64 |
||
|
31916
|
31916
31916-X0100 Seal-O Ring1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31916-X0100 |
US $0.72 |
||
|
31918
|
31918
31918-X2890
Park/neutral Position Switch
1985-11-01 ~ 1989-08-01; VG30.AT.R4 +2WD.VG30.AT.F4; , |
31918-X2890 |
— | ||
|
31918
|
31918
01121-00381 BOLT1985-11-01 ~ 1989-08-01; 2WD.AT; , |
01121-00381 |
US $1.73 |
||
|
31918A
|
31918A
01121-00381 BOLT1985-11-01 ~ 1989-08-01; 2WD.AT; , |
01121-00381 |
US $1.73 |
||
|
31931
|
31931
31931X0102 Diaphragm Assy-Vacuum1986-08-01 ~ 1989-08-01; VG30.2WD.AT; , |
31931X0102 |
US $48.39 |
||
|
31931
|
31931
31931-X0110
Diaphragm Assy-Vacuum
1985-11-01 ~ 1986-08-01; VG30.AT.R4 +2WD.VG30.AT.F4; , |
31931-X0110 |
— | ||
|
31932
|
31932
31932-X0100
Rod-Diaphragm
1985-11-01 ~ 1989-08-01; 2WD.AT; SELECT L=30.0 |
31932-X0100 |
— | ||
|
31932
|
31932
31932-X0101 Rod-Diaphragm1985-11-01 ~ 1989-08-01; 2WD.AT; SELECT L=31.0 |
31932-X0101 |
US $1.73 |
||
|
31932
|
31932
31932-X0102 Rod-Diaphragm1985-11-01 ~ 1989-08-01; 2WD.AT; SELECT L=30.5 |
31932-X0102 |
US $1.73 |
||
|
31932
|
31932
31932-X0103 Rod-Diaphragm1985-11-01 ~ 1989-08-01; 2WD.AT; SELECT L=29.0 |
31932-X0103 |
US $1.73 |
||
|
31932
|
31932
31932-X0104 Rod-Diaphragm1985-11-01 ~ 1989-08-01; 2WD.AT; SELECT L=29.5 |
31932-X0104 |
US $1.73 |
||
|
31933
|
31933
31933X0100 Seal-O Ring1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31933X0100 |
US $0.81 |
||
|
31933
|
31933
31933X0100 Seal-O Ring1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31933X0100 |
US $0.81 |
||
|
31933M
|
31933M
31933X0100 Seal-O Ring1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31933X0100 |
US $0.81 |
||
|
31941
|
31941
31941-X0106 Solenoid Assy-Down Shift1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31941-X0106 |
US $49.21 |
||
|
31941
|
31941
31941-P2012
Torque Converter Clutch Solenoid Valve
1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31941-P2012 |
— | ||
|
31941
|
31941
31945X8601 Solenoid Assy-Release Overdrive1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31945X8601 |
US $60.01 |
||
|
31941P
|
31941P
31941-P2012
Torque Converter Clutch Solenoid Valve
1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31941-P2012 |
— | ||
|
31941Q
|
31941Q
31945X8601 Solenoid Assy-Release Overdrive1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31945X8601 |
US $60.01 |
||
|
31946
|
31946
31946-X8600 Seal-O Ring, Overdrive Release Solenoid1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31946-X8600 |
US $2.64 |
||
|
31947
|
31947
31947-X8600 Seal-O Ring, Overdrive Release Solenoid1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31947-X8600 |
US $2.64 |
||
|
31957
|
31957
31957-X8773
Harness Assy-Transmission Case
1985-11-01 ~ 1989-08-01; VG30.2WD.AT; , |
31957-X8773 |
— | ||
|
31957
|
31957
31914-01X00 Seal-O Ring1985-11-01 ~ 1989-08-01; VG30.2WD.AT; , |
31914-01X00 |
US $2.45 |
||
|
31957
|
31957
31718-X8770 Clamp-Transmission Case Harness1985-11-01 ~ 1989-08-01; 2WD.AT; , |
31718-X8770 |
US $1.73 |
||
|
31957E
|
31957E
31914-01X00 Seal-O Ring1985-11-01 ~ 1989-08-01; VG30.2WD.AT; , |
31914-01X00 |
US $2.45 |
||
|
31958
|
31958
31958-X8771 Sensor-Temperature Oil1985-11-01 ~ 1989-08-01; VG30.2WD.AT; , |
31958-X8771 |
US $22.61 |
||
|
31959
|
31959
31959-X8770 Retainer-Oil Temperature Sensor1985-11-01 ~ 1989-08-01; VG30.2WD.AT; , |
31959-X8770 |
US $1.73 |
