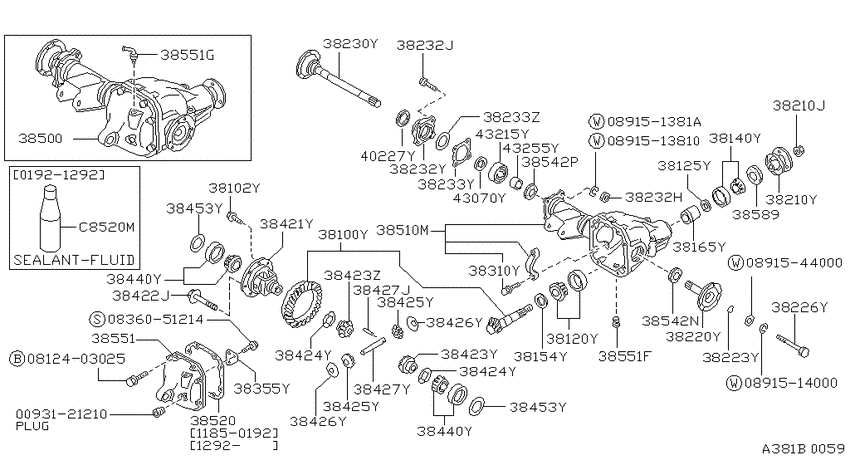

Front final drive (1985-11-01 ~ ; RC (R200); 4WD.VG30+VG30E) Diagram Nissan TRUCK-HARDBODY
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Engine
- VG30
- drive
- 4WD
- transmission
- AT
- body
- T
- trim lvl
- GST/SE
- length
- SB
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093121210
|
0093121210
00931-21210
ﾌﾟﾗｸﾞ,ｽﾚﾂﾄﾞ
|
00931-21210 |
— | ||
|
0812403025
|
0812403025
08124-03025
Bolt-hexagon
|
08124-03025 |
— | ||
|
0836051214
|
0836051214
08360-51214
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51214 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891514000
|
0891514000
08915-14000
Пружинная шайба
|
08915-14000 |
— | ||
|
0891544000
|
0891544000
08915-44000
Шайба
|
08915-44000 |
— | ||
|
38100Y
|
38100Y
38100-C6100 Gear Set-Final Drive1985-11-01 ~ 1986-04-01; 4WD.VG30; 37/9=4.111 M10 RING GEAR BOLT |
38100-C6100 |
US $614.54 |
||
|
38100Y
|
38100Y
38100-F3401 Gear Set-Final Drive1986-04-01 ~ 1986-08-01; 4WD.VG30; 37/9=4.111 M12 RING GEAR BOLT |
38100-F3401 |
US $562.15 |
||
| replacement | |||||
|
38100Y
|
38100Y
38100-F3480 Gear Set-Final Drive1986-04-01 ~ 1986-08-01; 4WD.VG30; 37/9=4.111 M12 RING GEAR BOLT |
38100-F3480 |
from US $573.48 |
||
|
38100Y
|
38100Y
38100-F3500 Gear Set-Final Drive1986-04-01 ~ 1987-07-01; *4WD.VG30; 35/8=4.375 M12 RING GEAR BOLT |
38100-F3500 |
US $573.48 |
||
| replacement | |||||
|
38100Y
|
38100Y
38100-F3580 Gear Set-Final Drive1986-04-01 ~ 1987-07-01; *4WD.VG30; 35/8=4.375 M12 RING GEAR BOLT |
38100-F3580 |
US $598.30 |
||
|
38100Y
|
38100Y
38100-F5601 Gear Set-Final Drive1987-09-01 ~ 1992-01-01; 0CAL.T.4WD.VG30.SB.SE.AT.F4 +4WD.VG30.LB.SE.AT.F4; 37/8=4.625 |
38100-F5601 |
US $573.48 |
||
|
38100Y
|
38100Y
38100-R8160 Gear Set-Final Drive1985-11-01 ~ 1986-04-01; *4WD.VG30; 35/8=4.375 M10 RING GEAR BOLT |
38100-R8160 |
US $614.54 |
||
|
38102Y
|
38102Y
3810212S00 Bolt-Drive Gear1986-04-01 ~ 1992-01-01; 4WD.VG30 +4WD.VG30E; M12 RING GEAR BOLT |
3810212S00 |
from US $1.85 |
||
|
38102Y
|
38102Y
38102N3100 Bolt-Drive Gear1985-11-01 ~ 1986-04-01; 4WD.VG30; M10 RING GEAR BOLT |
38102N3100 |
US $4.16 |
||
|
38120Y
|
38120Y
38120-06P00
Bearing-Drive Pinion, Rear
1986-04-01 ~ 1989-08-01; 4WD.VG30; , |
38120-06P00 |
— | ||
| replacement | |||||
|
38120Y
|
38120Y
38120-06P10 Bearing-Drive Pinion, Rear1986-04-01 ~ 1989-08-01; 4WD.VG30; , |
38120-06P10 |
US $30.80 |
||
|
38120Y
|
38120Y
3812061000 Bearing-Drive Pinion, Rear1985-11-01 ~ 1986-04-01; 4WD.VG30; , |
3812061000 |
from US $32.66 |
||
|
38125Y
|
38125Y
3812561001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; 4WD.VG30 +4WD.VG30E; SELECT T=3.81 |
3812561001 |
US $4.85 |
||
|
38125Y
|
38125Y
3812661001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; 4WD.VG30 +4WD.VG30E; SELECT T=3.83 |
3812661001 |
US $4.71 |
||
|
38125Y
|
38125Y
3812761001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; 4WD.VG30 +4WD.VG30E; SELECT T=3.85 |
3812761001 |
US $4.85 |
||
|
38125Y
|
38125Y
38128-61001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; 4WD.VG30 +4WD.VG30E; SELECT T=3.87 |
38128-61001 |
US $4.85 |
||
|
38125Y
|
38125Y
3812961001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.89 |
3812961001 |
US $4.42 |
||
|
38125Y
|
38125Y
3813061001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.91 |
3813061001 |
US $4.85 |
||
|
38125Y
|
38125Y
3813161001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.93 |
3813161001 |
US $4.85 |
||
|
38125Y
|
38125Y
38132-61001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.95 |
38132-61001 |
US $4.85 |
||
|
38125Y
|
38125Y
38133-61001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.97 |
38133-61001 |
US $4.18 |
||
|
38125Y
|
38125Y
3813461001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.99 |
3813461001 |
US $4.85 |
||
|
38125Y
|
38125Y
3813561001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=4.01 |
3813561001 |
US $4.85 |
||
|
38125Y
|
38125Y
38136-61001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=4.03 |
38136-61001 |
US $4.85 |
||
|
38125Y
|
38125Y
38137-61001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=4.05 |
38137-61001 |
US $4.18 |
||
|
38125Y
|
38125Y
38138-61001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=4.07 |
38138-61001 |
US $3.46 |
||
|
38125Y
|
38125Y
38139-61001 Washer-Adjust, Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=4.09 |
38139-61001 |
US $4.85 |
||
|
38140Y
|
38140Y
3812013201 Bearing-Drive Pinion, Front1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
3812013201 |
US $49.22 |
||
|
38154Y
|
38154Y
38154-P6017 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.09 |
38154-P6017 |
from US $8.34 |
||
|
38154Y
|
38154Y
38154-P6018 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.12 |
38154-P6018 |
US $8.78 |
||
|
38154Y
|
38154Y
38154-P6019 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.15 |
38154-P6019 |
US $8.78 |
||
|
38154Y
|
38154Y
38154-P6020 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.18 |
38154-P6020 |
from US $8.30 |
||
|
38154Y
|
38154Y
38154-P6021 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.21 |
38154-P6021 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6022 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.24 |
38154-P6022 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6023 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.27 |
38154-P6023 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6024 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.30 |
38154-P6024 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6025 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.33 |
38154-P6025 |
US $10.08 |
||
|
38154Y
|
38154Y
38154P6026 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.36 |
38154P6026 |
US $10.08 |
||
|
38154Y
|
38154Y
38154P6027 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.39 |
38154P6027 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6028 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.42 |
38154-P6028 |
US $9.52 |
||
|
38154Y
|
38154Y
38154-P6029 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.45 |
38154-P6029 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6030 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.48 |
38154-P6030 |
from US $10.08 |
||
|
38154Y
|
38154Y
38154-P6031 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.51 |
38154-P6031 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6032 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.54 |
38154-P6032 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6033 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.57 |
38154-P6033 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6034 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.60 |
38154-P6034 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6035 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.63 |
38154-P6035 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6036 Washer-Adjust, Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=3.66 |
38154-P6036 |
US $9.52 |
||
|
38165Y
|
38165Y
3816561001 Spacer-Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT L=56.00 |
3816561001 |
US $11.35 |
||
|
38165Y
|
38165Y
38165B4000 Spacer-Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT L=54.50 |
38165B4000 |
US $12.67 |
||
|
38165Y
|
38165Y
38165B4001 Spacer-Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT L=54.80 |
38165B4001 |
US $12.67 |
||
|
38165Y
|
38165Y
38165B4002 Spacer-Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT L=55.10 |
38165B4002 |
US $15.26 |
||
|
38165Y
|
38165Y
38165-B4003 Spacer-Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT L=55.40 |
38165-B4003 |
US $14.54 |
||
|
38165Y
|
38165Y
38165-B4004 Spacer-Drive Pinion Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT L=55.70 |
38165-B4004 |
US $14.54 |
||
|
38210J
|
38210J
38216-U3000
Nut
1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38216-U3000 |
— | ||
| replacement | |||||
|
38210J
|
38210J
38216-U301A Nut-Drive Pinion1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38216-U301A |
US $4.99 |
||
|
38210Y
|
38210Y
38210-21G10 Flange Assy-Companion1985-11-01 ~ 1991-07-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38210-21G10 |
US $69.12 |
||
|
38210Y
|
38210Y
38210-21G15 Flange Assy-Companion1991-07-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38210-21G15 |
US $84.41 |
||
|
38220Y
|
38220Y
38220-21G00 Flange Assy-Side1985-11-01 ~ 1989-08-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38220-21G00 |
US $161.28 |
||
|
38220Y
|
38220Y
38220-46G00 Flange Assy-Side1989-08-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38220-46G00 |
US $259.20 |
||
|
38223Y
|
38223Y
3822321000 Seal-O Ring, Side Flange1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
3822321000 |
US $0.58 |
||
| replacement | |||||
|
38223Y
|
38223Y
33125Z5002
O ring
1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
33125Z5002 |
— | ||
|
38226Y
|
38226Y
38226-21G00 Bolt-Fix Side Flange1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38226-21G00 |
US $4.18 |
||
|
38230Y
|
38230Y
38230-21G00 Shaft Assy-Side, Differential1985-11-01 ~ 1989-08-01; 4WD.VG30; , |
38230-21G00 |
US $178.56 |
||
|
38232H
|
38232H
0122500161 NUT-FIX PROPELLER SHAFT1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
0122500161 |
US $3.06 |
||
|
38232J
|
38232J
01111-00281 BOLT-FIX PROPELLER SHAFT1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
01111-00281 |
US $3.06 |
||
|
38232Y
|
38232Y
38232-01G00 Retainer-Extension Tube1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38232-01G00 |
US $62.38 |
||
|
38233Y
|
38233Y
3823301G10 Shim-Adjust, Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
3823301G10 |
US $7.49 |
||
|
38233Z
|
38233Z
3823301G11 Shim-Adjust, Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=0.1 |
3823301G11 |
US $3.46 |
||
|
38233Z
|
38233Z
38233-01G12 Shim-Adjust, Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=0.2 |
38233-01G12 |
US $4.18 |
||
|
38233Z
|
38233Z
3823301G13 Shim-Adjust, Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=0.3 |
3823301G13 |
US $4.18 |
||
|
38233Z
|
38233Z
38233-01G14 Shim-Adjust, Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=0.4 |
38233-01G14 |
US $4.18 |
||
|
38310Y
|
38310Y
38315-N3100 Bolt-Bearing Cap1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38315-N3100 |
US $4.71 |
||
|
38355Y
|
38355Y
38355-01G00 Defense-Gear Oil1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38355-01G00 |
US $4.75 |
||
|
38421Y
|
38421Y
38421-12S00 Case-Differential1986-04-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; M12 RING GEAR BOLT |
38421-12S00 |
US $208.80 |
||
|
38421Y
|
38421Y
38421-P9000 Case-Differential1985-11-01 ~ 1986-04-01; 4WD.VG30; M10 RING GEAR BOLT |
38421-P9000 |
US $208.80 |
||
|
38423Y
|
38423Y
38423C6100 Gear-Side1985-11-01 ~ 1989-08-01; 4WD.VG30; , |
38423C6100 |
US $145.55 |
||
|
38423Z
|
38423Z
38422-21G00
Gear-Side
1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38422-21G00 |
— | ||
|
38423Z
|
38423Z
38428-21G00 Gear-Side1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38428-21G00 |
US $72.29 |
||
|
38424Y
|
38424Y
38424-N3100
Washer-Thrust, Side Gear
1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.75-0.80 |
38424-N3100 |
— | ||
| replacement | |||||
|
38424Y
|
38424Y
38424-81X00 Washer-Thrust, Side Gear1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.75-0.80 |
38424-81X00 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-N3101
Washer-Thrust, Side Gear
1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.80-0.85 |
38424-N3101 |
— | ||
| replacement | |||||
|
38424Y
|
38424Y
38424-81X01 Washer-Thrust, Side Gear1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.80-0.85 |
38424-81X01 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-N3102
Washer-Thrust, Side Gear
1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.85-0.90 |
38424-N3102 |
— | ||
| replacement | |||||
|
38424Y
|
38424Y
38424-81X02 Washer-Thrust, Side Gear1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.85-0.90 |
38424-81X02 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-N3100
Washer-Thrust, Side Gear
1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.75-0.80 |
38424-N3100 |
— | ||
| replacement | |||||
|
38424Y
|
38424Y
38424-81X00 Washer-Thrust, Side Gear1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.75-0.80 |
38424-81X00 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-N3101
Washer-Thrust, Side Gear
1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.80-0.85 |
38424-N3101 |
— | ||
| replacement | |||||
|
38424Y
|
38424Y
38424-81X01 Washer-Thrust, Side Gear1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.80-0.85 |
38424-81X01 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-N3102
Washer-Thrust, Side Gear
1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.85-0.90 |
38424-N3102 |
— | ||
| replacement | |||||
|
38424Y
|
38424Y
38424-81X02 Washer-Thrust, Side Gear1985-11-01 ~ 1989-08-01; 4WD.VG30; SELECT T=0.85-0.90 |
38424-81X02 |
US $4.85 |
||
|
38425Y
|
38425Y
38425-N3100
Pinion-Mate
1985-11-01 ~ 1989-08-01; 4WD.VG30; , |
38425-N3100 |
— | ||
|
38425Y
|
38425Y
38425-N3100
Pinion-Mate
1985-11-01 ~ 1989-08-01; 4WD.VG30; , |
38425-N3100 |
— | ||
|
38426Y
|
38426Y
38426-P9000
Washer-Thrust, Pinion Mate
1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38426-P9000 |
— | ||
| replacement | |||||
|
38426Y
|
38426Y
38426P9001 Washer-Thrust, Pinion Mate1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38426P9001 |
US $4.30 |
||
|
38426Y
|
38426Y
38426-P9000
Washer-Thrust, Pinion Mate
1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38426-P9000 |
— | ||
| replacement | |||||
|
38426Y
|
38426Y
38426P9001 Washer-Thrust, Pinion Mate1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38426P9001 |
US $4.30 |
||
|
38427J
|
38427J
38428U1500 Pin-Lock, Pinion Shaft1985-11-01 ~ 1989-08-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38428U1500 |
from US $0.54 |
||
|
38427Y
|
38427Y
38427-N3102 Shaft-Pinion Mate1985-11-01 ~ 1988-09-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38427-N3102 |
US $59.33 |
||
|
38440Y
|
38440Y
38440-N3100 Bearing-Differential Side1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38440-N3100 |
US $40.18 |
||
|
38440Y
|
38440Y
38440-N3100 Bearing-Differential Side1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38440-N3100 |
US $40.18 |
||
|
38453Y
|
38453Y
38453N3100 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.00 |
38453N3100 |
from US $9.44 |
||
|
38453Y
|
38453Y
38453N3101 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.05 |
38453N3101 |
from US $10.58 |
||
|
38453Y
|
38453Y
38453N3102 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.10 |
38453N3102 |
from US $9.97 |
||
|
38453Y
|
38453Y
38453N3103 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.15 |
38453N3103 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3104 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.20 |
38453N3104 |
US $12.05 |
||
|
38453Y
|
38453Y
38453N3105 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.25 |
38453N3105 |
from US $10.95 |
||
|
38453Y
|
38453Y
38453N3106 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.30 |
38453N3106 |
from US $9.56 |
||
|
38453Y
|
38453Y
38453N3107 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.35 |
38453N3107 |
from US $10.73 |
||
|
38453Y
|
38453Y
38453N3108 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.40 |
38453N3108 |
US $12.05 |
||
|
38453Y
|
38453Y
38453N3109 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.45 |
38453N3109 |
US $12.05 |
||
|
38453Y
|
38453Y
38453N3110 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.50 |
38453N3110 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3111 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.55 |
38453N3111 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3112 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.60 |
38453N3112 |
from US $9.86 |
||
|
38453Y
|
38453Y
38453N3100 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.00 |
38453N3100 |
from US $9.44 |
||
|
38453Y
|
38453Y
38453N3101 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.05 |
38453N3101 |
from US $10.58 |
||
|
38453Y
|
38453Y
38453N3102 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.10 |
38453N3102 |
from US $9.97 |
||
|
38453Y
|
38453Y
38453N3103 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.15 |
38453N3103 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3104 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.20 |
38453N3104 |
US $12.05 |
||
|
38453Y
|
38453Y
38453N3105 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.25 |
38453N3105 |
from US $10.95 |
||
|
38453Y
|
38453Y
38453N3106 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.30 |
38453N3106 |
from US $9.56 |
||
|
38453Y
|
38453Y
38453N3107 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.35 |
38453N3107 |
from US $10.73 |
||
|
38453Y
|
38453Y
38453N3108 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.40 |
38453N3108 |
US $12.05 |
||
|
38453Y
|
38453Y
38453N3109 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.45 |
38453N3109 |
US $12.05 |
||
|
38453Y
|
38453Y
38453N3110 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.50 |
38453N3110 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3111 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.55 |
38453N3111 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3112 Shim-Adjust, Side Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; SELECT T=2.60 |
38453N3112 |
from US $9.86 |
||
|
38500
|
38500
38500-25GJ7
Final Drive Assy-Front
1985-11-01 ~ 1986-08-01; 4WD.VG30; RC41 37/9=4.111 |
38500-25GJ7 |
— | ||
|
38500
|
38500
38500-26GK7
Final Drive Assy-Front
1985-11-01 ~ 1987-07-01; *4WD.VG30; RC43 35/8=4.375 |
38500-26GK7 |
— | ||
|
38500
|
38500
38500-27GM7
Final Drive Assy-Front
1988-08-01 ~ 1988-10-01; 4WD.VG30.(SB.SE+LB.SE).AT.F4; RC46 37/8=4.625 |
38500-27GM7 |
— | ||
|
38500
|
38500
38500-27GT7 Final Drive Assy-Front1988-08-01 ~ 1989-08-01; 4WD.VG30.(SB.SE+LB.SE).AT.F4; RC46 37/8=4.625 |
38500-27GT7 |
US $2,310 |
||
|
38510M
|
38510M
38310-21G25 Carrier Compl-Gear, W/extension Tube1985-11-01 ~ 1989-08-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38310-21G25 |
US $533.83 |
||
|
38510M
|
38510M
38310-21G26 Carrier Compl-Gear, W/extension Tube1985-11-01 ~ 1989-08-01; 4WD.VG30; , |
38310-21G26 |
US $916.15 |
||
|
38520
|
38520
38353-21G00 Gasket-Gear Carrier1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38353-21G00 |
US $29.23 |
||
| replacement | |||||
|
38520
|
38520
38320-21G01
Gasket-gear carrier
1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38320-21G01 |
— | ||
|
38542N
|
38542N
38342N3100 Seal-Oil, Side Flange1985-11-01 ~ 1992-01-01; %4WD.(VG30E+VG30) +FED.Z24.4WD.T.LB.DX; , |
38342N3100 |
from US $4.92 |
||
|
38542P
|
38542P
43252H1000 Seal-Oil, Rear Axle Shaft1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
43252H1000 |
from US $5.04 |
||
|
38542P
|
38542P
43252-H1010 Seal-Oil, Rear Axle Shaft1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
43252-H1010 |
US $6.77 |
||
|
38551
|
38551
38350-21G00 Cover-Front, Final Drive1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38350-21G00 |
US $93.02 |
||
|
38551
|
38551
38350-21G50
Cover-Front, Final Drive
1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38350-21G50 |
— | ||
|
38551
|
38551
32103-U8401
Plug-Drain
1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
32103-U8401 |
— | ||
| replacement | |||||
|
38551
|
38551
32103U840A Plug-Drain1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
32103U840A |
from US $5.55 |
||
|
38551
|
38551
38356-01G00 Breather-Final Drive1986-02-01 ~ 1987-04-01; 4WD.VG30; , |
38356-01G00 |
US $10.37 |
||
|
38551
|
38551
38356-01G10 Breather-Final Drive1987-04-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38356-01G10 |
US $12.20 |
||
|
38551
|
38551
38356-41W71 Breather-Final Drive1985-11-01 ~ 1986-02-01; 4WD.VG30; , |
38356-41W71 |
US $10.37 |
||
|
38551F
|
38551F
32103-U8401
Plug-Drain
1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
32103-U8401 |
— | ||
| replacement | |||||
|
38551F
|
38551F
32103U840A Plug-Drain1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
32103U840A |
from US $5.55 |
||
|
38551G
|
38551G
38356-01G00 Breather-Final Drive1986-02-01 ~ 1987-04-01; 4WD.VG30; , |
38356-01G00 |
US $10.37 |
||
|
38551G
|
38551G
38356-01G10 Breather-Final Drive1987-04-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38356-01G10 |
US $12.20 |
||
|
38551G
|
38551G
38356-41W71 Breather-Final Drive1985-11-01 ~ 1986-02-01; 4WD.VG30; , |
38356-41W71 |
US $10.37 |
||
|
38589
|
38589
38189-21G00
Seal-Oil, Drive Pinion
1986-05-01 ~ 1991-07-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38189-21G00 |
— | ||
| replacement | |||||
|
38589
|
38589
C818921G00 SEALOIL DRIVE1986-05-01 ~ 1991-07-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
C818921G00 |
US $10.86 |
||
|
38589
|
38589
38189-N3100
Seal-Oil, Transfer Cover
1985-11-01 ~ 1986-05-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
38189-N3100 |
— | ||
| replacement | |||||
|
38589
|
38589
C8189N3100 SEAL OIL1985-11-01 ~ 1986-05-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
C8189N3100 |
from US $6.88 |
||
|
40227Y
|
40227Y
4022731G00 Seal-Grease, Side Shaft1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
4022731G00 |
from US $9.59 |
||
|
43070Y
|
43070Y
4307001L00 Spacer-Rear Axle Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
4307001L00 |
from US $3.02 |
||
|
43215Y
|
43215Y
43215H5000 Bearing-Rear Axle, Outer1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
43215H5000 |
from US $48.10 |
||
|
43255Y
|
43255Y
43255H1000 Collar-Bearing1985-11-01 ~ 1992-01-01; KC.4WD.VG30E +4WD.VG30 +T.VG30E; , |
43255H1000 |
from US $15.47 |
||
