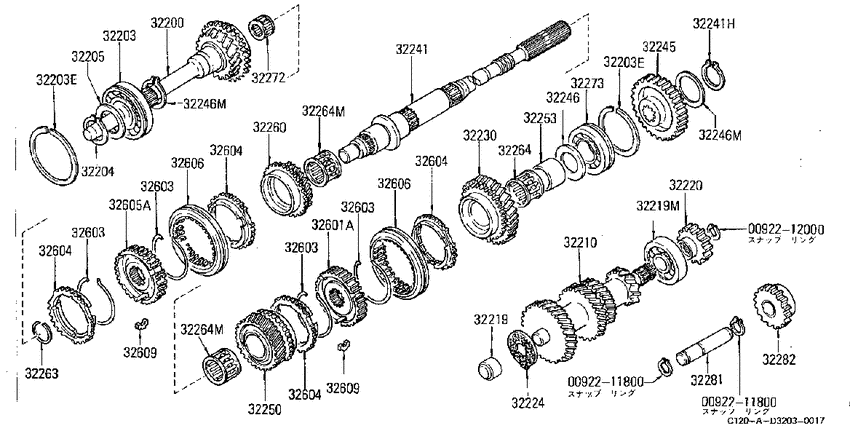

Transmission gear (1981-06-01 ~ ; (R4W60L); A15.R4) Diagram Nissan VANETTE
- Year
- 1980 - 2012
- Sales region
- Japan
- Engine
- A15S
- Number of doors
- 4
- grade
- DX
- body
- LK
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092211800
|
0092211800
00922-11800 RING-SNAP |
00922-11800 |
US $2.45 |
||
|
0092211800
|
0092211800
00922-11800 RING-SNAP |
00922-11800 |
US $2.45 |
||
|
0092212000
|
0092212000
00922-12000
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-12000 |
— | ||
|
32200
|
32200
32200-H7300 Gear Assy-Main Drive7810--01 ~ 7907--01; T+K |
32200-H7300 |
US $167.04 |
||
|
32203
|
32203
32203-H7300 Bearing-Main Drive7810--01 ~ 7907--01; T+K |
32203-H7300 |
US $17.42 |
||
|
32203
|
32203
32214-H7300 Ring-Main Bearing7810--01 ~ 7907--01; T+K |
32214-H7300 |
US $4.03 |
||
|
32203E
|
32203E
32214-H7300 Ring-Main Bearing7810--01 ~ 7907--01; T+K |
32214-H7300 |
US $4.03 |
||
|
32203E
|
32203E
32214-H7300 Ring-Main Bearing7810--01 ~ 7907--01; T+K |
32214-H7300 |
US $4.03 |
||
|
32204
|
32204
32204-H7300 Ring-Snap7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.34-1.40 |
32204-H7300 |
US $4.03 |
||
|
32204
|
32204
32204-H7301 Ring-Snap7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.40-1.46 |
32204-H7301 |
US $4.03 |
||
|
32204
|
32204
32204-H7302
Ring-Snap
7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.46-1.52 |
32204-H7302 |
— | ||
| replacement | |||||
|
32204
|
32204
C2204-H7300 SEAL O RING7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.46-1.52 |
C2204-H7300 |
US $4.42 |
||
|
32204
|
32204
32204-H7303
Ring-Snap
7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.52-1.58 |
32204-H7303 |
— | ||
| replacement | |||||
|
32204
|
32204
C2204-H7300 SEAL O RING7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.52-1.58 |
C2204-H7300 |
US $4.42 |
||
|
32204
|
32204
32204-H7304
Ring-Snap
7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.58-1.64 |
32204-H7304 |
— | ||
| replacement | |||||
|
32204
|
32204
C2204-H7300 SEAL O RING7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.58-1.64 |
C2204-H7300 |
US $4.42 |
||
|
32204
|
32204
32204-H7305 Ring-Snap7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.64-1.70 |
32204-H7305 |
US $4.03 |
||
|
32204
|
32204
32204-H7306 Ring-Snap7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.70-1.76 |
32204-H7306 |
US $4.03 |
||
|
32205
|
32205
32209-H7300 Spacer-Bearing, Main Drive Gear7810--01 ~ 7907--01; T+K |
32209-H7300 |
US $2.45 |
||
|
32210
|
32210
32210-G2800 Gear Assy-Counter7810--01 ~ 8006--01; (V,T).A14+K |
32210-G2800 |
US $252 |
||
|
32210
|
32210
32210-G2805 Gear Assy-Counter8006--01 ~ 8106--01; (A14,A15).MT |
32210-G2805 |
US $190.08 |
||
|
32219
|
32219
32219-H9700 Bearing-Counter Shaft7810--01 ~ 7907--01; T+K |
32219-H9700 |
US $16.42 |
||
|
32219
|
32219
32219-H7300 Bearing-Counter Shaft7810--01 ~ 7907--01; T+K |
32219-H7300 |
US $49.54 |
||
|
32219
|
32219
32219-H8900 Bearing-Counter Shaft8106--01 ~ 8508--01; T.DX.A12.R4 A15.R4 |
32219-H8900 |
US $31.82 |
||
|
32219M
|
32219M
32219-H7300 Bearing-Counter Shaft7810--01 ~ 7907--01; T+K |
32219-H7300 |
US $49.54 |
||
|
32219M
|
32219M
32219-H8900 Bearing-Counter Shaft8106--01 ~ 8508--01; T.DX.A12.R4 A15.R4 |
32219-H8900 |
US $31.82 |
||
|
32220
|
32220
32220-G3400 Gear-Reverse, Counter8203--01 ~ 8508--01; T.DX.A12.R4 A15.R4 |
32220-G3400 |
US $41.76 |
||
|
32220
|
32220
32220-H7300 Gear-Reverse, Counter7810--01 ~ 7907--01; T+K; 14T |
32220-H7300 |
US $47.38 |
||
|
32220
|
32220
32220-H7305 Gear-Reverse, Counter7907--01 ~ 8106--01; T.DX+V.A14+K.MT; 14T |
32220-H7305 |
US $47.38 |
||
|
32224
|
32224
32224-H7200 Washer-Thrust, Counter Shaft7810--01 ~ 8106--01; ALL; ｾﾝﾀｸ T=2.30-2.35 |
32224-H7200 |
US $7.34 |
||
|
32224
|
32224
32224-H7201 Washer-Thrust, Counter Shaft7810--01 ~ 8106--01; ALL; ｾﾝﾀｸ T=2.35-2.40 |
32224-H7201 |
US $5.04 |
||
|
32224
|
32224
32224-H7202 Washer-Thrust, Counter Shaft7810--01 ~ 8106--01; ALL; ｾﾝﾀｸ T=2.40-2.45 |
32224-H7202 |
US $5.04 |
||
|
32224
|
32224
32224-H7203
Washer-Thrust, Counter Shaft
7810--01 ~ 8106--01; ALL; ｾﾝﾀｸ T=2.45-2.50 |
32224-H7203 |
— | ||
| replacement | |||||
|
32224
|
32224
C2224-H7201 BOLT-MOUNTING7810--01 ~ 8106--01; ALL; ｾﾝﾀｸ T=2.45-2.50 |
C2224-H7201 |
US $5.49 |
||
|
32224
|
32224
32224-H7204 Washer-Thrust, Counter Shaft7810--01 ~ 8106--01; ALL; ｾﾝﾀｸ T=2.50-2.55 |
32224-H7204 |
US $6.24 |
||
|
32224
|
32224
32224-H7205
Washer-Thrust, Counter Shaft
7810--01 ~ 8106--01; ALL; ｾﾝﾀｸ T=2.55-2.60 |
32224-H7205 |
— | ||
|
32224
|
32224
32224-H7206 Washer-Thrust, Counter Shaft7810--01 ~ 8106--01; ALL; ｾﾝﾀｸ T=2.25-2.30 |
32224-H7206 |
US $7.34 |
||
|
32224
|
32224
32224-H7207 Washer-Thrust, Counter Shaft7810--01 ~ 8106--01; ALL; ｾﾝﾀｸ T=2.20-2.25 |
32224-H7207 |
US $7.34 |
||
|
32230
|
32230
32230-H7300 Gear Assy-1St, Main Shaft7810--01 ~ 8006--01; T.A14+K |
32230-H7300 |
US $98.21 |
||
|
32241
|
32241
32241-G2800 Shaft-Main7810--01 ~ 8006--01; K |
32241-G2800 |
US $243.36 |
||
|
32241
|
32241
32204-18000 Ring-Snap7810--01 ~ 7907--01; T+K |
32204-18000 |
US $3.18 |
||
|
32241H
|
32241H
32204-18000 Ring-Snap7810--01 ~ 7907--01; T+K |
32204-18000 |
US $3.18 |
||
|
32245
|
32245
32245-H7300 Gear-Reverse, Main Shaft7810--01 ~ 7907--01; T+K |
32245-H7300 |
US $60.48 |
||
|
32246
|
32246
32246-H7300 Washer-Thrust7810--01 ~ 7907--01; T+K |
32246-H7300 |
US $5.04 |
||
|
32246
|
32246
32205-H7300 Washer-Thrust, Main Shaft7810--01 ~ 7907--01; T+K |
32205-H7300 |
US $2.45 |
||
|
32246
|
32246
32246-H9700 Washer-Thrust, Main Shaft8508--01 ~ ; (A12,A15). |
32246-H9700 |
US $5.55 |
||
|
32246M
|
32246M
32205-H7300 Washer-Thrust, Main Shaft7810--01 ~ 7907--01; T+K |
32205-H7300 |
US $2.45 |
||
|
32246M
|
32246M
32246-H9700 Washer-Thrust, Main Shaft8508--01 ~ ; (A12,A15). |
32246-H9700 |
US $5.55 |
||
|
32246M
|
32246M
32205-H7300 Washer-Thrust, Main Shaft7810--01 ~ 7907--01; T+K |
32205-H7300 |
US $2.45 |
||
|
32246M
|
32246M
32246-H9700 Washer-Thrust, Main Shaft8508--01 ~ ; (A12,A15). |
32246-H9700 |
US $5.55 |
||
|
32250
|
32250
32250-H7300 Gear Assy-2Nd, Main Shaft7810--01 ~ 7907--01; T+K; 28T |
32250-H7300 |
US $76.61 |
||
|
32253
|
32253
32253-H7300 Bush-1St Gear7810--01 ~ 7907--01; T+K |
32253-H7300 |
US $11.87 |
||
|
32260
|
32260
32260-G3100 Gear Assy-3Rd, Main Shaft7810--01 ~ 7907--01; T+K |
32260-G3100 |
US $85.10 |
||
|
32263
|
32263
32268-H7300 Ring-Snap7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.60 |
32268-H7300 |
US $4.03 |
||
|
32263
|
32263
32268-H7301 Ring-Snap7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.65 |
32268-H7301 |
US $4.03 |
||
|
32263
|
32263
32268-H7302 Ring-Snap7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=1.70 |
32268-H7302 |
US $4.03 |
||
|
32264
|
32264
32267-H7300
Bearing-Needle, Main Shaft
7810--01 ~ 8006--01; T+K |
32267-H7300 |
— | ||
| replacement | |||||
|
32264
|
32264
32264-H7300 Bearing-Needle, Main Shaft7810--01 ~ 8006--01; T+K |
32264-H7300 |
US $9.72 |
||
|
32264
|
32264
32264-H7300 Bearing-Needle, Main Shaft7810--01 ~ 7907--01; T+K |
32264-H7300 |
US $9.72 |
||
|
32264M
|
32264M
32264-H7300 Bearing-Needle, Main Shaft7810--01 ~ 7907--01; T+K |
32264-H7300 |
US $9.72 |
||
|
32264M
|
32264M
32264-H7300 Bearing-Needle, Main Shaft7810--01 ~ 7907--01; T+K |
32264-H7300 |
US $9.72 |
||
|
32272
|
32272
32272-H7300
Bearing-Pilot, Main
7810--01 ~ 7907--01; T+K |
32272-H7300 |
— | ||
| replacement | |||||
|
32272
|
32272
32272-G3201 Bearing-Pilot, Main7810--01 ~ 7907--01; T+K |
32272-G3201 |
from US $8.68 |
||
|
32273
|
32273
32273-H7300 Bearing-Main Shaft7810--01 ~ 7907--01; T+K |
32273-H7300 |
US $19.30 |
||
|
32281
|
32281
32281-H7300 Shaft-Reverse Idler7810--01 ~ 7907--01; T+K |
32281-H7300 |
US $7.92 |
||
|
32282
|
32282
32280-G3400 Gear-Reverse Idler8203--01 ~ 8508--01; T.DX.A12.R4 A15.R4 |
32280-G3400 |
US $41.76 |
||
|
32282
|
32282
32280-H7300 Gear-Reverse Idler7810--01 ~ 7907--01; T+K |
32280-H7300 |
US $41.76 |
||
|
32282
|
32282
32280-H7305 Gear-Reverse Idler8105--01 ~ 8106--01; T.DX+V.A14+K.MT |
32280-H7305 |
US $41.76 |
||
|
32601A
|
32601A
32601-H7300 Hub-Synchronizer, 1St & 2Nd7810--01 ~ 7907--01; T+K |
32601-H7300 |
US $55.87 |
||
|
32603
|
32603
32603-18000 Spring-Synchronizer7810--01 ~ 7907--01; T+K |
32603-18000 |
from US $0.70 |
||
|
32603
|
32603
32603-18000 Spring-Synchronizer7810--01 ~ 7907--01; T+K |
32603-18000 |
from US $0.70 |
||
|
32603
|
32603
32603-18000 Spring-Synchronizer7810--01 ~ 7907--01; T+K |
32603-18000 |
from US $0.70 |
||
|
32603
|
32603
32603-18000 Spring-Synchronizer7810--01 ~ 7907--01; T+K |
32603-18000 |
from US $0.70 |
||
|
32604
|
32604
32604-H9000 Ring-Baulk7810--01 ~ 7907--01; T+K |
32604-H9000 |
US $33.28 |
||
|
32604
|
32604
32604-H9000 Ring-Baulk7810--01 ~ 7907--01; T+K |
32604-H9000 |
US $33.28 |
||
|
32604
|
32604
32604-H9000 Ring-Baulk7810--01 ~ 7907--01; T+K |
32604-H9000 |
US $33.28 |
||
|
32604
|
32604
32604-H9000 Ring-Baulk7810--01 ~ 7907--01; T+K |
32604-H9000 |
US $33.28 |
||
|
32605A
|
32605A
32601-H7301 Hub-Synchronizer, 1St & 2Nd7810--01 ~ 7907--01; T+K |
32601-H7301 |
US $55.87 |
||
|
32606
|
32606
32606-18000 Sleeve-Coupling7810--01 ~ 7907--01; T+K |
32606-18000 |
US $43.63 |
||
|
32606
|
32606
32606-18000 Sleeve-Coupling7810--01 ~ 7907--01; T+K |
32606-18000 |
US $43.63 |
||
|
32609
|
32609
3260918000 Insert-Shifting7810--01 ~ 7907--01; T+K |
3260918000 |
US $1.93 |
||
|
32609
|
32609
3260918000 Insert-Shifting7810--01 ~ 7907--01; T+K |
3260918000 |
US $1.93 |
||
