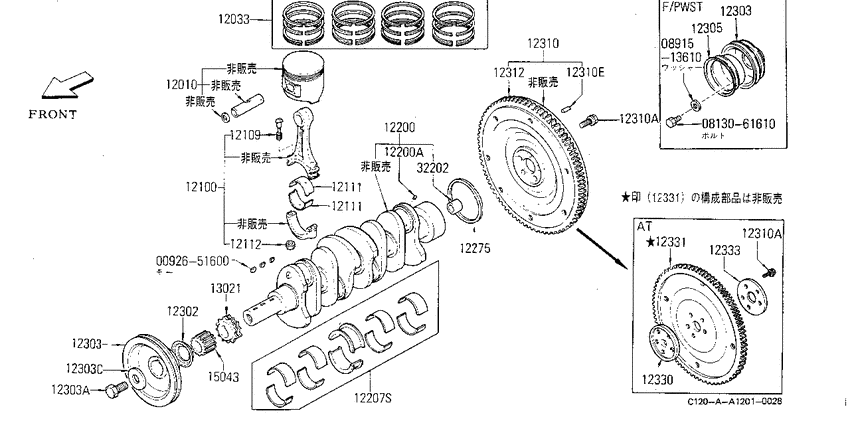

ﾋﾟｽﾄﾝ & ｸﾗﾝｸｼﾔﾌﾄ & ﾌﾗｲﾎｲ-ﾙ (1981-06-01 ~ ; Z20S) Diagram Nissan VANETTE
- Year
- 1981 - 2012
- Sales region
- Japan
- Engine
- Z20S
- Number of doors
- 4
- grade
- SGX
- body
- HK
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092651600
|
0092651600
0092651600 KEY |
0092651600 |
from US $3.06 |
||
|
0813061610
|
0813061610
08130-61610
Bolt-hexagon
|
08130-61610 |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
12010
|
12010
12010-N8421 Piston, W/pin8409--01 ~ ; Z20; STD ｾﾝﾀｸｼﾖｳ |
12010-N8421 |
US $62.64 |
||
|
12010
|
12010
12010-N8422 Piston, W/pin8409--01 ~ ; Z20; OS=0.50 ｾﾝﾀｸｼﾖｳ |
12010-N8422 |
US $62.64 |
||
|
12010
|
12010
12010-N8423 Piston, W/pin8409--01 ~ ; Z20; OS=1.00 ｾﾝﾀｸｼﾖｳ |
12010-N8423 |
US $62.64 |
||
|
12010
|
12010
12010-W1411
Piston, W/pin
8106--01 ~ ; Z20; STD |
12010-W1411 |
— | ||
|
12010
|
12010
12010-W1412
Piston, W/pin
8106--01 ~ ; Z20; OS=0.50 |
12010-W1412 |
— | ||
|
12010
|
12010
12010-W1413
Piston, W/pin
8106--01 ~ ; Z20; OS=1.00 |
12010-W1413 |
— | ||
|
12033
|
12033
12033-N8520 Ring Set-Piston8106--01 ~ 8409--01; Z20; STD |
12033-N8520 |
US $152.64 |
||
|
12033
|
12033
12033-R9400 Ring Set-Piston8409--01 ~ ; Z20; STD ｾﾝﾀｸｼﾖｳ |
12033-R9400 |
US $197.28 |
||
|
12033
|
12033
12033-U5810 Ring Set-Piston8409--01 ~ ; Z20; STD ｾﾝﾀｸｼﾖｳ |
12033-U5810 |
US $152.64 |
||
|
12033
|
12033
12036-N8520 Ring Set-Piston8106--01 ~ 8409--01; Z20; OS=0.5 |
12036-N8520 |
US $152.64 |
||
|
12033
|
12033
12036-R9400 Ring Set-Piston8409--01 ~ ; Z20; OS=0.50 ｾﾝﾀｸｼﾖｳ |
12036-R9400 |
US $197.28 |
||
|
12033
|
12033
12036-U5810 Ring Set-Piston8409--01 ~ ; Z20; OS=0.50 ｾﾝﾀｸｼﾖｳ |
12036-U5810 |
US $152.64 |
||
|
12033
|
12033
12038-N8520 Ring Set-Piston8106--01 ~ 8409--01; Z20; OS=1.0 |
12038-N8520 |
from US $67.95 |
||
|
12033
|
12033
12038-R9400 Ring Set-Piston8409--01 ~ ; Z20; OS=1.0 ｾﾝﾀｸｼﾖｳ |
12038-R9400 |
US $197.28 |
||
|
12033
|
12033
12038-U5810 Ring Set-Piston8409--01 ~ ; Z20; OS=1.0 ｾﾝﾀｸｼﾖｳ |
12038-U5810 |
US $152.64 |
||
|
12100
|
12100
12100-N8500
Rod Compl-Connecting
8106--01 ~ ; Z20 |
12100-N8500 |
— | ||
|
12100
|
12100
12100-N8501
Rod Compl-Connecting
8406--01 ~ ; Z20; ｾﾝﾀｸ ｼﾖｳ |
12100-N8501 |
— | ||
|
12109
|
12109
12109-N0100 Bolt-Connecting Rod8106--01 ~ 8606--01; LD20+Z20; ｾﾝﾀｸ ｼﾖｳ |
12109-N0100 |
US $5.27 |
||
|
12109
|
12109
12109-N0110 Bolt-Connecting Rod8106--01 ~ 8606--01; LD20+Z20; ｾﾝﾀｸ ｼﾖｳ |
12109-N0110 |
US $4.32 |
||
| replacement | |||||
|
12109
|
12109
12109-N0100 Bolt-Connecting Rod8106--01 ~ 8606--01; LD20+Z20; ｾﾝﾀｸ ｼﾖｳ |
12109-N0100 |
US $5.27 |
||
|
12111
|
12111
1211173400
Bearing-Connecting Rod
8106--01 ~ ; LD20+Z20; STD |
1211173400 |
— | ||
| replacement | |||||
|
12111
|
12111
12111-V0700 Bearing-Connecting Rod8106--01 ~ ; LD20+Z20; STD |
12111-V0700 |
from US $9.15 |
||
|
12111
|
12111
1211773400
Bearing-Connecting Rod
8106--01 ~ ; LD20+Z20; US=0.25 |
1211773400 |
— | ||
| replacement | |||||
|
12111
|
12111
12117V0700 Bearing-Connecting Rod8106--01 ~ ; LD20+Z20; US=0.25 |
12117V0700 |
from US $7.91 |
||
|
12111
|
12111
12118-73400 Bearing-Connecting Rod8106--01 ~ ; LD20+Z20; US=0.50 |
12118-73400 |
US $12.67 |
||
|
12111
|
12111
12119-73400 Bearing-Connecting Rod8106--01 ~ ; LD20+Z20; US=0.75 |
12119-73400 |
US $12.67 |
||
|
12111
|
12111
12120-73400 Bearing-Connecting Rod8106--01 ~ ; LD20+Z20; US=1.00 |
12120-73400 |
US $12.67 |
||
|
12111
|
12111
1211173400
Bearing-Connecting Rod
8106--01 ~ ; LD20+Z20; STD |
1211173400 |
— | ||
| replacement | |||||
|
12111
|
12111
12111-V0700 Bearing-Connecting Rod8106--01 ~ ; LD20+Z20; STD |
12111-V0700 |
from US $9.15 |
||
|
12111
|
12111
1211773400
Bearing-Connecting Rod
8106--01 ~ ; LD20+Z20; US=0.25 |
1211773400 |
— | ||
| replacement | |||||
|
12111
|
12111
12117V0700 Bearing-Connecting Rod8106--01 ~ ; LD20+Z20; US=0.25 |
12117V0700 |
from US $7.91 |
||
|
12111
|
12111
12118-73400 Bearing-Connecting Rod8106--01 ~ ; LD20+Z20; US=0.50 |
12118-73400 |
US $12.67 |
||
|
12111
|
12111
12119-73400 Bearing-Connecting Rod8106--01 ~ ; LD20+Z20; US=0.75 |
12119-73400 |
US $12.67 |
||
|
12111
|
12111
12120-73400 Bearing-Connecting Rod8106--01 ~ ; LD20+Z20; US=1.00 |
12120-73400 |
US $12.67 |
||
|
12112
|
12112
12112-N0101
Nut-Connecting Rod
8106--01 ~ 8606--01; LD20+Z20 |
12112-N0101 |
— | ||
| replacement | |||||
|
12112
|
12112
12112-VS201 Nut-Connecting Rod8106--01 ~ 8606--01; LD20+Z20 |
12112-VS201 |
US $3.06 |
||
|
12200
|
12200
12200-U6000
Crankshaft Assy
8106--01 ~ ; Z20 |
12200-U6000 |
— | ||
|
12200
|
12200
1220521000 Plug-Taper8106--01 ~ ; Z20 |
1220521000 |
US $1.73 |
||
|
12200A
|
12200A
1220521000 Plug-Taper8106--01 ~ ; Z20 |
1220521000 |
US $1.73 |
||
|
12207S
|
12207S
12207-U6001 Bearing Set-Crankshaft8106--01 ~ ; LD20+Z20; STD |
12207-U6001 |
from US $30.01 |
||
|
12207S
|
12207S
12209-U6001 Bearing Set-Crankshaft8106--01 ~ ; LD20+Z20; US=0.25 |
12209-U6001 |
from US $36.98 |
||
|
12207S
|
12207S
12210-U6001 Bearing Set-Crankshaft8106--01 ~ ; LD20+Z20; US=0.50 |
12210-U6001 |
from US $62.12 |
||
|
12207S
|
12207S
12212-U6001 Bearing Set-Crankshaft8106--01 ~ ; LD20+Z20; US=1.00 |
12212-U6001 |
US $134.06 |
||
|
12207S
|
12207S
12214-U6001 Bearing Set-Crankshaft8106--01 ~ ; LD20+Z20; US=0.75 |
12214-U6001 |
from US $62.12 |
||
|
12275
|
12275
12275-21000
Shim
8106--01 ~ ; Z20 |
12275-21000 |
— | ||
|
12302
|
12302
12302-A3500 Thrower-Oil, Crankshaft8106--01 ~ ; Z20 |
12302-A3500 |
US $1.49 |
||
|
12303
|
12303
12303-W0401 Pulley-Crankshaft8106--01 ~ ; Z20.K |
12303-W0401 |
US $134.35 |
||
|
12303
|
12303
12309-21000 Bolt-Pulley, Crankshaft8106--01 ~ ; Z20 |
12309-21000 |
US $4.03 |
||
| replacement | |||||
|
12303
|
12303
12309-91P01 Bolt-Pulley, Crankshaft8106--01 ~ ; Z20 |
12309-91P01 |
US $5.04 |
||
|
12303
|
12303
12308-65000 Washer-Pulley, Crankshaft8106--01 ~ ; Z20 |
12308-65000 |
US $4.57 |
||
|
12303
|
12303
12303-W0401 Pulley-Crankshaft8106--01 ~ ; Z20.K |
12303-W0401 |
US $134.35 |
||
|
12303
|
12303
12309-21000 Bolt-Pulley, Crankshaft8106--01 ~ ; Z20 |
12309-21000 |
US $4.03 |
||
| replacement | |||||
|
12303
|
12303
12309-91P01 Bolt-Pulley, Crankshaft8106--01 ~ ; Z20 |
12309-91P01 |
US $5.04 |
||
|
12303
|
12303
12308-65000 Washer-Pulley, Crankshaft8106--01 ~ ; Z20 |
12308-65000 |
US $4.57 |
||
|
12303A
|
12303A
12309-21000 Bolt-Pulley, Crankshaft8106--01 ~ ; Z20 |
12309-21000 |
US $4.03 |
||
| replacement | |||||
|
12303A
|
12303A
12309-91P01 Bolt-Pulley, Crankshaft8106--01 ~ ; Z20 |
12309-91P01 |
US $5.04 |
||
|
12303C
|
12303C
12308-65000 Washer-Pulley, Crankshaft8106--01 ~ ; Z20 |
12308-65000 |
US $4.57 |
||
|
12310
|
12310
12310-U6055 Flywheel Assy8106--01 ~ ; Z20.MT |
12310-U6055 |
US $446.04 |
||
|
12310
|
12310
12315-U6000
Bolt-Flywheel
8106--01 ~ ; Z20.MT |
12315-U6000 |
— | ||
| replacement | |||||
|
12310
|
12310
1231542L11 Bolt-Flywheel8106--01 ~ ; Z20.MT |
1231542L11 |
from US $3.22 |
||
|
12310
|
12310
1231310600 Dowel-Clutch To Flywheel8106--01 ~ ; Z20.MT |
1231310600 |
from US $0.33 |
||
|
12310A
|
12310A
12315-U6000
Bolt-Flywheel
8106--01 ~ ; Z20.MT |
12315-U6000 |
— | ||
| replacement | |||||
|
12310A
|
12310A
1231542L11 Bolt-Flywheel8106--01 ~ ; Z20.MT |
1231542L11 |
from US $3.22 |
||
|
12310A
|
12310A
12315-U6000
Bolt-Flywheel
8106--01 ~ ; Z20.MT |
12315-U6000 |
— | ||
| replacement | |||||
|
12310A
|
12310A
1231542L11 Bolt-Flywheel8106--01 ~ ; Z20.MT |
1231542L11 |
from US $3.22 |
||
|
12310E
|
12310E
1231310600 Dowel-Clutch To Flywheel8106--01 ~ ; Z20.MT |
1231310600 |
from US $0.33 |
||
|
12312
|
12312
12312-A8600 Gear-Ring8106--01 ~ ; Z20.MT |
12312-A8600 |
US $125.57 |
||
|
13021
|
13021
13021-U8000
Sprocket-Crankshaft
8106--01 ~ ; LD20+Z20; ｾﾝﾀ ｼﾖｳ |
13021-U8000 |
— | ||
|
13021
|
13021
13021-U8010 Sprocket-Crankshaft8106--01 ~ ; Z20; ｾﾝﾀｸ ｼﾖｳ |
13021-U8010 |
US $33.41 |
||
|
15043
|
15043
15043-21000 Gear-Crankshaft, Oil Pump8106--01 ~ ; Z20 |
15043-21000 |
from US $39.09 |
||
|
32202
|
32202
3220230000
Bushing-Crankshaft
8106--01 ~ ; Z20.MT; ｾﾝﾀｸ ｼﾖｳ |
3220230000 |
— | ||
| replacement | |||||
|
32202
|
32202
32202B950A Bushing-Crankshaft8106--01 ~ ; Z20.MT; ｾﾝﾀｸ ｼﾖｳ |
32202B950A |
from US $2.97 |
||
|
32202
|
32202
32202-B9500
Bushing-Crankshaft
8106--01 ~ ; Z20.MT; ｾﾝﾀｸ ｼﾖｳ |
32202-B9500 |
— | ||
| replacement | |||||
|
32202
|
32202
32202B950A Bushing-Crankshaft8106--01 ~ ; Z20.MT; ｾﾝﾀｸ ｼﾖｳ |
32202B950A |
from US $2.97 |
||
