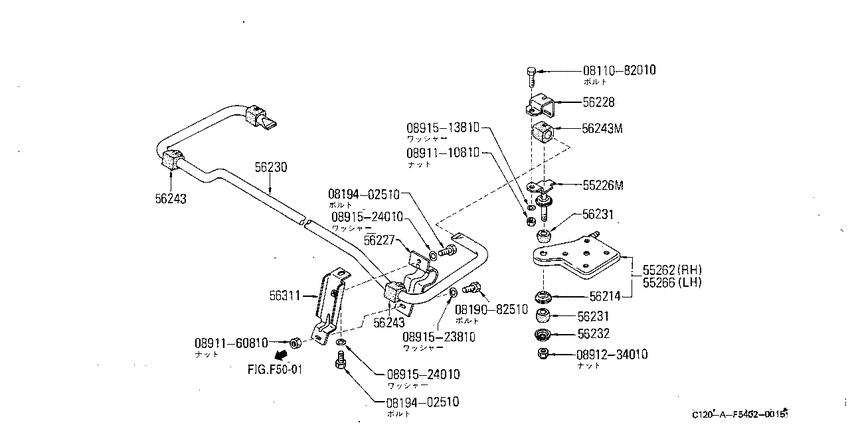

Rear suspension (1981-06-01 ~ ; スタビ ライザー用; K.Z20 *K.SB.LD20) Diagram Nissan VANETTE
- Year
- 1981 - 2012
- Sales region
- Japan
- Engine
- Z20S
- Number of doors
- 4
- grade
- SGX
- body
- HK
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082010
|
0811082010
08110-82010
Bolt-hexagon
|
08110-82010 |
— | ||
|
0819082510
|
0819082510
08190-82510
Bolt-hexagon
|
08190-82510 |
— | ||
|
0819402510
|
0819402510
08194-02510
Bolt-hexagon
|
08194-02510 |
— | ||
|
0819402510
|
0819402510
08194-02510
Bolt-hexagon
|
08194-02510 |
— | ||
|
0891110810
|
0891110810
08911-10810
NUT
|
08911-10810 |
— | ||
| replacement | |||||
|
0891110810
|
0891110810
089111082A NUTHEX |
089111082A |
US $0.50 |
||
|
0891160810
|
0891160810
08911-60810 NUTHEX |
08911-60810 |
US $1.65 |
||
|
0891234010
|
0891234010
08912-34010
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-34010 |
— | ||
| replacement | |||||
|
0891234010
|
0891234010
089123401A NUT-HEX |
089123401A |
US $3.46 |
||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891523810
|
0891523810
08915-23810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-23810 |
— | ||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
55226M
|
55226M
56238-G3900 ﾋﾟﾝ,ｱ-ﾑ8106--01 ~ 8210--01; K.Z20 *K.SB.LD20 |
56238-G3900 |
US $21.74 |
||
|
55226M
|
55226M
56238-G3901 ﾋﾟﾝ,ｱ-ﾑ8210--01 ~ ; 6K.SGX.MT *LK.SB.LD20 *K.SGL.LD20.MT |
56238-G3901 |
US $21.74 |
||
|
55262
|
55262
55055-G2501
ｼ-ﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ ﾛｱ rh
7810--01 ~ 8106--01; V+T+K |
55055-G2501 |
— | ||
|
55262
|
55262
55055-G3900 ｼ-ﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ ﾛｱ rh8106--01 ~ 8210--01; K.Z20 *K.SB.LD20 |
55055-G3900 |
US $49.54 |
||
|
55262
|
55262
55055-G3901 ｼ-ﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ ﾛｱ rh8210--01 ~ ; 6K.SGX.MT *LK.SB.LD20 *K.SGL.LD20.MT |
55055-G3901 |
US $49.54 |
||
|
55266
|
55266
55054-G2501
ｼ-ﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ ﾛｱ lh
7810--01 ~ 8106--01; V+K+T |
55054-G2501 |
— | ||
|
55266
|
55266
55054-G3900 ｼ-ﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ ﾛｱ lh8106--01 ~ 8210--01; K.Z20 *K.SB.LD20 |
55054-G3900 |
US $49.54 |
||
|
55266
|
55266
55054-G3901 ｼ-ﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ ﾛｱ lh8210--01 ~ ; 6K.SGX.MT *LK.SB.LD20 *K.SGL.LD20.MT |
55054-G3901 |
US $49.54 |
||
|
56214
|
56214
56114-09400 Washer-Special8106--01 ~ ; K.Z20 *K.SB.LD20 |
56114-09400 |
US $2.21 |
||
|
56227
|
56227
56242-G3900 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ-8106--01 ~ 8210--01; K.Z20 *K.SB.LD20 |
56242-G3900 |
US $15.55 |
||
|
56227
|
56227
56242-G3901 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ-8210--01 ~ ; 6K.SGX.MT *LK.SB.LD20 *K.SGL.LD20.MT |
56242-G3901 |
US $15.55 |
||
|
56228
|
56228
54614-73000 ﾌﾞﾗｹﾂﾄ,ｽﾀﾋﾞﾗｲｻﾞ-8106--01 ~ ; K.Z20 *K.SB.LD20 |
54614-73000 |
US $4.18 |
||
|
56230
|
56230
56230-G3900
ｽﾀﾋﾞﾗｲｻﾞ-,ﾘﾔ
8210--01 ~ 8305--01; 6K.SGX.MT *LK.SB.LD20 *K.SGL.LD20.MT |
56230-G3900 |
— | ||
|
56230
|
56230
56230-G3910 ｽﾀﾋﾞﾗｲｻﾞ-,ﾘﾔ8106--01 ~ 8210--01; K.Z20 *K.SB.LD20 |
56230-G3910 |
US $226.08 |
||
|
56230
|
56230
56230-G3911 ｽﾀﾋﾞﾗｲｻﾞ-,ﾘﾔ8305--01 ~ ; 6K.SGX.MT *LK.SB.LD20 *K.SGL.LD20.MT |
56230-G3911 |
US $226.08 |
||
|
56231
|
56231
56112-09400
Bushing-Stabilizer
8106--01 ~ ; K.Z20 *K.SB.LD20 |
56112-09400 |
— | ||
| replacement | |||||
|
56231
|
56231
56112V0100 Stabilizer cushion8106--01 ~ ; K.Z20 *K.SB.LD20 |
56112V0100 |
from US $1.67 |
||
|
56231
|
56231
56112-09400
Bushing-Stabilizer
8106--01 ~ ; K.Z20 *K.SB.LD20 |
56112-09400 |
— | ||
| replacement | |||||
|
56231
|
56231
56112V0100 Stabilizer cushion8106--01 ~ ; K.Z20 *K.SB.LD20 |
56112V0100 |
from US $1.67 |
||
|
56232
|
56232
56113-09400
Washer
8106--01 ~ ; K.Z20 *K.SB.LD20 |
56113-09400 |
— | ||
| replacement | |||||
|
56232
|
56232
5611360U0A Washer8106--01 ~ ; K.Z20 *K.SB.LD20 |
5611360U0A |
from US $1.39 |
||
|
56243
|
56243
56234-G3900 ﾌﾞﾂｼﾕ,ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ-8106--01 ~ ; K.Z20 *K.SB.LD20 |
56234-G3900 |
US $4.90 |
||
|
56243
|
56243
56233-G3900 ﾌﾞﾂｼﾝｸﾞ,ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ-8106--01 ~ ; K.Z20 *K.SB.LD20 |
56233-G3900 |
US $4.18 |
||
|
56243
|
56243
56234-G3900 ﾌﾞﾂｼﾕ,ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ-8106--01 ~ ; K.Z20 *K.SB.LD20 |
56234-G3900 |
US $4.90 |
||
|
56243
|
56243
56233-G3900 ﾌﾞﾂｼﾝｸﾞ,ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ-8106--01 ~ ; K.Z20 *K.SB.LD20 |
56233-G3900 |
US $4.18 |
||
|
56243M
|
56243M
56233-G3900 ﾌﾞﾂｼﾝｸﾞ,ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ-8106--01 ~ ; K.Z20 *K.SB.LD20 |
56233-G3900 |
US $4.18 |
||
|
56311
|
56311
56243-G3900 ﾌﾞﾗｹﾂﾄ,ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ-8106--01 ~ 8210--01; K.Z20 *K.SB.LD20 |
56243-G3900 |
US $24.77 |
||
|
56311
|
56311
56243-G3901 ﾌﾞﾗｹﾂﾄ,ﾘﾔ ｽﾀﾋﾞﾗｲｻﾞ-8210--01 ~ ; 6K.SGX.MT *LK.SB.LD20 *K.SGL.LD20.MT |
56243-G3901 |
US $24.77 |
||
