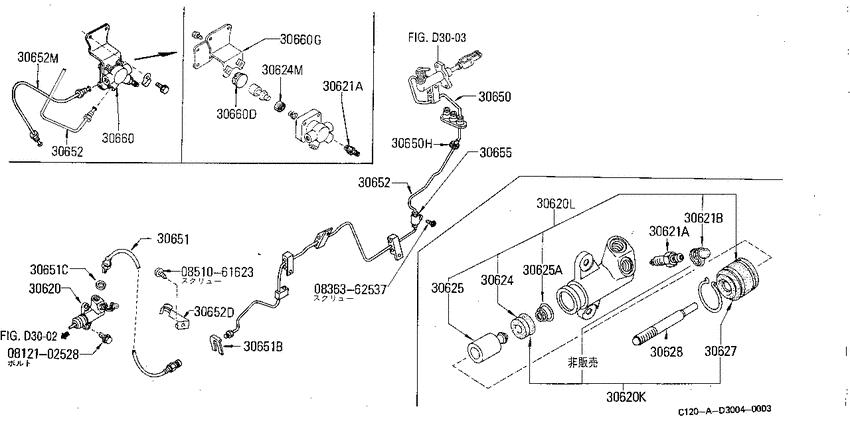

Clutch operating cylinder & piping (1981-06-01 ~ ; MT.(Z20,LD20)) Diagram Nissan VANETTE
- Year
- 1982 - 2012
- Sales region
- Japan
- Engine
- LD20
- Number of doors
- 4
- grade
- DX
- body
- WV
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812102528
|
0812102528
08121-02528
Bolt-hexagon
|
08121-02528 |
— | ||
|
0836362537
|
0836362537
08363-62537
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62537 |
— | ||
|
0851061623
|
0851061623
08510-61623
SCREWTAPPING
|
08510-61623 |
— | ||
|
30620
|
30620
30620U7001 Cylinder Assy-Clutch Operating8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ 3/4 |
30620U7001 |
US $73.87 |
||
|
30620
|
30620
30622-J2025 Cup Kit-Clutch Operating Cylinder8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ 3/4 |
30622-J2025 |
US $8.68 |
||
| replacements | |||||
|
30620
|
30620
3062216E25 CUP KIT-CLUTCH OPERATING CYLINDER8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ 3/4 |
3062216E25 |
US $8.68 |
||
|
30620
|
30620
41129U0201 Cap-Bleeder8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ 3/4 |
41129U0201 |
US $1.07 |
||
|
30620
|
30620
30621U7025 Piston Kit-Clutch Operating Cylinder8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ 3/4 |
30621U7025 |
from US $13.37 |
||
|
30620K
|
30620K
30622-J2025 Cup Kit-Clutch Operating Cylinder8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ 3/4 |
30622-J2025 |
US $8.68 |
||
| replacements | |||||
|
30620K
|
30620K
3062216E25 CUP KIT-CLUTCH OPERATING CYLINDER8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ 3/4 |
3062216E25 |
US $8.68 |
||
|
30620K
|
30620K
41129U0201 Cap-Bleeder8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ 3/4 |
41129U0201 |
US $1.07 |
||
|
30620L
|
30620L
30621U7025 Piston Kit-Clutch Operating Cylinder8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ 3/4 |
30621U7025 |
from US $13.37 |
||
|
30621A
|
30621A
41128-W7001 Screw8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ |
41128-W7001 |
US $4.03 |
||
|
30621A
|
30621A
41128-W7001 Screw8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ |
41128-W7001 |
US $4.03 |
||
|
30621B
|
30621B
41129U0201 Cap-Bleeder8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ |
41129U0201 |
US $1.07 |
||
|
30624
|
30624
3062421000 Cup-Piston8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ |
3062421000 |
US $1.26 |
||
|
30625
|
30625
30625-U7000 Piston8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ |
30625-U7000 |
US $6.34 |
||
|
30625
|
30625
30622-E3400 Spring-Piston8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ |
30622-E3400 |
US $2.74 |
||
|
30625A
|
30625A
30622-E3400 Spring-Piston8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ |
30622-E3400 |
US $2.74 |
||
|
30627
|
30627
30627-E3400 Cover-Dust8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ |
30627-E3400 |
US $5.04 |
||
|
30628
|
30628
30628-S0100
Rod-Push
8106--01 ~ 8209--01; MT.(Z20,LD20); ﾅﾌﾞｺ |
30628-S0100 |
— | ||
|
30650
|
30650
46410-01C00 Tube Assy-Clutch8209--01 ~ ; WV.LD20+WK.MT |
46410-01C00 |
US $22.03 |
||
|
30650
|
30650
01651-00231 GROMMET8106--01 ~ 8209--01; MT.(Z20,LD20) |
01651-00231 |
US $2.45 |
||
|
30650H
|
30650H
01651-00231 GROMMET8106--01 ~ 8209--01; MT.(Z20,LD20) |
01651-00231 |
US $2.45 |
||
|
30651
|
30651
46201-89920 Hose Assy-Clutch8209--01 ~ ; WV.LD20+WK.MT |
46201-89920 |
US $20.45 |
||
|
30651
|
30651
46206M0200 Spring-Lock8106--01 ~ 8209--01; MT.(Z20,LD20) |
46206M0200 |
from US $0.74 |
||
|
30651
|
30651
46237A4600 Gasket-Clutch Hose8106--01 ~ 8209--01; MT.(Z20,LD20) |
46237A4600 |
from US $0.35 |
||
|
30651B
|
30651B
46206M0200 Spring-Lock8106--01 ~ 8209--01; MT.(Z20,LD20) |
46206M0200 |
from US $0.74 |
||
|
30651C
|
30651C
46237A4600 Gasket-Clutch Hose8106--01 ~ 8209--01; MT.(Z20,LD20) |
46237A4600 |
from US $0.35 |
||
|
30652
|
30652
46411-02C00 Tube Assy-Clutch8209--01 ~ ; WV.LD20 |
46411-02C00 |
US $24.91 |
||
|
30652
|
30652
46411-02C00 Tube Assy-Clutch8209--01 ~ ; WV.LD20 |
46411-02C00 |
US $24.91 |
||
|
30655
|
30655
0246364000 CONNECTOR-BRAKE TUBE8106--01 ~ 8209--01; MT.(Z20,LD20) |
0246364000 |
from US $8.87 |
||
