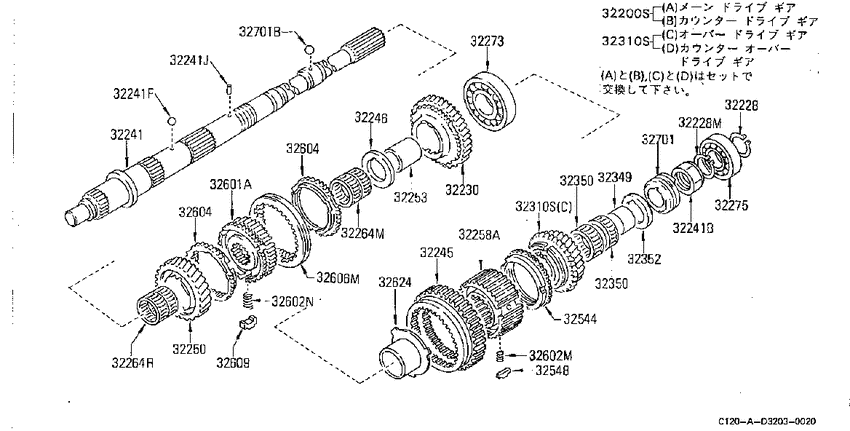

Transmission gear (1981-06-01 ~ ; ﾒｲﾝｷﾞﾔ ( RS5W71B ); LD20.MT +Z20.MT) Diagram Nissan VANETTE
- Year
- 1982 - 2012
- Sales region
- Japan
- Engine
- LD20
- Number of doors
- 4
- grade
- DX
- body
- WV
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32228
|
32228
3222820100 Ring-Snap, Overdrive Bearing8106--01 ~ 8209--01; (LD20,Z20).MT; ｾﾝﾀｸ T=1.1 |
3222820100 |
from US $0.63 |
||
|
32228
|
32228
3222820101 Ring-Snap, Overdrive Bearing8106--01 ~ 8209--01; (LD20,Z20).MT; ｾﾝﾀｸ T=1.2 |
3222820101 |
US $3.06 |
||
|
32228
|
32228
32228-20102 Ring-Snap, Overdrive Bearing8106--01 ~ 8209--01; (LD20,Z20).MT; ｾﾝﾀｸ T=1.3 |
32228-20102 |
US $1.64 |
||
|
32228
|
32228
3222820103 Ring-Snap, Overdrive Bearing8106--01 ~ 8209--01; (LD20,Z20).MT; ｾﾝﾀｸ T=1.4 |
3222820103 |
US $2.72 |
||
|
32228
|
32228
3222820100 Ring-Snap, Overdrive Bearing8106--01 ~ 8209--01; (LD20,Z20).MT |
3222820100 |
from US $0.63 |
||
|
32228M
|
32228M
3222820100 Ring-Snap, Overdrive Bearing8106--01 ~ 8209--01; (LD20,Z20).MT |
3222820100 |
from US $0.63 |
||
|
32230
|
32230
32242-T0100 Gear Assy-1St8209--01 ~ ; WV.LD20 |
32242-T0100 |
US $119.38 |
||
|
32241
|
32241
32241-E9911
Shaft-Main
8106--01 ~ 8209--01; (LD20,Z20).MT |
32241-E9911 |
— | ||
|
32241
|
32241
32241-E9917 Shaft-Main8510--01 ~ ; (LD20#,Z20).MT |
32241-E9917 |
US $291.70 |
||
|
32241
|
32241
32354E9803 Nut-Main Shaft8106--01 ~ 8209--01; (LD20,Z20).MT |
32354E9803 |
from US $6.09 |
||
|
32241
|
32241
3272014600 Ball-Steel8106--01 ~ 8209--01; (LD20,Z20).MT |
3272014600 |
from US $0.41 |
||
|
32241
|
32241
32353-E9800 Pin-Lock8106--01 ~ ; (LD20,Z20).MT |
32353-E9800 |
US $2.36 |
||
|
32241B
|
32241B
32354E9803 Nut-Main Shaft8106--01 ~ 8209--01; (LD20,Z20).MT |
32354E9803 |
from US $6.09 |
||
|
32241F
|
32241F
3272014600 Ball-Steel8106--01 ~ 8209--01; (LD20,Z20).MT |
3272014600 |
from US $0.41 |
||
|
32241J
|
32241J
32353-E9800 Pin-Lock8106--01 ~ ; (LD20,Z20).MT |
32353-E9800 |
US $2.36 |
||
|
32245
|
32245
32245-E9800
Gear-Reverse, Main Shaft
8106--01 ~ 8209--01; (LD20,Z20).MT |
32245-E9800 |
— | ||
|
32245
|
32245
32245-E9801
Gear-Reverse, Main Shaft
8209--01 ~ 8305--01; (LD20,Z20).MT |
32245-E9801 |
— | ||
|
32245
|
32245
32245-E9811 Gear-Reverse, Main Shaft8305--01 ~ 8309--01; (LD20#,Z20).MT |
32245-E9811 |
US $93.17 |
||
| replacements | |||||
|
32245
|
32245
32245-V5060 Gear-Reverse, Main Shaft8305--01 ~ 8309--01; (LD20#,Z20).MT |
32245-V5060 |
US $142.77 |
||
|
32245
|
32245
32604-36N20 Ring-Baulk8305--01 ~ 8309--01; (LD20#,Z20).MT |
32604-36N20 |
US $50.45 |
||
|
32245
|
32245
32245-V5000
Gear-Reverse, Main Shaft
8309--01 ~ ; (LD20#,Z20).MT |
32245-V5000 |
— | ||
| replacements | |||||
|
32245
|
32245
32245-V5060 Gear-Reverse, Main Shaft8309--01 ~ ; (LD20#,Z20).MT |
32245-V5060 |
US $142.77 |
||
|
32245
|
32245
32604-36N20 Ring-Baulk8309--01 ~ ; (LD20#,Z20).MT |
32604-36N20 |
US $50.45 |
||
|
32246
|
32246
32246-E9200 Washer-Thrust8106--01 ~ 8209--01; (LD20,Z20).MT |
32246-E9200 |
from US $5.62 |
||
|
32250
|
32250
32250-T0100 Gear Assy-2Nd8209--01 ~ ; WV.LD20.MT |
32250-T0100 |
US $116.21 |
||
|
32253
|
32253
32253-14600
Bush-1St Gear
8106--01 ~ 8209--01; (LD20,Z20).MT |
32253-14600 |
— | ||
| replacement | |||||
|
32253
|
32253
32253-14611 Bush-1st gear8106--01 ~ 8209--01; (LD20,Z20).MT |
32253-14611 |
US $28.55 |
||
|
32253
|
32253
32253-14601
Bush-1St Gear
8209--01 ~ ; (LD20#,Z20).MT |
32253-14601 |
— | ||
| replacement | |||||
|
32253
|
32253
32253-14611 Bush-1st gear8209--01 ~ ; (LD20#,Z20).MT |
32253-14611 |
US $28.55 |
||
|
32258A
|
32258A
32258-E9800 Hub-Synchronizer, Reverse & Overdrive8106--01 ~ 8209--01; (LD20,Z20).MT |
32258-E9800 |
US $72.72 |
||
|
32258A
|
32258A
32258-E9801
Hub-Synchronizer, Reverse & Overdrive
8209--01 ~ 8301--01; (LD20#,Z20).MT |
32258-E9801 |
— | ||
|
32258A
|
32258A
32258-E9802 Hub-Synchronizer, Reverse & Overdrive8301--01 ~ ; (LD20#,Z20).MT |
32258-E9802 |
US $72.72 |
||
|
32264M
|
32264M
32264-14600
Bearing-Main Shaft
8106--01 ~ 8209--01; (LD20,Z20).MT |
32264-14600 |
— | ||
| replacement | |||||
|
32264M
|
32264M
32264-14601 Bearing-Needle, Main Shaft8106--01 ~ 8209--01; (LD20,Z20).MT |
32264-14601 |
US $14.51 |
||
|
32264R
|
32264R
32264-14600
Bearing-Main Shaft
8106--01 ~ 8209--01; (LD20,Z20).MT |
32264-14600 |
— | ||
| replacement | |||||
|
32264R
|
32264R
32264-14601 Bearing-Needle, Main Shaft8106--01 ~ 8209--01; (LD20,Z20).MT |
32264-14601 |
US $14.51 |
||
|
32273
|
32273
3227336900 Bearing-Main Shaft8106--01 ~ 8209--01; (LD20,Z20).MT |
3227336900 |
from US $13.01 |
||
|
32273
|
32273
32273-T6400
Bearing-Main Shaft
8510--01 ~ ; (LD20#,Z20).MT |
32273-T6400 |
— | ||
| replacement | |||||
|
32273
|
32273
32273-36N60 Bearing-Main Shaft8510--01 ~ ; (LD20#,Z20).MT |
32273-36N60 |
US $40.20 |
||
|
32275
|
32275
3220314360 Bearing-Main Shaft8106--01 ~ 8209--01; (LD20,Z20).MT |
3220314360 |
US $8.34 |
||
|
32310S
|
32310S
32310-E9850 Gear Set-Main & Counter Overdrive8106--01 ~ 8209--01; (LD20,Z20).MT |
32310-E9850 |
US $359.66 |
||
|
32310S
|
32310S
32310-V5050 Gear Set-Main & Counter Overdrive8403--01 ~ ; (LD20#,Z20).MT |
32310-V5050 |
US $387.98 |
||
|
32349
|
32349
32349-E9800 Bush-Overdrive Gear8106--01 ~ 8209--01; (LD20,Z20).MT |
32349-E9800 |
US $29.79 |
||
|
32350
|
32350
32350-25500
Bearing-Overdrive Gear
8106--01 ~ 8209--01; (LD20,Z20).MT |
32350-25500 |
— | ||
| replacement | |||||
|
32350
|
32350
32350-25510 Bearing-Overdrive Gear8106--01 ~ 8209--01; (LD20,Z20).MT |
32350-25510 |
from US $9.03 |
||
|
32350
|
32350
32350-25500
Bearing-Overdrive Gear
8106--01 ~ 8209--01; (LD20,Z20).MT |
32350-25500 |
— | ||
| replacement | |||||
|
32350
|
32350
32350-25510 Bearing-Overdrive Gear8106--01 ~ 8209--01; (LD20,Z20).MT |
32350-25510 |
from US $9.03 |
||
|
32352
|
32352
32352-E9803
Washer-Thrust
8106--01 ~ 8209--01; (LD20,Z20).MT |
32352-E9803 |
— | ||
| replacement | |||||
|
32352
|
32352
32352-E983A Washer-Thrust8106--01 ~ 8209--01; (LD20,Z20).MT |
32352-E983A |
from US $10.19 |
||
|
32544
|
32544
32604-E9801
Ring-Baulk
8106--01 ~ 8209--01; (LD20,Z20).MT |
32604-E9801 |
— | ||
| replacement | |||||
|
32544
|
32544
3260436N21 Ring-Baulk8106--01 ~ 8209--01; (LD20,Z20).MT |
3260436N21 |
from US $46.85 |
||
|
32548
|
32548
32608-E9800 Insert-Shifting, Baulk Ring8106--01 ~ 8209--01; (LD20,Z20).MT |
32608-E9800 |
US $2.91 |
||
|
32601A
|
32601A
32601-E9200
Hub-Synchronizer, 1St & 2Nd
8106--01 ~ 8209--01; (LD20,Z20).MT |
32601-E9200 |
— | ||
|
32602M
|
32602M
32602-32200 Spring-Shifting Insert8106--01 ~ 8209--01; (LD20,Z20).MT |
32602-32200 |
US $0.82 |
||
|
32602N
|
32602N
32602-32200 Spring-Shifting Insert8106--01 ~ 8209--01; (LD20,Z20).MT |
32602-32200 |
US $0.82 |
||
|
32604
|
32604
32604-P0100 Ring-Baulk8106--01 ~ 8209--01; (LD20,Z20).MT |
32604-P0100 |
US $39.24 |
||
|
32604
|
32604
32604-P0100 Ring-Baulk8106--01 ~ ; (LD20#,Z20).MT; 3RD & 4TH |
32604-P0100 |
US $39.24 |
||
|
32604
|
32604
32604-P0100 Ring-Baulk8106--01 ~ 8209--01; (LD20,Z20).MT |
32604-P0100 |
US $39.24 |
||
|
32604
|
32604
32604-P0100 Ring-Baulk8106--01 ~ ; (LD20#,Z20).MT; 3RD & 4TH |
32604-P0100 |
US $39.24 |
||
|
32606M
|
32606M
32606-E9001
Sleeve-Coupling
8106--01 ~ 8209--01; (LD20,Z20).MT |
32606-E9001 |
— | ||
| replacement | |||||
|
32606M
|
32606M
32606-E9005 Sleeve-coupling8106--01 ~ 8209--01; (LD20,Z20).MT |
32606-E9005 |
US $58.50 |
||
|
32609
|
32609
32609-E9000 Insert-Shifting8106--01 ~ 8209--01; (LD20,Z20).MT |
32609-E9000 |
from US $2.55 |
||
|
32624
|
32624
32624-E9800 Spacer-Insert Stop8106--01 ~ 8209--01; (LD20,Z20).MT |
32624-E9800 |
US $18.17 |
||
|
32701
|
32701
32701-15800 Gear-Drive, Speedometer8106--01 ~ 8209--01; (LD20,Z20).MT; 5T |
32701-15800 |
US $34.99 |
||
|
32701
|
32701
32720-36900 Ball-Steel8106--01 ~ 8209--01; (LD20,Z20).MT |
32720-36900 |
US $0.82 |
||
|
32701B
|
32701B
32720-36900 Ball-Steel8106--01 ~ 8209--01; (LD20,Z20).MT |
32720-36900 |
US $0.82 |
||
