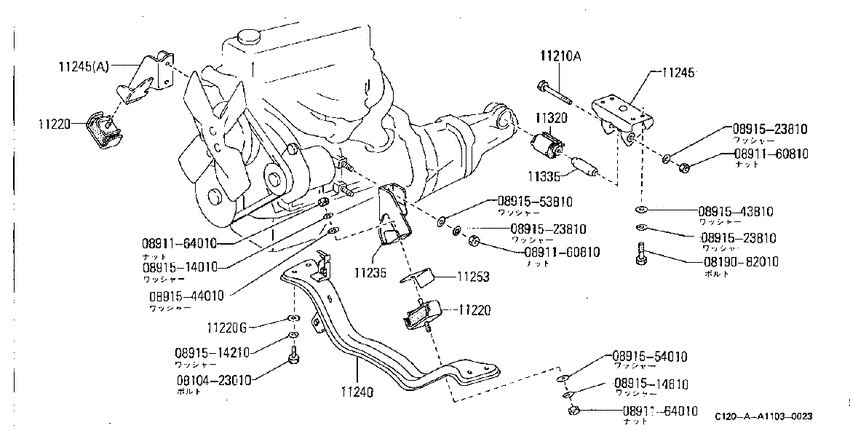

engine & transmission mounting (1982-09-01 ~ ; WV.A15) Diagram Nissan VANETTE
- Year
- 1982 - 1985
- Sales region
- Japan
- Engine
- A15S
- Number of doors
- 5
- grade
- GL
- body
- WV
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0819082010
|
0819082010
08190-82010
Bolt-hexagon
|
08190-82010 |
— | ||
|
0891160810
|
0891160810
08911-60810 NUTHEX |
08911-60810 |
US $1.65 |
||
|
0891160810
|
0891160810
08911-60810 NUTHEX |
08911-60810 |
US $1.65 |
||
|
0891164010
|
0891164010
08911-64010
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-64010 |
— | ||
| replacement | |||||
|
0891164010
|
0891164010
089116402A
NUTHEX
|
089116402A |
— | ||
|
0891164010
|
0891164010
08911-64010
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-64010 |
— | ||
| replacement | |||||
|
0891164010
|
0891164010
089116402A
NUTHEX
|
089116402A |
— | ||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
0891514210
|
0891514210
08915-14210 WASHER-LOCK |
08915-14210 |
US $1.73 |
||
|
0891514610
|
0891514610
08915-14610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-14610 |
— | ||
|
0891523810
|
0891523810
08915-23810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-23810 |
— | ||
|
0891523810
|
0891523810
08915-23810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-23810 |
— | ||
|
0891523810
|
0891523810
08915-23810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-23810 |
— | ||
|
0891543810
|
0891543810
08915-43810
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43810 |
— | ||
|
0891544010
|
0891544010
08915-44010
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-44010 |
— | ||
|
0891553810
|
0891553810
08915-53810
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-53810 |
— | ||
|
0891554010
|
0891554010
0891554010
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
0891554010 |
— | ||
|
11210A
|
11210A
11327-G0300 Bolt7810--01 ~ 8106--01; MT |
11327-G0300 |
US $2.45 |
||
|
11220
|
11220
11220-03C01
Insulator-Engine Mounting, Front
8209--01 ~ ; WV.A15 |
11220-03C01 |
— | ||
|
11220
|
11220
11223-H7300 Insulator-Engine Mounting, Front7810--01 ~ 8106--01; A14+A15 |
11223-H7300 |
US $37.42 |
||
|
11220
|
11220
13030-F1700 Washer-Plain8209--01 ~ 8502--01; WV+WK |
13030-F1700 |
US $11.38 |
||
|
11220
|
11220
13030-G3600 Washer-Plain8502--01 ~ ; V.LD20+K.(LD20,Z20) WV+WK |
13030-G3600 |
US $2.45 |
||
|
11220
|
11220
11220-03C01
Insulator-Engine Mounting, Front
8209--01 ~ ; WV.A15 |
11220-03C01 |
— | ||
|
11220
|
11220
11223-H7300 Insulator-Engine Mounting, Front7810--01 ~ 8106--01; A14+A15 |
11223-H7300 |
US $37.42 |
||
|
11220
|
11220
13030-F1700 Washer-Plain8209--01 ~ 8502--01; WV+WK |
13030-F1700 |
US $11.38 |
||
|
11220
|
11220
13030-G3600 Washer-Plain8502--01 ~ ; V.LD20+K.(LD20,Z20) WV+WK |
13030-G3600 |
US $2.45 |
||
|
11220G
|
11220G
13030-F1700 Washer-Plain8209--01 ~ 8502--01; WV+WK |
13030-F1700 |
US $11.38 |
||
|
11220G
|
11220G
13030-G3600 Washer-Plain8502--01 ~ ; V.LD20+K.(LD20,Z20) WV+WK |
13030-G3600 |
US $2.45 |
||
|
11235
|
11235
11235-H7300 Plate-Heat Shield7810--01 ~ 8106--01; A14+A15 |
11235-H7300 |
US $6.77 |
||
|
11240
|
11240
11230-03C01
Bracket-Engine Support, Front Rh
8209--01 ~ ; WV.A15 |
11230-03C01 |
— | ||
|
11245
|
11245
11232-03C01
Bracket-Engine Mounting, Frame Side Rh
8209--01 ~ 8508--01; WV.A15; (A) |
11232-03C01 |
— | ||
|
11245
|
11245
11323-05C00
Bracket-Engine Mounting, Frame Side Rh
8508--01 ~ ; WV.A15 |
11323-05C00 |
— | ||
|
11245
|
11245
11323-G4000
Bracket-Engine Mounting, Frame Side Rh
8209--01 ~ 8508--01; WV.A15 |
11323-G4000 |
— | ||
|
11245
|
11245
11232-03C01
Bracket-Engine Mounting, Frame Side Rh
8209--01 ~ 8508--01; WV.A15; (A) |
11232-03C01 |
— | ||
|
11245
|
11245
11323-05C00
Bracket-Engine Mounting, Frame Side Rh
8508--01 ~ ; WV.A15 |
11323-05C00 |
— | ||
|
11245
|
11245
11323-G4000
Bracket-Engine Mounting, Frame Side Rh
8209--01 ~ 8508--01; WV.A15 |
11323-G4000 |
— | ||
|
11253
|
11253
11222-H5001 Bracket-Engine Mounting, Front Lh7810--01 ~ 8106--01; ALL |
11222-H5001 |
US $20.45 |
||
|
11253
|
11253
11233-03C01
Bracket-Engine Mounting, Front Lh
8209--01 ~ ; WV.A15 |
11233-03C01 |
— | ||
|
11320
|
11320
11321-G0301 Insulator-Engine Mounting, Rear7810--01 ~ 8106--01; MT |
11321-G0301 |
US $23.33 |
||
|
11335
|
11335
11325G0300 Spacer7810--01 ~ 8106--01; MT |
11325G0300 |
US $3.46 |
||
