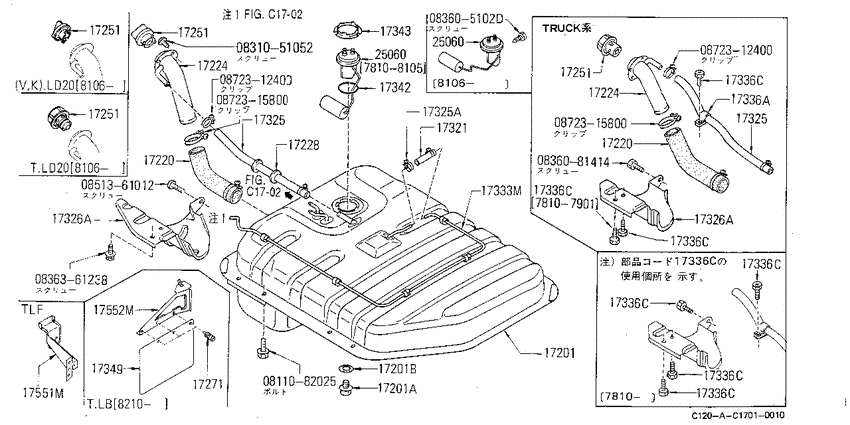

Fuel tank (1978-10-01 ~ ; ALL) Diagram Nissan VANETTE
- Year
- 1979 - 1980
- Sales region
- Japan
- Engine
- A14S
- Number of doors
- 5
- grade
- DX
- body
- HV
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082025
|
0811082025
08110-82025
Bolt-hexagon
|
08110-82025 |
— | ||
|
0831051052
|
0831051052
08310-51052
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51052 |
— | ||
|
083605102D
|
083605102D
08360-5102D ｽｸﾘﾕ-,ﾏｼﾝ |
08360-5102D |
US $1.93 |
||
|
0836081414
|
0836081414
08360-81414
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-81414 |
— | ||
|
0836361238
|
0836361238
0836361238
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836361238 |
— | ||
|
0851361012
|
0851361012
0851361012
SCREW
|
0851361012 |
— | ||
|
0872312400
|
0872312400
08723-12400
CLAMP-HOSE,B
|
08723-12400 |
— | ||
| replacement | |||||
|
0872312400
|
0872312400
0155501121 CLAMP-HOSE |
0155501121 |
US $3.06 |
||
|
0872312400
|
0872312400
08723-12400
CLAMP-HOSE,B
|
08723-12400 |
— | ||
| replacement | |||||
|
0872312400
|
0872312400
0155501121 CLAMP-HOSE |
0155501121 |
US $3.06 |
||
|
0872315800
|
0872315800
0872315800
ｸﾗﾝﾌﾟ,ﾎ-ｽ
|
0872315800 |
— | ||
|
0872315800
|
0872315800
0872315800
ｸﾗﾝﾌﾟ,ﾎ-ｽ
|
0872315800 |
— | ||
|
17201
|
17201
17201-G2501 Tank Assy-Fuel7810--01 ~ 8106--01; V |
17201-G2501 |
US $601.80 |
||
|
17201
|
17201
17201-G2860 Tank Assy-Fuel8210--01 ~ 8212--01; V.GAS+K.A15 |
17201-G2860 |
US $601.80 |
||
|
17201
|
17201
17201-G2861 Tank Assy-Fuel8212--01 ~ ; V.GAS+K.A15 WV.A15 |
17201-G2861 |
US $601.80 |
||
|
17201
|
17201
01125-00062 Plug-Drain7810--01 ~ ; ALL |
01125-00062 |
US $3.06 |
||
|
17201
|
17201
17232-S0160
Packing-Drain Plug
7810--01 ~ ; ALL |
17232-S0160 |
— | ||
| replacement | |||||
|
17201
|
17201
17232-79900 Packing-Drain Plug7810--01 ~ ; ALL |
17232-79900 |
US $3.06 |
||
|
17201A
|
17201A
01125-00062 Plug-Drain7810--01 ~ ; ALL |
01125-00062 |
US $3.06 |
||
|
17201B
|
17201B
17232-S0160
Packing-Drain Plug
7810--01 ~ ; ALL |
17232-S0160 |
— | ||
| replacement | |||||
|
17201B
|
17201B
17232-79900 Packing-Drain Plug7810--01 ~ ; ALL |
17232-79900 |
US $3.06 |
||
|
17220
|
17220
17229-G2501 Hose-Filler7810--01 ~ ; V+K |
17229-G2501 |
US $39.60 |
||
|
17220
|
17220
17229-G2501 Hose-Filler7810--01 ~ ; V+K |
17229-G2501 |
US $39.60 |
||
|
17224
|
17224
17220-G2501
Tube Assy-Filler
7810--01 ~ 8106--01; V+K |
17220-G2501 |
— | ||
|
17224
|
17224
17220-G2502 Tube Assy-Filler8106--01 ~ 8210--01; V+K |
17220-G2502 |
US $39.60 |
||
|
17224
|
17224
17220-G2560 Tube Assy-Filler8210--01 ~ 8302--01; V+K |
17220-G2560 |
US $46.94 |
||
|
17224
|
17224
17220-G2561 Tube Assy-Filler8302--01 ~ ; V+K WV+WK |
17220-G2561 |
US $39.60 |
||
|
17224
|
17224
17220-G2501
Tube Assy-Filler
7810--01 ~ 8106--01; V+K |
17220-G2501 |
— | ||
|
17224
|
17224
17220-G2502 Tube Assy-Filler8106--01 ~ 8210--01; V+K |
17220-G2502 |
US $39.60 |
||
|
17224
|
17224
17220-G2560 Tube Assy-Filler8210--01 ~ 8302--01; V+K |
17220-G2560 |
US $46.94 |
||
|
17224
|
17224
17220-G2561 Tube Assy-Filler8302--01 ~ ; V+K WV+WK |
17220-G2561 |
US $39.60 |
||
|
17228
|
17228
27074-32600 Grommet7810--01 ~ ; V+K |
27074-32600 |
US $1.73 |
||
|
17251
|
17251
17251-G2500 Cap Assy-Filler7810--01 ~ 8106--01; V+K |
17251-G2500 |
US $46.66 |
||
|
17251
|
17251
17251-G2500 Cap Assy-Filler7810--01 ~ 8106--01; V+K |
17251-G2500 |
US $46.66 |
||
|
17251
|
17251
17251-G2500 Cap Assy-Filler7810--01 ~ 8106--01; V+K |
17251-G2500 |
US $46.66 |
||
|
17251
|
17251
17251-G2500 Cap Assy-Filler7810--01 ~ 8106--01; V+K |
17251-G2500 |
US $46.66 |
||
|
17321
|
17321
17234-G2500
Hose-Breather
7810--01 ~ ; ALL; L=65 S/#A7335-U0110 |
17234-G2500 |
— | ||
|
17321
|
17321
A7335U0110 Hose-Evaporation7810--01 ~ ; ALL; L=5000 CUT USE |
A7335U0110 |
US $43.19 |
||
|
17325
|
17325
17276-G2500 Hose-Ventilation7810--01 ~ 8210--01; V+K; L=450 S/#A7276-G2500 |
17276-G2500 |
US $20.59 |
||
|
17325
|
17325
17276-G2560 Hose-Ventilation8210--01 ~ 8302--01; V+K; 6X10 |
17276-G2560 |
US $10.37 |
||
|
17325
|
17325
17276-G2561 Hose-Ventilation8302--01 ~ ; V+K; 6X10 |
17276-G2561 |
US $10.37 |
||
|
17325
|
17325
A7276-G2500 Hose-Ventilation7810--01 ~ 8209--01; ALL; L=5000 ｷﾂﾃ ｼﾖｳ |
A7276-G2500 |
US $184.32 |
||
|
17325
|
17325
16439-N2103 Clip7810--01 ~ ; ALL |
16439-N2103 |
US $2.45 |
||
|
17325
|
17325
17276-G2500 Hose-Ventilation7810--01 ~ 8210--01; V+K; L=450 S/#A7276-G2500 |
17276-G2500 |
US $20.59 |
||
|
17325
|
17325
17276-G2560 Hose-Ventilation8210--01 ~ 8302--01; V+K; 6X10 |
17276-G2560 |
US $10.37 |
||
|
17325
|
17325
17276-G2561 Hose-Ventilation8302--01 ~ ; V+K; 6X10 |
17276-G2561 |
US $10.37 |
||
|
17325
|
17325
A7276-G2500 Hose-Ventilation7810--01 ~ 8209--01; ALL; L=5000 ｷﾂﾃ ｼﾖｳ |
A7276-G2500 |
US $184.32 |
||
|
17325
|
17325
16439-N2103 Clip7810--01 ~ ; ALL |
16439-N2103 |
US $2.45 |
||
|
17325A
|
17325A
16439-N2103 Clip7810--01 ~ ; ALL |
16439-N2103 |
US $2.45 |
||
|
17326A
|
17326A
17421-G2501 Protector7810--01 ~ ; V+K |
17421-G2501 |
US $22.90 |
||
|
17326A
|
17326A
17421-G2501 Protector7810--01 ~ ; V+K |
17421-G2501 |
US $22.90 |
||
|
17333M
|
17333M
17332-G2500 Tube-Breather7810--01 ~ 7905--01; ALL |
17332-G2500 |
US $15.26 |
||
|
17342
|
17342
1734218000 Seal-O Ring, Fuel Gauge7810--01 ~ ; ALL |
1734218000 |
US $17.19 |
||
|
17343
|
17343
1734314801 Plate-Lock, Fuel Gauge7810--01 ~ ; ALL |
1734314801 |
US $3.60 |
||
|
25060
|
25060
25060-G2500
Gauge Assy-Unit, Fuel Tank
7810--01 ~ 8007--01; ALL |
25060-G2500 |
— | ||
|
25060
|
25060
25060-G2501 Gauge Assy-Unit, Fuel Tank8007--01 ~ 8106--01; ALL |
25060-G2501 |
US $77.04 |
||
|
25060
|
25060
25060-G3601 Gauge Assy-Unit, Fuel Tank8106--01 ~ 8203--01; V+K |
25060-G3601 |
US $89.42 |
||
|
25060
|
25060
25060-G3603 Gauge Assy-Unit, Fuel Tank8210--01 ~ ; V+K |
25060-G3603 |
US $98.06 |
||
|
25060
|
25060
25060-G3605 Gauge Assy-Unit, Fuel Tank8203--01 ~ 8210--01; V+K |
25060-G3605 |
US $89.42 |
||
|
25060
|
25060
25060-G2500
Gauge Assy-Unit, Fuel Tank
7810--01 ~ 8007--01; ALL |
25060-G2500 |
— | ||
|
25060
|
25060
25060-G2501 Gauge Assy-Unit, Fuel Tank8007--01 ~ 8106--01; ALL |
25060-G2501 |
US $77.04 |
||
|
25060
|
25060
25060-G3601 Gauge Assy-Unit, Fuel Tank8106--01 ~ 8203--01; V+K |
25060-G3601 |
US $89.42 |
||
|
25060
|
25060
25060-G3603 Gauge Assy-Unit, Fuel Tank8210--01 ~ ; V+K |
25060-G3603 |
US $98.06 |
||
|
25060
|
25060
25060-G3605 Gauge Assy-Unit, Fuel Tank8203--01 ~ 8210--01; V+K |
25060-G3605 |
US $89.42 |
||
