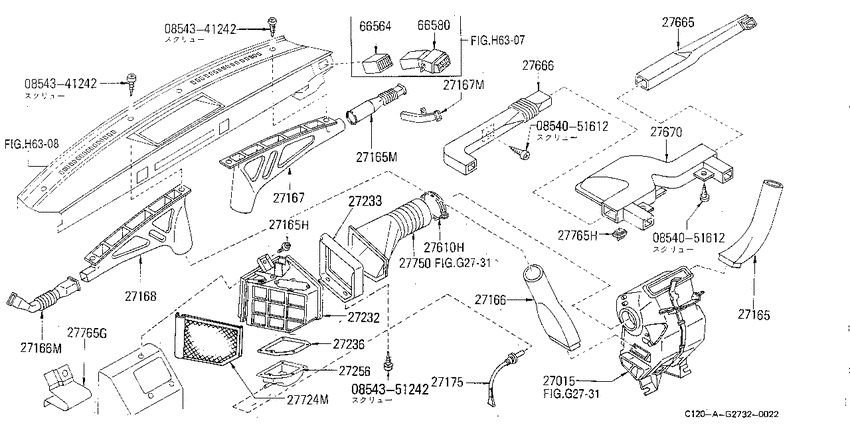

heater,cooler & air conditioner (fitting) (1982-09-01 ~ ; ノズル&ダクト; ALL) Diagram Nissan VANETTE
- Year
- 1979 - 1980
- Sales region
- Japan
- Engine
- A14S
- Number of doors
- 5
- grade
- DX
- body
- HV
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0854051612
|
0854051612
08540-51612
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-51612 |
— | ||
|
0854051612
|
0854051612
08540-51612
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-51612 |
— | ||
|
0854341242
|
0854341242
0854341242 SCREWTAPPING |
0854341242 |
US $1.83 |
||
| replacement | |||||
|
0854341242
|
0854341242
08543-4122A SCREWTAPPING |
08543-4122A |
from US $0.52 |
||
|
0854341242
|
0854341242
0854341242 SCREWTAPPING |
0854341242 |
US $1.83 |
||
| replacement | |||||
|
0854341242
|
0854341242
08543-4122A SCREWTAPPING |
08543-4122A |
from US $0.52 |
||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $0.54 |
||
|
27015
|
27015
27120-02C00 Case Assy-Front Heater8209--01 ~ 8312--01; ALL |
27120-02C00 |
US $68.69 |
||
|
27015
|
27015
27120-02C01 Case Assy-Front Heater8209--01 ~ 8311--01; *ALL; ｶﾝﾚｲﾁﾖｳ |
27120-02C01 |
US $68.69 |
||
|
27015
|
27015
27120-02C02 Case Assy-Front Heater8312--01 ~ ; ALL; NICHIRA |
27120-02C02 |
US $68.69 |
||
|
27015
|
27015
27120-02C03 Case Assy-Front Heater8311--01 ~ ; *ALL; ｶﾝﾚｲﾁ ﾖｳ |
27120-02C03 |
US $68.69 |
||
|
27015
|
27015
27719-S5000 Clip8209--01 ~ ; *ALL; FRﾖｳ[B421] |
27719-S5000 |
US $2.02 |
||
| replacement | |||||
|
27015
|
27015
92527HC000 Clamp8209--01 ~ ; *ALL; FRﾖｳ[B421] |
92527HC000 |
US $2.02 |
||
|
27165
|
27165
27161-G2501 Duct-Demister, Rh7810--01 ~ 7907--01; V+K+T |
27161-G2501 |
US $17.42 |
||
|
27165
|
27165
27161-G2502 Duct-Demister, Rh7906--01 ~ 8210--01; V+K+T |
27161-G2502 |
US $14.26 |
||
|
27165
|
27165
27815-G2505 Duct-Demister, Rh8210--01 ~ 8302--01; V+K+T |
27815-G2505 |
US $10.37 |
||
|
27165
|
27165
27815-G2506
Duct-Demister, Rh
8302--01 ~ ; V+K+T |
27815-G2506 |
— | ||
|
27165
|
27165
6686001W01 Clip8209--01 ~ ; ALL; (A) |
6686001W01 |
US $0.97 |
||
|
27165H
|
27165H
6686001W01 Clip8209--01 ~ ; ALL; (A) |
6686001W01 |
US $0.97 |
||
|
27166
|
27166
27162-G2501
Duct-Demister, Lh
7810--01 ~ 7907--01; V+K+T |
27162-G2501 |
— | ||
|
27166
|
27166
27162-G2502 Duct-Demister, Lh7906--01 ~ 8006--01; V+K+T |
27162-G2502 |
US $9.65 |
||
|
27166
|
27166
27162-G2503 Duct-Demister, Lh8006--01 ~ 8209--01; V+K+T |
27162-G2503 |
US $9.65 |
||
|
27166
|
27166
27816-01C00 Duct-Demister, Lh8209--01 ~ ; ALL; [B517] |
27816-01C00 |
US $6.62 |
||
|
27167
|
27167
27171-G2501
Nozzle-Demister, Rh
7810--01 ~ 8006--01; V+K+T |
27171-G2501 |
— | ||
|
27167
|
27167
27171-G3500 Nozzle-Demister, Rh8006--01 ~ 8209--01; V+K+T |
27171-G3500 |
US $14.98 |
||
|
27167
|
27167
27800-G2506 Nozzle-Demister, Rh8210--01 ~ ; V+K.(DX,GL)+T |
27800-G2506 |
US $13.68 |
||
|
27168
|
27168
27172-G2501 Nozzle-Demister, Lh7810--01 ~ 8006--01; V+K+T |
27172-G2501 |
US $14.98 |
||
|
27168
|
27168
27172-G3500 Nozzle-Demister, Lh8006--01 ~ 8209--01; V+K+T |
27172-G3500 |
US $14.98 |
||
|
27168
|
27168
27801-G2506 Nozzle-Demister, Lh8210--01 ~ ; V+K.(DX,GL)+T |
27801-G2506 |
US $13.68 |
||
|
27175
|
27175
27845-01C00 Duct-Rubber8209--01 ~ ; ALL; ｲﾝﾃ-ｸ ﾄﾞﾚ-ﾝ[B517] |
27845-01C00 |
US $16.42 |
||
|
27232
|
27232
27850-01C01 Box-Grille, Air Inlet8209--01 ~ ; ALL |
27850-01C01 |
US $70.85 |
||
|
27233
|
27233
27859-01C00 Plate-Grille Fix8209--01 ~ ; ALL |
27859-01C00 |
US $15.98 |
||
|
27236
|
27236
27854-01C00 Packing-Grille8209--01 ~ ; ALL; ｲﾝﾃ-ｸﾎﾞﾂｸｽ ﾖｳ |
27854-01C00 |
US $12.24 |
||
|
27256
|
27256
27853-01C00 Duct-Air Outlet, No 58209--01 ~ ; ALL |
27853-01C00 |
US $6.19 |
||
|
27665
|
27665
27870-01C01 Duct-Ventilator, Rh8209--01 ~ ; ALL; [B517] |
27870-01C01 |
US $14.54 |
||
|
27666
|
27666
27871-G2505 Duct-Ventilator, Lh8210--01 ~ ; V+K+T; [B421] |
27871-G2505 |
US $10.80 |
||
|
27670
|
27670
27860-01C00 Duct-Ventilator, Center8209--01 ~ ; ALL; [B421] |
27860-01C00 |
US $19.15 |
||
|
27724M
|
27724M
B7722-01C00 Filter-Air8210--01 ~ ; ALL; DKKC[B421] |
B7722-01C00 |
US $8.78 |
||
|
27750
|
27750
27858-G2506 Duct-Air Inlet8210--01 ~ ; V+K+T; [B517] |
27858-G2506 |
US $24.48 |
||
|
27765G
|
27765G
27847-G2505
Protector
8210--01 ~ ; V+K+T |
27847-G2505 |
— | ||
|
27765H
|
27765H
27894-01C00
Plug-Blind
8209--01 ~ ; ALL; [B421] |
27894-01C00 |
— | ||
|
66564
|
66564
68756-01C00 ﾀﾞｸﾄ,ﾍﾞﾝﾁﾚ-ﾀ- lh8210--01 ~ ; V+K+T |
68756-01C00 |
US $15.41 |
||
|
66564
|
66564
68781-G2500
ﾀﾞｸﾄ,ﾍﾞﾝﾁﾚ-ﾀ- lh
7810--01 ~ 7907--01; ALL; ｲﾝｽﾄ ｻｲﾄﾞ ﾖｳ |
68781-G2500 |
— | ||
|
66564
|
66564
68781-G2501 ﾀﾞｸﾄ,ﾍﾞﾝﾁﾚ-ﾀ- lh7906--01 ~ 8207--01; ALL |
68781-G2501 |
US $23.33 |
||
|
66564
|
66564
68781-G2502 ﾀﾞｸﾄ,ﾍﾞﾝﾁﾚ-ﾀ- lh8207--01 ~ 8209--01; ALL |
68781-G2502 |
US $23.33 |
||
|
66580
|
66580
68750-G2500 ｸﾞﾘﾙ,ﾍﾞﾝﾁﾚ-ﾀ- rh7810--01 ~ 7907--01; V+K+T |
68750-G2500 |
US $38.59 |
||
|
66580
|
66580
68750-G2501 ｸﾞﾘﾙ,ﾍﾞﾝﾁﾚ-ﾀ- rh7906--01 ~ 8210--01; V+K+T |
68750-G2501 |
US $28.37 |
||
|
66580
|
66580
68770-01C00 ｸﾞﾘﾙ,ﾍﾞﾝﾁﾚ-ﾀ- rh8210--01 ~ ; V+K+T |
68770-01C00 |
US $20.45 |
||
|
66580
|
66580
01553-00155 ｸﾘﾂﾌﾟ8210--01 ~ ; V+K+T; (C) |
01553-00155 |
US $1.73 |
||
