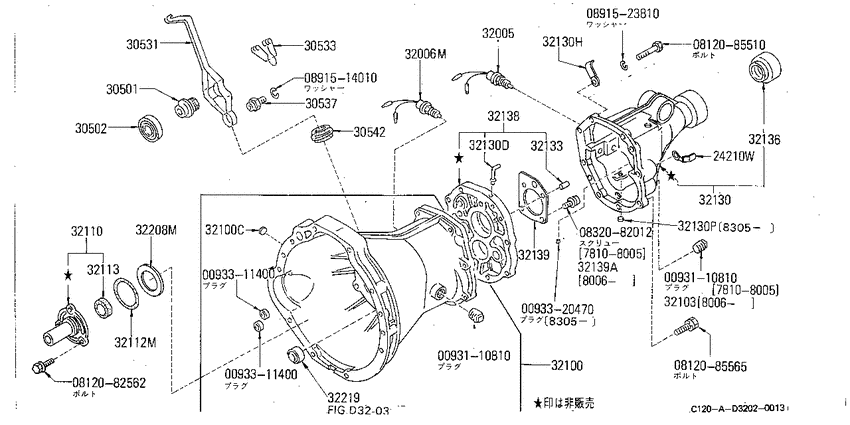

Transmission case (1978-10-01 ~ 1981-06-01; (R4W60L); K.MT +T.DX) Diagram Nissan VANETTE
- Year
- 1978 - 1981
- Sales region
- Japan
- Engine
- A14S
- Number of doors
- 2
- grade
- DX
- body
- TH
- Roof
- STD
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093110810
|
0093110810
00931-10810
ﾌﾟﾗｸﾞ,ｽﾚﾂﾄﾞ
|
00931-10810 |
— | ||
|
0093110810
|
0093110810
00931-10810
ﾌﾟﾗｸﾞ,ｽﾚﾂﾄﾞ
|
00931-10810 |
— | ||
|
0093320470
|
0093320470
00933-20470
PLUG-THREAD
|
00933-20470 |
— | ||
|
0812082562
|
0812082562
08120-82562
Bolt-hexagon
|
08120-82562 |
— | ||
|
0812085510
|
0812085510
08120-85510
Bolt-hexagon
|
08120-85510 |
— | ||
|
0832082012
|
0832082012
08320-82012
BOLT-FIXING,RETAINER
|
08320-82012 |
— | ||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
0891523810
|
0891523810
08915-23810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-23810 |
— | ||
|
24210W
|
24210W
24210-89944 Clamp7810--01 ~ ; ALL |
24210-89944 |
US $3.46 |
||
|
30501
|
30501
30501-H7500 Sleeve-Clutch Release7810--01 ~ 8006--01; T.A14+K |
30501-H7500 |
US $25.63 |
||
|
30502
|
30502
3050221000
Bearing-Clutch Release
7810--01 ~ ; ALL; [B106] |
3050221000 |
— | ||
| replacement | |||||
|
30502
|
30502
30502-69F1A Bearing-Clutch Release7810--01 ~ ; ALL; [B106] |
30502-69F1A |
from US $27.32 |
||
|
30531
|
30531
30531-H7410 Lever-Withdrawal, Clutch7810--01 ~ 8006--01; T.A14 K.A14 |
30531-H7410 |
US $32.98 |
||
|
30533
|
30533
30533-H1001 Spring-Return7810--01 ~ 8006--01; (A12,A14).MT |
30533-H1001 |
US $8.73 |
||
|
30537
|
30537
30537H1000 Pin-Ball, Withdrawal Lever7810--01 ~ 7907--01; T+K+V |
30537H1000 |
US $4.03 |
||
|
30542
|
30542
30542-H7410
Cover-Dust, Withdrawal Lever
7810--01 ~ 7907--01; T.(A12+A14)+K |
30542-H7410 |
— | ||
| replacement | |||||
|
30542
|
30542
30542-H7411 Cover-Dust, Withdrawal Lever7810--01 ~ 7907--01; T.(A12+A14)+K |
30542-H7411 |
US $12.47 |
||
|
32005
|
32005
32005-21101
Switch Assy-Reverse Lamp
7810--01 ~ 8106--01; A14.R4 +K.A15S |
32005-21101 |
— | ||
|
32100
|
32100
32100-H8901 Case Assy-Transmission7810--01 ~ 7907--01; T.DX+K |
32100-H8901 |
US $420.55 |
||
|
32100
|
32100
34465-18000 Bearing-Cross Shaft7810--01 ~ 8508--01; R4 |
34465-18000 |
US $3.31 |
||
|
32100C
|
32100C
34465-18000 Bearing-Cross Shaft7810--01 ~ 8508--01; R4 |
34465-18000 |
US $3.31 |
||
|
32103
|
32103
32103H7300 Plug-Drain7810--01 ~ 7907--01; T+K |
32103H7300 |
US $4.03 |
||
|
32110
|
32110
32110-H7300 Cover Assy-Front7810--01 ~ 7907--01; T+K |
32110-H7300 |
US $32.03 |
||
|
32112M
|
32112M
32112-H7300 Seal-O Ring, Front Cover7810--01 ~ 7907--01; T+K |
32112-H7300 |
US $2.52 |
||
|
32113
|
32113
32114Y4000 Seal-Oil, Front Cover7810--01 ~ 7907--01; T+K |
32114Y4000 |
US $3.19 |
||
|
32130
|
32130
32130-G2800
Extension Assy-Rear
7810--01 ~ 7907--01; T |
32130-G2800 |
— | ||
|
32130
|
32130
38322-G2800 Breather7907--01 ~ 8106--01; ,T.DX V.A14 K.MT |
38322-G2800 |
US $7.92 |
||
|
32130
|
32130
38322-H7300 Breather-Transmission Case7810--01 ~ 7907--01; T+K |
38322-H7300 |
US $6.48 |
||
|
32130
|
32130
24210-89922 Clip-Wire7810--01 ~ 8510--01; ALL |
24210-89922 |
US $3.46 |
||
|
32130
|
32130
32139-G0300 Plug-Welch, Rear Extension7810--01 ~ 8508--01; R4 |
32139-G0300 |
US $1.73 |
||
|
32130D
|
32130D
38322-G2800 Breather7907--01 ~ 8106--01; ,T.DX V.A14 K.MT |
38322-G2800 |
US $7.92 |
||
|
32130D
|
32130D
38322-H7300 Breather-Transmission Case7810--01 ~ 7907--01; T+K |
38322-H7300 |
US $6.48 |
||
|
32130H
|
32130H
24210-89922 Clip-Wire7810--01 ~ 8510--01; ALL |
24210-89922 |
US $3.46 |
||
|
32130P
|
32130P
32139-G0300 Plug-Welch, Rear Extension7810--01 ~ 8508--01; R4 |
32139-G0300 |
US $1.73 |
||
|
32133
|
32133
32133-18000 Pin-Dowel7810--01 ~ 7907--01; T+K+V |
32133-18000 |
US $1.73 |
||
|
32136
|
32136
32136-H5000
Seal-Oil, Rear Extension
7810--01 ~ 7907--01; T+K+V |
32136-H5000 |
— | ||
|
32138
|
32138
32137-G2801 Plate-Adapter7907--01 ~ 8106--01; @T.DX.A12 V.A14 T.A14 K.MT |
32137-G2801 |
US $55.87 |
||
|
32138
|
32138
32137-H7300 Plate-Adapter7810--01 ~ 7907--01; T+K |
32137-H7300 |
US $110.45 |
||
|
32139
|
32139
32121-H7300 Retainer-Bearing7810--01 ~ 7907--01; T+K |
32121-H7300 |
US $10.80 |
||
|
32139
|
32139
32121-H7301 Retainer-Bearing8006--01 ~ 8106--01; ,T.DX V.A14 K.MT |
32121-H7301 |
US $5.04 |
||
|
32139
|
32139
0114100021 BOLT-FIXING,RETAINER7810--01 ~ 7907--01; T+K.MT |
0114100021 |
US $2.91 |
||
|
32139A
|
32139A
0114100021 BOLT-FIXING,RETAINER7810--01 ~ 7907--01; T+K.MT |
0114100021 |
US $2.91 |
||
|
32208M
|
32208M
32115-H7300 Shim-Adjusting, Front Cover7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=0.50 |
32115-H7300 |
US $2.45 |
||
|
32208M
|
32208M
32115-H7301 Shim-Adjusting, Front Cover7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=0.55 |
32115-H7301 |
US $2.45 |
||
|
32208M
|
32208M
32115-H7302 Shim-Adjusting, Front Cover7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=0.60 |
32115-H7302 |
US $2.45 |
||
|
32208M
|
32208M
32115-H7303 Shim-Adjusting, Front Cover7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=0.65 |
32115-H7303 |
US $2.45 |
||
|
32208M
|
32208M
32115-H7304 Shim-Adjusting, Front Cover7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=0.70 |
32115-H7304 |
US $2.45 |
||
|
32208M
|
32208M
32115-H7305 Shim-Adjusting, Front Cover7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=0.75 |
32115-H7305 |
US $2.45 |
||
|
32208M
|
32208M
32115-H7306 Shim-Adjusting, Front Cover7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=0.80 |
32115-H7306 |
US $2.45 |
||
|
32208M
|
32208M
32115-H7307 Shim-Adjusting, Front Cover7810--01 ~ 7907--01; T+K; ｾﾝﾀｸ T=0.85 |
32115-H7307 |
US $2.45 |
||
|
32219
|
32219
32219-H9700 Bearing-Counter Shaft7810--01 ~ 7907--01; T+K |
32219-H9700 |
US $16.42 |
||
|
32219
|
32219
32219-H7300 Bearing-Counter Shaft7810--01 ~ 7907--01; T+K |
32219-H7300 |
US $49.54 |
||
