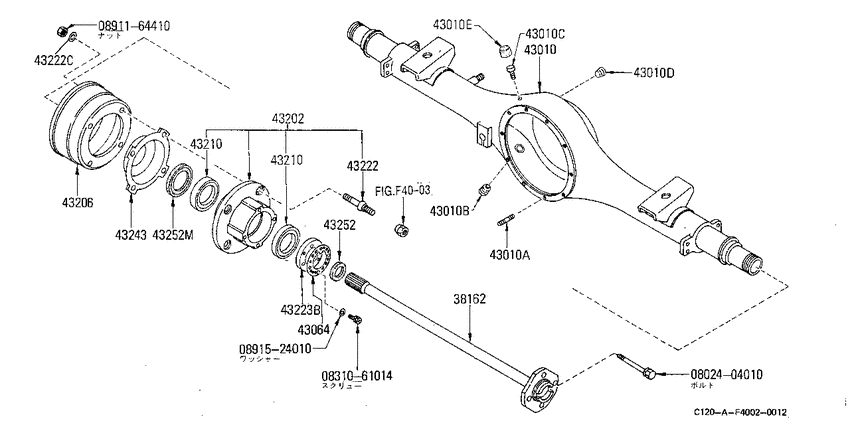

Rear axle (1982-10-01 ~ ; T.LB) Diagram Nissan VANETTE
- Year
- 1978 - 1981
- Sales region
- Japan
- Engine
- A14S
- Number of doors
- 2
- grade
- DX
- body
- TH
- Roof
- STD
- body type
- LB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0802404010
|
0802404010
08024-04010
Bolt-hexagon
|
08024-04010 |
— | ||
|
0831061014
|
0831061014
08310-61014
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-61014 |
— | ||
|
0891164410
|
0891164410
08911-64410
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-64410 |
— | ||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
38162
|
38162
38162-U1500
Shaft Assy-Rear Axle
7810--01 ~ 7910--01; ALL |
38162-U1500 |
— | ||
|
38162
|
38162
38162-W8500 Shaft Assy-Rear Axle7910--01 ~ 8106--01; ALL; L=684.1 |
38162-W8500 |
US $352.58 |
||
|
38162
|
38162
38164-G3200 Shaft Assy-Rear Axle8210--01 ~ ; T.LB |
38164-G3200 |
US $775.97 |
||
|
43010
|
43010
43010-G3150
Case Assy-Rear Axle
7810--01 ~ 7907--01; T |
43010-G3150 |
— | ||
|
43010
|
43010
43010-G3700
ｹ-ｽ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｱｸｽﾙ
8210--01 ~ 8210--01; T.LB |
43010-G3700 |
— | ||
|
43010
|
43010
43010-G3710 Case Assy-Rear Axle8210--01 ~ ; T.LB |
43010-G3710 |
US $2,156 |
||
|
43010
|
43010
32103-U8401
Plug-Drain
7810--01 ~ ; ALL |
32103-U8401 |
— | ||
| replacement | |||||
|
43010
|
43010
32103U840A Plug-Drain7810--01 ~ ; ALL |
32103U840A |
from US $5.55 |
||
|
43010
|
43010
38322-55100 Breather-Rear Axle Case7810--01 ~ ; ALL |
38322-55100 |
US $2.74 |
||
|
43010
|
43010
43059-A1600 Plug-Filler7810--01 ~ ; ALL |
43059-A1600 |
from US $2.11 |
||
|
43010
|
43010
43096-G0300 Cap-Breather7810--01 ~ ; ALL |
43096-G0300 |
US $4.18 |
||
|
43010B
|
43010B
32103-U8401
Plug-Drain
7810--01 ~ ; ALL |
32103-U8401 |
— | ||
| replacement | |||||
|
43010B
|
43010B
32103U840A Plug-Drain7810--01 ~ ; ALL |
32103U840A |
from US $5.55 |
||
|
43010C
|
43010C
38322-55100 Breather-Rear Axle Case7810--01 ~ ; ALL |
38322-55100 |
US $2.74 |
||
|
43010D
|
43010D
43059-A1600 Plug-Filler7810--01 ~ ; ALL |
43059-A1600 |
from US $2.11 |
||
|
43010E
|
43010E
43096-G0300 Cap-Breather7810--01 ~ ; ALL |
43096-G0300 |
US $4.18 |
||
|
43064
|
43064
43234-G3200 Washer-Lock, Rear Axle Bearing8210--01 ~ ; T.LB |
43234-G3200 |
US $7.49 |
||
|
43202
|
43202
43202-G3225 ﾊﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ8210--01 ~ ; T.LB; RH & LH |
43202-G3225 |
US $305.86 |
||
|
43202
|
43202
43204-G3200 Hub Assy-Rear Axle8210--01 ~ ; T.LB; RH & LH |
43204-G3200 |
US $305.86 |
||
|
43206
|
43206
40206-U4800 Drum-Brake, Rear7810--01 ~ 8210--01; V+K+T |
40206-U4800 |
US $145.44 |
||
| replacement | |||||
|
43206
|
43206
432064M700 Drum-Brake, Rear7810--01 ~ 8210--01; V+K+T |
432064M700 |
US $161.28 |
||
|
43206
|
43206
43206-G3261 Drum-Brake, Rear Axle8210--01 ~ ; T.LB |
43206-G3261 |
US $231.84 |
||
|
43210
|
43210
43210-G3200 Bearing-Inner, Rear Axle8210--01 ~ ; T.LB |
43210-G3200 |
US $64.22 |
||
|
43210
|
43210
43210-G3200 Bearing-Inner, Rear Axle8210--01 ~ ; T.LB |
43210-G3200 |
US $64.22 |
||
|
43222
|
43222
40222A0800 Bolt-Hub7810--01 ~ 7910--01; ALL; L=39 |
40222A0800 |
from US $1.35 |
||
|
43222
|
43222
40222-G3200 Bolt-Hub8210--01 ~ ; T.LB; W/T ﾖｳ TLF ﾌｸﾑ |
40222-G3200 |
US $6.05 |
||
|
43222
|
43222
43222W1200 Bolt-Hub7910--01 ~ 8210--01; V+K+T; L=40 |
43222W1200 |
US $4.03 |
||
|
43222
|
43222
40208-G3200 Washer-Plain, Hub Bolt8210--01 ~ ; T.LB |
40208-G3200 |
US $8.06 |
||
|
43222C
|
43222C
40208-G3200 Washer-Plain, Hub Bolt8210--01 ~ ; T.LB |
40208-G3200 |
US $8.06 |
||
|
43223B
|
43223B
43231-G3200 Nut-Hub Bolt8210--01 ~ ; T.LB |
43231-G3200 |
US $52.13 |
||
|
43243
|
43243
43242-G3200 Catcher-Grease, Rear Axle Lh8210--01 ~ ; T.LB |
43242-G3200 |
US $17.71 |
||
|
43252
|
43252
43252G3200 Seal-Oil, Rear Axle Shaft8210--01 ~ 8508--01; T.LB |
43252G3200 |
US $15.26 |
||
|
43252
|
43252
43252H1000 Seal-Oil, Rear Axle Shaft7810--01 ~ 8210--01; V+K+T; SELECT USE |
43252H1000 |
from US $5.04 |
||
|
43252
|
43252
43252-H1010 Seal-Oil, Rear Axle Shaft7810--01 ~ 8210--01; V+K+T; SELECT USE |
43252-H1010 |
US $6.77 |
||
|
43252
|
43252
43232G3210 Seal-Oil8210--01 ~ ; T.LB |
43232G3210 |
US $12.38 |
||
|
43252M
|
43252M
43232G3210 Seal-Oil8210--01 ~ ; T.LB |
43232G3210 |
US $12.38 |
||
