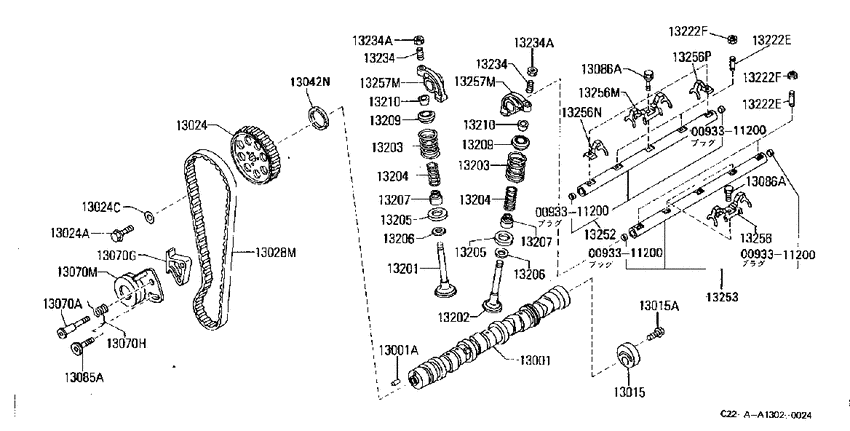

cam shaft & ﾊﾞﾙﾌﾞ ﾒｶﾆｽﾞﾑ (1985-09-01 ~ ; CA20) Diagram Nissan VANETTE
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- CA20S
- transmission
- MT
- grade
- EXC
- body
- HK
- transmission/shift type
- F5
- capacity
- S8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093311200
|
0093311200
00933-11200
ﾌﾟﾗｸﾞ
|
00933-11200 |
— | ||
|
0093311200
|
0093311200
00933-11200
ﾌﾟﾗｸﾞ
|
00933-11200 |
— | ||
|
0093311200
|
0093311200
00933-11200
ﾌﾟﾗｸﾞ
|
00933-11200 |
— | ||
|
0093311200
|
0093311200
00933-11200
ﾌﾟﾗｸﾞ
|
00933-11200 |
— | ||
|
13001
|
13001
13001-05F82 Camshaft Assy8509--01 ~ 9106--01; CA20 |
13001-05F82 |
US $355.42 |
||
|
13001
|
13001
1303218000 Dowel-Camshaft8509--01 ~ 9106--01; CA20 |
1303218000 |
from US $0.57 |
||
|
13001A
|
13001A
1303218000 Dowel-Camshaft8509--01 ~ 9106--01; CA20 |
1303218000 |
from US $0.57 |
||
|
13015
|
13015
13015-D0101 Cam Assy-Fuel Pump8509--01 ~ 9106--01; CA20 |
13015-D0101 |
US $8.50 |
||
|
13015
|
13015
13016-D0102 Bolt8509--01 ~ 9106--01; CA20 |
13016-D0102 |
US $3.60 |
||
|
13015A
|
13015A
13016-D0102 Bolt8509--01 ~ 9106--01; CA20 |
13016-D0102 |
US $3.60 |
||
|
13024
|
13024
13024-D0100 Sprocket-Camshaft8509--01 ~ 9106--01; CA20 |
13024-D0100 |
US $63.65 |
||
|
13024
|
13024
13012-D0101
Bolt-Sprocket, Camshaft
8509--01 ~ 9106--01; CA20 |
13012-D0101 |
— | ||
| replacement | |||||
|
13024
|
13024
13012-D010A Bolt-sprocket,camshaft8509--01 ~ 9106--01; CA20 |
13012-D010A |
US $4.30 |
||
|
13024
|
13024
13013-V5001 Washer-Plain8509--01 ~ 9106--01; CA20 |
13013-V5001 |
US $3.06 |
||
|
13024A
|
13024A
13012-D0101
Bolt-Sprocket, Camshaft
8509--01 ~ 9106--01; CA20 |
13012-D0101 |
— | ||
| replacement | |||||
|
13024A
|
13024A
13012-D010A Bolt-sprocket,camshaft8509--01 ~ 9106--01; CA20 |
13012-D010A |
US $4.30 |
||
|
13024C
|
13024C
13013-V5001 Washer-Plain8509--01 ~ 9106--01; CA20 |
13013-V5001 |
US $3.06 |
||
|
13028M
|
13028M
AY440NS005 Belt-Timing8509--01 ~ 8809--01; CA20 |
AY440NS005 |
US $96.48 |
||
|
13042N
|
13042N
13042-D0100
Seal-Oil, Camshaft
8509--01 ~ 9106--01; CA20 |
13042-D0100 |
— | ||
| replacement | |||||
|
13042N
|
13042N
13042D0101 Seal-Oil, Camshaft8509--01 ~ 9106--01; CA20 |
13042D0101 |
from US $3.19 |
||
|
13070A
|
13070A
13072-D0101
Bolt
8509--01 ~ 9106--01; CA20 |
13072-D0101 |
— | ||
| replacement | |||||
|
13070A
|
13070A
13072-D010A Camshaft & valve8509--01 ~ 9106--01; CA20 |
13072-D010A |
US $3.26 |
||
|
13070G
|
13070G
13074-D0100 Support-Tensioner8509--01 ~ 9106--01; CA20 |
13074-D0100 |
US $9.94 |
||
|
13070H
|
13070H
13071-D1710 Spring-Tensioner8509--01 ~ 9106--01; CA20 |
13071-D1710 |
US $3.74 |
||
|
13070M
|
13070M
AY460NS003 Tensioner Assy-Belt8509--01 ~ 9106--01; CA20 |
AY460NS003 |
US $104.40 |
||
|
13085A
|
13085A
13073-D0101 Bolt8509--01 ~ 9106--01; CA20 |
13073-D0101 |
US $11.92 |
||
|
13086A
|
13086A
13058-D0200 Bolt8509--01 ~ 9106--01; CA20 |
13058-D0200 |
US $2.45 |
||
|
13086A
|
13086A
13058-D0200 Bolt8509--01 ~ 9106--01; CA20 |
13058-D0200 |
US $2.45 |
||
|
13201
|
13201
13201-D0200
Valve-Intake
8509--01 ~ 9106--01; CA20 |
13201-D0200 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-D020A Valve-Intake8509--01 ~ 9106--01; CA20 |
13201-D020A |
US $17.60 |
||
|
13202
|
13202
13202-D0100 Valve-Exhaust8509--01 ~ 9106--01; CA20 |
13202-D0100 |
US $40.90 |
||
|
13203
|
13203
13203-D0200 Spring-Valve, Outer8509--01 ~ 9106--01; CA20 |
13203-D0200 |
US $7.63 |
||
|
13203
|
13203
13203-D0200 Spring-Valve, Outer8509--01 ~ 9106--01; CA20 |
13203-D0200 |
US $7.63 |
||
|
13204
|
13204
13204-W7000 Spring-Valve, Inner8509--01 ~ 9106--01; CA20 |
13204-W7000 |
US $4.57 |
||
|
13204
|
13204
13204-W7000 Spring-Valve, Inner8509--01 ~ 9106--01; CA20 |
13204-W7000 |
US $4.57 |
||
|
13205
|
13205
13205-D0200
Seat-Valve Spring, Outer
8509--01 ~ 9106--01; CA20 |
13205-D0200 |
— | ||
| replacement | |||||
|
13205
|
13205
13205D020A SEAT VALVE SPR8509--01 ~ 9106--01; CA20 |
13205D020A |
US $1.93 |
||
|
13205
|
13205
13205-D0200
Seat-Valve Spring, Outer
8509--01 ~ 9106--01; CA20 |
13205-D0200 |
— | ||
| replacement | |||||
|
13205
|
13205
13205D020A SEAT VALVE SPR8509--01 ~ 9106--01; CA20 |
13205D020A |
US $1.93 |
||
|
13206
|
13206
13206-D0200 Seat-Valve Spring, Inner8509--01 ~ 9106--01; CA20 |
13206-D0200 |
US $0.86 |
||
|
13206
|
13206
13206-D0200 Seat-Valve Spring, Inner8509--01 ~ 9106--01; CA20 |
13206-D0200 |
US $0.86 |
||
|
13207
|
13207
13207D0111
Seal-Oil, Valve
8508--01 ~ 9106--01; CA20 |
13207D0111 |
— | ||
| replacement | |||||
|
13207
|
13207
13207-53F00 Seal-Oil, Valve8508--01 ~ 9106--01; CA20 |
13207-53F00 |
from US $4.01 |
||
|
13207
|
13207
13207D0111
Seal-Oil, Valve
8508--01 ~ 9106--01; CA20 |
13207D0111 |
— | ||
| replacement | |||||
|
13207
|
13207
13207-53F00 Seal-Oil, Valve8508--01 ~ 9106--01; CA20 |
13207-53F00 |
from US $4.01 |
||
|
13209
|
13209
13209-D0102 Retainer-valve spring8509--01 ~ 9106--01; CA20 |
13209-D0102 |
US $3.60 |
||
|
13209
|
13209
13209-D0102 Retainer-valve spring8509--01 ~ 9106--01; CA20 |
13209-D0102 |
US $3.60 |
||
|
13210
|
13210
1321001M00
Collet-Valve Spring
8509--01 ~ 9106--01; CA20 |
1321001M00 |
— | ||
| replacement | |||||
|
13210
|
13210
13210-01M01 Collet-Valve Spring8509--01 ~ 9106--01; CA20 |
13210-01M01 |
US $1.93 |
||
|
13210
|
13210
1321001M00
Collet-Valve Spring
8509--01 ~ 9106--01; CA20 |
1321001M00 |
— | ||
| replacement | |||||
|
13210
|
13210
13210-01M01 Collet-Valve Spring8509--01 ~ 9106--01; CA20 |
13210-01M01 |
US $1.93 |
||
|
13222E
|
13222E
01151-00331 STUD-ROCKER SHAFT8611--01 ~ 9106--01; CA20 |
01151-00331 |
US $2.45 |
||
|
13222E
|
13222E
01151-00331 STUD-ROCKER SHAFT8611--01 ~ 9106--01; CA20 |
01151-00331 |
US $2.45 |
||
|
13222F
|
13222F
01211-00441 NUT-ROCKER SHAFT8611--01 ~ 9106--01; CA20 |
01211-00441 |
US $2.45 |
||
|
13222F
|
13222F
01211-00441 NUT-ROCKER SHAFT8611--01 ~ 9106--01; CA20 |
01211-00441 |
US $2.45 |
||
|
13234
|
13234
13287-W0400 Screw-Adjust, Valve Rocker8509--01 ~ 9106--01; CA20 |
13287-W0400 |
US $5.55 |
||
|
13234
|
13234
0122500112 NUT-LOCK,ROCKER PIVOT SCREW8509--01 ~ 8809--01; CA20 |
0122500112 |
US $1.73 |
||
|
13234
|
13234
13288-H5000 Nut-Lock, Rocker Pivot Screw8809--01 ~ 9106--01; CA20; |
13288-H5000 |
US $2.36 |
||
|
13234
|
13234
13287-W0400 Screw-Adjust, Valve Rocker8509--01 ~ 9106--01; CA20 |
13287-W0400 |
US $5.55 |
||
|
13234
|
13234
0122500112 NUT-LOCK,ROCKER PIVOT SCREW8509--01 ~ 8809--01; CA20 |
0122500112 |
US $1.73 |
||
|
13234
|
13234
13288-H5000 Nut-Lock, Rocker Pivot Screw8809--01 ~ 9106--01; CA20; |
13288-H5000 |
US $2.36 |
||
|
13234A
|
13234A
0122500112 NUT-LOCK,ROCKER PIVOT SCREW8509--01 ~ 8809--01; CA20 |
0122500112 |
US $1.73 |
||
|
13234A
|
13234A
13288-H5000 Nut-Lock, Rocker Pivot Screw8809--01 ~ 9106--01; CA20; |
13288-H5000 |
US $2.36 |
||
|
13234A
|
13234A
0122500112 NUT-LOCK,ROCKER PIVOT SCREW8509--01 ~ 8809--01; CA20 |
0122500112 |
US $1.73 |
||
|
13234A
|
13234A
13288-H5000 Nut-Lock, Rocker Pivot Screw8809--01 ~ 9106--01; CA20; |
13288-H5000 |
US $2.36 |
||
|
13252
|
13252
13252-D0100
Shaft-Rocker
8509--01 ~ 9106--01; CA20 |
13252-D0100 |
— | ||
|
13253
|
13253
13245-D0100 Shaft-Rocker8509--01 ~ 9106--01; CA20 |
13245-D0100 |
US $53.28 |
||
|
13256
|
13256
13256-D0100 Spring-Rocker8509--01 ~ 9106--01; CA20 |
13256-D0100 |
US $8.06 |
||
|
13256
|
13256
13256-D0101 Spring-Rocker8509--01 ~ 9106--01; CA20; ｲﾝﾃ-ｸ #2 #3 |
13256-D0101 |
US $8.06 |
||
|
13256
|
13256
13256-D0102 Spring-Rocker8509--01 ~ 9106--01; CA20; ｲﾝﾃ-ｸ #1 |
13256-D0102 |
US $3.60 |
||
|
13256
|
13256
13256-D0103 Spring-Rocker8509--01 ~ 9106--01; CA20; ｲﾝﾃ-ｸ #4 |
13256-D0103 |
US $3.60 |
||
|
13256M
|
13256M
13256-D0101 Spring-Rocker8509--01 ~ 9106--01; CA20; ｲﾝﾃ-ｸ #2 #3 |
13256-D0101 |
US $8.06 |
||
|
13256N
|
13256N
13256-D0102 Spring-Rocker8509--01 ~ 9106--01; CA20; ｲﾝﾃ-ｸ #1 |
13256-D0102 |
US $3.60 |
||
|
13256P
|
13256P
13256-D0103 Spring-Rocker8509--01 ~ 9106--01; CA20; ｲﾝﾃ-ｸ #4 |
13256-D0103 |
US $3.60 |
||
|
13257M
|
13257M
13257-D0101 Rocker-Valve8509--01 ~ 8604--01; CA20 |
13257-D0101 |
US $26.21 |
||
|
13257M
|
13257M
13257-D0103 Rocker-Valve8809--01 ~ 9106--01; CA20; |
13257-D0103 |
US $22.34 |
||
|
13257M
|
13257M
13257-V5500 Rocker-Valve8604--01 ~ 8809--01; CA20 |
13257-V5500 |
US $18.72 |
||
|
13257M
|
13257M
13257-D0101 Rocker-Valve8509--01 ~ 8604--01; CA20 |
13257-D0101 |
US $26.21 |
||
|
13257M
|
13257M
13257-D0103 Rocker-Valve8809--01 ~ 9106--01; CA20; |
13257-D0103 |
US $22.34 |
||
|
13257M
|
13257M
13257-V5500 Rocker-Valve8604--01 ~ 8809--01; CA20 |
13257-V5500 |
US $18.72 |
||
