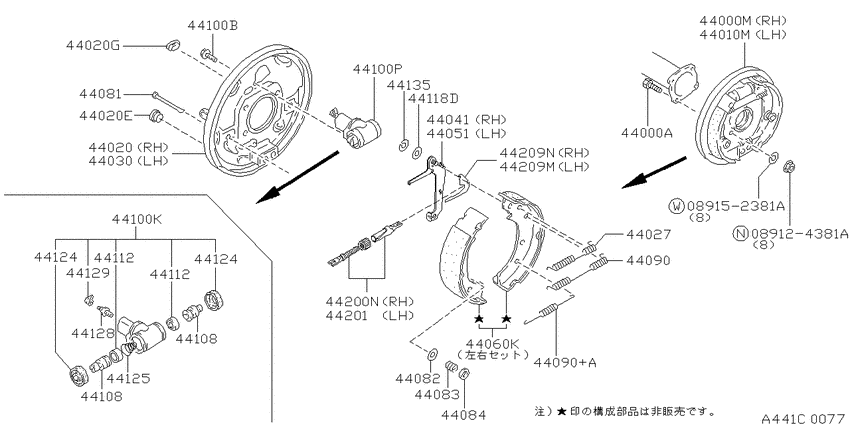

Rear brake (1991-06-01 ~ 1993-08-01; GA16DE.FG +CD20.FG) Diagram Nissan VANETTE
- Year
- 1991 - 1997
- Sales region
- Japan
- Engine
- GA16DE
- drive
- 2WD
- transmission
- MT
- grade
- FG
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089124381A
|
089124381A
08912-4381A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-4381A |
— | ||
|
089152381A
|
089152381A
089152381A
Washer
|
089152381A |
— | ||
|
44000A
|
44000A
44005-U1400 Bolt9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44005-U1400 |
US $2.45 |
||
|
44000M
|
44000M
44000-0C710 Brake Assy-Drum, Rear Rh9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44000-0C710 |
US $301.61 |
||
|
44000M
|
44000M
44000-0C711 Brake Assy-Drum, Rear Rh9504--01 ~ 9701--01; W.GA16DE |
44000-0C711 |
US $301.61 |
||
|
44010M
|
44010M
44010-0C710 Brake Assy-Drum, Rear Lh9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44010-0C710 |
US $301.61 |
||
|
44010M
|
44010M
44010-0C711 Brake Assy-Drum, Rear Lh9504--01 ~ 9701--01; W.GA16DE |
44010-0C711 |
US $301.61 |
||
|
44020
|
44020
44020-0C710 Plate Assy-Back, Rear Brake Rh9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44020-0C710 |
US $77.62 |
||
|
44020
|
44020
4109808G10 Plug9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
4109808G10 |
from US $1.81 |
||
|
44020
|
44020
4409801A00 Plug9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
4409801A00 |
from US $4.61 |
||
|
44020E
|
44020E
4109808G10 Plug9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
4109808G10 |
from US $1.81 |
||
|
44020G
|
44020G
4409801A00 Plug9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
4409801A00 |
from US $4.61 |
||
|
44027
|
44027
44214-0C710 Spring-Adjusting, Rear Brake9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44214-0C710 |
from US $2.45 |
||
|
44030
|
44030
44030-0C710 Plate Assy-Back, Rear Brake Lh9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44030-0C710 |
US $77.62 |
||
|
44041
|
44041
44041-0C710 Lever-Toggle, Rh9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44041-0C710 |
US $50.54 |
||
|
44051
|
44051
44051-0C710 Lever-Toggle, Lh9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44051-0C710 |
US $42.34 |
||
|
44060K
|
44060K
44060-0C725 Shoe Set-Rear Brake9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; [B102] |
44060-0C725 |
US $104.69 |
||
|
44060K
|
44060K
44060-0C726 Shoe Set-Rear Brake9408--01 ~ 9504--01; W.GA16DE; [B102] |
44060-0C726 |
US $104.69 |
||
|
44060K
|
44060K
44060-0C727 Shoe Set-Rear Brake9504--01 ~ 9701--01; W.GA16DE; [B102] |
44060-0C727 |
US $98.35 |
||
|
44081
|
44081
44081-U9201 Pin-Anti Shoe Rattle9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44081-U9201 |
US $0.86 |
||
|
44082
|
44082
44082-U9200
Seat-Spring
9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44082-U9200 |
— | ||
| replacement | |||||
|
44082
|
44082
44082U920A Seat-Spring9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44082U920A |
from US $2.64 |
||
|
44083
|
44083
44083U9200 Spring-Anti Shoe Rattle9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44083U9200 |
from US $1.07 |
||
|
44084
|
44084
44084-U9200
Retainer-Spring, Anti Shoe Rattle
9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44084-U9200 |
— | ||
| replacement | |||||
|
44084
|
44084
44084U920A Retainer-Spring, Anti Shoe Rattle9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44084U920A |
from US $1.67 |
||
|
44090
|
44090
44090-0C710 Spring-Return, Rear Brake Shoe9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44090-0C710 |
from US $4.18 |
||
|
44090
|
44090
4409108G10 Spring-Return, Rear Brake Shoe9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
4409108G10 |
from US $1.67 |
||
|
44090+A
|
44090+A
4409108G10 Spring-Return, Rear Brake Shoe9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
4409108G10 |
from US $1.67 |
||
|
44100B
|
44100B
0143600052 BOLT9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
0143600052 |
US $2.91 |
||
|
44100K
|
44100K
AY220NN010 Cup Kit-Brake Wheel Cylinder, Rear9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ 3/4 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY220NN010 |
US $21.60 |
||
|
44100K
|
44100K
AY220NT008 Cup Kit-Brake Wheel Cylinder, Rear9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ 3/4 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY220NT008 |
US $21.60 |
||
|
44100P
|
44100P
44100-D5510 Cylinder Assy-Rear Wheel9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ﾅﾌﾞｺ 3/4 |
44100-D5510 |
US $65.38 |
||
| replacement | |||||
|
44100P
|
44100P
44100D5512 Cylinder Assy-Rear Wheel9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ﾅﾌﾞｺ 3/4 |
44100D5512 |
US $65.38 |
||
|
44100P
|
44100P
44100D5512 Cylinder Assy-Rear Wheel9504--01 ~ 9701--01; W.GA16DE; ﾄｷｺ 19.05(3/4) |
44100D5512 |
US $65.38 |
||
|
44100P
|
44100P
44100-D5522 Cylinder Assy-Rear Wheel9504--01 ~ 9701--01; W.GA16DE; ﾅﾌﾞｺ 19.05(3/4) |
44100-D5522 |
US $65.38 |
||
|
44108
|
44108
44108-D0101 Piston-Cylinder9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0101 |
US $15.12 |
||
| replacement | |||||
|
44108
|
44108
44108-D0104 Piston-Cylinder9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0104 |
US $20.45 |
||
|
44108
|
44108
44108-D0103 Piston-Cylinder9407--01 ~ 9504--01; W.GA16DE; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0103 |
US $22.90 |
||
|
44108
|
44108
44108-D0105 Piston-Cylinder9504--01 ~ 9701--01; W.GA16DE; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0105 |
US $17.14 |
||
|
44108
|
44108
44108-G2810 Piston-Cylinder9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-G2810 |
US $27.94 |
||
|
44108
|
44108
44108-G2812 Piston-Cylinder9504--01 ~ 9701--01; W.GA16DE; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-G2812 |
US $17.14 |
||
|
44108
|
44108
44108-D0101 Piston-Cylinder9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0101 |
US $15.12 |
||
| replacement | |||||
|
44108
|
44108
44108-D0104 Piston-Cylinder9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0104 |
US $20.45 |
||
|
44108
|
44108
44108-D0103 Piston-Cylinder9407--01 ~ 9504--01; W.GA16DE; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0103 |
US $22.90 |
||
|
44108
|
44108
44108-D0105 Piston-Cylinder9504--01 ~ 9701--01; W.GA16DE; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0105 |
US $17.14 |
||
|
44108
|
44108
44108-G2810 Piston-Cylinder9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-G2810 |
US $27.94 |
||
|
44108
|
44108
44108-G2812 Piston-Cylinder9504--01 ~ 9701--01; W.GA16DE; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-G2812 |
US $17.14 |
||
|
44112
|
44112
AY260NN004 Cup-Piston9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NN004 |
US $3.89 |
||
|
44112
|
44112
AY260NT004 Cup-Piston9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NT004 |
US $3.89 |
||
|
44112
|
44112
AY260NN004 Cup-Piston9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NN004 |
US $3.89 |
||
|
44112
|
44112
AY260NT004 Cup-Piston9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NT004 |
US $3.89 |
||
|
44118D
|
44118D
44085-01A00
Washer-Lock
9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44085-01A00 |
— | ||
| replacement | |||||
|
44118D
|
44118D
4408501A0A Washer-Lock9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
4408501A0A |
from US $0.76 |
||
|
44124
|
44124
44124-17C10 Cover-Dust9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-17C10 |
US $2.45 |
||
|
44124
|
44124
44124-D5500 Cover-Dust9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-D5500 |
US $2.45 |
||
|
44124
|
44124
44124-17C10 Cover-Dust9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-17C10 |
US $2.45 |
||
|
44124
|
44124
44124-D5500 Cover-Dust9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-D5500 |
US $2.45 |
||
|
44125
|
44125
44125-M7010 Spring9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44125-M7010 |
US $4.03 |
||
|
44125
|
44125
44125-U9200 Spring9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44125-U9200 |
US $4.61 |
||
|
44128
|
44128
41128-B5012 Screw-Bleeder9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41128-B5012 |
US $6.91 |
||
|
44128
|
44128
41128-U5200 Screw-Bleeder, Clutch Damper9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41128-U5200 |
US $9.02 |
||
|
44128
|
44128
4412850C10 Screw-Bleeder9602--01 ~ 9701--01; W.GA16DE; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
4412850C10 |
from US $6.77 |
||
|
44128
|
44128
44128-60R00 Screw-Bleeder9504--01 ~ 9701--01; W.GA16DE; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44128-60R00 |
US $6.77 |
||
|
44129
|
44129
4112940F00 Cap-Bleeder Screw9602--01 ~ 9701--01; W.GA16DE; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
4112940F00 |
from US $1.07 |
||
|
44129
|
44129
41129-60R00 Cap-Bleeder Screw9504--01 ~ 9701--01; W.GA16DE; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41129-60R00 |
US $1.58 |
||
|
44129
|
44129
41129-A2410
Cap-Bleeder Screw
9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41129-A2410 |
— | ||
| replacement | |||||
|
44129
|
44129
4112940F00 Cap-Bleeder Screw9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
4112940F00 |
from US $1.07 |
||
|
44129
|
44129
41129U0201 Cap-Bleeder9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41129U0201 |
US $1.07 |
||
|
44135
|
44135
44222-M4900
Ring-Retaining
9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44222-M4900 |
— | ||
| replacement | |||||
|
44135
|
44135
44222M490A Ring-Retaining9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44222M490A |
from US $0.81 |
||
|
44200N
|
44200N
44200-0C710 Adjuster Assy-Rear Brake, Rh9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44200-0C710 |
US $55.73 |
||
|
44201
|
44201
44201-0C710 Adjuster Assy-Rear Brake, Lh9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44201-0C710 |
US $55.73 |
||
|
44209M
|
44209M
44211-0C710 Lever Assy-Adjuster, Lh9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
44211-0C710 |
US $16.92 |
||
|
44209N
|
44209N
442100C710 Lever Assy-Adjuster, Rh9106--01 ~ 9308--01; GA16DE.FG.(MT+AT) +CD20.FG.MT |
442100C710 |
US $13.39 |
||
