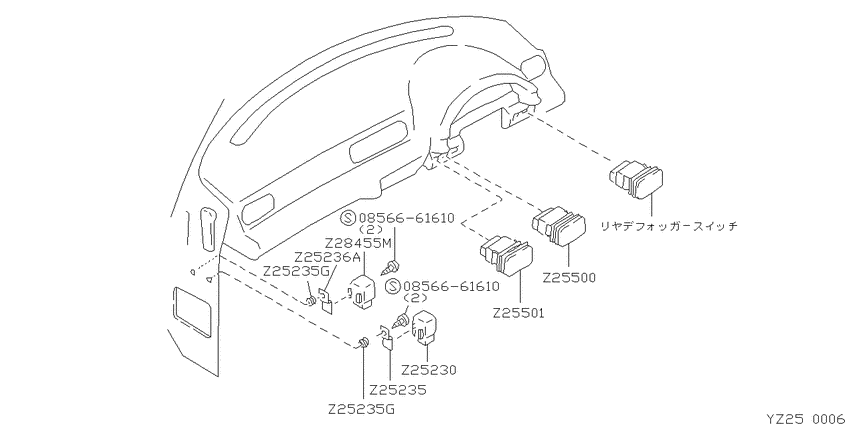

Electrical unit,switch&meters (1994-05-01 ~ 1998-01-01; "ヒーター シート スイッチ&リレー; ｷﾀｷﾂﾈ) Diagram Nissan VANETTE
- Year
- 1991 - 1998
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- FX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0856661610
|
0856661610
08566-61610
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08566-61610 |
— | ||
|
0856661610
|
0856661610
08566-61610
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08566-61610 |
— | ||
|
Z25230
|
Z25230
25230-C9961
Relay
9801--01 ~ 9906--01; W.2WD.FX2.AT; ｱﾝｼｬﾝﾃ ｼﾖｳ |
25230-C9961 |
— | ||
| replacement | |||||
|
Z25230
|
Z25230
25230C996A Relay9801--01 ~ 9906--01; W.2WD.FX2.AT; ｱﾝｼｬﾝﾃ ｼﾖｳ |
25230C996A |
US $26.06 |
||
|
Z25230
|
Z25230
25230-C9963
Relay
9508--01 ~ 9801--01; W.FX; ｷﾀｷﾂﾈｼﾖｳ ﾋｰﾀｰｼｰﾄﾂｷ |
25230-C9963 |
— | ||
|
Z25235
|
Z25235
25235-N8500 Bracket-Circuit Breaker9508--01 ~ 9801--01; W.FX; ｷﾀｷﾂﾈｼﾖｳ ﾋｰﾀｰｼｰﾄﾂｷ |
25235-N8500 |
US $1.73 |
||
| replacement | |||||
|
Z25235
|
Z25235
25235-N853A Bracket-Relay9508--01 ~ 9801--01; W.FX; ｷﾀｷﾂﾈｼﾖｳ ﾋｰﾀｰｼｰﾄﾂｷ |
25235-N853A |
US $1.73 |
||
|
Z25235
|
Z25235
0128100111 GROMMET-SCREW9508--01 ~ 9701--01; W.FX; ｷﾀｷﾂﾈｼﾖｳ ﾋｰﾀｰｼｰﾄﾂｷ |
0128100111 |
from US $0.85 |
||
|
Z25235G
|
Z25235G
0128100111 GROMMET-SCREW9508--01 ~ 9701--01; W.FX; ｷﾀｷﾂﾈｼﾖｳ ﾋｰﾀｰｼｰﾄﾂｷ |
0128100111 |
from US $0.85 |
||
|
Z25235G
|
Z25235G
0128100111 GROMMET-SCREW9508--01 ~ 9701--01; W.FX; ｷﾀｷﾂﾈｼﾖｳ ﾋｰﾀｰｼｰﾄﾂｷ |
0128100111 |
from US $0.85 |
||
|
Z25236A
|
Z25236A
25237-18M00
Bracket-Rear Defogger Relay
9508--01 ~ 9801--01; W.FX; ｷﾀｷﾂﾈｼﾖｳ ﾋｰﾀｰｼｰﾄﾂｷ |
25237-18M00 |
— | ||
|
Z25500
|
Z25500
25500-36R60 Switch Assy-Heat Seat9508--01 ~ 9801--01; W.FX; ｷﾀｷﾂﾈｼﾖｳ ﾋｰﾀｰｼｰﾄﾂｷ |
25500-36R60 |
US $67.82 |
||
|
Z25501
|
Z25501
25500-36R70 Switch Assy-Heat Seat9508--01 ~ 9701--01; W.FX; ｷﾀｷﾂﾈｼﾖｳ |
25500-36R70 |
US $67.82 |
||
|
Z28455M
|
Z28455M
28455-18M00
Timer Assy-Rear Defogger
9508--01 ~ 9801--01; W.FX; ｷﾀｷﾂﾈｼﾖｳ ﾋｰﾀｰｼｰﾄﾂｷ |
28455-18M00 |
— | ||
