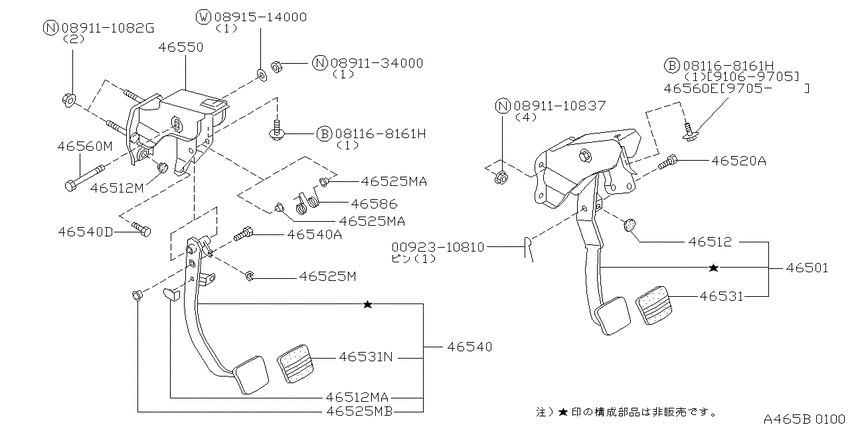

Brake & clutch pedal (1997-01-01 ~ 1998-01-01; (GA16DE.MT +SR20DE.MT +CD20.MT +CD20ET.MT) Diagram Nissan VANETTE
- Year
- 1994 - 1997
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- MT
- grade
- SX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092310810
|
0092310810
00923-10810
PIN-SNAP
|
00923-10810 |
— | ||
| replacement | |||||
|
0092310810
|
0092310810
009231081A PINSNAP |
009231081A |
from US $0.52 |
||
|
081168161H
|
081168161H
08116-8161H
Bolt-hexagon
|
08116-8161H |
— | ||
|
081168161H
|
081168161H
08116-8161H
Bolt-hexagon
|
08116-8161H |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
0891134000
|
0891134000
0891134000
NUTHEX
|
0891134000 |
— | ||
|
46501
|
46501
46501-3C000 Pedal Assy-Brake W/bracket9405--01 ~ 9508--01; 'GA16DE.MT +SR20DE.MT +CD20.MT +CD20T.MT |
46501-3C000 |
US $120.38 |
||
|
46512
|
46512
46584-5P010 Stopper-Rubber9508--01 ~ 9701--01; 'GA16DE.MT +SR20DE.MT +CD20.MT +CD20T.MT |
46584-5P010 |
from US $6.51 |
||
|
46512
|
46512
46584S0100 Stopper-Rubber9405--01 ~ 9508--01; 'GA16DE.MT +SR20DE.MT +CD20.MT +CD20T.MT |
46584S0100 |
from US $1.79 |
||
|
46512
|
46512
46512H0101 Stopper-Rubber9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
46512H0101 |
from US $6.51 |
||
|
46512
|
46512
46543Q0400 Stopper-Rubber9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
46543Q0400 |
from US $4.99 |
||
|
46512M
|
46512M
46512H0101 Stopper-Rubber9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
46512H0101 |
from US $6.51 |
||
|
46512M
|
46512M
46543Q0400 Stopper-Rubber9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
46543Q0400 |
from US $4.99 |
||
|
46512MA
|
46512MA
46543Q0400 Stopper-Rubber9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
46543Q0400 |
from US $4.99 |
||
|
46520A
|
46520A
46123-03W10
Pin-Clevis
9405--01 ~ 9508--01; 'GA16DE.MT +SR20DE.MT +CD20.MT +CD20T.MT |
46123-03W10 |
— | ||
| replacement | |||||
|
46520A
|
46520A
4612303W1A Pin-Clevis9405--01 ~ 9508--01; 'GA16DE.MT +SR20DE.MT +CD20.MT +CD20T.MT |
4612303W1A |
from US $1.93 |
||
|
46525M
|
46525M
46534-11P01
Bush
9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
46534-11P01 |
— | ||
| replacement | |||||
|
46525M
|
46525M
4653435F10 Bush-Pedal9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
4653435F10 |
US $3.06 |
||
|
46525M
|
46525M
4653511P01 Bush-Pedal9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
4653511P01 |
from US $5.55 |
||
|
46525M
|
46525M
4654501L00 Bush-Pedal9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
4654501L00 |
from US $3.48 |
||
|
46525MA
|
46525MA
4653511P01 Bush-Pedal9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
4653511P01 |
from US $5.55 |
||
|
46525MA
|
46525MA
4653511P01 Bush-Pedal9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
4653511P01 |
from US $5.55 |
||
|
46525MB
|
46525MB
4654501L00 Bush-Pedal9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
4654501L00 |
from US $3.48 |
||
|
46531
|
46531
4653189910 Pad-Pedal9405--01 ~ 9508--01; 'GA16DE.MT +SR20DE.MT +CD20.MT +CD20T.MT |
4653189910 |
from US $4.57 |
||
|
46531
|
46531
4653189910 Pad-Pedal9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
4653189910 |
from US $4.57 |
||
|
46531N
|
46531N
4653189910 Pad-Pedal9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
4653189910 |
from US $4.57 |
||
|
46540
|
46540
46540-0C800 Pedal Assy-Clutch9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
46540-0C800 |
US $62.93 |
||
|
46540
|
46540
0152100011 PIN-CLEVIS9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
0152100011 |
from US $0.59 |
||
|
46540
|
46540
0111100182 BOLT9405--01 ~ 9508--01; 'GA16DE.MT +SR20DE.MT +CD20.MT +CD20T.MT |
0111100182 |
US $3.46 |
||
|
46540A
|
46540A
0152100011 PIN-CLEVIS9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
0152100011 |
from US $0.59 |
||
|
46540D
|
46540D
0111100182 BOLT9405--01 ~ 9508--01; 'GA16DE.MT +SR20DE.MT +CD20.MT +CD20T.MT |
0111100182 |
US $3.46 |
||
|
46550
|
46550
46550-0C800 Bracket Assy-Clutch Pedal9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
46550-0C800 |
US $90.29 |
||
|
46560E
|
46560E
01121-00285 BOLT9705--01 ~ 9801--01; (GA16DE.MT +SR20DE.MT +CD20.MT +CD20ET.MT |
01121-00285 |
US $10.37 |
||
|
46560M
|
46560M
4656050A01 Pin-Fulcrum9405--01 ~ 9508--01; 'GA16DE.MT +SR20DE.MT +CD20.MT +CD20T.MT |
4656050A01 |
US $2.45 |
||
|
46586
|
46586
46571-04U10 Spring-Return9405--01 ~ 9508--01; *SR20DE.SX.MT +*CD20T.SX.MT; ﾃﾞﾝｼｾｰｷﾞｮ ｻｽﾍﾟﾝｼﾖﾝ |
46571-04U10 |
US $6.77 |
||
