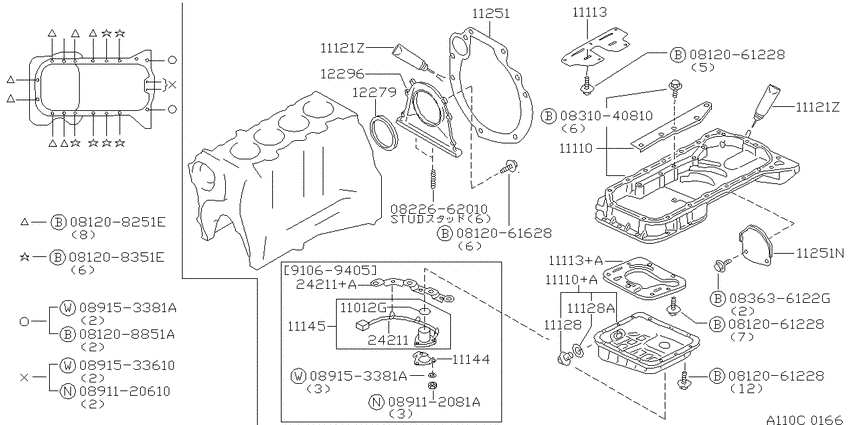

Cylinder block & oil pan (1994-05-01 ~ 1995-08-01; アッセンブリー; SR20DE) Diagram Nissan VANETTE
- Year
- 1994 - 1997
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- MT
- grade
- SX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
081208351E
|
081208351E
081208351E Bolt-hexagon |
081208351E |
US $0.52 |
||
|
081208851A
|
081208851A
08120-8851A Bolt-hexagon |
08120-8851A |
US $3.06 |
||
|
0822662010
|
0822662010
08226-62010
ｽﾀﾂﾄﾞ
|
08226-62010 |
— | ||
|
0831040810
|
0831040810
08310-40810
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-40810 |
— | ||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
0891533610
|
0891533610
0891533610 WASHER-LOCK |
0891533610 |
US $1.93 |
||
|
089153381A
|
089153381A
089153381A Washer |
089153381A |
from US $0.67 |
||
|
089153381A
|
089153381A
089153381A Washer |
089153381A |
from US $0.67 |
||
|
11110
|
11110
111100C801 Pan Assy-Oil9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
111100C801 |
US $625.87 |
||
|
11110
|
11110
11110-3C200 Pan Assy-Oil9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
11110-3C200 |
US $155.52 |
||
|
11110+A
|
11110+A
11110-3C200 Pan Assy-Oil9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
11110-3C200 |
US $155.52 |
||
|
11113
|
11113
11113-53J02 Plate-Baffle, Oil Pan9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
11113-53J02 |
US $15.25 |
||
|
11113
|
11113
111130C800 Plate-Baffle, Oil Pan9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
111130C800 |
US $16.99 |
||
|
11113+A
|
11113+A
111130C800 Plate-Baffle, Oil Pan9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
111130C800 |
US $16.99 |
||
|
11121Z
|
11121Z
KA76015000
Gasket-Liquid
9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT; [K504] |
KA76015000 |
— | ||
|
11121Z
|
11121Z
KA76015000
Gasket-Liquid
9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT; [K504] |
KA76015000 |
— | ||
|
11128
|
11128
11128-01M00 Plug-Drain9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
11128-01M00 |
US $1.87 |
||
| replacement | |||||
|
11128
|
11128
1112801M0B Plug-Drain9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
1112801M0B |
from US $2.28 |
||
|
11128
|
11128
1102601M02 Washer-Drain Plug9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
1102601M02 |
from US $0.91 |
||
|
11128A
|
11128A
1102601M02 Washer-Drain Plug9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
1102601M02 |
from US $0.91 |
||
|
11251
|
11251
30411-52F00 Plate-Engine, Rear9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
30411-52F00 |
US $54.86 |
||
|
11251
|
11251
30417-52F00 Cover-Rear Plate9405--01 ~ 9508--01; SR20DE |
30417-52F00 |
US $55.16 |
||
|
11251N
|
11251N
30417-52F00 Cover-Rear Plate9405--01 ~ 9508--01; SR20DE |
30417-52F00 |
US $55.16 |
||
|
12279
|
12279
12279-1E000 SEAL-OIL,CRANKSHAFT REAR9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT; NDK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
12279-1E000 |
US $21.74 |
||
|
12279
|
12279
12279-1N500
Seal-Oil, Crankshaft Rear
9801--01 ~ ; SR20DE; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
12279-1N500 |
— | ||
| replacement | |||||
|
12279
|
12279
122791N510 Seal-Oil, Crankshaft Rear9801--01 ~ ; SR20DE; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
122791N510 |
from US $17.71 |
||
|
12279
|
12279
122791N510 Seal-Oil, Crankshaft Rear9801--01 ~ ; SR20DE; NDK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
122791N510 |
from US $17.71 |
||
|
12279
|
12279
12279-30P00 Seal-Oil, Crankshaft Rear9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
12279-30P00 |
US $21.74 |
||
| replacement | |||||
|
12279
|
12279
12279AD205 Seal-Oil, Crankshaft Rear9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
12279AD205 |
from US $17.71 |
||
|
12296
|
12296
1229753J00 Retainer-Oil Seal, Rear9405--01 ~ 9508--01; 42WD.SR20DE.MT +4WD.SR20DE.(FX+FX/R+SX).MT +SR20DE.AT |
1229753J00 |
from US $39.52 |
||
