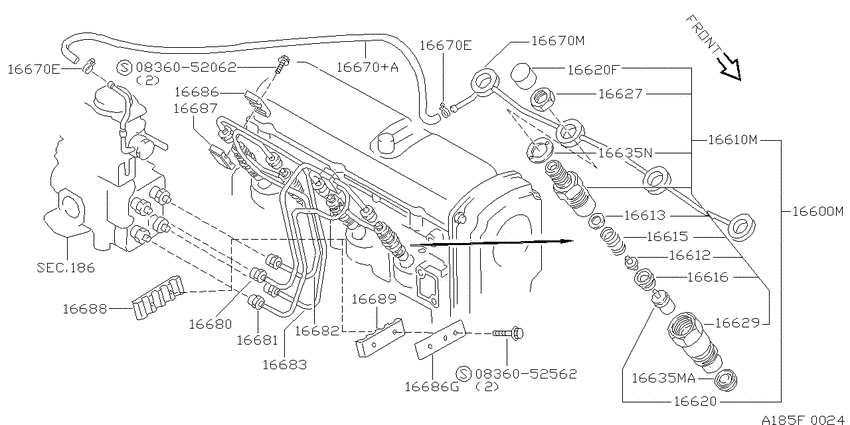

Fuel supply system (1991-06-01 ~ 1993-08-01; CD20T) Diagram Nissan VANETTE
- Year
- 1997 - 1998
- Sales region
- Japan
- Engine
- CD20ET
- drive
- 2WD
- transmission
- AT
- grade
- FX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836052062
|
0836052062
0836052062
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836052062 |
— | ||
|
0836052562
|
0836052562
08360-52562
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-52562 |
— | ||
|
16600M
|
16600M
16600-1C300 Nozzle Assy & Holder9106--01 ~ 9308--01; CD20T; [B421] |
16600-1C300 |
US $191.52 |
||
|
16600M
|
16600M
16600-1C310 Nozzle Assy & Holder9308--01 ~ 9405--01; CD20T; ｺｸｲﾝ A ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ[B421] |
16600-1C310 |
US $227.52 |
||
|
16600M
|
16600M
16600-1C311 Nozzle Assy & Holder9308--01 ~ 9405--01; CD20T; ｺｸｲﾝ B ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ[B421] |
16600-1C311 |
US $227.52 |
||
|
16600M
|
16600M
16600-5C900 Nozzle Assy & Holder9701--01 ~ 9801--01; CD20ET; W/SEN S/#16600-5C925[B421] |
16600-5C900 |
US $279.36 |
||
|
16610M
|
16610M
16610-16A00 Holder Assy-Nozzle9106--01 ~ 9308--01; CD20T |
16610-16A00 |
US $205.92 |
||
|
16612
|
16612
16612-16A00 Rod-Push9106--01 ~ 9308--01; CD20T |
16612-16A00 |
US $4.18 |
||
|
16613
|
16613
16613V0700 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.50 |
16613V0700 |
US $2.74 |
||
|
16613
|
16613
16613V0702 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.54 |
16613V0702 |
US $2.74 |
||
|
16613
|
16613
16613V0704 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.58 |
16613V0704 |
US $2.74 |
||
|
16613
|
16613
16613V0706 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.62 |
16613V0706 |
US $2.74 |
||
|
16613
|
16613
16613V0708 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.66 |
16613V0708 |
US $2.74 |
||
|
16613
|
16613
16613-V0710 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.70 |
16613-V0710 |
US $2.74 |
||
|
16613
|
16613
16613V0712 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.74 |
16613V0712 |
US $2.74 |
||
|
16613
|
16613
16613V0714 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.78 |
16613V0714 |
US $2.74 |
||
|
16613
|
16613
16613V0716 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.82 |
16613V0716 |
US $2.74 |
||
|
16613
|
16613
16613V0718 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.86 |
16613V0718 |
US $2.74 |
||
|
16613
|
16613
16613V0720 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.90 |
16613V0720 |
US $2.74 |
||
|
16613
|
16613
16613V0722 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.94 |
16613V0722 |
US $2.74 |
||
|
16613
|
16613
16613V0724 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=0.98 |
16613V0724 |
US $2.74 |
||
|
16613
|
16613
16613V0760 Washer-Adjusting9106--01 ~ 9308--01; CD20T; ｾﾝﾀｸ T=1.00 |
16613V0760 |
US $2.74 |
||
|
16615
|
16615
16615-V0702 Spring-Nozzle9106--01 ~ 9308--01; CD20T |
16615-V0702 |
US $7.49 |
||
|
16616
|
16616
16616-16A00 Piece-Distance9106--01 ~ 9308--01; CD20T |
16616-16A00 |
US $14.26 |
||
|
16620
|
16620
16620-1C300 Nozzle Assy9106--01 ~ 9308--01; CD20T |
16620-1C300 |
US $69.55 |
||
|
16620
|
16620
16620-1C325 Nozzle Assy9508--01 ~ 9701--01; CD20T; [B421] |
16620-1C325 |
US $84.53 |
||
|
16620
|
16620
16619-1C310 Cap-Injection Nozzle9107--01 ~ 9308--01; CD20T; [B421] |
16619-1C310 |
US $2.30 |
||
|
16620
|
16620
16619-59Y01
Cap-Injection Nozzle
9106--01 ~ 9107--01; CD20T; [B421] |
16619-59Y01 |
— | ||
|
16620F
|
16620F
16619-1C310 Cap-Injection Nozzle9107--01 ~ 9308--01; CD20T; [B421] |
16619-1C310 |
US $2.30 |
||
|
16620F
|
16620F
16619-59Y01
Cap-Injection Nozzle
9106--01 ~ 9107--01; CD20T; [B421] |
16619-59Y01 |
— | ||
|
16627
|
16627
16666-16A00 Nut9106--01 ~ 9308--01; CD20T |
16666-16A00 |
US $7.34 |
||
|
16629
|
16629
16629-16A00 Nut-Nozzle9106--01 ~ 9308--01; CD20T |
16629-16A00 |
US $21.31 |
||
|
16635MA
|
16635MA
166260M900 Gasket-Nozzle9511--01 ~ 9701--01; CD20T |
166260M900 |
US $9.07 |
||
|
16635MA
|
16635MA
16626-16A00 Gasket-Nozzle9106--01 ~ 9308--01; CD20T |
16626-16A00 |
US $9.07 |
||
| replacement | |||||
|
16635MA
|
16635MA
166260M900 Gasket-Nozzle9106--01 ~ 9308--01; CD20T |
166260M900 |
US $9.07 |
||
|
16635N
|
16635N
1663516A00 Gasket-Nozzle9106--01 ~ 9308--01; CD20T |
1663516A00 |
from US $1.54 |
||
|
16670+A
|
16670+A
08740-16011 HOSE ASSY-FUEL SPILL9106--01 ~ 9308--01; CD20T; L=160S/#A8742-20010 |
08740-16011 |
US $4.85 |
||
|
16670E
|
16670E
01555-00411
CLAMP-HOSE
9106--01 ~ 9308--01; CD20T |
01555-00411 |
— | ||
| replacement | |||||
|
16670E
|
16670E
0155500771 CLIP9106--01 ~ 9308--01; CD20T |
0155500771 |
US $2.78 |
||
|
16670E
|
16670E
01555-00411
CLAMP-HOSE
9106--01 ~ 9308--01; CD20T |
01555-00411 |
— | ||
| replacement | |||||
|
16670E
|
16670E
0155500771 CLIP9106--01 ~ 9308--01; CD20T |
0155500771 |
US $2.78 |
||
|
16670M
|
16670M
16671-0C400 Tube-Fuel Spill9106--01 ~ 9308--01; CD20T |
16671-0C400 |
US $28.37 |
||
|
16670M
|
16670M
16671-0C401 Tube-Fuel Spill9405--01 ~ 9701--01; CD20T |
16671-0C401 |
US $41.47 |
||
|
16670M
|
16670M
16671-5C900 Tube-Fuel Spill9701--01 ~ 9801--01; CD20ET |
16671-5C900 |
US $41.47 |
||
|
16680
|
16680
16680-0C400 Tube Assy-Injection, No 19106--01 ~ 9308--01; CD20T |
16680-0C400 |
US $48.24 |
||
|
16680
|
16680
16680-5C300 Tube Assy-Injection, No 19308--01 ~ 9405--01; CD20T |
16680-5C300 |
US $48.38 |
||
|
16680
|
16680
16680-5C301 Tube Assy-Injection, No 19405--01 ~ 9701--01; CD20T |
16680-5C301 |
US $48.38 |
||
|
16680
|
16680
16680-5C900 Tube Assy-Injection, No 19701--01 ~ 9801--01; CD20ET |
16680-5C900 |
US $44.50 |
||
|
16681
|
16681
16681-0C400 Tube Assy-Injection, No 29106--01 ~ 9308--01; CD20T |
16681-0C400 |
US $30.53 |
||
|
16681
|
16681
16681-0C401 Tube Assy-Injection, No 29405--01 ~ 9701--01; CD20T |
16681-0C401 |
US $44.50 |
||
|
16682
|
16682
16682-0C400 Tube Assy-Injection, No 39106--01 ~ 9308--01; CD20T |
16682-0C400 |
US $30.53 |
||
|
16682
|
16682
16682-0C401 Tube Assy-Injection, No 39405--01 ~ 9701--01; CD20T |
16682-0C401 |
US $44.50 |
||
|
16683
|
16683
16683-0C400 Tube Assy-Injection, No 49106--01 ~ 9308--01; CD20T |
16683-0C400 |
US $30.53 |
||
|
16683
|
16683
166830C401 Tube Assy-Injection, No 49405--01 ~ 9701--01; CD20T |
166830C401 |
US $44.50 |
||
|
16686
|
16686
16686-16A00 Support-Injection Tube9106--01 ~ 9308--01; CD20T |
16686-16A00 |
US $4.18 |
||
| replacement | |||||
|
16686
|
16686
16686-16A01 Support-Injection Tube9106--01 ~ 9308--01; CD20T |
16686-16A01 |
US $4.71 |
||
|
16686
|
16686
16686-16A01 Support-Injection Tube9508--01 ~ 9701--01; CD20T |
16686-16A01 |
US $4.71 |
||
|
16686
|
16686
24239-0C400 Bracket-Clip9106--01 ~ 9308--01; CD20T |
24239-0C400 |
US $4.61 |
||
|
16686G
|
16686G
24239-0C400 Bracket-Clip9106--01 ~ 9308--01; CD20T |
24239-0C400 |
US $4.61 |
||
|
16687
|
16687
16687-16A00 Support-Injection Tube9106--01 ~ 9308--01; CD20T |
16687-16A00 |
US $4.18 |
||
| replacement | |||||
|
16687
|
16687
16687-16A01 Support-Injection Tube9106--01 ~ 9308--01; CD20T |
16687-16A01 |
US $4.71 |
||
|
16687
|
16687
16687-16A01 Support-Injection Tube9508--01 ~ 9701--01; CD20T |
16687-16A01 |
US $4.71 |
||
|
16688
|
16688
16688-16A00 Support-Injection Tube9106--01 ~ 9308--01; CD20T |
16688-16A00 |
US $11.09 |
||
| replacement | |||||
|
16688
|
16688
16688-16A01 Support-Injection Tube9106--01 ~ 9308--01; CD20T |
16688-16A01 |
US $7.92 |
||
|
16688
|
16688
16688-16A01 Support-Injection Tube9508--01 ~ 9701--01; CD20T |
16688-16A01 |
US $7.92 |
||
|
16689
|
16689
16689-16A00 Support-Injection Tube9106--01 ~ 9308--01; CD20T |
16689-16A00 |
US $12.82 |
||
| replacement | |||||
|
16689
|
16689
16689-16A01 Support-Injection Tube9106--01 ~ 9308--01; CD20T |
16689-16A01 |
US $11.81 |
||
|
16689
|
16689
16689-16A01 Support-Injection Tube9508--01 ~ 9701--01; CD20T |
16689-16A01 |
US $11.81 |
||
|
186
|
Fuel injection pump
186
|
||||
|
186
|
Fuel injection pump
186
|
||||
|
186
|
Fuel injection pump
186
|
||||
|
186
|
Fuel injection pump
186
|
||||
|
186
|
Fuel injection pump
186
|
||||
