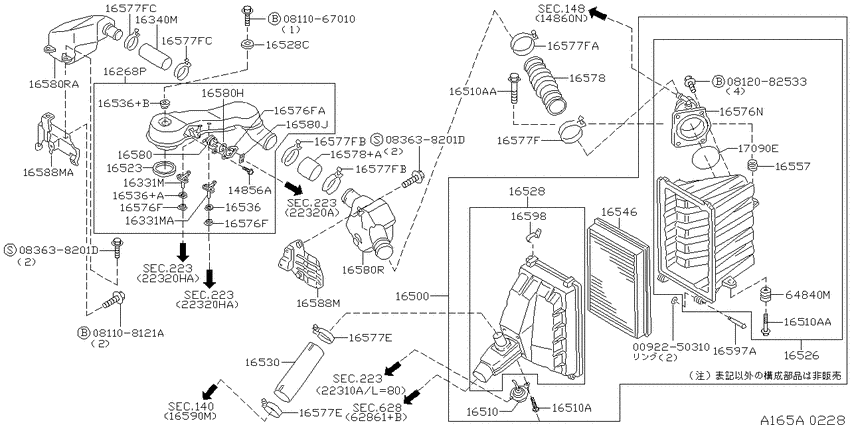

Air cleaner (1991-06-01 ~ 1994-05-01; GA16DS) Diagram Nissan VANETTE
- Year
- 1991 - 1994
- Sales region
- Japan
- Engine
- GA16DS
- drive
- 2WD
- transmission
- AT
- grade
- L
- body
- 4DV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250310
|
0092250310
00922-50310
RINGSNAP
|
00922-50310 |
— | ||
|
0811067010
|
0811067010
08110-67010
Bolt-hexagon
|
08110-67010 |
— | ||
|
081108121A
|
081108121A
08110-8121A
Bolt-hexagon
|
08110-8121A |
— | ||
|
0812082533
|
0812082533
08120-82533
Bolt-hexagon
|
08120-82533 |
— | ||
|
083638201D
|
083638201D
08363-8201D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8201D |
— | ||
|
083638201D
|
083638201D
08363-8201D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8201D |
— | ||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
148
|
Secondary air system
148
|
||||
|
14856A
|
14856A
16516-W0400 Bolt9106--01 ~ 9405--01; GA16DS |
16516-W0400 |
US $0.86 |
||
|
16268P
|
16268P
16267-0C010 Horn-Air, Carburetor9106--01 ~ 9405--01; GA16DS |
16267-0C010 |
US $287.45 |
||
|
16331M
|
16331M
16331-U2000 Compensator-Idle9106--01 ~ 9405--01; GA16DS |
16331-U2000 |
US $35.14 |
||
|
16331M
|
16331M
16331H1010 Compensator-Idle9106--01 ~ 9405--01; GA16DS |
16331H1010 |
US $69.03 |
||
|
16331MA
|
16331MA
16331H1010 Compensator-Idle9106--01 ~ 9405--01; GA16DS |
16331H1010 |
US $69.03 |
||
|
16340M
|
16340M
14060-0C000 Hose-Connector To Connector9106--01 ~ 9405--01; GA16DS |
14060-0C000 |
US $20.59 |
||
|
16500
|
16500
16500-0C020 Air Cleaner9106--01 ~ 9405--01; GA16DS |
16500-0C020 |
US $380.90 |
||
|
16510
|
16510
16510-0C020 Motor Assy-Vacuum9106--01 ~ 9405--01; GA16DS |
16510-0C020 |
US $105.12 |
||
|
16510
|
16510
16516-G2100 Bolt9106--01 ~ 9405--01; GA16DS |
16516-G2100 |
US $0.86 |
||
|
16510
|
16510
0143600631 BOLT9106--01 ~ 9405--01; GA16DS |
0143600631 |
US $2.21 |
||
|
16510A
|
16510A
16516-G2100 Bolt9106--01 ~ 9405--01; GA16DS |
16516-G2100 |
US $0.86 |
||
|
16510A
|
16510A
0143600631 BOLT9106--01 ~ 9405--01; GA16DS |
0143600631 |
US $2.21 |
||
|
16510AA
|
16510AA
0143600631 BOLT9106--01 ~ 9405--01; GA16DS |
0143600631 |
US $2.21 |
||
|
16510AA
|
16510AA
0143600631 BOLT9106--01 ~ 9405--01; GA16DS |
0143600631 |
US $2.21 |
||
|
16523
|
16523
16523-33M12 Insulator9106--01 ~ 9405--01; GA16DS |
16523-33M12 |
US $5.18 |
||
|
16526
|
16526
16526-0C020 Air Cleaner Cover9106--01 ~ 9405--01; GA16DS |
16526-0C020 |
US $152.64 |
||
|
16528
|
16528
16528-0C020 Body Assy-Air Cleaner9106--01 ~ 9405--01; GA16DS |
16528-0C020 |
US $187.20 |
||
|
16528
|
16528
01311-01241 WASHER-PLAIN9106--01 ~ 9405--01; GA16DS |
01311-01241 |
US $1.73 |
||
|
16528C
|
16528C
01311-01241 WASHER-PLAIN9106--01 ~ 9405--01; GA16DS |
01311-01241 |
US $1.73 |
||
|
16530
|
16530
16530-0C000 Duct-Air9106--01 ~ 9311--01; GA16DS; L=380S/#A6530-70N35 |
16530-0C000 |
US $93.17 |
||
|
16530
|
16530
A6530-70N35 Duct-Air9106--01 ~ 9308--01; GA16DS; L=700 ｶﾂﾄ ｼﾃ ｼﾖｳ |
A6530-70N35 |
US $98.28 |
||
|
16536
|
16536
16299-21C00 Packing9106--01 ~ 9405--01; GA16DS |
16299-21C00 |
US $6.19 |
||
|
16536
|
16536
16299-01N00 Packing9106--01 ~ 9405--01; GA16DS |
16299-01N00 |
US $8.35 |
||
|
16536
|
16536
16568-H7400
Packing
9106--01 ~ 9405--01; GA16DS |
16568-H7400 |
— | ||
| replacement | |||||
|
16536
|
16536
16568-W7000 Packing9106--01 ~ 9405--01; GA16DS |
16568-W7000 |
US $3.06 |
||
|
16536+A
|
16536+A
16299-01N00 Packing9106--01 ~ 9405--01; GA16DS |
16299-01N00 |
US $8.35 |
||
|
16536+B
|
16536+B
16568-H7400
Packing
9106--01 ~ 9405--01; GA16DS |
16568-H7400 |
— | ||
| replacement | |||||
|
16536+B
|
16536+B
16568-W7000 Packing9106--01 ~ 9405--01; GA16DS |
16568-W7000 |
US $3.06 |
||
|
16546
|
16546
AY120NS001
Element Assy-Air
9106--01 ~ 9405--01; GA16DS |
AY120NS001 |
— | ||
| replacements | |||||
|
16546
|
16546
AY120NS00101 Element Assy-Air9106--01 ~ 9405--01; GA16DS |
AY120NS00101 |
US $29.76 |
||
|
16546
|
16546
AY120-NS063 Element Assy-Air9106--01 ~ 9405--01; GA16DS |
AY120-NS063 |
US $24.74 |
||
|
16557
|
16557
16557-32R01
Mounting Rubber
9106--01 ~ 9405--01; GA16DS |
16557-32R01 |
— | ||
| replacements | |||||
|
16557
|
16557
16557-1C300 Mounting Rubber9106--01 ~ 9405--01; GA16DS |
16557-1C300 |
US $7.17 |
||
|
16557
|
16557
16557-59J00 Mounting Rubber9106--01 ~ 9405--01; GA16DS |
16557-59J00 |
US $7.47 |
||
|
16557
|
16557
1656660U0A Retainer9106--01 ~ 9405--01; GA16DS |
1656660U0A |
US $7.03 |
||
|
16576F
|
16576F
16566-0C010 Retainer9106--01 ~ 9405--01; GA16DS |
16566-0C010 |
US $13.97 |
||
|
16576F
|
16576F
16566-04N00 Retainer9106--01 ~ 9405--01; GA16DS |
16566-04N00 |
US $14.40 |
||
|
16576F
|
16576F
16566-0C010 Retainer9106--01 ~ 9405--01; GA16DS |
16566-0C010 |
US $13.97 |
||
|
16576F
|
16576F
16566-04N00 Retainer9106--01 ~ 9405--01; GA16DS |
16566-04N00 |
US $14.40 |
||
|
16576FA
|
16576FA
16566-04N00 Retainer9106--01 ~ 9405--01; GA16DS |
16566-04N00 |
US $14.40 |
||
|
16576N
|
16576N
16576-0C020 Mass Air Flow Adapter9106--01 ~ 9405--01; GA16DS |
16576-0C020 |
US $29.09 |
||
|
16577E
|
16577E
01556-00071 CLAMP-HOSE9106--01 ~ 9405--01; GA16DS |
01556-00071 |
US $6.19 |
||
|
16577E
|
16577E
01556-00071 CLAMP-HOSE9106--01 ~ 9405--01; GA16DS |
01556-00071 |
US $6.19 |
||
|
16577F
|
16577F
01555-00073 CLAMP-HOSE9106--01 ~ 9405--01; GA16DS |
01555-00073 |
US $4.03 |
||
|
16577F
|
16577F
01555-00073 CLAMP-HOSE9106--01 ~ 9405--01; GA16DS |
01555-00073 |
US $4.03 |
||
|
16577F
|
16577F
01555-00083
CLAMP-HOSE
9106--01 ~ 9405--01; GA16DS |
01555-00083 |
— | ||
| replacement | |||||
|
16577F
|
16577F
0155500313 CLAMP-HOSE9106--01 ~ 9405--01; GA16DS |
0155500313 |
US $4.99 |
||
|
16577F
|
16577F
0155500103 CLAMP-HOSE9106--01 ~ 9405--01; GA16DS |
0155500103 |
US $6.91 |
||
|
16577FA
|
16577FA
01555-00073 CLAMP-HOSE9106--01 ~ 9405--01; GA16DS |
01555-00073 |
US $4.03 |
||
|
16577FB
|
16577FB
01555-00083
CLAMP-HOSE
9106--01 ~ 9405--01; GA16DS |
01555-00083 |
— | ||
| replacement | |||||
|
16577FB
|
16577FB
0155500313 CLAMP-HOSE9106--01 ~ 9405--01; GA16DS |
0155500313 |
US $4.99 |
||
|
16577FB
|
16577FB
01555-00083
CLAMP-HOSE
9106--01 ~ 9405--01; GA16DS |
01555-00083 |
— | ||
| replacement | |||||
|
16577FB
|
16577FB
0155500313 CLAMP-HOSE9106--01 ~ 9405--01; GA16DS |
0155500313 |
US $4.99 |
||
|
16577FC
|
16577FC
0155500103 CLAMP-HOSE9106--01 ~ 9405--01; GA16DS |
0155500103 |
US $6.91 |
||
|
16577FC
|
16577FC
0155500103 CLAMP-HOSE9106--01 ~ 9405--01; GA16DS |
0155500103 |
US $6.91 |
||
|
16578
|
16578
16268-G8400 Duct-Air9106--01 ~ 9405--01; GA16DS |
16268-G8400 |
US $134.73 |
||
|
16578
|
16578
16268-0C001 Duct-Air9106--01 ~ 9405--01; GA16DS |
16268-0C001 |
US $27.79 |
||
|
16578+A
|
16578+A
16268-0C001 Duct-Air9106--01 ~ 9405--01; GA16DS |
16268-0C001 |
US $27.79 |
||
|
16580
|
16580
16580-W7000 Intake Air Temperature Sensor9106--01 ~ 9405--01; GA16DS |
16580-W7000 |
US $43.92 |
||
|
16580
|
16580
16529-B9800 Grommet9106--01 ~ 9405--01; GA16DS |
16529-B9800 |
US $1.67 |
||
|
16580
|
16580
16582-H3901 Stopper9106--01 ~ 9405--01; GA16DS |
16582-H3901 |
US $8.87 |
||
|
16580
|
16580
16585-0C010 Resonator Assy9106--01 ~ 9405--01; GA16DS |
16585-0C010 |
US $94.61 |
||
|
16580
|
16580
16585-0C001 Resonator Assy9106--01 ~ 9405--01; GA16DS |
16585-0C001 |
US $94.61 |
||
|
16580H
|
16580H
16529-B9800 Grommet9106--01 ~ 9405--01; GA16DS |
16529-B9800 |
US $1.67 |
||
|
16580J
|
16580J
16582-H3901 Stopper9106--01 ~ 9405--01; GA16DS |
16582-H3901 |
US $8.87 |
||
|
16580R
|
16580R
16585-0C010 Resonator Assy9106--01 ~ 9405--01; GA16DS |
16585-0C010 |
US $94.61 |
||
|
16580R
|
16580R
16585-0C001 Resonator Assy9106--01 ~ 9405--01; GA16DS |
16585-0C001 |
US $94.61 |
||
|
16580RA
|
16580RA
16585-0C001 Resonator Assy9106--01 ~ 9405--01; GA16DS |
16585-0C001 |
US $94.61 |
||
|
16588M
|
16588M
16588-0C010 Bracket-Resonator9106--01 ~ 9405--01; GA16DS |
16588-0C010 |
US $12.10 |
||
|
16588M
|
16588M
16588-0C001 Bracket-Resonator9106--01 ~ 9405--01; GA16DS |
16588-0C001 |
US $14.26 |
||
|
16588MA
|
16588MA
16588-0C001 Bracket-Resonator9106--01 ~ 9405--01; GA16DS |
16588-0C001 |
US $14.26 |
||
|
16597A
|
16597A
16535-0C400 Pin9106--01 ~ 9405--01; GA16DS |
16535-0C400 |
US $2.16 |
||
|
16598
|
16598
16598-53J01 Clip9106--01 ~ 9405--01; GA16DS |
16598-53J01 |
US $4.32 |
||
| replacement | |||||
|
16598
|
16598
1659853J0A Clip9106--01 ~ 9405--01; GA16DS |
1659853J0A |
US $5.81 |
||
|
17090E
|
17090E
15056-0C020 Seal-O Ring9106--01 ~ 9405--01; GA16DS |
15056-0C020 |
US $4.18 |
||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
64840M
|
64840M
6483585E00 RUB-BUSH9106--01 ~ 9405--01; GA16DS |
6483585E00 |
US $9.65 |
||
