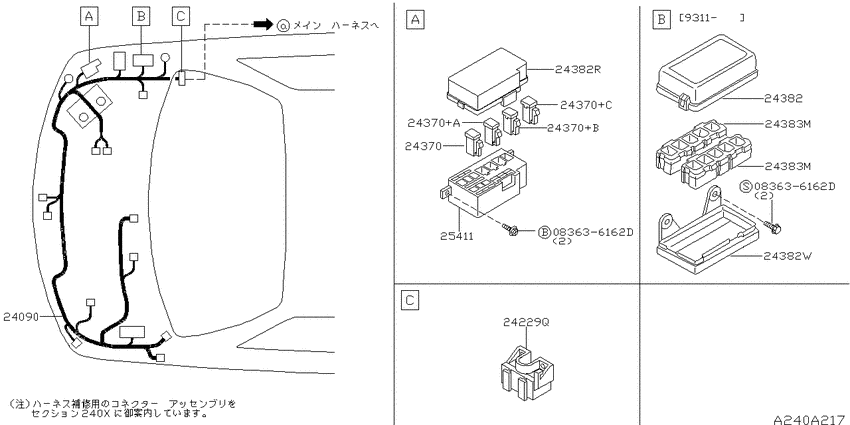

Wiring (1991-06-01 ~ 1994-05-01; ｺﾝﾊﾟｰﾄﾒﾝﾄﾊｰﾈｽ & ﾌｨｯﾃｲﾝｸﾞ ﾊﾟｰﾂ; 4DV.GA16DS +5DV.GA16DS) Diagram Nissan VANETTE
- Year
- 1991 - 1994
- Sales region
- Japan
- Engine
- GA16DS
- drive
- 2WD
- transmission
- AT
- grade
- L
- body
- 4DV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162D
|
083636162D
08363-6162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6162D |
— | ||
| replacement | |||||
|
083636162D
|
083636162D
08360-6162D Screw |
08360-6162D |
US $1.93 |
||
|
083636162D
|
083636162D
08363-6162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6162D |
— | ||
| replacement | |||||
|
083636162D
|
083636162D
08360-6162D Screw |
08360-6162D |
US $1.93 |
||
|
24090
|
24090
24090-0C061 Harness-Front Compartment9106--01 ~ 9206--01; #4DV.GA16DS.(L+LX).AT +5DV.GA16DS.AT |
24090-0C061 |
US $1,512 |
||
|
24090
|
24090
24090-0C065 Harness-Front Compartment9206--01 ~ 9301--01; #4DV.GA16DS.(L+LX).AT +5DV.GA16DS.AT |
24090-0C065 |
US $1,512 |
||
|
24090
|
24090
24090-0C068 Harness-Front Compartment9301--01 ~ 9308--01; #4DV.GA16DS.(L+LX).AT +5DV.GA16DS.AT |
24090-0C068 |
US $1,512 |
||
|
24090
|
24090
24090-0C071 Harness-Front Compartment9308--01 ~ 9405--01; #4DV.GA16DS.(L+LX).AT +5DV.GA16DS.AT |
24090-0C071 |
US $1,512 |
||
|
24229Q
|
24229Q
24356-01F01 Bracket-Junction9106--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS |
24356-01F01 |
US $12.67 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link9106--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS; 25A |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link9106--01 ~ 9308--01; 4DV.GA16DS +5DV.GA16DS; 30A |
2437089905 |
from US $12.77 |
||
|
24370
|
24370
24370-89960 Conn Assy-Fusible Link9308--01 ~ 9405--01; 4DV.GA16DS.AT +5DV.GA16DS.AT; 45A |
24370-89960 |
US $12.20 |
||
|
24370
|
24370
2437089920 Connector Assy-Fusible Link9106--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS; 75A |
2437089920 |
from US $10.80 |
||
|
24370+A
|
24370+A
2437089905 Connector Assy-Fusible Link9106--01 ~ 9308--01; 4DV.GA16DS +5DV.GA16DS; 30A |
2437089905 |
from US $12.77 |
||
|
24370+B
|
24370+B
24370-89960 Conn Assy-Fusible Link9308--01 ~ 9405--01; 4DV.GA16DS.AT +5DV.GA16DS.AT; 45A |
24370-89960 |
US $12.20 |
||
|
24370+C
|
24370+C
2437089920 Connector Assy-Fusible Link9106--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS; 75A |
2437089920 |
from US $10.80 |
||
|
24382
|
24382
24382-0C010 Cover-Relay Box9311--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS |
24382-0C010 |
US $20.45 |
||
|
24382
|
24382
24382-0C000 Cover-Fusible Link Holder9106--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS |
24382-0C000 |
US $5.47 |
||
|
24382
|
24382
24382-5C100 Cover-Relay Box9311--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS |
24382-5C100 |
US $20.59 |
||
|
24382R
|
24382R
24382-0C000 Cover-Fusible Link Holder9106--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS |
24382-0C000 |
US $5.47 |
||
|
24382W
|
24382W
24382-5C100 Cover-Relay Box9311--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS |
24382-5C100 |
US $20.59 |
||
|
24383M
|
24383M
24383-5C000 Housing-Relay Box9311--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS |
24383-5C000 |
US $10.94 |
||
|
24383M
|
24383M
24383-5C000 Housing-Relay Box9311--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS |
24383-5C000 |
US $10.94 |
||
|
25411
|
25411
24380-0C000 Holder-Fusible Link9106--01 ~ 9405--01; 4DV.GA16DS +5DV.GA16DS |
24380-0C000 |
US $62.50 |
||
