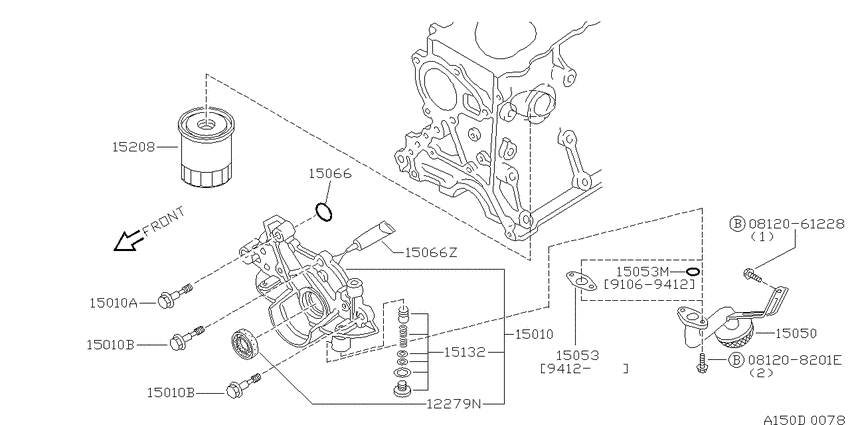

Lubricating system (1991-06-01 ~ 1993-08-01; CD20) Diagram Nissan VANETTE
- Year
- 1991 - 1994
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- AT
- grade
- L
- body
- 5DV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
12279N
|
12279N
13510V7200 Seal-Oil, Crankshaft Front9106--01 ~ 9308--01; CD20 |
13510V7200 |
from US $9.84 |
||
|
15010
|
15010
15010-1C302 Pump Assy-Oil9106--01 ~ 9308--01; CD20 |
15010-1C302 |
US $253.44 |
||
|
15010
|
15010
15060-D0102
Bolt
9106--01 ~ 9308--01; CD20 |
15060-D0102 |
— | ||
|
15010
|
15010
13512-D0102 Bolt-Oil Pump9106--01 ~ 9308--01; CD20 |
13512-D0102 |
US $3.06 |
||
|
15010A
|
15010A
15060-D0102
Bolt
9106--01 ~ 9308--01; CD20 |
15060-D0102 |
— | ||
|
15010B
|
15010B
13512-D0102 Bolt-Oil Pump9106--01 ~ 9308--01; CD20 |
13512-D0102 |
US $3.06 |
||
|
15010B
|
15010B
13512-D0102 Bolt-Oil Pump9106--01 ~ 9308--01; CD20 |
13512-D0102 |
US $3.06 |
||
|
15050
|
15050
15050-0C400 Strainer Assy-Oil9106--01 ~ 9308--01; CD20 |
15050-0C400 |
US $52.70 |
||
|
15053
|
15053
15059V5001
Seal-O Ring, Oil Strainer
9106--01 ~ 9308--01; CD20 |
15059V5001 |
— | ||
| replacement | |||||
|
15053
|
15053
15059-V500A Ring, e-9106--01 ~ 9308--01; CD20 |
15059-V500A |
US $3.60 |
||
|
15053M
|
15053M
15059V5001
Seal-O Ring, Oil Strainer
9106--01 ~ 9308--01; CD20 |
15059V5001 |
— | ||
| replacement | |||||
|
15053M
|
15053M
15059-V500A Ring, e-9106--01 ~ 9308--01; CD20 |
15059-V500A |
US $3.60 |
||
|
15066
|
15066
15066-77A00
Seal-O Ring
9106--01 ~ 9308--01; CD20 |
15066-77A00 |
— | ||
| replacement | |||||
|
15066
|
15066
150664J600 Seal-O Ring9106--01 ~ 9308--01; CD20 |
150664J600 |
US $6.51 |
||
|
15066
|
15066
KA76015000
Gasket-Liquid
9211--01 ~ 9308--01; CD20; [K504] |
KA76015000 |
— | ||
|
15066
|
15066
KP510-00150 Gasket-Liquid9106--01 ~ 9211--01; CD20; [K504] |
KP510-00150 |
US $29.51 |
||
|
15066Z
|
15066Z
KA76015000
Gasket-Liquid
9211--01 ~ 9308--01; CD20; [K504] |
KA76015000 |
— | ||
|
15066Z
|
15066Z
KP510-00150 Gasket-Liquid9106--01 ~ 9211--01; CD20; [K504] |
KP510-00150 |
US $29.51 |
||
|
15132
|
15132
15132-F6500 Valve Assy-Oil Regulator9106--01 ~ 9308--01; CD20 |
15132-F6500 |
US $12.82 |
||
|
15208
|
15208
AY100NS008
Filter Assy-Oil
9106--01 ~ 9308--01; (4DV+5DV).CD20 |
AY100NS008 |
— | ||
| replacement | |||||
|
15208
|
15208
AY100NS00801 Filter Assy-Oil9106--01 ~ 9308--01; (4DV+5DV).CD20 |
AY100NS00801 |
US $14.03 |
||
|
15208
|
15208
AY100NS011
Filter Assy-Oil
9311--01 ~ 9405--01; *CD20; !NOX ｿｳﾘﾖｳ ｷｾｲ ﾀｲｵｳ ｵﾖﾋﾞ ｶﾝﾚｲﾁ ｼﾖｳ |
AY100NS011 |
— | ||
| replacement | |||||
|
15208
|
15208
AY100NS012 Filter Assy-Oil9311--01 ~ 9405--01; *CD20; !NOX ｿｳﾘﾖｳ ｷｾｲ ﾀｲｵｳ ｵﾖﾋﾞ ｶﾝﾚｲﾁ ｼﾖｳ |
AY100NS012 |
US $32.38 |
||
