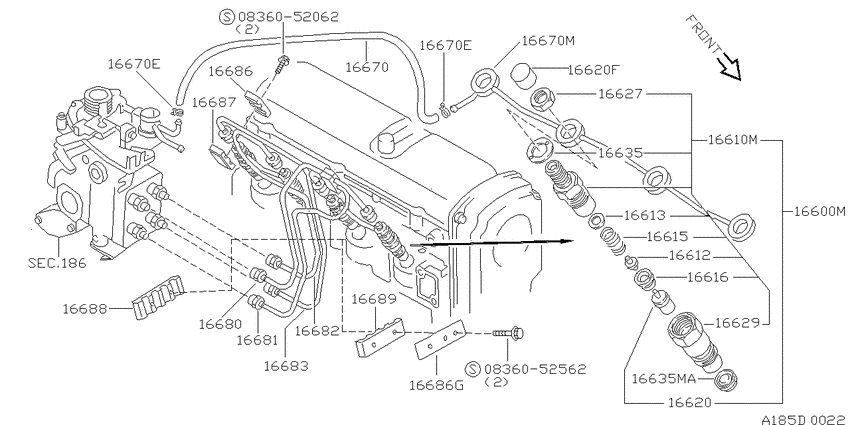

Fuel supply system (1994-05-01 ~ ; CD20) Diagram Nissan VANETTE
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT
- grade
- VX
- body
- 4DV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836052062
|
0836052062
0836052062
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836052062 |
— | ||
|
0836052562
|
0836052562
08360-52562
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-52562 |
— | ||
|
16600M
|
16600M
16600-59Y00 Nozzle Assy & Holder9405--01 ~ ; CD20; [B421] |
16600-59Y00 |
US $253.44 |
||
|
16610M
|
16610M
16610-16A00 Holder Assy-Nozzle9405--01 ~ ; CD20 |
16610-16A00 |
US $205.92 |
||
|
16612
|
16612
16612-16A00 Rod-Push9405--01 ~ ; CD20 |
16612-16A00 |
US $4.18 |
||
|
16613
|
16613
16613V0700 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.50 |
16613V0700 |
US $2.74 |
||
|
16613
|
16613
16613V0702 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.54 |
16613V0702 |
US $2.74 |
||
|
16613
|
16613
16613V0704 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.58 |
16613V0704 |
US $2.74 |
||
|
16613
|
16613
16613V0706 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.62 |
16613V0706 |
US $2.74 |
||
|
16613
|
16613
16613V0708 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.66 |
16613V0708 |
US $2.74 |
||
|
16613
|
16613
16613-V0710 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.70 |
16613-V0710 |
US $2.74 |
||
|
16613
|
16613
16613V0712 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.74 |
16613V0712 |
US $2.74 |
||
|
16613
|
16613
16613V0714 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.78 |
16613V0714 |
US $2.74 |
||
|
16613
|
16613
16613V0716 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.82 |
16613V0716 |
US $2.74 |
||
|
16613
|
16613
16613V0718 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.86 |
16613V0718 |
US $2.74 |
||
|
16613
|
16613
16613V0720 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.90 |
16613V0720 |
US $2.74 |
||
|
16613
|
16613
16613V0722 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.94 |
16613V0722 |
US $2.74 |
||
|
16613
|
16613
16613V0724 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=0.98 |
16613V0724 |
US $2.74 |
||
|
16613
|
16613
16613V0760 Washer-Adjusting9405--01 ~ ; CD20; ｾﾝﾀｸ T=1.00 |
16613V0760 |
US $2.74 |
||
|
16615
|
16615
16615-V0702 Spring-Nozzle9405--01 ~ ; CD20 |
16615-V0702 |
US $7.49 |
||
|
16616
|
16616
16616-16A00 Piece-Distance9405--01 ~ ; CD20 |
16616-16A00 |
US $14.26 |
||
|
16620
|
16620
16620-59Y00
Nozzle Assy
9405--01 ~ ; CD20; [B421] |
16620-59Y00 |
— | ||
|
16620
|
16620
16619-1C310 Cap-Injection Nozzle9405--01 ~ ; CD20; [B421] |
16619-1C310 |
US $2.30 |
||
|
16620F
|
16620F
16619-1C310 Cap-Injection Nozzle9405--01 ~ ; CD20; [B421] |
16619-1C310 |
US $2.30 |
||
|
16627
|
16627
16666-16A00 Nut9405--01 ~ ; CD20 |
16666-16A00 |
US $7.34 |
||
|
16629
|
16629
16629-16A00 Nut-Nozzle9405--01 ~ ; CD20 |
16629-16A00 |
US $21.31 |
||
|
16635
|
16635
1663516A00 Gasket-Nozzle9405--01 ~ ; CD20 |
1663516A00 |
from US $1.55 |
||
|
16635
|
16635
166260M900 Gasket-Nozzle9511--01 ~ ; CD20 |
166260M900 |
US $9.07 |
||
|
16635
|
16635
16626-16A00 Gasket-Nozzle9405--01 ~ 9511--01; CD20 |
16626-16A00 |
US $9.07 |
||
| replacement | |||||
|
16635
|
16635
166260M900 Gasket-Nozzle9405--01 ~ 9511--01; CD20 |
166260M900 |
US $9.07 |
||
|
16635MA
|
16635MA
166260M900 Gasket-Nozzle9511--01 ~ ; CD20 |
166260M900 |
US $9.07 |
||
|
16635MA
|
16635MA
16626-16A00 Gasket-Nozzle9405--01 ~ 9511--01; CD20 |
16626-16A00 |
US $9.07 |
||
| replacement | |||||
|
16635MA
|
16635MA
166260M900 Gasket-Nozzle9405--01 ~ 9511--01; CD20 |
166260M900 |
US $9.07 |
||
|
16670
|
16670
08740-20011 HOSE-FUEL SPILL,B9405--01 ~ ; CD20; L=200S/#A8742-20010 |
08740-20011 |
US $8.64 |
||
|
16670
|
16670
01555-00411
CLAMP-HOSE
9405--01 ~ ; CD20 |
01555-00411 |
— | ||
| replacement | |||||
|
16670
|
16670
0155500771 CLIP9405--01 ~ ; CD20 |
0155500771 |
US $2.78 |
||
|
16670
|
16670
16671-0C401 Tube-Fuel Spill9405--01 ~ ; CD20 |
16671-0C401 |
US $41.47 |
||
|
16670E
|
16670E
01555-00411
CLAMP-HOSE
9405--01 ~ ; CD20 |
01555-00411 |
— | ||
| replacement | |||||
|
16670E
|
16670E
0155500771 CLIP9405--01 ~ ; CD20 |
0155500771 |
US $2.78 |
||
|
16670E
|
16670E
01555-00411
CLAMP-HOSE
9405--01 ~ ; CD20 |
01555-00411 |
— | ||
| replacement | |||||
|
16670E
|
16670E
0155500771 CLIP9405--01 ~ ; CD20 |
0155500771 |
US $2.78 |
||
|
16670M
|
16670M
16671-0C401 Tube-Fuel Spill9405--01 ~ ; CD20 |
16671-0C401 |
US $41.47 |
||
|
16680
|
16680
16680-0C401 Tube Assy-Injection, No 19405--01 ~ ; CD20 |
16680-0C401 |
US $48.24 |
||
|
16681
|
16681
16681-0C401 Tube Assy-Injection, No 29405--01 ~ ; CD20 |
16681-0C401 |
US $44.50 |
||
|
16682
|
16682
16682-0C401 Tube Assy-Injection, No 39405--01 ~ ; CD20 |
16682-0C401 |
US $44.50 |
||
|
16683
|
16683
166830C401 Tube Assy-Injection, No 49405--01 ~ ; CD20 |
166830C401 |
US $44.50 |
||
|
16686
|
16686
16686-16A00 Support-Injection Tube9405--01 ~ 9508--01; CD20 |
16686-16A00 |
US $4.18 |
||
| replacement | |||||
|
16686
|
16686
16686-16A01 Support-Injection Tube9405--01 ~ 9508--01; CD20 |
16686-16A01 |
US $4.71 |
||
|
16686
|
16686
16686-16A01 Support-Injection Tube9508--01 ~ ; CD20 |
16686-16A01 |
US $4.71 |
||
|
16686
|
16686
24239-0C400 Bracket-Clip9405--01 ~ ; CD20 |
24239-0C400 |
US $4.61 |
||
|
16686G
|
16686G
24239-0C400 Bracket-Clip9405--01 ~ ; CD20 |
24239-0C400 |
US $4.61 |
||
|
16687
|
16687
16687-16A00 Support-Injection Tube9405--01 ~ 9508--01; CD20 |
16687-16A00 |
US $4.18 |
||
| replacement | |||||
|
16687
|
16687
16687-16A01 Support-Injection Tube9405--01 ~ 9508--01; CD20 |
16687-16A01 |
US $4.71 |
||
|
16687
|
16687
16687-16A01 Support-Injection Tube9508--01 ~ ; CD20 |
16687-16A01 |
US $4.71 |
||
|
16688
|
16688
16688-16A00 Support-Injection Tube9405--01 ~ 9508--01; CD20 |
16688-16A00 |
US $11.09 |
||
| replacement | |||||
|
16688
|
16688
16688-16A01 Support-Injection Tube9405--01 ~ 9508--01; CD20 |
16688-16A01 |
US $7.92 |
||
|
16688
|
16688
16688-16A01 Support-Injection Tube9508--01 ~ ; CD20 |
16688-16A01 |
US $7.92 |
||
|
16689
|
16689
16689-16A00 Support-Injection Tube9405--01 ~ 9508--01; CD20 |
16689-16A00 |
US $12.82 |
||
| replacement | |||||
|
16689
|
16689
16689-16A01 Support-Injection Tube9405--01 ~ 9508--01; CD20 |
16689-16A01 |
US $11.81 |
||
|
16689
|
16689
16689-16A01 Support-Injection Tube9508--01 ~ ; CD20 |
16689-16A01 |
US $11.81 |
||
|
186
|
Fuel injection pump
186
|
||||
