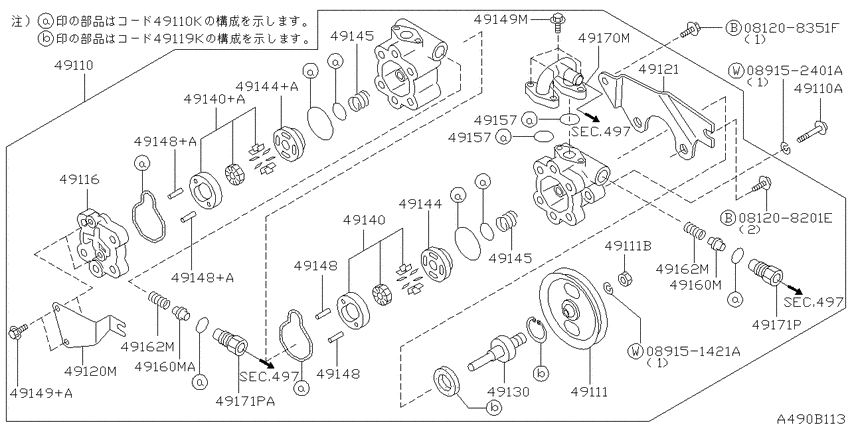

Power steering pump (1994-05-01 ~ 1997-01-01; PXツーリング; *SR20DE.PX) Diagram Nissan VANETTE
- Year
- 1991 - 1997
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- PX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208351F
|
081208351F
08120-8351F
Bolt-hexagon
|
08120-8351F |
— | ||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $2.21 |
||
|
49110
|
49110
49110-0C805 Pump Assy-Power Steering9106--01 ~ 9308--01; 2WD.SR20DE.PX |
49110-0C805 |
US $1,652 |
||
|
49110
|
49110
49110-0C820 Pump Assy-Power Steering9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49110-0C820 |
US $1,652 |
||
|
49110
|
49110
49110-1C700 Pump Assy-Power Steering9601--01 ~ 9701--01; 2WD.SR20DE |
49110-1C700 |
US $1,414 |
||
|
49110
|
49110
49110-3C000 Pump Assy-Power Steering9508--01 ~ 9601--01; 2WD.SR20DE |
49110-3C000 |
US $1,652 |
||
|
49110
|
49110
48361-55S00 Bolt9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
48361-55S00 |
US $4.42 |
||
| replacement | |||||
|
49110
|
49110
4836155S0A Bolt9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
4836155S0A |
from US $2.02 |
||
|
49110
|
49110
4836158S00
Bolt
9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
4836158S00 |
— | ||
|
49110
|
49110
49591-0C025 Seal Kit-Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49591-0C025 |
US $21.02 |
||
|
49110
|
49110
49591-VE025
Seal Kit-Power Steering Pump
9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
49591-VE025 |
— | ||
| replacement | |||||
|
49110
|
49110
49591VE026 Seal Kit-Power Steering Pump9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
49591VE026 |
US $20.38 |
||
|
49110A
|
49110A
48361-55S00 Bolt9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
48361-55S00 |
US $4.42 |
||
| replacement | |||||
|
49110A
|
49110A
4836155S0A Bolt9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
4836155S0A |
from US $2.02 |
||
|
49110A
|
49110A
4836158S00
Bolt
9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
4836158S00 |
— | ||
|
49110K
|
49110K
49591-0C025 Seal Kit-Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49591-0C025 |
US $21.02 |
||
|
49110K
|
49110K
49591-VE025
Seal Kit-Power Steering Pump
9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
49591-VE025 |
— | ||
| replacement | |||||
|
49110K
|
49110K
49591VE026 Seal Kit-Power Steering Pump9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
49591VE026 |
US $20.38 |
||
|
49111
|
49111
49132-0C800 Pulley-Power Steering Pump9403--01 ~ 9405--01; SR20DE |
49132-0C800 |
US $86.83 |
||
|
49111
|
49111
49132-43P00 Pulley-Power Steering Pump9106--01 ~ 9308--01; SR20DE |
49132-43P00 |
US $57.74 |
||
|
49111
|
49111
49133-50L00 Nut-Pulley, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111
|
49111
4913350L0A Nut-Pulley, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
4913350L0A |
US $1.73 |
||
|
49111B
|
49111B
49133-50L00 Nut-Pulley, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111B
|
49111B
4913350L0A Nut-Pulley, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
4913350L0A |
US $1.73 |
||
|
49116
|
49116
49116-03U00 Cover-Rear, Power Steering Pump9106--01 ~ 9308--01; D2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT CD20.VX.AT +CD20T |
49116-03U00 |
US $44.35 |
||
| replacement | |||||
|
49116
|
49116
D9116-03U00
Cover-rear,power steering pump
9106--01 ~ 9308--01; D2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT CD20.VX.AT +CD20T |
D9116-03U00 |
— | ||
|
49116
|
49116
49116-03U01 Cover-Rear, Power Steering Pump9402--01 ~ 9403--01; D2WD.SR20DE.(FX+SX).AT +2WD.SR20DE.PX +4WD.SR20DE.AT +CD20.VX.(MT+AT) |
49116-03U01 |
US $48.82 |
||
|
49116
|
49116
49116-0E001 COVER-REAR,POWER STEERING PUMP9512--01 ~ 9701--01; 0*2WD.SR20DE.SX.AT +*2WD.SR20DE.PX +*SR20DE.SX.MT; ﾃﾞﾝｾｲ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾂｰﾘﾝｸﾞﾊﾟﾂｸ |
49116-0E001 |
US $32 |
||
|
49116
|
49116
49116-52F01 Cover-Rear, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49116-52F01 |
US $48.53 |
||
|
49116
|
49116
49116-5C001 Cover-Rear, Power Steering Pump9403--01 ~ 9405--01; D2WD.SR20DE.(FX+SX).AT +2WD.SR20DE.PX +4WD.SR20DE.AT +CD20.VX.(MT+AT) |
49116-5C001 |
US $34.70 |
||
|
49119K
|
49119K
4911903U25 Seal Kit-Drive Shaft, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
4911903U25 |
US $10.22 |
||
|
49120M
|
49120M
49122-0C820 Bracket Assy-Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49122-0C820 |
US $135.07 |
||
|
49121
|
49121
49121-0C800 Bracket Assy-Power Steering Pump9106--01 ~ 9308--01; 2WD.SR20DE |
49121-0C800 |
US $61.34 |
||
|
49130
|
49130
49130-03U00 Shaft-Drive, Power Steering Pump9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
49130-03U00 |
US $64.22 |
||
|
49130
|
49130
49130-03U01 Shaft-Drive, Power Steering Pump9402--01 ~ 9405--01; D2WD.SR20DE.(FX+SX).AT +2WD.SR20DE.PX +4WD.SR20DE.AT +CD20.VX.(MT+AT) |
49130-03U01 |
US $46.15 |
||
|
49130
|
49130
49130-05U01 Shaft-Drive, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49130-05U01 |
US $58.75 |
||
|
49140
|
49140
49140-05U00 Rotor & Camring Set-Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49140-05U00 |
US $167.04 |
||
|
49140
|
49140
49140-15V00 Rotor & Camring Set-Power Steering Pump9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
49140-15V00 |
from US $116.21 |
||
|
49140
|
49140
49140-15V00 Rotor & Camring Set-Power Steering Pump9508--01 ~ 9701--01; SR20DE +CD20 +CD20T |
49140-15V00 |
from US $116.21 |
||
|
49140
|
49140
49140-63U10 Rotor & Camring Set-Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49140-63U10 |
US $167.04 |
||
|
49140+A
|
49140+A
49140-15V00 Rotor & Camring Set-Power Steering Pump9508--01 ~ 9701--01; SR20DE +CD20 +CD20T |
49140-15V00 |
from US $116.21 |
||
|
49140+A
|
49140+A
49140-63U10 Rotor & Camring Set-Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49140-63U10 |
US $167.04 |
||
|
49144
|
49144
49144-03U00 Plate-Side, Power Steering Pump9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
49144-03U00 |
US $40.32 |
||
|
49144
|
49144
49144-63U00 Plate-Side, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49144-63U00 |
US $44.78 |
||
|
49144
|
49144
49144-65F00 Plate-Side, Power Steering Pump9403--01 ~ 9405--01; D2WD.SR20DE.(FX+SX).AT +2WD.SR20DE.PX +4WD.SR20DE.AT +CD20.VX.(MT+AT) |
49144-65F00 |
US $31.25 |
||
|
49144
|
49144
49144-63U10 Plate-Side, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49144-63U10 |
US $46.08 |
||
|
49144+A
|
49144+A
49144-63U10 Plate-Side, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49144-63U10 |
US $46.08 |
||
|
49145
|
49145
49145-15V00 Spring-Side Plate9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
49145-15V00 |
US $0.86 |
||
|
49145
|
49145
49145-15V00 Spring-Side Plate9106--01 ~ 9308--01; E2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE +CD20.(FG+VX).MT +CD20.VX.AT +CD20T |
49145-15V00 |
US $0.86 |
||
|
49148
|
49148
49148-05U00 Pin-Camring, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49148-05U00 |
US $3.46 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9106--01 ~ 9308--01; !2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE |
49148-15V00 |
US $2.49 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49148-15V00 |
US $2.49 |
||
|
49148
|
49148
49148-05U00 Pin-Camring, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49148-05U00 |
US $3.46 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9106--01 ~ 9308--01; !2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE |
49148-15V00 |
US $2.49 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49148-15V00 |
US $2.49 |
||
|
49148+A
|
49148+A
49148-15V00 Pin-Camring, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49148-15V00 |
US $2.49 |
||
|
49148+A
|
49148+A
49148-15V00 Pin-Camring, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49148-15V00 |
US $2.49 |
||
|
49149+A
|
49149+A
49149-52F00 Bolt-Bracket, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49149-52F00 |
US $3.60 |
||
| replacement | |||||
|
49149+A
|
49149+A
49149-52F0A Bolt-Bracket, Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49149-52F0A |
US $3.60 |
||
|
49149M
|
49149M
49164-0E000 BOLT-POWER STEERING PUMP9106--01 ~ 9308--01; !2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE |
49164-0E000 |
US $2.88 |
||
| replacement | |||||
|
49149M
|
49149M
49164-0E00A Bolt-Power Steering Pump9106--01 ~ 9308--01; !2WD.SR20DE.(FX+SX+PX) +4WD.SR20DE |
49164-0E00A |
from US $2.88 |
||
|
49149M
|
49149M
49164-43P00 Bolt-Power Steering Pump9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49164-43P00 |
US $3.31 |
||
|
49157
|
49157
4916226E00 SEAL-INLET CONNECTOR9508--01 ~ 9701--01; 0*2WD.SR20DE.SX.AT +*2WD.SR20DE.PX +*SR20DE.SX.MT; ﾂ-ﾘﾝｸﾞﾊﾟﾂｸ |
4916226E00 |
from US $1.65 |
||
|
49157
|
49157
4916226E00 SEAL-INLET CONNECTOR9508--01 ~ 9701--01; 0*2WD.SR20DE.SX.AT +*2WD.SR20DE.PX +*SR20DE.SX.MT; ﾂ-ﾘﾝｸﾞﾊﾟﾂｸ |
4916226E00 |
from US $1.65 |
||
|
49160M
|
49160M
49165-05U00 Valve Assy-Flow Control9106--01 ~ 9308--01; )SR20DE.(PX+PXT).(MT+AT) +CD20T.PX.(MT+AT) |
49165-05U00 |
US $64.80 |
||
|
49160M
|
49160M
49165-0M000 Valve Assy-Flow Control9405--01 ~ 9508--01; SR20DE.PX.AT +CD20T.PX.AT |
49165-0M000 |
US $69.12 |
||
|
49160M
|
49160M
49165-1C600 Valve Assy-Flow Control9508--01 ~ 9701--01; SR20DE +CD20 +CD20T |
49165-1C600 |
US $63.22 |
||
|
49160M
|
49160M
49165-63U10 Valve Assy-Flow Control9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49165-63U10 |
US $64.80 |
||
|
49160MA
|
49160MA
49165-63U10 Valve Assy-Flow Control9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49165-63U10 |
US $64.80 |
||
|
49162M
|
49162M
4916719V00 Spring-Flow Control Valve9508--01 ~ 9701--01; SR20DE +CD20 +CD20T |
4916719V00 |
US $10.94 |
||
|
49162M
|
49162M
49167-63U00 Spring-Flow Control Valve9106--01 ~ 9308--01; SR20DE.PX +CD20T.PX.(MT+AT) |
49167-63U00 |
US $6.34 |
||
|
49162M
|
49162M
4916719V00 Spring-Flow Control Valve9508--01 ~ 9701--01; SR20DE +CD20 +CD20T |
4916719V00 |
US $10.94 |
||
|
49162M
|
49162M
49167-63U00 Spring-Flow Control Valve9106--01 ~ 9308--01; SR20DE.PX +CD20T.PX.(MT+AT) |
49167-63U00 |
US $6.34 |
||
|
49170M
|
49170M
49161-0C820 Connector-Inlet9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49161-0C820 |
US $67.39 |
||
|
49171P
|
49171P
49171-0C405 Connector-Outlet9106--01 ~ 9308--01; SR20DE.PX +CD20T.PX.(MT+AT) |
49171-0C405 |
US $7.49 |
||
|
49171P
|
49171P
49171-0C820 Connector-Outlet9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49171-0C820 |
US $6.48 |
||
|
49171P
|
49171P
49171-59Y00 Connector-Outlet9508--01 ~ 9701--01; SR20DE +CD20 +CD20T |
49171-59Y00 |
US $30.10 |
||
|
49171P
|
49171P
49171-5C010 Connector-Outlet9608--01 ~ 9701--01; 0*2WD.SR20DE.SX.AT +*2WD.SR20DE.PX +*SR20DE.SX.MT; ﾂｰﾘﾝｸﾞﾊﾟﾂｸ |
49171-5C010 |
US $62.35 |
||
|
49171P
|
49171P
49171-40P00 Connector-Outlet9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49171-40P00 |
US $32.11 |
||
|
49171PA
|
49171PA
49171-40P00 Connector-Outlet9405--01 ~ 9508--01; *2WD.SR20DE.PX; <PXTｼﾖｳ> |
49171-40P00 |
US $32.11 |
||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
