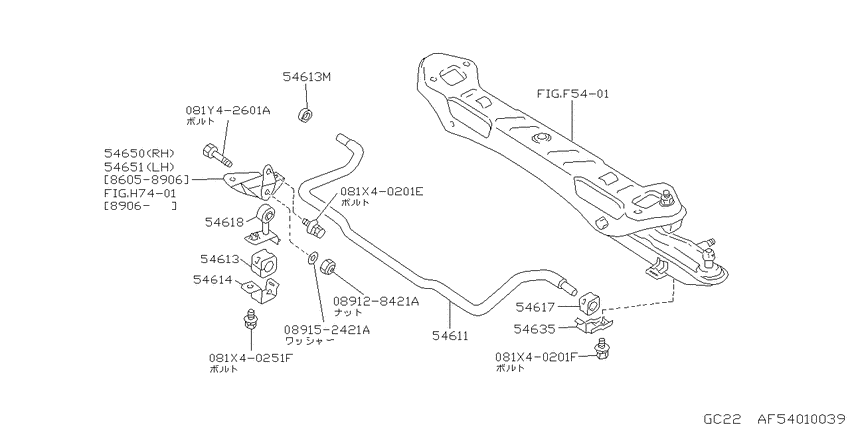

Front suspension (1986-05-01 ~ ; フロント スタビライザー; K.GAS.2WD) Diagram Nissan VANETTE
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- CA18T
- drive
- 2WD
- transmission
- AT
- grade
- SC
- body
- K
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081X40201E
|
081X40201E
081X4-0201E
Bolt-hexagon
|
081X4-0201E |
— | ||
|
081X40201F
|
081X40201F
081X4-0201F
Bolt-hexagon
|
081X4-0201F |
— | ||
|
081X40251F
|
081X40251F
081X4-0251F
Bolt-hexagon
|
081X4-0251F |
— | ||
|
081Y42601A
|
081Y42601A
081Y4-2601A
Bolt-hexagon
|
081Y4-2601A |
— | ||
|
089128421A
|
089128421A
089128421A NUTHEX |
089128421A |
from US $0.65 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
54611
|
54611
54611-12C00 Stabilizer-Front8605--01 ~ 8809--01; K.6AS.2WD; (K.GAS).2WD |
54611-12C00 |
US $635.78 |
||
|
54611
|
54611
54611-25C00
Stabilizer-Front
8809--01 ~ 8906--01; K.GAS.2WD |
54611-25C00 |
— | ||
|
54611
|
54611
54611-25C01 Stabilizer-Front8906--01 ~ ; K.2WD.(CA18T+CA20S) |
54611-25C01 |
US $635.78 |
||
|
54613
|
54613
54613-11C00 Bush-Stabilizer8605--01 ~ 8611--01; K.GAS |
54613-11C00 |
US $9.07 |
||
|
54613
|
54613
54613-25C02
Bush-Stabilizer
8809--01 ~ 8906--01; K.GAS.2WD |
54613-25C02 |
— | ||
|
54613
|
54613
54627-G5400 Bushing-Stabilizer8605--01 ~ 8906--01; K.GAS.2WD |
54627-G5400 |
US $5.18 |
||
|
54613M
|
54613M
54627-G5400 Bushing-Stabilizer8605--01 ~ 8906--01; K.GAS.2WD |
54627-G5400 |
US $5.18 |
||
|
54614
|
54614
54614-G5400 Bracket-Stabilizer8605--01 ~ 8809--01; K.GAS.2WD |
54614-G5400 |
US $19.30 |
||
|
54614
|
54614
54645-25C01
Clamp-Stabilizer
8809--01 ~ ; K.GAS.2WD |
54645-25C01 |
— | ||
|
54617
|
54617
54612-G5400 Bushing-Stabilizer8605--01 ~ 8906--01; K.GAS.2WD |
54612-G5400 |
US $9.22 |
||
|
54618
|
54618
54617-25C01
Rod Assy-Connecting, Stabilizer
8809--01 ~ ; K.2WD.(CA18T+CA20S) |
54617-25C01 |
— | ||
|
54618
|
54618
54617-G5400 Rod Assy-Connecting, Stabilizer8605--01 ~ 8809--01; K.GAS.2WD |
54617-G5400 |
US $57.17 |
||
|
54635
|
54635
54615-G5401
Bracket Assy-Front Stabilizer
8605--01 ~ 8906--01; K.GAS |
54615-G5401 |
— | ||
|
54650
|
54650
54650-12C00 Bracket Assy-Connecting Rod, Rh8605--01 ~ 8906--01; K.GAS |
54650-12C00 |
US $41.18 |
||
|
54651
|
54651
54651-12C00 Bracket Assy-Connecting Rod, Lh8605--01 ~ 8906--01; K.GAS |
54651-12C00 |
US $41.18 |
