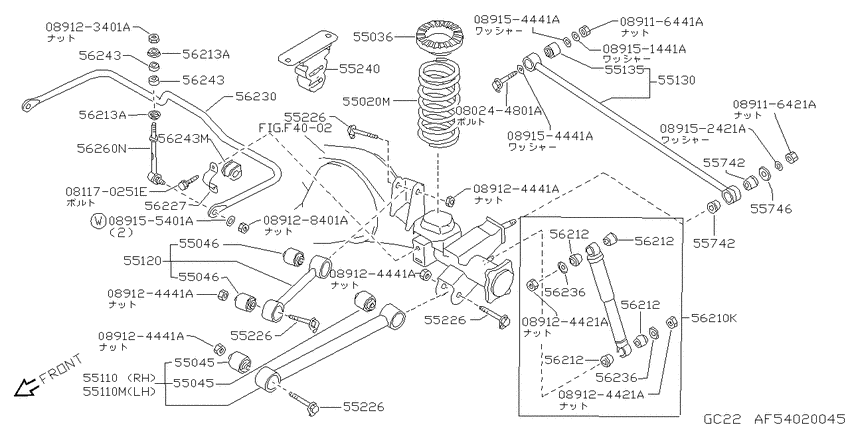

Rear suspension (1986-11-01 ~ ; K.4WD) Diagram Nissan VANETTE
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- CA18T
- drive
- 4WD
- transmission
- MT
- grade
- GC
- body
- K
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080244801A
|
080244801A
08024-4801A
Bolt-hexagon
|
08024-4801A |
— | ||
|
081170251E
|
081170251E
08117-0251E
Bolt-hexagon
|
08117-0251E |
— | ||
|
089116421A
|
089116421A
089116421A Nut |
089116421A |
US $3.06 |
||
|
089116441A
|
089116441A
089116441A NUT-HEX |
089116441A |
from US $0.94 |
||
|
089123401A
|
089123401A
089123401A NUT-HEX |
089123401A |
US $3.46 |
||
|
089124421A
|
089124421A
089124421A NUTHEX |
089124421A |
US $0.93 |
||
|
089124421A
|
089124421A
089124421A NUTHEX |
089124421A |
US $0.93 |
||
|
089124441A
|
089124441A
08912-4441A
NUT-HEX
|
08912-4441A |
— | ||
|
089124441A
|
089124441A
08912-4441A
NUT-HEX
|
08912-4441A |
— | ||
|
089124441A
|
089124441A
08912-4441A
NUT-HEX
|
08912-4441A |
— | ||
|
089124441A
|
089124441A
08912-4441A
NUT-HEX
|
08912-4441A |
— | ||
|
089128401A
|
089128401A
089128401A NUTHEX |
089128401A |
from US $0.59 |
||
|
089151441A
|
089151441A
08915-1441A WASHERSPRING |
08915-1441A |
US $0.68 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
089154441A
|
089154441A
08915-4441A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-4441A |
— | ||
|
089154441A
|
089154441A
08915-4441A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-4441A |
— | ||
|
089155401A
|
089155401A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
55020M
|
55020M
55020-32C01 Spring-Rear Suspension8611--01 ~ ; K.4WD |
55020-32C01 |
US $162.72 |
||
|
55036
|
55036
55034-41G00 Seat-Rubber, Rear Spring8611--01 ~ ; K.4WD |
55034-41G00 |
US $51.98 |
||
|
55045
|
55045
55045-32C00 Bush-Rear Spring8611--01 ~ ; K.4WD; ﾌﾞﾘｼﾞｽﾄﾝ ﾌﾞﾘﾁﾞｽﾄﾝ |
55045-32C00 |
US $43.49 |
||
|
55045
|
55045
55045-32C00 Bush-Rear Spring8611--01 ~ ; K.4WD; ﾌﾞﾘｼﾞｽﾄﾝ ﾌﾞﾘﾁﾞｽﾄﾝ |
55045-32C00 |
US $43.49 |
||
|
55046
|
55046
55046-32C00 Bush-Rear Spring8611--01 ~ ; K.4WD; ｾﾝﾀｸ ﾌﾞﾘﾁﾞｽﾄﾝ ﾄﾞﾁﾗﾃﾞﾓﾂｶｴﾙ |
55046-32C00 |
US $17.42 |
||
|
55046
|
55046
55046-32C10 Bush-Rear Spring8611--01 ~ ; K.4WD; ｾﾝﾀｸ ｷﾇｶﾞﾜｺﾞﾑ ﾄﾞﾁﾗﾃﾞﾓﾂｶｴﾙ |
55046-32C10 |
US $17.42 |
||
|
55046
|
55046
55046-32C00 Bush-Rear Spring8611--01 ~ ; K.4WD; ｾﾝﾀｸ ﾌﾞﾘﾁﾞｽﾄﾝ ﾄﾞﾁﾗﾃﾞﾓﾂｶｴﾙ |
55046-32C00 |
US $17.42 |
||
|
55046
|
55046
55046-32C10 Bush-Rear Spring8611--01 ~ ; K.4WD; ｾﾝﾀｸ ｷﾇｶﾞﾜｺﾞﾑ ﾄﾞﾁﾗﾃﾞﾓﾂｶｴﾙ |
55046-32C10 |
US $17.42 |
||
|
55110
|
55110
55110-32C00 Link Compl-Lower, Rear Suspension Rh8611--01 ~ ; K.4WD; ﾐｷﾞ ﾖｳ |
55110-32C00 |
US $161.28 |
||
|
55110
|
55110
55111-32C00 Link Compl-Lower, Rear Suspension8611--01 ~ ; K.4WD; ﾋﾀﾞﾘ ﾖｳ |
55111-32C00 |
US $161.28 |
||
|
55110M
|
55110M
55111-32C00 Link Compl-Lower, Rear Suspension8611--01 ~ ; K.4WD; ﾋﾀﾞﾘ ﾖｳ |
55111-32C00 |
US $161.28 |
||
|
55120
|
55120
55120-32C00 Link Compl-Upper, Rear Suspension8611--01 ~ ; K.4WD |
55120-32C00 |
US $137.95 |
||
|
55130
|
55130
55130-41G00 Rod Compl-Panhard8611--01 ~ ; K.4WD |
55130-41G00 |
US $73.01 |
||
|
55135
|
55135
5513511C00 Bush-Panhard Rod8605--01 ~ ; K |
5513511C00 |
from US $10.93 |
||
|
55226
|
55226
55080-41G10 Pin-Arm8611--01 ~ 8906--01; K.4WD |
55080-41G10 |
US $5.18 |
||
| replacement | |||||
|
55226
|
55226
5508041G1A Bolt-Link, Rear Suspension8611--01 ~ 8906--01; K.4WD |
5508041G1A |
from US $5.18 |
||
|
55226
|
55226
55080-41G10 Pin-Arm8611--01 ~ 8906--01; K.4WD |
55080-41G10 |
US $5.18 |
||
| replacement | |||||
|
55226
|
55226
5508041G1A Bolt-Link, Rear Suspension8611--01 ~ 8906--01; K.4WD |
5508041G1A |
from US $5.18 |
||
|
55226
|
55226
55080-41G10 Pin-Arm8611--01 ~ 8906--01; K.4WD |
55080-41G10 |
US $5.18 |
||
| replacement | |||||
|
55226
|
55226
5508041G1A Bolt-Link, Rear Suspension8611--01 ~ 8906--01; K.4WD |
5508041G1A |
from US $5.18 |
||
|
55226
|
55226
55080-41G10 Pin-Arm8611--01 ~ 8906--01; K.4WD |
55080-41G10 |
US $5.18 |
||
| replacement | |||||
|
55226
|
55226
5508041G1A Bolt-Link, Rear Suspension8611--01 ~ 8906--01; K.4WD |
5508041G1A |
from US $5.18 |
||
|
55240
|
55240
55060-32C00 Bumper Assy-Bound Rear Suspension8611--01 ~ ; K.4WD |
55060-32C00 |
US $42.91 |
||
|
55742
|
55742
55742-F2700 Bush-Panhard Rod8605--01 ~ ; K |
55742-F2700 |
from US $6.51 |
||
|
55742
|
55742
55742-F2700 Bush-Panhard Rod8605--01 ~ ; K |
55742-F2700 |
from US $6.51 |
||
|
55746
|
55746
55746V0100 Washer-Special8605--01 ~ ; K |
55746V0100 |
US $3.22 |
||
|
56210K
|
56210K
56210-12C25 Absorber Kit-Shock, Rear8605--01 ~ 8906--01; CA18T; ｺｸｲﾝ 56210-12C05 |
56210-12C25 |
US $211.68 |
||
|
56210K
|
56210K
56210-32C25 Absorber Kit-Shock, Rear8611--01 ~ ; K.4WD; ｺｸｲﾝNO 56210-32C00 |
56210-32C25 |
US $211.68 |
||
|
56212
|
56212
56119V6000 Bush8611--01 ~ ; K.4WD +4HV +5HV |
56119V6000 |
from US $2.45 |
||
|
56212
|
56212
56119V6000 Bush8611--01 ~ ; K.4WD +4HV +5HV |
56119V6000 |
from US $2.45 |
||
|
56212
|
56212
56119V6000 Bush8611--01 ~ ; K.4WD +4HV +5HV |
56119V6000 |
from US $2.45 |
||
|
56212
|
56212
56119V6000 Bush8611--01 ~ ; K.4WD +4HV +5HV |
56119V6000 |
from US $2.45 |
||
|
56213A
|
56213A
56113-09400
Washer
8611--01 ~ 8910--01; K.4WD |
56113-09400 |
— | ||
| replacement | |||||
|
56213A
|
56213A
5611360U0A Washer8611--01 ~ 8910--01; K.4WD |
5611360U0A |
from US $1.39 |
||
|
56213A
|
56213A
56113-60U05
Washer
8910--01 ~ ; K.4WD |
56113-60U05 |
— | ||
| replacement | |||||
|
56213A
|
56213A
5611360U0A Washer8910--01 ~ ; K.4WD |
5611360U0A |
from US $1.39 |
||
|
56213A
|
56213A
56113-09400
Washer
8611--01 ~ 8910--01; K.4WD |
56113-09400 |
— | ||
| replacement | |||||
|
56213A
|
56213A
5611360U0A Washer8611--01 ~ 8910--01; K.4WD |
5611360U0A |
from US $1.39 |
||
|
56213A
|
56213A
56113-60U05
Washer
8910--01 ~ ; K.4WD |
56113-60U05 |
— | ||
| replacement | |||||
|
56213A
|
56213A
5611360U0A Washer8910--01 ~ ; K.4WD |
5611360U0A |
from US $1.39 |
||
|
56227
|
56227
54645-25C01
Clamp-Stabilizer
8906--01 ~ ; K.4WD |
54645-25C01 |
— | ||
|
56227
|
56227
56231-41G00 Bracket Assy-Rear Stabilizer8611--01 ~ 8906--01; K.4WD |
56231-41G00 |
US $8.87 |
||
|
56230
|
56230
56230-32C00 Stabilizer-Rear8611--01 ~ 8906--01; K.4WD |
56230-32C00 |
US $254.88 |
||
|
56230
|
56230
56230-32C01 Stabilizer-Rear8906--01 ~ ; K.4WD |
56230-32C01 |
US $254.88 |
||
|
56236
|
56236
56225-27400 Washer-Special, Inner8611--01 ~ 8906--01; K.4WD |
56225-27400 |
US $2.45 |
||
| replacement | |||||
|
56236
|
56236
562252740A Washer-Special8611--01 ~ 8906--01; K.4WD |
562252740A |
from US $1.20 |
||
|
56236
|
56236
56225-27400 Washer-Special, Inner8611--01 ~ 8906--01; K.4WD |
56225-27400 |
US $2.45 |
||
| replacement | |||||
|
56236
|
56236
562252740A Washer-Special8611--01 ~ 8906--01; K.4WD |
562252740A |
from US $1.20 |
||
|
56243
|
56243
56112V0100 Stabilizer cushion8611--01 ~ ; 4WD |
56112V0100 |
from US $1.67 |
||
|
56243
|
56243
54613-32C10 Bushing-Rear Stabilizer8611--01 ~ 8906--01; K.4WD |
54613-32C10 |
US $9.07 |
||
|
56243
|
56243
54613-32C13 Bushing-Rear Stabilizer8906--01 ~ ; K.4WD |
54613-32C13 |
US $9.65 |
||
|
56243
|
56243
56112V0100 Stabilizer cushion8611--01 ~ ; 4WD |
56112V0100 |
from US $1.67 |
||
|
56243
|
56243
54613-32C10 Bushing-Rear Stabilizer8611--01 ~ 8906--01; K.4WD |
54613-32C10 |
US $9.07 |
||
|
56243
|
56243
54613-32C13 Bushing-Rear Stabilizer8906--01 ~ ; K.4WD |
54613-32C13 |
US $9.65 |
||
|
56243M
|
56243M
54613-32C10 Bushing-Rear Stabilizer8611--01 ~ 8906--01; K.4WD |
54613-32C10 |
US $9.07 |
||
|
56243M
|
56243M
54613-32C13 Bushing-Rear Stabilizer8906--01 ~ ; K.4WD |
54613-32C13 |
US $9.65 |
||
|
56260N
|
56260N
56260-41G01 Rod Assy-Connecting, Stabilizer8611--01 ~ 8801--01; K.4WD |
56260-41G01 |
US $46.51 |
||
|
56260N
|
56260N
56260-41G11
Rod Assy-Connecting, Stabilizer
8801--01 ~ ; K.4WD; |
56260-41G11 |
— | ||
| replacement | |||||
|
56260N
|
56260N
562600W001 Rod Assy-Connecting, Stabilizer8801--01 ~ ; K.4WD; |
562600W001 |
from US $27.21 |
||
