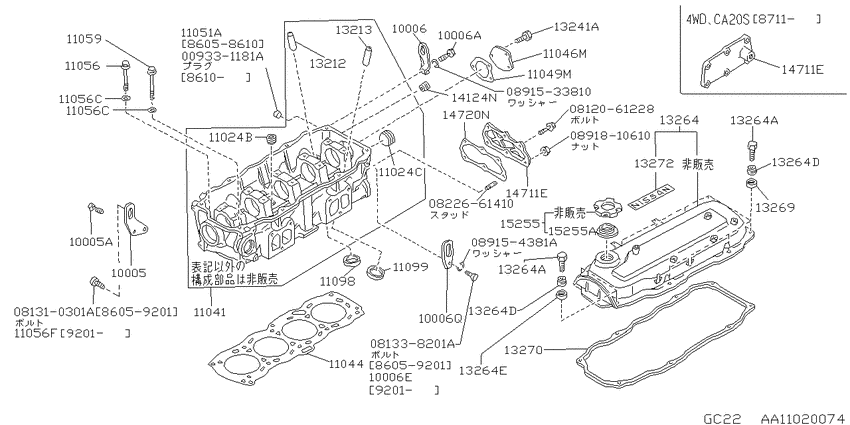

Cylinder - head & ﾛﾂｶ- ｶﾊﾞ- (1986-05-01 ~ ; CA20S) Diagram Nissan VANETTE
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- MT
- grade
- SS
- body
- K
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331181A
|
009331181A
00933-1181A Plug-Welch |
00933-1181A |
US $0.48 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
081310301A
|
081310301A
08131-0301A
Bolt-hexagon
|
08131-0301A |
— | ||
|
081338201A
|
081338201A
08133-8201A
Bolt-hexagon
|
08133-8201A |
— | ||
|
0822661410
|
0822661410
0822661410 STUD |
0822661410 |
from US $0.59 |
||
|
0891533810
|
0891533810
08915-33810
WASHER-FINAL DRIVE
|
08915-33810 |
— | ||
| replacement | |||||
|
0891533810
|
0891533810
089153381A Washer |
089153381A |
from US $0.67 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
0891810610
|
0891810610
08918-10610 NUTHEX |
08918-10610 |
US $0.50 |
||
|
10005
|
10005
10005-01E00
SLINGER-ENGINE
8605--01 ~ ; CA18T +CA20S |
10005-01E00 |
— | ||
| replacement | |||||
|
10005
|
10005
10005-01F00 Slinger-Engine8605--01 ~ ; CA18T +CA20S |
10005-01F00 |
US $5.18 |
||
|
10005
|
10005
0112100772 BOLT8605--01 ~ ; CA18T +CA20S |
0112100772 |
from US $2.44 |
||
|
10005A
|
10005A
0112100772 BOLT8605--01 ~ ; CA18T +CA20S |
0112100772 |
from US $2.44 |
||
|
10006
|
10006
10006-D0100 Slinger-Engine8605--01 ~ ; CA18T +CA20S |
10006-D0100 |
US $6.91 |
||
|
10006
|
10006
0112100772 BOLT8605--01 ~ ; CA20S |
0112100772 |
from US $2.44 |
||
|
10006
|
10006
01121-05751 BOLT-ENGINE SLINGER9201--01 ~ ; CA18T +CA20S |
01121-05751 |
US $0.86 |
||
|
10006
|
10006
10005-D0100 Slinger-Engine8605--01 ~ ; CA18T +CA20S |
10005-D0100 |
US $5.33 |
||
|
10006A
|
10006A
0112100772 BOLT8605--01 ~ ; CA20S |
0112100772 |
from US $2.44 |
||
|
10006E
|
10006E
01121-05751 BOLT-ENGINE SLINGER9201--01 ~ ; CA18T +CA20S |
01121-05751 |
US $0.86 |
||
|
10006Q
|
10006Q
10005-D0100 Slinger-Engine8605--01 ~ ; CA18T +CA20S |
10005-D0100 |
US $5.33 |
||
|
11024B
|
11024B
11051-D0100 Plug-Taper8605--01 ~ ; CA18T +CA20S |
11051-D0100 |
US $3.06 |
||
|
11024C
|
11024C
11052-D0100 Plug-Taper8605--01 ~ ; CA18T +CA20S |
11052-D0100 |
US $3.46 |
||
|
11041
|
11041
11041-D0202 Head Assy-Cylinder8605--01 ~ ; CA20S |
11041-D0202 |
US $1,554 |
||
|
11044
|
11044
11044-D1703
Gasket-Cylinder Head
8605--01 ~ 9207--01; CA20S |
11044-D1703 |
— | ||
| replacement | |||||
|
11044
|
11044
11044-D1710 Gasket-Cylinder Head8605--01 ~ 9207--01; CA20S |
11044-D1710 |
US $93.92 |
||
|
11044
|
11044
11044-D1710 Gasket-Cylinder Head9207--01 ~ ; CA20S |
11044-D1710 |
US $93.92 |
||
|
11046M
|
11046M
11046-D0101 Cover-Cylinder Head8605--01 ~ ; CA18T +CA20S |
11046-D0101 |
US $4.03 |
||
|
11049M
|
11049M
11049-D0101
Gasket-Cover, Cylinder Head
8605--01 ~ ; CA18T +CA20S |
11049-D0101 |
— | ||
| replacement | |||||
|
11049M
|
11049M
11049-89200 Gasket-Cover, Cylinder Head8605--01 ~ ; CA18T +CA20S |
11049-89200 |
US $6.94 |
||
|
11051A
|
11051A
11021-D0300 Plug-Welch8605--01 ~ 8610--01; CA18T +CA20S |
11021-D0300 |
US $2.45 |
||
|
11056
|
11056
11056-V5500 Bolt-Cylinder Head8605--01 ~ ; CA18T +CA20S |
11056-V5500 |
US $4.27 |
||
|
11056
|
11056
11058H1001 Washer-Plain8605--01 ~ ; CA18T +CA20S |
11058H1001 |
from US $2.07 |
||
|
11056
|
11056
01121-05761 BOLT-ENGINE SLINGER9201--01 ~ ; CA18T +CA20S |
01121-05761 |
US $0.86 |
||
|
11056C
|
11056C
11058H1001 Washer-Plain8605--01 ~ ; CA18T +CA20S |
11058H1001 |
from US $2.07 |
||
|
11056C
|
11056C
11058H1001 Washer-Plain8605--01 ~ ; CA18T +CA20S |
11058H1001 |
from US $2.07 |
||
|
11056F
|
11056F
01121-05761 BOLT-ENGINE SLINGER9201--01 ~ ; CA18T +CA20S |
01121-05761 |
US $0.86 |
||
|
11059
|
11059
11056-V5501 Bolt-Cylinder Head8605--01 ~ ; CA18T +CA20S |
11056-V5501 |
US $4.57 |
||
|
11098
|
11098
11098-D0210 Seat-Valve, Intake8605--01 ~ ; CA20S |
11098-D0210 |
US $12.96 |
||
|
11099
|
11099
11099-N6810 Seat-Valve, Exhaust8605--01 ~ ; CA18T +CA20S |
11099-N6810 |
US $19.15 |
||
|
13212
|
13212
13212-D0111 Guide-Valve, Intake8605--01 ~ ; CA18T +CA20S |
13212-D0111 |
US $24.95 |
||
|
13213
|
13213
13213-V5514 Guide-Valve, Exhaust8605--01 ~ ; CA18T +CA20S |
13213-V5514 |
US $28.08 |
||
|
13241A
|
13241A
11048-D0100 Bolt8605--01 ~ 8609--01; CA18T +CA20S |
11048-D0100 |
US $1.73 |
||
|
13241A
|
13241A
11048-D0102 Bolt-Cover, Cylinder Head8609--01 ~ ; CA18T +CA20S |
11048-D0102 |
US $1.73 |
||
|
13264
|
13264
13264-G5400 Cover Assy-Valve Rocker8605--01 ~ ; CA20S |
13264-G5400 |
US $162.72 |
||
|
13264
|
13264
01411-00161 BOLT8605--01 ~ ; CA18T +CA20S |
01411-00161 |
US $2.36 |
||
|
13264
|
13264
13268-D0102
Washer
8605--01 ~ ; CA18T +CA20S |
13268-D0102 |
— | ||
| replacement | |||||
|
13264
|
13264
1326829N0A Washer8605--01 ~ ; CA18T +CA20S |
1326829N0A |
from US $3.35 |
||
|
13264
|
13264
13268-D0103
Tray-Rocker Cover Washer
8605--01 ~ ; CA18T +CA20S |
13268-D0103 |
— | ||
| replacement | |||||
|
13264
|
13264
13268D010B
Tray-Rocker Cover Washer
8605--01 ~ ; CA18T +CA20S |
13268D010B |
— | ||
|
13264A
|
13264A
01411-00161 BOLT8605--01 ~ ; CA18T +CA20S |
01411-00161 |
US $2.36 |
||
|
13264A
|
13264A
01411-00161 BOLT8605--01 ~ ; CA18T +CA20S |
01411-00161 |
US $2.36 |
||
|
13264D
|
13264D
13268-D0102
Washer
8605--01 ~ ; CA18T +CA20S |
13268-D0102 |
— | ||
| replacement | |||||
|
13264D
|
13264D
1326829N0A Washer8605--01 ~ ; CA18T +CA20S |
1326829N0A |
from US $3.35 |
||
|
13264D
|
13264D
13268-D0102
Washer
8605--01 ~ ; CA18T +CA20S |
13268-D0102 |
— | ||
| replacement | |||||
|
13264D
|
13264D
1326829N0A Washer8605--01 ~ ; CA18T +CA20S |
1326829N0A |
from US $3.35 |
||
|
13264E
|
13264E
13268-D0103
Tray-Rocker Cover Washer
8605--01 ~ ; CA18T +CA20S |
13268-D0103 |
— | ||
| replacement | |||||
|
13264E
|
13264E
13268D010B
Tray-Rocker Cover Washer
8605--01 ~ ; CA18T +CA20S |
13268D010B |
— | ||
|
13269
|
13269
13268-D0104
Tray-Rocker Cover Washer
8605--01 ~ ; CA18T +CA20S |
13268-D0104 |
— | ||
| replacement | |||||
|
13269
|
13269
13268D010C Tray-Rocker Cover Washer8605--01 ~ ; CA18T +CA20S |
13268D010C |
from US $1.09 |
||
|
13270
|
13270
13270-D0101 Gasket-Rocker Cover8605--01 ~ ; CA18T +CA20S |
13270-D0101 |
from US $9.71 |
||
|
13272
|
13272
13272-01E00 ORNAMENT-ROCKER COVER8605--01 ~ ; CA20S |
13272-01E00 |
US $4.03 |
||
|
13272
|
13272
13272-01E00 ORNAMENT-ROCKER COVER8605--01 ~ 8906--01; K.CA20 |
13272-01E00 |
US $4.03 |
||
|
14124N
|
14124N
14124-48L00 Orifice-Egr8611--01 ~ ; 4WD.CA20S |
14124-48L00 |
US $7.34 |
||
|
14711E
|
14711E
14711-18V00 Cover-Egr Gallery8711--01 ~ ; 4WD.CA20S; VVT ﾊﾞﾙﾌﾞ ﾁﾕ-ﾌﾞ ﾄﾘﾂｹ ｱﾅ ｱﾘ |
14711-18V00 |
US $31.97 |
||
|
14711E
|
14711E
14711-D0101 Cover-Egr Gallery8611--01 ~ 8711--01; 4WD.CA20S; VVT ﾊﾞﾙﾌﾞ ﾁﾕ-ﾌﾞ ﾄﾘﾂｹ ｱﾅ ﾅｼ |
14711-D0101 |
US $19.87 |
||
|
14711E
|
14711E
14711-18V00 Cover-Egr Gallery8711--01 ~ ; 4WD.CA20S; VVT ﾊﾞﾙﾌﾞ ﾁﾕ-ﾌﾞ ﾄﾘﾂｹ ｱﾅ ｱﾘ |
14711-18V00 |
US $31.97 |
||
|
14711E
|
14711E
14711-D0101 Cover-Egr Gallery8611--01 ~ 8711--01; 4WD.CA20S; VVT ﾊﾞﾙﾌﾞ ﾁﾕ-ﾌﾞ ﾄﾘﾂｹ ｱﾅ ﾅｼ |
14711-D0101 |
US $19.87 |
||
|
14720N
|
14720N
14720-D0101
Gasket-Egr Gallery Cover
8605--01 ~ ; CA18T +CA20S |
14720-D0101 |
— | ||
| replacement | |||||
|
14720N
|
14720N
14720-D0102 Gasket-Egr Gallery Cover8605--01 ~ ; CA18T +CA20S |
14720-D0102 |
US $8.90 |
||
|
15255
|
15255
15255-D0104 Cap Assy-Oil Filler8605--01 ~ 8807--01; CA18T +CA20S |
15255-D0104 |
US $16.35 |
||
|
15255
|
15255
15255-D5500 Cap Assy-Oil Filler8807--01 ~ ; CA18T +CA20S; |
15255-D5500 |
US $11.81 |
||
|
15255
|
15255
15270D0103 Packing-Oil Filler Cap8605--01 ~ ; CA18T +CA20S |
15270D0103 |
from US $1.92 |
||
|
15255A
|
15255A
15270D0103 Packing-Oil Filler Cap8605--01 ~ ; CA18T +CA20S |
15270D0103 |
from US $1.92 |
||
