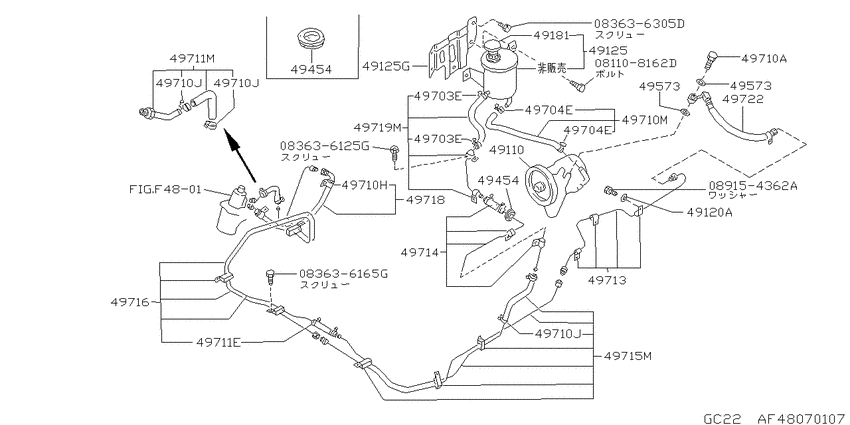

power steering control (1986-11-01 ~ 1989-06-01; パイピング部品; CA20.4WD) Diagram Nissan VANETTE
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- MT
- grade
- SS
- body
- K
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081108162D
|
081108162D
08110-8162D
Bolt-hexagon
|
08110-8162D |
— | ||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636305D
|
083636305D
08363-6305D Clip |
08363-6305D |
US $1.73 |
||
|
089154362A
|
089154362A
08915-4362A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-4362A |
— | ||
|
49110
|
49110
49110-24C00 Pump Assy-Power Steering8611--01 ~ 8906--01; CA20.4WD |
49110-24C00 |
US $1,362.19 |
||
|
49110
|
49110
49110-29C00 Pump Assy-Power Steering8906--01 ~ ; K.4WD.CA20S |
49110-29C00 |
US $1,666 |
||
|
49110
|
49110
48361-55S00 Bolt8605--01 ~ 8611--01; K *LD20; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
48361-55S00 |
US $4.42 |
||
| replacement | |||||
|
49110
|
49110
4836155S0A Bolt8605--01 ~ 8611--01; K *LD20; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
4836155S0A |
from US $2.02 |
||
|
49110
|
49110
4959150L26 Seal Kit-Power Steering Pump8605--01 ~ 8906--01; K *V.DIE; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
4959150L26 |
from US $15.11 |
||
|
49110
|
49110
49591-50L85 Seal Kit-Power Steering Pump8906--01 ~ 9004--01; LK.2WD.(CA18T+LD20T) +K.2WD.CA20S.(SS+GS) +K.4WD.CA20S +(4HV+5HV).2WD.LD20.VX |
49591-50L85 |
US $19.58 |
||
|
49120A
|
49120A
01456-00211 SCREW8611--01 ~ 8906--01; 4WD |
01456-00211 |
US $0.97 |
||
|
49125
|
49125
49180-G5401 Tank Assy-Reservoir8605--01 ~ 8906--01; CA18T+CA20 |
49180-G5401 |
US $294.53 |
||
|
49125
|
49125
49190-G5400 Bracket-Reservoir Tank8605--01 ~ 8906--01; CA18T+CA20 |
49190-G5400 |
US $38.30 |
||
|
49125G
|
49125G
49190-G5400 Bracket-Reservoir Tank8605--01 ~ 8906--01; CA18T+CA20 |
49190-G5400 |
US $38.30 |
||
|
49181
|
49181
49181-W1700
Cap Assy-Pump
8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49181-W1700 |
— | ||
| replacement | |||||
|
49181
|
49181
49181W1705 Cap Assy-Pump8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49181W1705 |
from US $14.42 |
||
|
49181
|
49181
49181W1705 Cap Assy-Pump8906--01 ~ 9201--01; 5K +(4HV+5HV).VX +(4HV+5HV).4WD.DX# *(4HV+5HV).2WD.DX#; *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49181W1705 |
from US $14.42 |
||
|
49454
|
49454
67832-71200 Plug-Blind8605--01 ~ 8809--01; CA18T +CA20 |
67832-71200 |
US $1.73 |
||
|
49454
|
49454
67832-71200 Plug-Blind8605--01 ~ 8809--01; CA18T +CA20 |
67832-71200 |
US $1.73 |
||
|
49573
|
49573
49589-R8200 Washer-Copper8605--01 ~ 8707--01; K |
49589-R8200 |
US $3.46 |
||
| replacement | |||||
|
49573
|
49573
49726Y0100 Washer-Copper8605--01 ~ 8707--01; K |
49726Y0100 |
from US $1.72 |
||
|
49573
|
49573
49726Y0100 Washer-Copper8707--01 ~ ; K |
49726Y0100 |
from US $1.72 |
||
|
49573
|
49573
49589-R8200 Washer-Copper8605--01 ~ 8707--01; K |
49589-R8200 |
US $3.46 |
||
| replacement | |||||
|
49573
|
49573
49726Y0100 Washer-Copper8605--01 ~ 8707--01; K |
49726Y0100 |
from US $1.72 |
||
|
49573
|
49573
49726Y0100 Washer-Copper8707--01 ~ ; K |
49726Y0100 |
from US $1.72 |
||
|
49703E
|
49703E
01555-00211
CLAMP-HOSE
8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
01555-00211 |
— | ||
| replacement | |||||
|
49703E
|
49703E
0155500811 CLAMP-HOSE8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500811 |
US $3.06 |
||
|
49703E
|
49703E
0155500691 CLAMP8906--01 ~ ; (CA18T+CA20).4WD |
0155500691 |
from US $2.11 |
||
|
49703E
|
49703E
01555-00211
CLAMP-HOSE
8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
01555-00211 |
— | ||
| replacement | |||||
|
49703E
|
49703E
0155500811 CLAMP-HOSE8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500811 |
US $3.06 |
||
|
49703E
|
49703E
0155500691 CLAMP8906--01 ~ ; (CA18T+CA20).4WD |
0155500691 |
from US $2.11 |
||
|
49704E
|
49704E
49729-2J016
Clamp
8605--01 ~ 8611--01; K |
49729-2J016 |
— | ||
| replacement | |||||
|
49704E
|
49704E
497292J01B Clamp8605--01 ~ 8611--01; K |
497292J01B |
from US $1.96 |
||
|
49704E
|
49704E
49729-2J016
Clamp
8605--01 ~ 8611--01; K |
49729-2J016 |
— | ||
| replacement | |||||
|
49704E
|
49704E
497292J01B Clamp8605--01 ~ 8611--01; K |
497292J01B |
from US $1.96 |
||
|
49710A
|
49710A
0161900011 BOLT8707--01 ~ 8809--01; .K V.4WD *V.2WD; *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0161900011 |
from US $3.74 |
||
|
49710A
|
49710A
49590-R8200 Bolt-Connector8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49590-R8200 |
US $13.39 |
||
|
49710H
|
49710H
49784-11C01
Bracket-Hose
8605--01 ~ 8809--01; CA20 *V.LD20; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49784-11C01 |
— | ||
|
49710J
|
49710J
01555-00211
CLAMP-HOSE
8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
01555-00211 |
— | ||
| replacement | |||||
|
49710J
|
49710J
0155500811 CLAMP-HOSE8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500811 |
US $3.06 |
||
|
49710J
|
49710J
0155500691 CLAMP8809--01 ~ ; K.CA20S |
0155500691 |
from US $2.11 |
||
|
49710J
|
49710J
01555-00211
CLAMP-HOSE
8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
01555-00211 |
— | ||
| replacement | |||||
|
49710J
|
49710J
0155500811 CLAMP-HOSE8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500811 |
US $3.06 |
||
|
49710J
|
49710J
0155500691 CLAMP8809--01 ~ ; K.CA20S |
0155500691 |
from US $2.11 |
||
|
49710J
|
49710J
01555-00211
CLAMP-HOSE
8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
01555-00211 |
— | ||
| replacement | |||||
|
49710J
|
49710J
0155500811 CLAMP-HOSE8605--01 ~ 8611--01; K *V; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500811 |
US $3.06 |
||
|
49710J
|
49710J
0155500691 CLAMP8809--01 ~ ; K.CA20S |
0155500691 |
from US $2.11 |
||
|
49710M
|
49710M
49717-30C00 Hose-Tube To Pump8611--01 ~ 8906--01; CA20.4WD |
49717-30C00 |
US $149.76 |
||
|
49711E
|
49711E
01555-00211
CLAMP-HOSE
8605--01 ~ 8906--01; K+V.4WD *V.2WD; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
01555-00211 |
— | ||
| replacement | |||||
|
49711E
|
49711E
0155500811 CLAMP-HOSE8605--01 ~ 8906--01; K+V.4WD *V.2WD; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500811 |
US $3.06 |
||
|
49711M
|
49711M
49711-30C00 Tube-Power Steering Hose8611--01 ~ 8906--01; 4WD |
49711-30C00 |
US $39.46 |
||
|
49713
|
49713
49713-30C00 Tube-Connector To Pump8611--01 ~ 8906--01; CA20.4WD |
49713-30C00 |
US $62.35 |
||
|
49714
|
49714
49714-30C00 Tube Assy-Power Steering8611--01 ~ 8906--01; CA20.4WD |
49714-30C00 |
US $62.35 |
||
|
49715M
|
49715M
49715-30C00 Tube Assy-Power Steering8611--01 ~ 8906--01; CA20.4WD |
49715-30C00 |
US $155.52 |
||
|
49716
|
49716
49712-30C00 Tube-Power Steering8611--01 ~ 8906--01; CA20.4WD |
49712-30C00 |
US $110.45 |
||
|
49718
|
49718
49718-30C00 Tube-Power Steering8611--01 ~ 8906--01; 4WD |
49718-30C00 |
US $203.04 |
||
|
49719M
|
49719M
49726-30C00 Tube Assy-Power Steering8611--01 ~ 8906--01; CA20.4WD |
49726-30C00 |
US $46.94 |
||
|
49719M
|
49719M
49726-32C00 Tube Assy-Power Steering8906--01 ~ ; K.4WD.CA20S |
49726-32C00 |
US $46.94 |
||
|
49722
|
49722
49719-30C00 Hose Assy-Power Steering8611--01 ~ 8906--01; CA20.4WD |
49719-30C00 |
US $231.84 |
||
