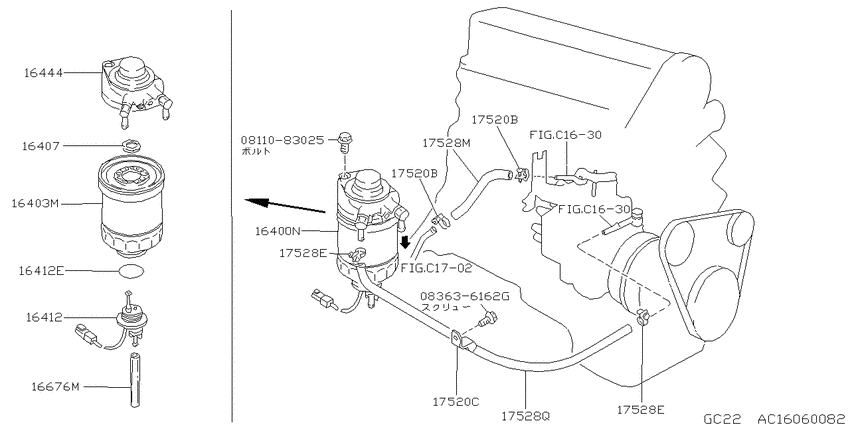

ﾌﾕ-ｴﾙ ｽﾄﾚ-ﾅ- & ﾊﾟｲﾋﾟﾝｸﾞ (1986-05-01 ~ ; 標準仕様; (LD20+LD20T).2WD) Diagram Nissan VANETTE
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- LD20T
- drive
- 2WD
- transmission
- MT
- grade
- GS
- body
- K
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811083025
|
0811083025
08110-83025
Bolt-hexagon
|
08110-83025 |
— | ||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
16400N
|
16400N
16400-50L00 Strainer Assy-Fuel For Diesel8605--01 ~ 8906--01; LD20+LD20T |
16400-50L00 |
US $286.03 |
||
|
16400N
|
16400N
16400-G8010 Strainer Assy-Fuel For Diesel9304--01 ~ ; *K.LD20T +(4HV+5HV).2WD.LD20 +(4HV+5HV).4WD |
16400-G8010 |
US $286.03 |
||
|
16403M
|
16403M
AY500NS001 Cartridge Assy-Fuel Filter8605--01 ~ 8809--01; LD20+LD20T |
AY500NS001 |
US $67.36 |
||
|
16407
|
16407
16407W4900 Seal-O Ring8605--01 ~ 8906--01; LD20+LD20T |
16407W4900 |
from US $1.41 |
||
|
16412
|
16412
16412-05E01 SENSOR ASSY8605--01 ~ 8906--01; LD20+LD20T |
16412-05E01 |
US $40.03 |
||
|
16412
|
16412
16412-40L01 Sensor Assy8906--01 ~ ; *K.LD20T +(4HV+5HV).2WD.LD20 +(4HV+5HV).4WD |
16412-40L01 |
from US $55.93 |
||
|
16412
|
16412
1640605E00 SEAL-O RING8605--01 ~ 8906--01; LD20+LD20T |
1640605E00 |
from US $1.31 |
||
|
16412E
|
16412E
1640605E00 SEAL-O RING8605--01 ~ 8906--01; LD20+LD20T |
1640605E00 |
from US $1.31 |
||
|
16444
|
16444
16401-50L00 Cover-Upper8605--01 ~ 8906--01; LD20+LD20T |
16401-50L00 |
US $131.76 |
||
|
16676M
|
16676M
16409-50L00 Tube-Vinyl8605--01 ~ 8906--01; LD20+LD20T |
16409-50L00 |
US $3.31 |
||
|
17520B
|
17520B
01555-00411
CLAMP-HOSE
8605--01 ~ ; K.2WD.LD20T +(4HV+5HV).2WD.LD20 |
01555-00411 |
— | ||
| replacement | |||||
|
17520B
|
17520B
0155500771 CLIP8605--01 ~ ; K.2WD.LD20T +(4HV+5HV).2WD.LD20 |
0155500771 |
US $2.78 |
||
|
17520B
|
17520B
01555-00411
CLAMP-HOSE
8605--01 ~ ; K.2WD.LD20T +(4HV+5HV).2WD.LD20 |
01555-00411 |
— | ||
| replacement | |||||
|
17520B
|
17520B
0155500771 CLIP8605--01 ~ ; K.2WD.LD20T +(4HV+5HV).2WD.LD20 |
0155500771 |
US $2.78 |
||
|
17520C
|
17520C
16439-13C00 Clamp-Hose8906--01 ~ ; K.2WD.LD20T +(4HV+5HV).2WD.LD20 |
16439-13C00 |
US $0.86 |
||
|
17520C
|
17520C
24210-89958 Clamp-Hose8605--01 ~ 8906--01; LD20+LD20T |
24210-89958 |
US $7.06 |
||
|
17528E
|
17528E
01555-00191 CLAMP8605--01 ~ ; K.2WD.LD20T +(4HV+5HV).2WD.LD20 |
01555-00191 |
US $2.45 |
||
| replacement | |||||
|
17528E
|
17528E
0155500801 CLAMP8605--01 ~ ; K.2WD.LD20T +(4HV+5HV).2WD.LD20 |
0155500801 |
US $3.06 |
||
|
17528E
|
17528E
01555-00191 CLAMP8605--01 ~ ; K.2WD.LD20T +(4HV+5HV).2WD.LD20 |
01555-00191 |
US $2.45 |
||
| replacement | |||||
|
17528E
|
17528E
0155500801 CLAMP8605--01 ~ ; K.2WD.LD20T +(4HV+5HV).2WD.LD20 |
0155500801 |
US $3.06 |
||
|
17528M
|
17528M
08740-27011
HOSE-FUEL
8605--01 ~ ; K.2WD.LD20T; L=270S/#A8742-20010 |
08740-27011 |
— | ||
|
17528M
|
17528M
A874220010 Hose-Fuel8605--01 ~ ; LD20.2WD LD20T.2WD; L=2200 ｶﾂﾄ ｼﾃ ｼﾖｳ |
A874220010 |
US $51.28 |
||
|
17528Q
|
17528Q
1644113C01 Hose-Fuel8605--01 ~ 8906--01; K.2WD.LD20T |
1644113C01 |
US $44.21 |
||
