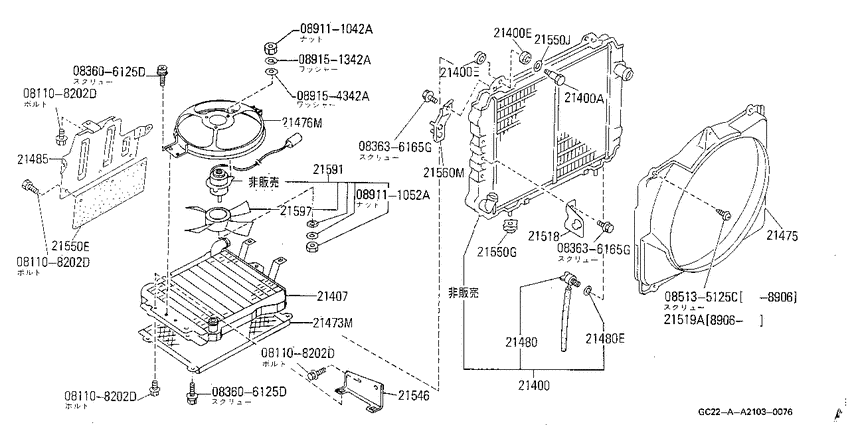

radiator (1986-05-01 ~ 1989-06-01; ラジエーター 本体; LD20T.2WD) Diagram Nissan VANETTE
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- LD20T
- drive
- 2WD
- transmission
- MT
- grade
- GS
- body
- K
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081108202D
|
081108202D
081108202D
Bolt-hexagon
|
081108202D |
— | ||
|
081108202D
|
081108202D
081108202D
Bolt-hexagon
|
081108202D |
— | ||
|
081108202D
|
081108202D
081108202D
Bolt-hexagon
|
081108202D |
— | ||
|
081108202D
|
081108202D
081108202D
Bolt-hexagon
|
081108202D |
— | ||
|
083606125D
|
083606125D
08360-6125D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6125D |
— | ||
|
083606125D
|
083606125D
08360-6125D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6125D |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
085135125C
|
085135125C
08513-5125C
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-5125C |
— | ||
|
089111042A
|
089111042A
08911-1042A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-1042A |
— | ||
|
089111052A
|
089111052A
08911-1052A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-1052A |
— | ||
|
089151342A
|
089151342A
08915-1342A
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-1342A |
— | ||
|
089154342A
|
089154342A
089154342A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
089154342A |
— | ||
|
21400
|
21400
21410-G5501 Radiator Assy8605--01 ~ ; "K.2WD.LD20T.MT +(4HV+5HV).2WD.LD20; [B517] |
21410-G5501 |
US $927.48 |
||
|
21400
|
21400
21541-G5100 Bolt8605--01 ~ 8906--01; K.2WD V.LD20.2WD |
21541-G5100 |
US $1.73 |
||
|
21400
|
21400
21416-G0300 Bush-Rubber8605--01 ~ 8906--01; (K+V).2WD |
21416-G0300 |
US $3.17 |
||
|
21400A
|
21400A
21541-G5100 Bolt8605--01 ~ 8906--01; K.2WD V.LD20.2WD |
21541-G5100 |
US $1.73 |
||
|
21400E
|
21400E
21416-G0300 Bush-Rubber8605--01 ~ 8906--01; (K+V).2WD |
21416-G0300 |
US $3.17 |
||
|
21400E
|
21400E
21416-G0300 Bush-Rubber8605--01 ~ 8906--01; (K+V).2WD |
21416-G0300 |
US $3.17 |
||
|
21407
|
21407
21457-14C00 Radiator Assy-Sub8605--01 ~ 8906--01; K.LD20T.2WD; [B517] |
21457-14C00 |
US $852.43 |
||
|
21473M
|
21473M
21473-14C00 Net-Sub Radiator8605--01 ~ 8906--01; K.LD20T.2WD |
21473-14C00 |
US $171.36 |
||
|
21475
|
21475
21475-G5500 Shroud Assy8605--01 ~ ; K.2WD.LD20T +(4HV+5HV).2WD.LD20 |
21475-G5500 |
US $112.18 |
||
|
21476M
|
21476M
21483-14C00 Shroud-Motor Fan8605--01 ~ 8906--01; K.LD20T.2WD |
21483-14C00 |
US $180 |
||
|
21480
|
21480
2144088M00 Cock-Water Drain9201--01 ~ ; (K+4HV+5HV).2WD; |
2144088M00 |
from US $10.45 |
||
|
21480
|
21480
21440-G5100 Cock-Water Drain8605--01 ~ 8906--01; K+V |
21440-G5100 |
US $11.38 |
||
|
21480
|
21480
2141688M00 Packing-Drain8605--01 ~ ; !K.(CA20+CA18T) +4HV +5HV +K.LD20T |
2141688M00 |
US $2.45 |
||
|
21480E
|
21480E
2141688M00 Packing-Drain8605--01 ~ ; !K.(CA20+CA18T) +4HV +5HV +K.LD20T |
2141688M00 |
US $2.45 |
||
|
21485
|
21485
21564-14C01 Guide-Air Radiator8605--01 ~ 8906--01; K.LD20T.2WD |
21564-14C01 |
US $131.18 |
||
|
21518
|
21518
21745-G5401 Bracket Assy-Reserve8605--01 ~ 8906--01; K.LD20T.2WD |
21745-G5401 |
US $12.10 |
||
|
21519A
|
21519A
0145600371 SCREW8906--01 ~ ; K +4HV +5HV |
0145600371 |
US $1.73 |
||
|
21546
|
21546
21566-14C00 Bracket-Sub Radiator Mounting8605--01 ~ 8906--01; K.LD20T.2WD |
21566-14C00 |
US $64.66 |
||
|
21550E
|
21550E
21549-14C00 Washer-Rubber8605--01 ~ 8906--01; K.LD20T.2WD; [B421] |
21549-14C00 |
US $20.16 |
||
|
21550G
|
21550G
21508-01F00 Mounting Rubber-Radiator8605--01 ~ 8906--01; K.2WD V.LD20.2WD |
21508-01F00 |
US $5.76 |
||
|
21550J
|
21550J
01311-00035 WASHER-PLAIN8605--01 ~ 8906--01; (K+V).2WD |
01311-00035 |
US $1.73 |
||
|
21560M
|
21560M
92114-G5500 Bracket-Condenser8605--01 ~ 8906--01; K.2WD V.LD20.2WD; ﾐｷﾞ ｶﾞﾜ[B421] |
92114-G5500 |
US $5.18 |
||
|
21560M
|
21560M
92115-G5500 Bracket-Condenser8605--01 ~ 8906--01; K.2WD V.LD20.2WD; ﾋﾀﾞﾘ ｶﾞﾜ[B421] |
92115-G5500 |
US $5.18 |
||
|
21560M
|
21560M
92119-25C01 Bracket-Condenser8809--01 ~ 8906--01; K.2WD V.LD20.2WD; LWR |
92119-25C01 |
US $5.18 |
||
|
21591
|
21591
21480-14C00 Motor Assy-Fan8605--01 ~ 8906--01; K.LD20T.2WD |
21480-14C00 |
US $597.55 |
||
|
21597
|
21597
21486-14C00 Fan-Motor8605--01 ~ 8906--01; K.LD20T.2WD |
21486-14C00 |
US $81.07 |
