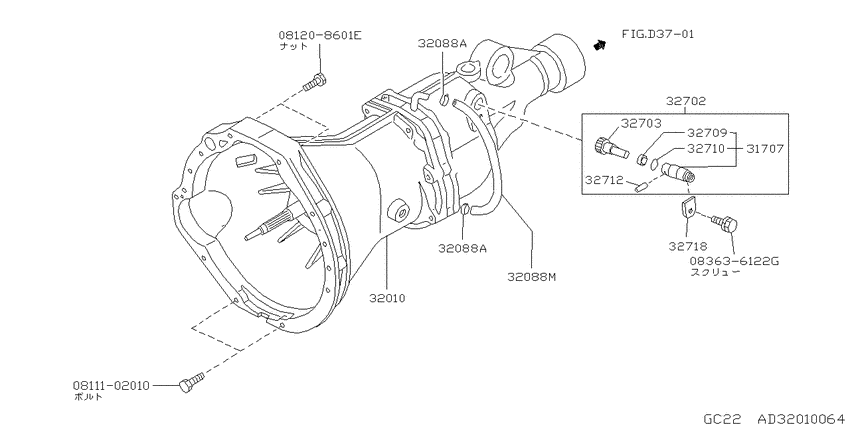

Transmission & transaxle assembly (1986-05-01 ~ ; RS5W60A A15) Diagram Nissan VANETTE
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- A15S
- drive
- 2WD
- transmission
- MT
- grade
- DXS3/6
- body
- 4HV
- transmission/shift type
- R5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811102010
|
0811102010
08111-02010
Bolt-hexagon
|
08111-02010 |
— | ||
|
081208601E
|
081208601E
08120-8601E
Bolt-hexagon
|
08120-8601E |
— | ||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
32010
|
32010
32010-22C50 Transmission Assy8605--01 ~ 8906--01; A15.MT; RS5W60A |
32010-22C50 |
US $1,806 |
||
|
32010
|
32010
32010-27C00 Transmission Assy8906--01 ~ ; (4HV+5HV).(DXS3+DXS3/6); RS5W60A |
32010-27C00 |
US $1,806 |
||
|
32088A
|
32088A
16439-A0602 Clamp-Hose8605--01 ~ 8906--01; MT |
16439-A0602 |
US $2.45 |
||
|
32088A
|
32088A
16439-A0602 Clamp-Hose8605--01 ~ 8906--01; MT |
16439-A0602 |
US $2.45 |
||
|
32088M
|
32088M
38322-G5701 Hose-Breather8605--01 ~ 8906--01; A15.MT |
38322-G5701 |
US $7.06 |
||
|
32088M
|
32088M
38322-G5703 Hose-Breather8906--01 ~ ; (4HV+5HV).(DXS3+DXS3/6) |
38322-G5703 |
US $5.90 |
||
|
32702
|
32702
32702-G5120 Pinion Assy-Speedometer8606--01 ~ 8906--01; *A15.2WD.MT; 20T 5.50-13-6/8PRLT T/L |
32702-G5120 |
US $18.72 |
||
|
32702
|
32702
32702-G5121 Pinion Assy-Speedometer8606--01 ~ 8906--01; A15.2WD.MT; 21T |
32702-G5121 |
US $26.62 |
||
|
32702
|
32702
32702-R5620 Pinion Assy-Speedometer8605--01 ~ 8606--01; *A15.2WD.MT; 20T 5.50-13-6/8PRLT T/L |
32702-R5620 |
US $18.29 |
||
| replacement | |||||
|
32702
|
32702
32702-G5120 Pinion Assy-Speedometer8605--01 ~ 8606--01; *A15.2WD.MT; 20T 5.50-13-6/8PRLT T/L |
32702-G5120 |
US $18.72 |
||
|
32702
|
32702
32702-R5621 Pinion Assy-Speedometer8605--01 ~ 8606--01; A15.2WD.MT; 21T |
32702-R5621 |
US $27.65 |
||
|
32703
|
32703
32703-78104 Pinion-Speedometer8605--01 ~ 8906--01; *A15.2WD.MT; 20T 5.50-13-6/8PRLT T/L |
32703-78104 |
US $16.92 |
||
|
32703
|
32703
32703-86401
Pinion-Speedometer
8605--01 ~ 8906--01; A15.2WD.MT; 21T |
32703-86401 |
— | ||
| replacements | |||||
|
32703
|
32703
3270258S21 Pinion Assy-Speedometer8605--01 ~ 8906--01; A15.2WD.MT; 21T |
3270258S21 |
from US $28.69 |
||
|
32703
|
32703
32702-G5121 Pinion Assy-Speedometer8605--01 ~ 8906--01; A15.2WD.MT; 21T |
32702-G5121 |
US $26.62 |
||
|
32709
|
32709
3270914600 Seal-Oil, Speedometer Pinion8605--01 ~ 8606--01; 2WD.MT |
3270914600 |
from US $1.60 |
||
|
32709
|
32709
3270958S00 Seal-Oil, Speedometer Pinion8606--01 ~ 8906--01; 2WD.MT; |
3270958S00 |
from US $0.91 |
||
|
32710
|
32710
3271014600 Seal-O Ring, Speedometer Pinion8605--01 ~ 8906--01; 2WD.MT; |
3271014600 |
from US $0.67 |
||
|
32712
|
32712
3287314600 Pin-Retainer, Speedometer Pinion8605--01 ~ 8906--01; 2WD.MT; |
3287314600 |
US $2.21 |
||
|
32718
|
32718
32718-14600
Plate-Lock, Speedometer Pinion
8605--01 ~ 8811--01; A15.2WD.MT |
32718-14600 |
— | ||
| replacement | |||||
|
32718
|
32718
3271814601 Plate-Lock8605--01 ~ 8811--01; A15.2WD.MT |
3271814601 |
US $2.64 |
||
|
32718
|
32718
3271814601 Plate-Lock8811--01 ~ 8906--01; V.A15.MT |
3271814601 |
US $2.64 |
||
