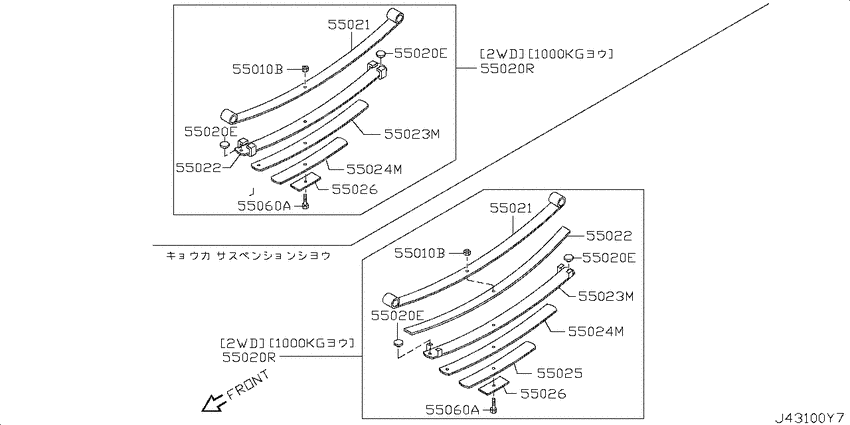

Rear suspension (2007-08-01 ~ ; スプリング; 2WD.LB.GAS18 +2WD.LB.DIE20) Diagram Nissan VANETTE
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- GAS18
- drive
- 2WD.LB
- Number of doors
- 2D
- grade
- DX
- body
- T
- capacity
- 3P
- roof/floor
- SR.WL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55010B
|
55010B
55269-HC000 Nut0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20 |
55269-HC000 |
US $1.58 |
||
|
55010B
|
55010B
55269-HC000 Nut0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20 |
55269-HC000 |
US $1.58 |
||
|
55020E
|
55020E
55026-HA200
ｽﾍﾟ-ｻ- ﾘﾔ ｽﾌﾟﾘﾝｸﾞ
0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20; STANDARD |
55026-HA200 |
— | ||
|
55020E
|
55020E
55026-HA200
ｽﾍﾟ-ｻ- ﾘﾔ ｽﾌﾟﾘﾝｸﾞ
0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20; STANDARD |
55026-HA200 |
— | ||
|
55020E
|
55020E
55026-HA200
ｽﾍﾟ-ｻ- ﾘﾔ ｽﾌﾟﾘﾝｸﾞ
0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20; STANDARD |
55026-HA200 |
— | ||
|
55020E
|
55020E
55026-HA200
ｽﾍﾟ-ｻ- ﾘﾔ ｽﾌﾟﾘﾝｸﾞ
0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20; STANDARD |
55026-HA200 |
— | ||
|
55020R
|
55020R
55020-HA507
ｽﾌﾟﾘﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾘ-ﾌ ﾘﾔ
0708--01 ~ ; 2WD.LB.GAS18.AT +2WD.LB.DIE20.AT; ｽﾀﾝﾀﾞｰﾄﾞ 1.0T |
55020-HA507 |
— | ||
|
55020R
|
55020R
55020HA509
ｽﾌﾟﾘﾝｸﾞ ｱﾂｼｰ
0708--01 ~ ; "*2WD.LB.GAS18.AT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
55020HA509 |
— | ||
|
55020R
|
55020R
55020-HA507
ｽﾌﾟﾘﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾘ-ﾌ ﾘﾔ
0708--01 ~ ; 2WD.LB.GAS18.AT +2WD.LB.DIE20.AT; ｽﾀﾝﾀﾞｰﾄﾞ 1.0T |
55020-HA507 |
— | ||
|
55020R
|
55020R
55020HA509
ｽﾌﾟﾘﾝｸﾞ ｱﾂｼｰ
0708--01 ~ ; "*2WD.LB.GAS18.AT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
55020HA509 |
— | ||
|
55021
|
55021
55021-HA506
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 1
0708--01 ~ ; 2WD.LB.GAS18.AT +2WD.LB.DIE20.AT; ｽﾀﾝﾀﾞｰﾄﾞ 1.0T |
55021-HA506 |
— | ||
|
55021
|
55021
55021-HA602
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 1
0708--01 ~ ; "*2WD.LB.GAS18.AT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
55021-HA602 |
— | ||
|
55021
|
55021
55021-HA506
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 1
0708--01 ~ ; 2WD.LB.GAS18.AT +2WD.LB.DIE20.AT; ｽﾀﾝﾀﾞｰﾄﾞ 1.0T |
55021-HA506 |
— | ||
|
55021
|
55021
55021-HA602
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 1
0708--01 ~ ; "*2WD.LB.GAS18.AT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
55021-HA602 |
— | ||
|
55022
|
55022
55022-HA506
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 2
0708--01 ~ ; 2WD.LB.GAS18.AT +2WD.LB.DIE20.AT; ｽﾀﾝﾀﾞｰﾄﾞ 1.0T |
55022-HA506 |
— | ||
|
55022
|
55022
55022-HA602
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 2
0708--01 ~ ; "*2WD.LB.GAS18.AT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
55022-HA602 |
— | ||
|
55022
|
55022
55022-HA506
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 2
0708--01 ~ ; 2WD.LB.GAS18.AT +2WD.LB.DIE20.AT; ｽﾀﾝﾀﾞｰﾄﾞ 1.0T |
55022-HA506 |
— | ||
|
55022
|
55022
55022-HA602
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 2
0708--01 ~ ; "*2WD.LB.GAS18.AT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
55022-HA602 |
— | ||
|
55023M
|
55023M
55023-HA506
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 3
0708--01 ~ ; 2WD.LB.GAS18.AT +2WD.LB.DIE20.AT; ｽﾀﾝﾀﾞｰﾄﾞ 1.0T |
55023-HA506 |
— | ||
|
55023M
|
55023M
55023-HA602
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 3
0708--01 ~ ; "*2WD.LB.GAS18.AT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
55023-HA602 |
— | ||
|
55023M
|
55023M
55023-HA506
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 3
0708--01 ~ ; 2WD.LB.GAS18.AT +2WD.LB.DIE20.AT; ｽﾀﾝﾀﾞｰﾄﾞ 1.0T |
55023-HA506 |
— | ||
|
55023M
|
55023M
55023-HA602
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 3
0708--01 ~ ; "*2WD.LB.GAS18.AT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
55023-HA602 |
— | ||
|
55024M
|
55024M
55024-HA506
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 4
0708--01 ~ ; 2WD.LB.GAS18.AT +2WD.LB.DIE20.AT; ｽﾀﾝﾀﾞｰﾄﾞ 1.0T |
55024-HA506 |
— | ||
|
55024M
|
55024M
55024-HA602
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 4
0708--01 ~ ; "*2WD.LB.GAS18.AT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
55024-HA602 |
— | ||
|
55024M
|
55024M
55024-HA506
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 4
0708--01 ~ ; 2WD.LB.GAS18.AT +2WD.LB.DIE20.AT; ｽﾀﾝﾀﾞｰﾄﾞ 1.0T |
55024-HA506 |
— | ||
|
55024M
|
55024M
55024-HA602
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 4
0708--01 ~ ; "*2WD.LB.GAS18.AT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
55024-HA602 |
— | ||
|
55025
|
55025
55025-HA600
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 5
0708--01 ~ ; "*2WD.LB.GAS18.AT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
55025-HA600 |
— | ||
|
55026
|
55026
55026-HA400
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 6
0708--01 ~ ; tT.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +2WD.LB.GAS18 +2WD.LB.DIE20 |
55026-HA400 |
— | ||
|
55026
|
55026
55026-HA400
ｽﾌﾟﾘﾝｸﾞ,ﾘﾔ ﾘ-ﾌ no 6
0708--01 ~ ; tT.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +2WD.LB.GAS18 +2WD.LB.DIE20 |
55026-HA400 |
— | ||
|
55060A
|
55060A
54618-HA601
ﾎﾞﾙﾄ
0708--01 ~ ; L*2WD.LB.GAS18.DX.MT +*2WD.LB.GAS18.AT +*2WD.LB.DIE20.DX.MT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
54618-HA601 |
— | ||
|
55060A
|
55060A
54618HA610
ﾎﾞﾙﾄ
0708--01 ~ ; 2WD.LB.GAS18 +2WD.LB.DIE20; STANDARD |
54618HA610 |
— | ||
|
55060A
|
55060A
54618-HA601
ﾎﾞﾙﾄ
0708--01 ~ ; L*2WD.LB.GAS18.DX.MT +*2WD.LB.GAS18.AT +*2WD.LB.DIE20.DX.MT +*2WD.LB.DIE20.AT; ｷｮｳｶ 1.0T |
54618-HA601 |
— | ||
|
55060A
|
55060A
54618HA610
ﾎﾞﾙﾄ
0708--01 ~ ; 2WD.LB.GAS18 +2WD.LB.DIE20; STANDARD |
54618HA610 |
— |
