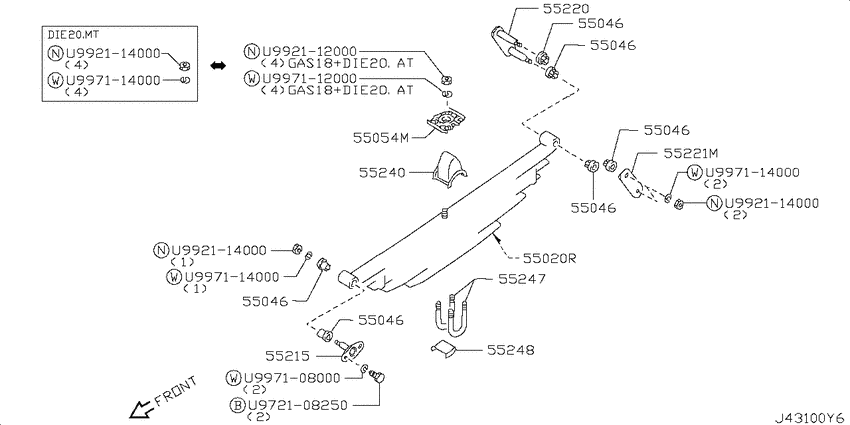

Rear suspension (2007-08-01 ~ ; シヤックル、ピン; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20) Diagram Nissan VANETTE
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- GAS18
- drive
- 2WD.SB
- Number of doors
- 2D
- grade
- DX
- body
- T
- capacity
- 3P
- roof/floor
- SR.WL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55020R
|
55020R
55020-HA512
ｽﾌﾟﾘﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾘ-ﾌ ﾘﾔ
0708--01 ~ ; BT.2WD.SB.SR.WL.GAS18.AT +T.2WD.SB.SR.WL.DIE20.DX.AT +T.DIE20.GL.AT; ｽﾀﾝﾀﾞｰﾄﾞ 0.85T |
55020-HA512 |
— | ||
|
55020R
|
55020R
55020-HA513
ｽﾌﾟﾘﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾘ-ﾌ ﾘﾔ
0708--01 ~ ; 2*T.2WD.SB.SR.WL.GAS18.DX +*T.2WD.SB.SR.WL.DIE20.DX; ｷｮｳｶ 0.85T |
55020-HA513 |
— | ||
|
55046
|
55046
55046HC000 Bush-Rear Spring0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20 |
55046HC000 |
US $5.62 |
||
|
55046
|
55046
55046HC000 Bush-Rear Spring0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20 |
55046HC000 |
US $5.62 |
||
|
55046
|
55046
55046HC000 Bush-Rear Spring0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20 |
55046HC000 |
US $5.62 |
||
|
55046
|
55046
55046HC000 Bush-Rear Spring0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20 |
55046HC000 |
US $5.62 |
||
|
55046
|
55046
55046HC000 Bush-Rear Spring0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20 |
55046HC000 |
US $5.62 |
||
|
55046
|
55046
55046HC000 Bush-Rear Spring0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20 |
55046HC000 |
US $5.62 |
||
|
55054M
|
55054M
55054HC500 Seat Assy-Rear Spring, Lower0708--01 ~ ; rT.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.DIE20.GL.AT +2WD.LB.GAS18 +2WD.LB.DIE20.AT +4WD.SB.SR.WL.GAS18 |
55054HC500 |
US $26.21 |
||
|
55215
|
55215
55215-HC500 Pin-Rear Spring, Front0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20 |
55215-HC500 |
US $17.14 |
||
|
55220
|
55220
55220-HA300
ｼﾔﾂｸﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ
0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20 |
55220-HA300 |
— | ||
|
55221M
|
55221M
55221HC000 Plate-Shackle0708--01 ~ ; ･T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.2WD.SB.SR.WL.DIE20.MT +T.DIE20.GL.AT +(2WD.LB+4WD.LB).DIE20 +2WD.LB.GAS18 +4WD.SB.SR.WL.GAS18 +4WD.SB.SR.WL.DIE20 |
55221HC000 |
US $6.34 |
||
|
55240
|
55240
55240-HA401
ﾊﾞﾝﾊﾟ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞｳﾝﾄﾞ ﾘﾔ ｻｽﾍﾟﾝｼﾖﾝ
0708--01 ~ ; dT.2WD.SB.SR.WL.GAS18.AT +T.2WD.SB.SR.WL.DIE20.DX.AT +T.DIE20.GL.AT +2WD.LB.GAS18.AT +2WD.LB.DIE20.AT |
55240-HA401 |
— | ||
|
55247
|
55247
55247-HA300
ｸﾘﾂﾌﾟ,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ
0708--01 ~ ; 5*T.2WD.SB.SR.WL.GAS18.DX +*T.2WD.SB.SR.WL.DIE20.DX.AT; ｷｮｳｶ 0.85T |
55247-HA300 |
— | ||
|
55247
|
55247
55247HC300 Clip-Rear Spring0708--01 ~ ; ?T.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.DIE20.GL.AT; ｽﾀﾝﾀﾞｰﾄﾞ 0.85T |
55247HC300 |
US $16.56 |
||
|
55248
|
55248
55248HC500 Plate-Rear Spring Clip0708--01 ~ ; rT.2WD.SB.SR.WL.GAS18 +T.2WD.SB.SR.WL.DIE20.DX.AT +T.DIE20.GL.AT +2WD.LB.GAS18 +2WD.LB.DIE20.AT +4WD.SB.SR.WL.GAS18 |
55248HC500 |
US $4.18 |
||
|
U972108250
|
U972108250
U9721-08250
ﾎﾞﾙﾄ
|
U9721-08250 |
— | ||
|
U992112000
|
U992112000
U9921-12000
ﾅﾂﾄ
|
U9921-12000 |
— | ||
|
U992114000
|
U992114000
U9921-14000
ﾅﾂﾄ
|
U9921-14000 |
— | ||
|
U992114000
|
U992114000
U9921-14000
ﾅﾂﾄ
|
U9921-14000 |
— | ||
|
U992114000
|
U992114000
U9921-14000
ﾅﾂﾄ
|
U9921-14000 |
— | ||
|
U997108000
|
U997108000
U9971-08000
ﾜﾂｼﾔｰ
|
U9971-08000 |
— | ||
|
U997112000
|
U997112000
U9971-12000
ﾜﾂｼﾔｰ
|
U9971-12000 |
— | ||
|
U997114000
|
U997114000
U9971-14000
ﾜﾂｼﾔｰ
|
U9971-14000 |
— | ||
|
U997114000
|
U997114000
U9971-14000
ﾜﾂｼﾔｰ
|
U9971-14000 |
— | ||
|
U997114000
|
U997114000
U9971-14000
ﾜﾂｼﾔｰ
|
U9971-14000 |
— |
