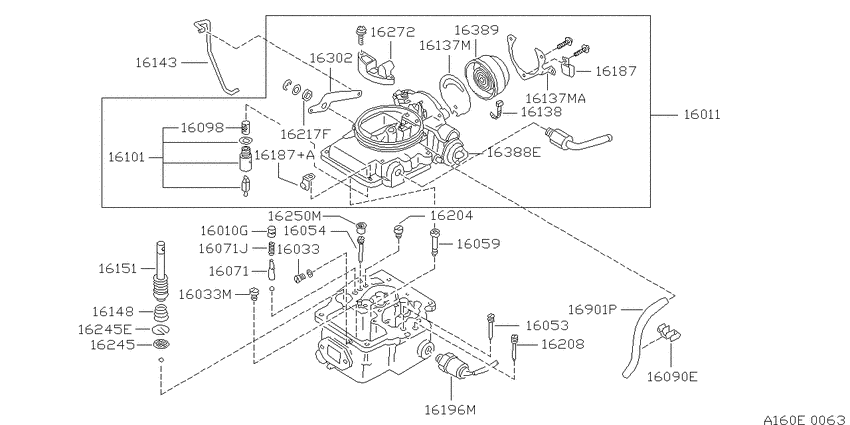

Carburetor (1990-08-01 ~ ; チョークチャンバー構成部品; NA20S) Diagram Nissan VANETTE
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- NA20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16010G
|
16010G
16030-03J05 Plug9008--01 ~ ; NA20S |
16030-03J05 |
US $3.74 |
||
|
16011
|
16011
16011-G8800 Chamber Assy-Choke9008--01 ~ ; NA20S |
16011-G8800 |
US $472.94 |
||
|
16033
|
16033
16033-J0500 Jet-Main9008--01 ~ ; NA20S |
16033-J0500 |
US $3.46 |
||
|
16033
|
16033
16033-B8562 Jet-Main9008--01 ~ ; NA20S |
16033-B8562 |
US $3.02 |
||
|
16033M
|
16033M
16033-B8562 Jet-Main9008--01 ~ ; NA20S |
16033-B8562 |
US $3.02 |
||
|
16053
|
16053
16053-85G01 Jet-Step9008--01 ~ ; NA20S |
16053-85G01 |
US $11.52 |
||
|
16054
|
16054
16054-26T00 Jet-Slow9008--01 ~ ; NA20S |
16054-26T00 |
US $10.37 |
||
|
16059
|
16059
16059-D0100 Valve-Power9008--01 ~ ; NA20S |
16059-D0100 |
US $14.11 |
||
|
16071
|
16071
16071-01M00 Weight-Injector9008--01 ~ ; NA20S |
16071-01M00 |
US $3.17 |
||
|
16071
|
16071
16069-D0100 Spring-Injector9008--01 ~ ; NA20S |
16069-D0100 |
US $2.45 |
||
|
16071J
|
16071J
16069-D0100 Spring-Injector9008--01 ~ ; NA20S |
16069-D0100 |
US $2.45 |
||
|
16090E
|
16090E
16439-85G00 Clamp-Hose9008--01 ~ ; NA20S |
16439-85G00 |
US $1.15 |
||
|
16090E
|
16090E
16439-V5000
Clamp-Hose A
9008--01 ~ ; NA20S |
16439-V5000 |
— | ||
| replacement | |||||
|
16090E
|
16090E
16439V500B Clamp-Hose A9008--01 ~ ; NA20S |
16439V500B |
from US $2.44 |
||
|
16090E
|
16090E
16439-V5001
Clamp-Hose, A
9008--01 ~ ; NA20S |
16439-V5001 |
— | ||
| replacement | |||||
|
16090E
|
16090E
16439V500C Clamp-Hose9008--01 ~ ; NA20S |
16439V500C |
from US $2.76 |
||
|
16098
|
16098
16098-D0100 Filter9008--01 ~ ; NA20S |
16098-D0100 |
US $5.72 |
||
|
16101
|
16101
16101-53L02 Valve-Needle9008--01 ~ ; NA20S |
16101-53L02 |
US $18.39 |
||
|
16137M
|
16137M
16390-85G00 Plate-Stopping9008--01 ~ ; NA20S |
16390-85G00 |
US $5.04 |
||
|
16137M
|
16137M
16390-85G05 Plate-Stopping, Rear9008--01 ~ ; NA20S |
16390-85G05 |
US $8.93 |
||
|
16137MA
|
16137MA
16390-85G05 Plate-Stopping, Rear9008--01 ~ ; NA20S |
16390-85G05 |
US $8.93 |
||
|
16138
|
16138
16138-D0100 Holder Assy-Cord9008--01 ~ ; NA20S |
16138-D0100 |
US $2.45 |
||
|
16143
|
16143
16143-85G00 Rod-Pump9008--01 ~ ; NA20S |
16143-85G00 |
US $9.79 |
||
|
16148
|
16148
16148-D0100 Spring-Return, Piston9008--01 ~ ; NA20S |
16148-D0100 |
US $3.74 |
||
|
16151
|
16151
16151-D4000
Piston
9008--01 ~ ; NA20S |
16151-D4000 |
— | ||
| replacement | |||||
|
16151
|
16151
16151D0100 Piston9008--01 ~ ; NA20S |
16151D0100 |
US $23.37 |
||
|
16187
|
16187
16187-85G00 Holder Assy-Cord9008--01 ~ ; NA20S |
16187-85G00 |
US $5.04 |
||
|
16187
|
16187
16187-85G05 Holder Assy-Cord9008--01 ~ ; NA20S |
16187-85G05 |
US $5.04 |
||
|
16187+A
|
16187+A
16187-85G05 Holder Assy-Cord9008--01 ~ ; NA20S |
16187-85G05 |
US $5.04 |
||
|
16196M
|
16196M
16196-G8801
Iacv-Ficd Solenoid Valve
9008--01 ~ ; NA20S |
16196-G8801 |
— | ||
|
16196M
|
16196M
16196-G8800 Iacv-Ficd Solenoid Valve9008--01 ~ ; NA20S |
16196-G8800 |
US $70.27 |
||
|
16204
|
16204
16204-85G00 Jet-Slow9008--01 ~ ; NA20S |
16204-85G00 |
US $5.04 |
||
|
16208
|
16208
16036-85G05 Bleed-Main Air9008--01 ~ ; NA20S |
16036-85G05 |
US $8.93 |
||
|
16217F
|
16217F
16217-85G00 Collar9008--01 ~ ; NA20S |
16217-85G00 |
US $6.05 |
||
|
16217F
|
16217F
16116-D0100 Collar-Throttle, 1St9008--01 ~ ; NA20S |
16116-D0100 |
US $6.77 |
||
|
16245
|
16245
16245-11200 Strainer-Pump9008--01 ~ ; NA20S |
16245-11200 |
US $0.97 |
||
|
16245
|
16245
16156-11200 Clip-Strainer Pump9008--01 ~ ; NA20S |
16156-11200 |
US $0.97 |
||
|
16245E
|
16245E
16156-11200 Clip-Strainer Pump9008--01 ~ ; NA20S |
16156-11200 |
US $0.97 |
||
|
16250M
|
16250M
16286-85G00 Plug9008--01 ~ ; NA20S |
16286-85G00 |
US $1.87 |
||
|
16272
|
16272
16008-G8800 Pipe-Fuel9008--01 ~ ; NA20S |
16008-G8800 |
US $16.27 |
||
|
16272
|
16272
16827-85G00 Cover9008--01 ~ ; NA20S |
16827-85G00 |
US $11.52 |
||
|
16302
|
16302
16302-85G00 Lever-Pump9008--01 ~ ; NA20S |
16302-85G00 |
US $12.67 |
||
|
16388E
|
16388E
16199-27T00 Piston-Choke9008--01 ~ ; NA20S |
16199-27T00 |
US $42.34 |
||
|
16389
|
16389
16389-G8800 Cover-Thermo9008--01 ~ ; NA20S |
16389-G8800 |
US $156.96 |
||
|
16901P
|
16901P
16520-85G00 Hose-Vacuum9008--01 ~ ; NA20S |
16520-85G00 |
US $8.64 |
||
|
16901P
|
16901P
16520-85G06 Hose-Vacuum9008--01 ~ ; NA20S |
16520-85G06 |
US $44.21 |
||
