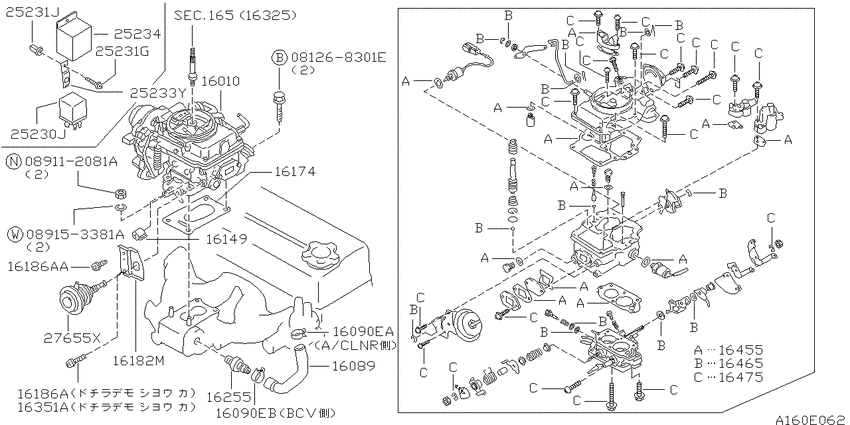

Carburetor (1990-08-01 ~ ; ｱｯｾﾝﾌﾞﾘｰ&ｽｸﾘｭｰ&ﾜｯｼｬｰｷｯﾄ; NA20S) Diagram Nissan VANETTE
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- NA20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268301E
|
081268301E
08126-8301E
Bolt-hexagon
|
08126-8301E |
— | ||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
089153381A
|
089153381A
089153381A Washer |
089153381A |
from US $0.67 |
||
|
16010
|
16010
16010-G8800 Carburetor9008--01 ~ ; NA20S |
16010-G8800 |
US $1,890 |
||
|
16010
|
16010
16030-03J05 Plug9008--01 ~ ; NA20S |
16030-03J05 |
US $3.74 |
||
|
16010
|
16010
16272-B8201 Plug-Drain9008--01 ~ ; NA20S |
16272-B8201 |
US $1.87 |
||
|
16089
|
16089
14860-G8801 Hose-I.m.s, Carburetor To Air Cleaner9008--01 ~ ; NA20S |
14860-G8801 |
US $10.94 |
||
|
16090EA
|
16090EA
16439-V5000
Clamp-Hose A
9008--01 ~ ; NA20S |
16439-V5000 |
— | ||
| replacement | |||||
|
16090EA
|
16090EA
16439V500B Clamp-Hose A9008--01 ~ ; NA20S |
16439V500B |
from US $2.50 |
||
|
16090EB
|
16090EB
16439-V5001
Clamp-Hose, A
9008--01 ~ ; NA20S |
16439-V5001 |
— | ||
| replacement | |||||
|
16090EB
|
16090EB
16439V500C Clamp-Hose9008--01 ~ ; NA20S |
16439V500C |
from US $2.76 |
||
|
16149
|
16149
16147-U2000 Cap-Idle Screw9008--01 ~ ; NA20S |
16147-U2000 |
US $2.74 |
||
|
16174
|
16174
16174-85G00 Insulator-Carburetor9008--01 ~ ; NA20S |
16174-85G00 |
US $5.04 |
||
|
16174
|
16174
16116-36N00 Sleeve-Intake Manifold9008--01 ~ ; NA20S |
16116-36N00 |
US $4.46 |
||
|
16182M
|
16182M
16258-G8800 Bracket9008--01 ~ ; *NA20S; ｽﾀﾝﾀﾞｰﾄﾞ ｴｱｺﾝ ｼｮｳ |
16258-G8800 |
US $20.59 |
||
|
16186A
|
16186A
16016-85G00 Screw9008--01 ~ ; *NA20S; ｽﾀﾝﾀﾞｰﾄﾞ ｴｱｺﾝ ｼｮｳ |
16016-85G00 |
US $4.90 |
||
|
16186A
|
16186A
16016-85G01 Screw9008--01 ~ ; *NA20S; ｽﾀﾝﾀﾞｰﾄﾞ ｴｱｺﾝ ｼｮｳ |
16016-85G01 |
US $4.18 |
||
|
16186AA
|
16186AA
16016-85G01 Screw9008--01 ~ ; *NA20S; ｽﾀﾝﾀﾞｰﾄﾞ ｴｱｺﾝ ｼｮｳ |
16016-85G01 |
US $4.18 |
||
|
16255
|
16255
22686-06E00 VALVE-SOLENOID VACUUM CONTROL9008--01 ~ ; NA20S |
22686-06E00 |
US $87.26 |
||
|
16351A
|
16351A
01121-03121 BOLT9008--01 ~ 9108--01; *NA20S; ｴｱｺﾝ ﾖｳ ｽﾀﾝﾀﾞ-ﾄﾞ ｴｱｺﾝ ｼﾖｳ |
01121-03121 |
US $2.45 |
||
|
16351A
|
16351A
01121-06231 BOLT9108--01 ~ ; *NA20S; ｴｱｺﾝ ﾖｳ ｽﾀﾝﾀﾞ-ﾄﾞ ｴｱｺﾝ ｼﾖｳ |
01121-06231 |
US $5.04 |
||
|
16455
|
16455
16455-85G00 Gasket Kit9008--01 ~ ; NA20S |
16455-85G00 |
US $27.73 |
||
|
16465
|
16465
16465-85G00 Screw & Washer Kit-A9008--01 ~ ; NA20S |
16465-85G00 |
US $16.78 |
||
|
16475
|
16475
16475-85G00 Screw & Washer Kit-B9008--01 ~ ; NA20S |
16475-85G00 |
US $13.29 |
||
|
165
|
Air cleaner
165
|
||||
|
25230J
|
25230J
25230-C9961
Relay
9008--01 ~ ; NA20S; ｼﾞﾄﾞｳｼﾔ ﾃﾞﾝｷ |
25230-C9961 |
— | ||
| replacement | |||||
|
25230J
|
25230J
25230C996A Relay9008--01 ~ ; NA20S; ｼﾞﾄﾞｳｼﾔ ﾃﾞﾝｷ |
25230C996A |
US $26.06 |
||
|
25230J
|
25230J
25230-C9971 Relay Assy-Power Seat9008--01 ~ ; NA20S; ﾅｲﾙｽ |
25230-C9971 |
US $37.87 |
||
| replacement | |||||
|
25230J
|
25230J
25230C996A Relay9008--01 ~ ; NA20S; ﾅｲﾙｽ |
25230C996A |
US $26.06 |
||
|
25231G
|
25231G
01461-00601 SCREW9008--01 ~ ; NA20S |
01461-00601 |
US $3.06 |
||
|
25231J
|
25231J
62035-Q0101
Grommet-Screw
9008--01 ~ ; NA20S |
62035-Q0101 |
— | ||
| replacement | |||||
|
25231J
|
25231J
0128100821 GROMMET-SCREW9008--01 ~ ; NA20S |
0128100821 |
from US $0.82 |
||
|
25233Y
|
25233Y
25235-N8500 Bracket-Circuit Breaker9008--01 ~ ; NA20S |
25235-N8500 |
US $1.73 |
||
| replacement | |||||
|
25233Y
|
25233Y
25235-N853A Bracket-Relay9008--01 ~ ; NA20S |
25235-N853A |
US $1.73 |
||
|
25234
|
25234
25234-C8100 Protector9008--01 ~ ; NA20S |
25234-C8100 |
US $9.65 |
||
|
27655X
|
27655X
27655-W8800 Iacv-Ficd Actuator9008--01 ~ ; NA20S |
27655-W8800 |
US $126.14 |
||
