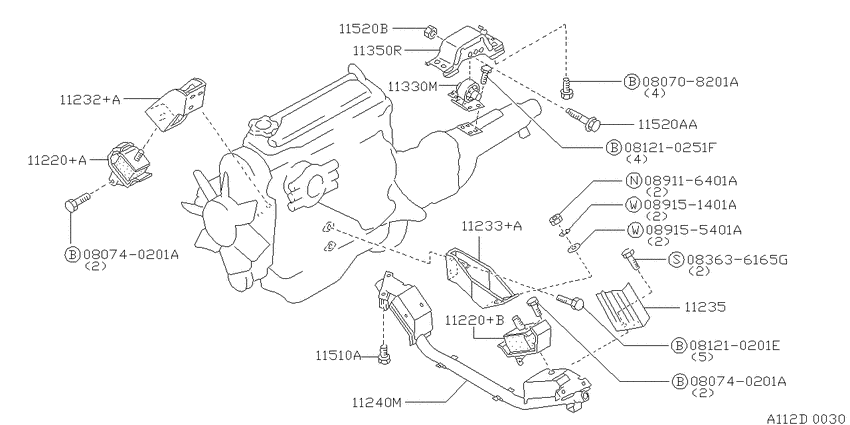

Engine & transmission mounting (1990-08-01 ~ ; NA20S) Diagram Nissan VANETTE
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- NA20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080708201A
|
080708201A
08070-8201A
Bolt-hexagon
|
08070-8201A |
— | ||
|
080740201A
|
080740201A
08074-0201A
Bolt-hexagon
|
08074-0201A |
— | ||
|
080740201A
|
080740201A
08074-0201A
Bolt-hexagon
|
08074-0201A |
— | ||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.04 |
||
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
089116401A
|
089116401A
089116401A Nut-Stopper, Alternator |
089116401A |
from US $1.09 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089155401A
|
089155401A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
11220+A
|
11220+A
11210-30C00 Insulator-Engine Mounting, Front9008--01 ~ ; NA20S; ﾐｷﾞ ﾖｳ |
11210-30C00 |
US $43.06 |
||
|
11220+B
|
11220+B
11220-35G00 Insulator-Engine Mounting, Front LH9008--01 ~ ; NA20S; ﾋﾀﾞﾘ ﾖｳ |
11220-35G00 |
from US $57.20 |
||
|
11232+A
|
11232+A
11232-G8400
Bracket-Engine Mounting, Rh
9008--01 ~ ; NA20S |
11232-G8400 |
— | ||
|
11233+A
|
11233+A
11233-G8400
Bracket-Engine Mounting, Lh
9008--01 ~ ; NA20S |
11233-G8400 |
— | ||
|
11235
|
11235
11284-30C01 Plate-Heat Shield9008--01 ~ ; NA20S |
11284-30C01 |
US $6.91 |
||
|
11240M
|
11240M
11240-G8400 Member-Engine Mounting, Front9008--01 ~ ; NA20S |
11240-G8400 |
US $75.60 |
||
|
11330M
|
11330M
11330-G8100 Bracket-Engine Mounting, Rear9008--01 ~ ; NA20S |
11330-G8100 |
US $133.34 |
||
|
11350R
|
11350R
11350-G8400 Bracket-Engine Mounting Support, Rear9008--01 ~ ; NA20S |
11350-G8400 |
US $118.37 |
||
|
11510A
|
11510A
01125-00841 BOLT9008--01 ~ ; NA20S |
01125-00841 |
US $2.45 |
||
|
11520AA
|
11520AA
11399-G8100 Bolt9008--01 ~ ; NA20S |
11399-G8100 |
US $2.45 |
||
|
11520B
|
11520B
0122500072 NUT9008--01 ~ ; NA20S |
0122500072 |
US $1.05 |
