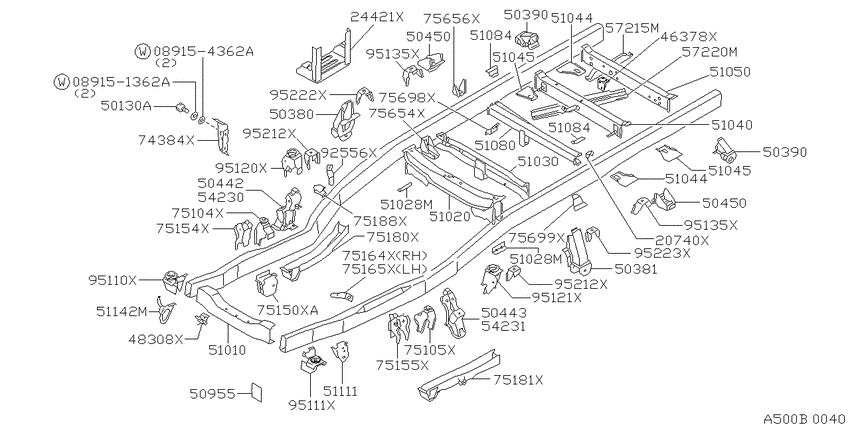

Frame (1988-11-01 ~ ; T.SB.(Z20S+NA20S) +T.LB.FD.4WD) Diagram Nissan VANETTE
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- NA20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151362A
|
089151362A
08915-1362A
Washer-Plain
|
08915-1362A |
— | ||
|
089154362A
|
089154362A
08915-4362A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-4362A |
— | ||
|
20740X
|
20740X
20740-G8310 Mounting Assy-Exhaust9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
20740-G8310 |
US $12.67 |
||
|
24421X
|
24421X
24421-G8300 Support Assy-Battery9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
24421-G8300 |
US $66.38 |
||
|
46378X
|
46378X
46378-G8300 ﾌﾞﾗｹﾂﾄ,ﾌﾞﾚ-ｷ ﾁﾕ-ﾌﾞ8811--01 ~ ; 4WD |
46378-G8300 |
US $14.11 |
||
|
48308X
|
48308X
48308-G5101 ｶﾗ- ｱﾂｾﾝﾌﾞﾘ-,ｽﾃｱﾘﾝｸﾞ ﾏｳﾝﾃｲﾝｸﾞ9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
48308-G5101 |
US $8.50 |
||
|
50380
|
50380
50380-G8400
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ ﾌﾛﾝﾄ rh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
50380-G8400 |
— | ||
|
50381
|
50381
50381-G8400
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ ﾌﾛﾝﾄ lh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
50381-G8400 |
— | ||
|
50390
|
50390
50390-G8400
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ ﾘﾔ rh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
50390-G8400 |
— | ||
|
50390
|
50390
50390-G8400
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ ﾘﾔ rh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
50390-G8400 |
— | ||
|
50442
|
50442
50442-G8100 ﾌﾞﾗｹﾂﾄ,ﾊﾞｳﾝﾄﾞ ﾊﾞﾝﾊﾟ- rh9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
50442-G8100 |
US $62.93 |
||
|
50443
|
50443
50443-G8100 ﾌﾞﾗｹﾂﾄ,ﾊﾞｳﾝﾄﾞ ﾊﾞﾝﾊﾟ- lh9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
50443-G8100 |
US $62.93 |
||
|
50450
|
50450
50450-G8400
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾊﾞﾝﾊﾟ- ﾗﾊﾞ-
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
50450-G8400 |
— | ||
|
50450
|
50450
50450-G8400
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾊﾞﾝﾊﾟ- ﾗﾊﾞ-
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
50450-G8400 |
— | ||
|
50955
|
50955
50955-G8300
ﾌﾟﾚ-ﾄ
9008--01 ~ ; T.SB.NA20S |
50955-G8300 |
— | ||
|
51010
|
51010
51010-G8300 ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ ﾌｱ-ｽﾄ9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51010-G8300 |
US $217.44 |
||
|
51020
|
51020
51020-G8400 ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ ｾｶﾝﾄﾞ9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51020-G8400 |
US $410.64 |
||
|
51028M
|
51028M
51028-G8400
ﾊﾟﾂﾁ,ｾｶﾝﾄﾞ ｸﾛｽ ﾒﾝﾊﾞ-
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51028-G8400 |
— | ||
|
51028M
|
51028M
51028-G8400
ﾊﾟﾂﾁ,ｾｶﾝﾄﾞ ｸﾛｽ ﾒﾝﾊﾞ-
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51028-G8400 |
— | ||
|
51030
|
51030
51030-G8400
ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ ｻ-ﾄﾞ
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51030-G8400 |
— | ||
|
51040
|
51040
51040-G8400
ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ ﾌｵ-ｽ
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51040-G8400 |
— | ||
|
51044
|
51044
51044-G8300 ﾚｲﾝﾌｵ-ｽ,ﾌｵ-ｽ ｸﾛｽ ﾒﾝﾊﾞ-9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51044-G8300 |
US $33.41 |
||
|
51044
|
51044
51044-G8300 ﾚｲﾝﾌｵ-ｽ,ﾌｵ-ｽ ｸﾛｽ ﾒﾝﾊﾞ-9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51044-G8300 |
US $33.41 |
||
|
51045
|
51045
51045-G8300 ﾚｲﾝﾌｵ-ｽ,ﾌｵ-ｽ ｸﾛｽ ﾒﾝﾊﾞ-9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51045-G8300 |
US $33.41 |
||
|
51045
|
51045
51045-G8300 ﾚｲﾝﾌｵ-ｽ,ﾌｵ-ｽ ｸﾛｽ ﾒﾝﾊﾞ-9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51045-G8300 |
US $33.41 |
||
|
51050
|
51050
51050-G8300 ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ ﾌｲﾌｽ9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51050-G8300 |
US $253.44 |
||
|
51080
|
51080
51080-G8301 ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ ﾘﾔ9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51080-G8301 |
US $487.10 |
||
|
51084
|
51084
51084-G8300 ｶﾞｾﾂﾄ,ﾘﾔ ｸﾛｽ9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51084-G8300 |
US $146.88 |
||
|
51084
|
51084
51084-G8300 ｶﾞｾﾂﾄ,ﾘﾔ ｸﾛｽ9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51084-G8300 |
US $146.88 |
||
|
51111
|
51111
51111-G5100 ﾌﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾂ-ｲﾝｸﾞ ﾌﾛﾝﾄ lh9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51111-G5100 |
US $83.81 |
||
|
51142M
|
51142M
51142-G8310 ﾌﾂｸ,ﾌﾛﾝﾄ ﾀｲ ﾀﾞｳﾝ9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
51142-G8310 |
US $75.60 |
||
|
54230
|
54230
54230-G8400
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｽﾌﾟﾘﾝｸﾞ ﾌﾛﾝﾄ rh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
54230-G8400 |
— | ||
|
54231
|
54231
54231-G8400 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｽﾌﾟﾘﾝｸﾞ ﾌﾛﾝﾄ lh9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
54231-G8400 |
US $138.53 |
||
|
57215M
|
57215M
57215-G8300
ｽﾍﾟ-ｻ-,ｽﾍﾟｱ ﾎｲ-ﾙ
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
57215-G8300 |
— | ||
|
57220M
|
57220M
57220-G8300
ｻﾎﾟ-ﾄ,ｽﾍﾟｱ ﾎｲ-ﾙ
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
57220-G8300 |
— | ||
|
75104X
|
75104X
75104-G8400
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｼﾖﾂｸ ｱﾌﾞｿ-ﾊﾞ- ﾏｳﾝﾃｲﾝｸﾞrh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
75104-G8400 |
— | ||
|
75105X
|
75105X
75105-G8400
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｼﾖﾂｸ ｱﾌﾞｿ-ﾊﾞ- ﾏｳﾝﾃｲﾝｸﾞlh
9008--01 ~ ; T.SB.NA20S |
75105-G8400 |
— | ||
|
75150XA
|
75150XA
75150-G8100
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼﾖﾝ ﾒﾝﾊﾞ- rh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
75150-G8100 |
— | ||
|
75154X
|
75154X
75154-G8400
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼﾖﾝ ｱﾂﾊﾟ- ﾘﾝｸ
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
75154-G8400 |
— | ||
|
75155X
|
75155X
75155-G8400
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼﾖﾝ ｱﾂﾊﾟ- ﾘﾝｸ
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
75155-G8400 |
— | ||
|
75164X
|
75164X
75164-G8501
ﾌﾞﾗｹﾂﾄ,ﾌﾞﾚ-ｷ ﾎ-ｽ ﾌﾛﾝﾄ rh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
75164-G8501 |
— | ||
|
75180X
|
75180X
75180-G8400
ｴｸｽﾃﾝｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｻｲﾄﾞ ﾒﾝﾊﾞ- ｾﾝﾀ-
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
75180-G8400 |
— | ||
|
75181X
|
75181X
75181-G8400
ｴｸｽﾃﾝｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｻｲﾄﾞ ﾒﾝﾊﾞ- ｾﾝﾀ-
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
75181-G8400 |
— | ||
|
75188X
|
75188X
75188-G8300
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌｵ-ｽｳｴｲ ｺﾈｸﾀ-
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
75188-G8300 |
— | ||
|
75654X
|
75654X
75654-G8300
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾕ-ｴﾙ ﾀﾝｸ ﾏｳﾝﾃｲﾝｸﾞ ﾌﾛﾝﾄ
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
75654-G8300 |
— | ||
|
75656X
|
75656X
75656-G8300
ﾌﾞﾗｹﾂﾄ,ﾌﾕ-ｴﾙ ﾀﾝｸ ﾏｳﾝﾃｲﾝｸﾞ rh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
75656-G8300 |
— | ||
|
75698X
|
75698X
75698-G8300
ﾌﾞﾗｹﾂﾄ,ﾌﾕ-ｴﾙ ﾀﾝｸ ﾏｳﾝﾃｲﾝｸﾞ ｻｲﾄﾞ rh
9008--01 ~ ; T.SB.NA20S |
75698-G8300 |
— | ||
|
75699X
|
75699X
75699-G8300
ﾌﾞﾗｹﾂﾄ,ﾌﾕ-ｴﾙ ﾀﾝｸ ﾏｳﾝﾃｲﾝｸﾞ ｻｲﾄﾞ lh
9008--01 ~ ; T.SB.NA20S |
75699-G8300 |
— | ||
|
92556X
|
92556X
92556-G8300
ﾌﾞﾗｹﾂﾄ,ﾁﾕ-ﾌﾞ ｸﾗﾝﾌﾟ
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
92556-G8300 |
— | ||
|
95110X
|
95110X
95110-G8300
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｷﾔﾌﾞ ﾏｳﾝﾃｲﾝｸﾞ 1st rh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
95110-G8300 |
— | ||
|
95111X
|
95111X
95111-G8300
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｷﾔﾌﾞ ﾏｳﾝﾃｲﾝｸﾞ 1st lh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
95111-G8300 |
— | ||
|
95120X
|
95120X
95120-G8300
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｷﾔﾌﾞ ﾏｳﾝﾃｲﾝｸﾞ 2nd rh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
95120-G8300 |
— | ||
|
95121X
|
95121X
95121-G8300
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｷﾔﾌﾞ ﾏｳﾝﾃｲﾝｸﾞ 2nd lh
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
95121-G8300 |
— | ||
|
95212X
|
95212X
95212-G8300
ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ 1st
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
95212-G8300 |
— | ||
|
95212X
|
95212X
95212-G8300
ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ 1st
9008--01 ~ ; T.SB.NA20S +T.LB.FD.4WD |
95212-G8300 |
— | ||
|
95222X
|
95222X
95222-G8301
ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ 2nd rh
9008--01 ~ ; T.SB.NA20S |
95222-G8301 |
— | ||
|
95223X
|
95223X
95223-G8301
ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ 2nd lh
9008--01 ~ ; T.SB.NA20S |
95223-G8301 |
— |
