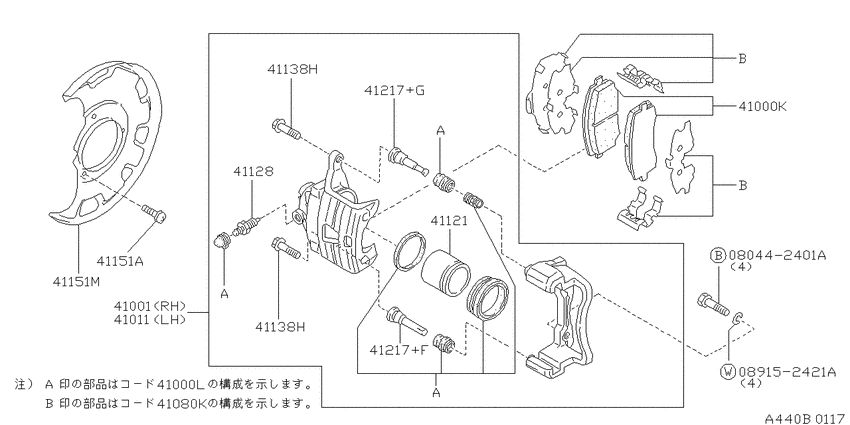

Front brake (1988-11-01 ~ ; FD.4WD.LD20 +Z20S +NA20S) Diagram Nissan VANETTE
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- NA20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A Bolt-hexagon |
080442401A |
US $1.91 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000K
|
41000K
AY040NS011 Pad Kit-Disc Brake9008--01 ~ ; FD.4WD.LD20 +NA20S; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ ﾖｳ |
AY040NS011 |
US $158.40 |
||
|
41000L
|
41000L
AY600NS013 Seal Kit-Disc Brake9008--01 ~ ; FD.4WD.LD20 +NA20S |
AY600NS013 |
US $45.60 |
||
|
41001
|
41001
41001-G8101 Caliper Assy-Front Rh, W/o Pads Or Shims9008--01 ~ ; FD.4WD.LD20 +NA20S |
41001-G8101 |
US $301.61 |
||
|
41011
|
41011
41011-G8101 Caliper Assy-Front Lh, W/o Pads Or Shims9008--01 ~ ; FD.4WD.LD20 +NA20S |
41011-G8101 |
US $301.61 |
||
|
41080K
|
41080K
41080-71E26
HARDWARE KIT-FRONT DISC BRAKE PAD
9008--01 ~ ; FD.4WD.LD20 +NA20S |
41080-71E26 |
— | ||
| replacement | |||||
|
41080K
|
41080K
4108071E29 HARDWARE KIT-FRONT DISC BRAKE PAD9008--01 ~ ; FD.4WD.LD20 +NA20S |
4108071E29 |
US $96.74 |
||
|
41121
|
41121
4112171E00 PISTON-CYLINDER9008--01 ~ ; FD.4WD.LD20 +NA20S |
4112171E00 |
from US $59.88 |
||
|
41128
|
41128
41128-V5510
Screw-Bleeder
9008--01 ~ ; FD.4WD.LD20 +NA20S |
41128-V5510 |
— | ||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9008--01 ~ ; FD.4WD.LD20 +NA20S |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9008--01 ~ ; FD.4WD.LD20 +NA20S |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9008--01 ~ ; FD.4WD.LD20 +NA20S |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9008--01 ~ ; FD.4WD.LD20 +NA20S |
44141AW70A |
from US $3.35 |
||
|
41151A
|
41151A
43244-A0800
Screw
9008--01 ~ ; FD.4WD.LD20 +NA20S |
43244-A0800 |
— | ||
| replacement | |||||
|
41151A
|
41151A
43244A080A Screw9008--01 ~ ; FD.4WD.LD20 +NA20S |
43244A080A |
US $2.21 |
||
|
41151M
|
41151M
41151-G8100 Plate-Baffle9008--01 ~ ; FD.4WD.LD20 +NA20S |
41151-G8100 |
US $16.56 |
||
|
41217+F
|
41217+F
44140N9500 Pin-Lock9008--01 ~ ; FD.4WD.LD20 +NA20S |
44140N9500 |
from US $8.45 |
||
|
41217+G
|
41217+G
44139-16E01 PIN9008--01 ~ ; FD.4WD.LD20 +NA20S |
44139-16E01 |
US $18.29 |
||
