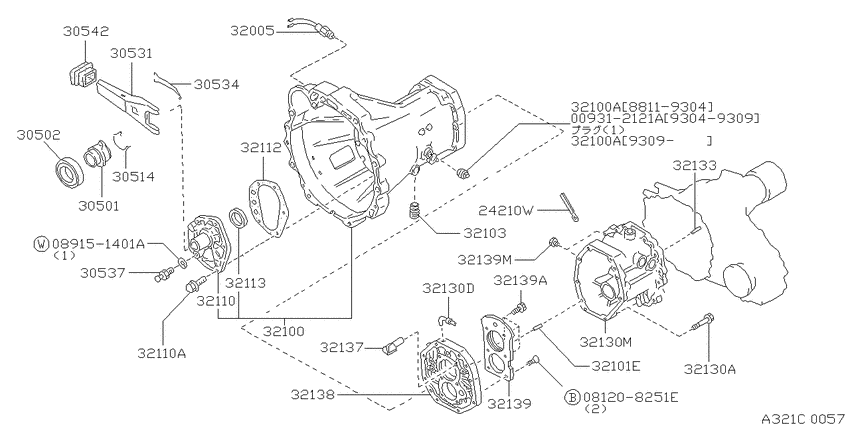

Transmission case & clutch release (1988-11-01 ~ ; FD.4WD.LD20.MT +(Z20S+NA20S).MT) Diagram Nissan VANETTE
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- NA20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.92 |
||
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
24210W
|
24210W
24210-89963 Clip-Wiring Harness9008--01 ~ ; 4WD |
24210-89963 |
US $3.46 |
||
|
30501
|
30501
30501-N1600
Sleeve-Clutch Release
9008--01 ~ ; NA20S.MT |
30501-N1600 |
— | ||
| replacement | |||||
|
30501
|
30501
305011C104 Sleeve-Clutch Release9008--01 ~ ; NA20S.MT |
305011C104 |
US $32.71 |
||
|
30502
|
30502
3050221000
Bearing-Clutch Release
9008--01 ~ ; 4WD; [B106] |
3050221000 |
— | ||
| replacement | |||||
|
30502
|
30502
30502-69F1A Bearing-Clutch Release9008--01 ~ ; 4WD; [B106] |
30502-69F1A |
from US $27.32 |
||
|
30514
|
30514
3051414600 Spring-Holder, Clutch Release Bearing9008--01 ~ ; 4WD |
3051414600 |
from US $3.18 |
||
|
30531
|
30531
30531-P0100 Lever-Withdrawal, Clutch9008--01 ~ ; 4WD |
30531-P0100 |
from US $25.78 |
||
|
30534
|
30534
30534E9000 Spring-Retainer, Withdrawal Lever9008--01 ~ ; 4WD |
30534E9000 |
from US $1.89 |
||
|
30537
|
30537
3053703E00 PIN-BALL,WITHDRAWAL LEVER9008--01 ~ 9107--01; FD.4WD.LD20.MT +NA20S.MT |
3053703E00 |
US $5.81 |
||
|
30537
|
30537
305370H601 Pin-Ball, Withdrawal Lever9107--01 ~ ; FD.4WD.LD20.MT +NA20S.MT |
305370H601 |
from US $3.66 |
||
|
30542
|
30542
30542E9000 Cover-Dust, Withdrawal Lever9008--01 ~ ; 4WD |
30542E9000 |
from US $6.51 |
||
|
32005
|
32005
32005-K1011 Switch Assy-Reverse Lamp9008--01 ~ 9405--01; 4WD |
32005-K1011 |
US $40.75 |
||
|
32005
|
32005
32005-K1021 Switch Assy-Reverse Lamp9405--01 ~ ; FD.4WD.LD20.MT +NA20S.MT |
32005-K1021 |
US $40.75 |
||
|
32100
|
32100
32101-35G10 Case Assy-Transmission9008--01 ~ 9603--01; NA20S.MT |
32101-35G10 |
US $406.39 |
||
| replacement | |||||
|
32100
|
32100
32101-35G12 Case Assy-Transmission9008--01 ~ 9603--01; NA20S.MT |
32101-35G12 |
US $406.39 |
||
|
32100
|
32100
32101-35G12 Case Assy-Transmission9603--01 ~ ; NA20S.MT |
32101-35G12 |
US $406.39 |
||
|
32100
|
32100
0164200021
PLUG-THREAD
9008--01 ~ 9304--01; 4WD |
0164200021 |
— | ||
| replacement | |||||
|
32100
|
32100
33312-33G0B PLUG-THREAD9008--01 ~ 9304--01; 4WD |
33312-33G0B |
US $4.85 |
||
|
32100
|
32100
31306-65F00 Plug-Thread9309--01 ~ ; FD.4WD.LD20.MT +NA20S.MT |
31306-65F00 |
from US $2.68 |
||
|
32100A
|
32100A
0164200021
PLUG-THREAD
9008--01 ~ 9304--01; 4WD |
0164200021 |
— | ||
| replacement | |||||
|
32100A
|
32100A
33312-33G0B PLUG-THREAD9008--01 ~ 9304--01; 4WD |
33312-33G0B |
US $4.85 |
||
|
32100A
|
32100A
31306-65F00 Plug-Thread9309--01 ~ ; FD.4WD.LD20.MT +NA20S.MT |
31306-65F00 |
from US $2.68 |
||
|
32100A
|
32100A
0164200021
PLUG-THREAD
9008--01 ~ 9304--01; 4WD |
0164200021 |
— | ||
| replacement | |||||
|
32100A
|
32100A
33312-33G0B PLUG-THREAD9008--01 ~ 9304--01; 4WD |
33312-33G0B |
US $4.85 |
||
|
32100A
|
32100A
31306-65F00 Plug-Thread9309--01 ~ ; FD.4WD.LD20.MT +NA20S.MT |
31306-65F00 |
from US $2.68 |
||
|
32103
|
32103
32103U8400
Plug-Drain
9008--01 ~ ; 4WD |
32103U8400 |
— | ||
| replacement | |||||
|
32103
|
32103
32103-U840B Plug-Drain9008--01 ~ ; 4WD |
32103-U840B |
US $7.35 |
||
|
32103
|
32103
32103-01A01
Plug-Drain
8811--01 ~ ; 4WD |
32103-01A01 |
— | ||
| replacements | |||||
|
32103
|
32103
3210301A0A
Plug-Drain
8811--01 ~ ; 4WD |
3210301A0A |
— | ||
|
32103
|
32103
32103-01A02 Plug-Drain8811--01 ~ ; 4WD |
32103-01A02 |
US $6.79 |
||
|
32110
|
32110
32111E9803
Cover Assy-Front
9008--01 ~ ; NA20S.MT |
32111E9803 |
— | ||
| replacement | |||||
|
32110
|
32110
3211191P00 Cover Assy-Front9008--01 ~ ; NA20S.MT |
3211191P00 |
from US $40.45 |
||
|
32110
|
32110
32135-58S60 Bolt-Fixing, Front Cover9008--01 ~ ; 4WD |
32135-58S60 |
US $1.73 |
||
|
32110A
|
32110A
32135-58S60 Bolt-Fixing, Front Cover9008--01 ~ ; 4WD |
32135-58S60 |
US $1.73 |
||
|
32112
|
32112
32112-08U00
Gasket-Front Cover
9207--01 ~ ; 4WD |
32112-08U00 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover9207--01 ~ ; 4WD |
3211208U01 |
from US $6.49 |
||
|
32112
|
32112
32112-V5001
Gasket-Front Cover
9008--01 ~ 9207--01; 4WD |
32112-V5001 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover9008--01 ~ 9207--01; 4WD |
3211208U01 |
from US $6.49 |
||
|
32113
|
32113
32114Y4000 Seal-Oil, Front Cover9008--01 ~ ; 4WD |
32114Y4000 |
from US $3.19 |
||
|
32130A
|
32130A
32152-50L00 Bolt9008--01 ~ ; 4WD |
32152-50L00 |
US $2.45 |
||
|
32130D
|
32130D
38322-54W00 Breather9008--01 ~ ; 4WD |
38322-54W00 |
US $9.07 |
||
| replacement | |||||
|
32130D
|
32130D
38322-54W0B
Breather
9008--01 ~ ; 4WD |
38322-54W0B |
— | ||
|
32130M
|
32130M
32131-30N00 Case Assy-Overdrive Gear9008--01 ~ 9506--01; 4WD |
32131-30N00 |
US $244.80 |
||
|
32130M
|
32130M
32131-30N10 Case Assy-Overdrive Gear9506--01 ~ ; FD.4WD.LD20.MT +NA20S.MT |
32131-30N10 |
US $254.88 |
||
|
32133
|
32133
32106-20100 Pin-Dowel9008--01 ~ ; 4WD |
32106-20100 |
US $1.73 |
||
|
32137
|
32137
32137-E9000 Gutter-Oil, Adapter9008--01 ~ ; 4WD |
32137-E9000 |
from US $1.82 |
||
|
32138
|
32138
32138-55S01 Plate-Adapter9008--01 ~ ; 4WD |
32138-55S01 |
US $70.99 |
||
|
32139
|
32139
32139-55S01 Retainer-Bearing9008--01 ~ ; 4WD |
32139-55S01 |
US $16.99 |
||
|
32139
|
32139
0114100021 BOLT-FIXING,RETAINER9008--01 ~ ; 4WD |
0114100021 |
US $2.91 |
||
|
32139
|
32139
32135-U0200 Plug-Switch9008--01 ~ 9606--01; FD.4WD.LD20.MT +NA20S.MT |
32135-U0200 |
US $5.04 |
||
|
32139
|
32139
32135U0201 Plug-Switch9606--01 ~ ; FD.4WD.LD20.MT +NA20S.MT |
32135U0201 |
US $5.47 |
||
|
32139A
|
32139A
0114100021 BOLT-FIXING,RETAINER9008--01 ~ ; 4WD |
0114100021 |
US $2.91 |
||
|
32139M
|
32139M
32135-U0200 Plug-Switch9008--01 ~ 9606--01; FD.4WD.LD20.MT +NA20S.MT |
32135-U0200 |
US $5.04 |
||
|
32139M
|
32139M
32135U0201 Plug-Switch9606--01 ~ ; FD.4WD.LD20.MT +NA20S.MT |
32135U0201 |
US $5.47 |
||
