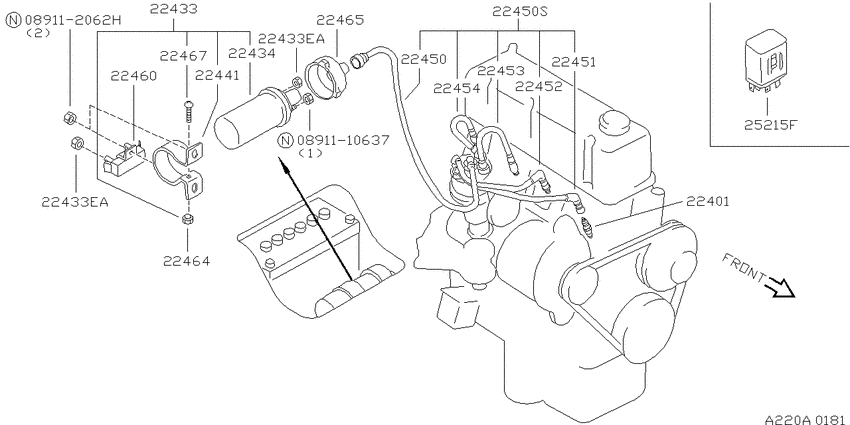

Ignition System (1988-11-01 ~ ; A12S) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A12S
- transmission
- MT
- grade
- DX
- body
- T.SB
- floor/drive
- FD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
089112062H
|
089112062H
089112062H NUT |
089112062H |
US $2.08 |
||
|
22401
|
22401
22401-16C79 Plug-Spark8811--01 ~ ; A12S; N9YC ﾋﾖｳｼﾞﾕﾝ ﾁﾔﾝﾋﾟｵﾝ ﾋﾖｳｼﾞﾕﾝ |
22401-16C79 |
US $5.90 |
||
|
22401
|
22401
22401-W8914 Plug-Spark8811--01 ~ ; A12S; BP4ES ｻ-ﾋﾞｽﾖｳ NGK[B512] |
22401-W8914 |
from US $2.16 |
||
|
22401
|
22401
22401W8915 Plug-Spark8811--01 ~ ; A12S; BP5ES ﾋﾖｳｼﾞﾕﾝ NGK ﾋﾖｳｼﾞﾕﾝ[B512] |
22401W8915 |
US $4.68 |
||
|
22401
|
22401
22401-W8916 Plug-Spark8811--01 ~ ; A12S; BP6ES ｻ-ﾋﾞｽﾖｳ NGK[B512] |
22401-W8916 |
from US $2.05 |
||
|
22401
|
22401
22401-W8917 Plug-Spark8811--01 ~ ; A12S; BP7ES ｻ-ﾋﾞｽﾖｳ NGK[B512] |
22401-W8917 |
US $5.90 |
||
|
22433
|
22433
2243350A10 Coil Assy-Ignition8811--01 ~ ; A12S; ﾊﾝｼﾝ H5-13-49 |
2243350A10 |
US $161.28 |
||
|
22433
|
22433
2243350A60 Coil Assy-Ignition8811--01 ~ ; A12S; ﾐﾂﾋﾞｼ LB-213-10 |
2243350A60 |
US $175.68 |
||
|
22433
|
22433
0122100111 NUT8811--01 ~ ; A12S |
0122100111 |
US $1.93 |
||
|
22433EA
|
22433EA
0122100111 NUT8811--01 ~ ; A12S |
0122100111 |
US $1.93 |
||
|
22433EA
|
22433EA
0122100111 NUT8811--01 ~ ; A12S |
0122100111 |
US $1.93 |
||
|
22434
|
22434
22462-50A10 Coil-Ignition8811--01 ~ ; A12S; ﾊﾝｼﾝ |
22462-50A10 |
US $161.28 |
||
|
22434
|
22434
2246250A60 Coil-Ignition8811--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
2246250A60 |
US $175.68 |
||
|
22441
|
22441
22441-50A60 Band8811--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22441-50A60 |
US $8.35 |
||
|
22441
|
22441
22441-N8700 Band8811--01 ~ ; A12S; ﾋﾀﾁ |
22441-N8700 |
US $6.19 |
||
|
22441
|
22441
22441-N8710 Band8811--01 ~ ; A12S; ﾊﾝｼﾝ |
22441-N8710 |
US $4.85 |
||
|
22450
|
22450
22450G5100 Cable Assy-Ignition Coil To Distributor8811--01 ~ ; A12S; ﾔｻﾞｷ |
22450G5100 |
US $35.71 |
||
|
22450
|
22450
22450-G5110 Cable Assy-Ignition Coil To Distributor8811--01 ~ ; A12S; ｽﾐﾄﾓ |
22450-G5110 |
US $35.71 |
||
|
22450
|
22450
22450-G5125 Cable Set-High Tension8811--01 ~ ; A12S |
22450-G5125 |
US $160.78 |
||
|
22450S
|
22450S
22450-G5125 Cable Set-High Tension8811--01 ~ ; A12S |
22450-G5125 |
US $160.78 |
||
|
22451
|
22451
22451-G5100 Cable Assy-High Tension, No 18811--01 ~ ; A12S; ﾔｻﾞｷ |
22451-G5100 |
US $35.71 |
||
|
22451
|
22451
22451-G5110
Cable Assy-High Tension, No 1
8811--01 ~ ; A12S; ｽﾐﾄﾓ |
22451-G5110 |
— | ||
|
22452
|
22452
22452-G5100 Cable Assy-High Tension, No 28811--01 ~ ; A12S; ﾔｻﾞｷ |
22452-G5100 |
US $37.15 |
||
|
22452
|
22452
22452-G5110
Cable Assy-High Tension, No 2
8811--01 ~ ; A12S; ｽﾐﾄﾓ |
22452-G5110 |
— | ||
|
22453
|
22453
22453-G5100 Cable Assy-High Tension, No 38811--01 ~ ; A12S; ﾔｻﾞｷ |
22453-G5100 |
US $37.15 |
||
|
22453
|
22453
22453-G5110
Cable Assy-High Tension, No 3
8811--01 ~ ; A12S; ｽﾐﾄﾓ |
22453-G5110 |
— | ||
|
22454
|
22454
22454-G5100 Cable Assy-High Tension, No 48811--01 ~ ; A12S; ﾔｻﾞｷ |
22454-G5100 |
US $37.15 |
||
|
22454
|
22454
22454-G5110
Cable Assy-High Tension, No 4
8811--01 ~ ; A12S; ｽﾐﾄﾓ |
22454-G5110 |
— | ||
|
22460
|
22460
22460-01A00 Resistor-Ignition Coil8811--01 ~ ; A12S; ﾋﾀﾁ |
22460-01A00 |
US $25.92 |
||
|
22460
|
22460
2246001A10 Resistor-Ignition Coil8811--01 ~ ; A12S; ﾊﾝｼﾝ |
2246001A10 |
US $28.37 |
||
|
22460
|
22460
22460-01A60 Resistor-Ignition Coil8811--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22460-01A60 |
US $25.92 |
||
|
22464
|
22464
22464-50A60 Nut-Ignition Coil8811--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
22464-50A60 |
US $3.02 |
||
|
22464
|
22464
22464-N7110 Nut8811--01 ~ ; A12S; ﾊﾝｼﾝ |
22464-N7110 |
US $0.86 |
||
|
22465
|
22465
22465W1000 Protector-Ignition Coil8811--01 ~ ; A12S |
22465W1000 |
US $12.20 |
||
|
22467
|
22467
2246750A60 Screw8811--01 ~ ; A12S; ﾐﾂﾋﾞｼ |
2246750A60 |
US $4.18 |
||
|
22467
|
22467
22467-F5700 Screw8811--01 ~ ; A12S; ﾋﾀﾁ |
22467-F5700 |
US $3.46 |
||
|
22467
|
22467
22467-N7110 Screw8811--01 ~ ; A12S; ﾊﾝｼﾝ |
22467-N7110 |
US $2.45 |
||
|
25215F
|
25215F
25230-C9971 Relay Assy-Power Seat8811--01 ~ ; A12S |
25230-C9971 |
US $37.87 |
||
| replacement | |||||
|
25215F
|
25215F
25230C996A Relay8811--01 ~ ; A12S |
25230C996A |
US $26.06 |
||
