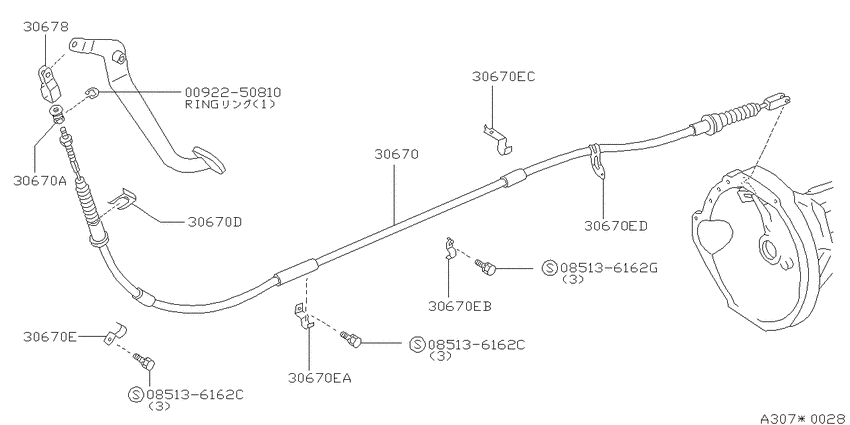

Clutch control (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A15S
- transmission
- MT
- grade
- DX
- body
- T.LB
- floor/drive
- FD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250810
|
0092250810
00922-50810 SCREW |
00922-50810 |
US $1.73 |
||
|
085136162C
|
085136162C
08513-6162C Screw |
08513-6162C |
US $1.87 |
||
|
085136162C
|
085136162C
08513-6162C Screw |
08513-6162C |
US $1.87 |
||
|
30670
|
30670
30770-G8300 Cable Assy-Clutch Operating8811--01 ~ ; A15S.MT +A12S |
30770-G8300 |
US $91.15 |
||
|
30670
|
30670
30772-G5100 Nut8811--01 ~ ; A15S.MT +A12S |
30772-G5100 |
US $2.45 |
||
|
30670
|
30670
36406-P0100 Plate-Cable Lock8811--01 ~ ; A15S.MT +A12S |
36406-P0100 |
US $1.58 |
||
|
30670
|
30670
30777-G8300
Clip
8811--01 ~ ; T.SB.A15S.DX +T.LB.A15S +A12S |
30777-G8300 |
— | ||
|
30670
|
30670
30785-G5101 Clip-Clutch Cable8811--01 ~ ; A15S.MT +A12S |
30785-G5101 |
US $5.90 |
||
|
30670
|
30670
36448-G2501 Clip8811--01 ~ ; A15S.MT +A12S |
36448-G2501 |
US $5.04 |
||
|
30670
|
30670
25052-G5406 Clip-Flexible Shaft8811--01 ~ ; A15S.MT +A12S |
25052-G5406 |
US $8.06 |
||
|
30670
|
30670
30777-G8310 Clip8811--01 ~ ; A15S.MT +A12S |
30777-G8310 |
US $5.90 |
||
|
30670A
|
30670A
30772-G5100 Nut8811--01 ~ ; A15S.MT +A12S |
30772-G5100 |
US $2.45 |
||
|
30670D
|
30670D
36406-P0100 Plate-Cable Lock8811--01 ~ ; A15S.MT +A12S |
36406-P0100 |
US $1.58 |
||
|
30670E
|
30670E
30777-G8300
Clip
8811--01 ~ ; T.SB.A15S.DX +T.LB.A15S +A12S |
30777-G8300 |
— | ||
|
30670E
|
30670E
30785-G5101 Clip-Clutch Cable8811--01 ~ ; A15S.MT +A12S |
30785-G5101 |
US $5.90 |
||
|
30670E
|
30670E
36448-G2501 Clip8811--01 ~ ; A15S.MT +A12S |
36448-G2501 |
US $5.04 |
||
|
30670E
|
30670E
25052-G5406 Clip-Flexible Shaft8811--01 ~ ; A15S.MT +A12S |
25052-G5406 |
US $8.06 |
||
|
30670E
|
30670E
30777-G8310 Clip8811--01 ~ ; A15S.MT +A12S |
30777-G8310 |
US $5.90 |
||
|
30670EA
|
30670EA
30785-G5101 Clip-Clutch Cable8811--01 ~ ; A15S.MT +A12S |
30785-G5101 |
US $5.90 |
||
|
30670EB
|
30670EB
36448-G2501 Clip8811--01 ~ ; A15S.MT +A12S |
36448-G2501 |
US $5.04 |
||
|
30670EC
|
30670EC
25052-G5406 Clip-Flexible Shaft8811--01 ~ ; A15S.MT +A12S |
25052-G5406 |
US $8.06 |
||
|
30670ED
|
30670ED
30777-G8310 Clip8811--01 ~ ; A15S.MT +A12S |
30777-G8310 |
US $5.90 |
||
|
30678
|
30678
30771-G5100 Bracket-Clutch Cable8811--01 ~ ; A15S.MT +A12S |
30771-G5100 |
US $5.90 |
