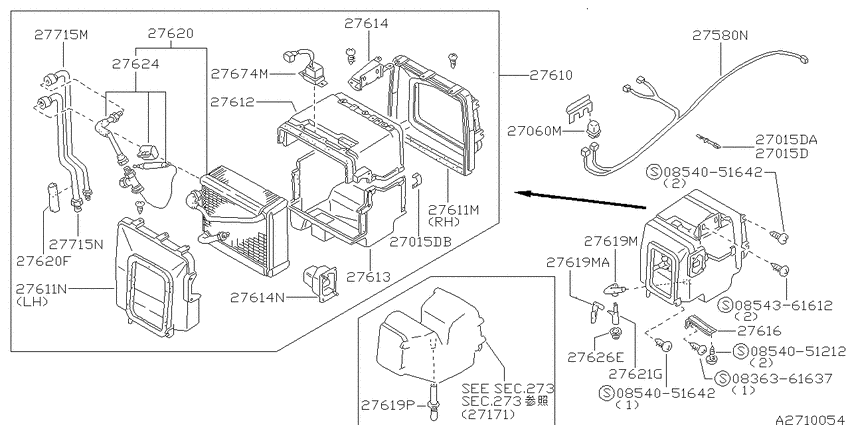

Cooling unit (1988-11-01 ~ ; T.SB +T.LB) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A15S
- transmission
- MT
- grade
- DX
- body
- T.LB
- floor/drive
- FD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361637
|
0836361637
08363-61637
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61637 |
— | ||
| replacement | |||||
|
0836361637
|
0836361637
083636161G Bolt |
083636161G |
US $2.36 |
||
|
0854051212
|
0854051212
08540-51212
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-51212 |
— | ||
|
0854051642
|
0854051642
0854051642
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0854051642 |
— | ||
|
0854051642
|
0854051642
0854051642
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0854051642 |
— | ||
|
0854361612
|
0854361612
08543-61612
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-61612 |
— | ||
|
27015D
|
27015D
24216-S5802 Clip8811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ L=200 |
24216-S5802 |
US $4.18 |
||
|
27015D
|
27015D
24220-H5005 Clip-Wiring Harness8811--01 ~ ; T.SB +T.LB; L=115 |
24220-H5005 |
US $2.45 |
||
|
27015D
|
27015D
27719-S5000 Clip8811--01 ~ ; *T.SB +*T.LB; [B421] |
27719-S5000 |
US $2.02 |
||
| replacement | |||||
|
27015D
|
27015D
92527HC000 Clamp8811--01 ~ ; *T.SB +*T.LB; [B421] |
92527HC000 |
US $2.02 |
||
|
27015DA
|
27015DA
24220-H5005 Clip-Wiring Harness8811--01 ~ ; T.SB +T.LB; L=115 |
24220-H5005 |
US $2.45 |
||
|
27015DB
|
27015DB
27719-S5000 Clip8811--01 ~ ; *T.SB +*T.LB; [B421] |
27719-S5000 |
US $2.02 |
||
| replacement | |||||
|
27015DB
|
27015DB
92527HC000 Clamp8811--01 ~ ; *T.SB +*T.LB; [B421] |
92527HC000 |
US $2.02 |
||
|
27060M
|
27060M
25230C9980 Relay8811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ 1M |
25230C9980 |
from US $15.85 |
||
|
27580N
|
27580N
27580-G8300 Harness-Air Conditioner8811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
27580-G8300 |
US $59.62 |
||
|
27610
|
27610
27270-G5100 Cooling Unit Assy8811--01 ~ 9305--01; *T.SB +*T.LB; ｴｱｺﾝ ｼﾖｳ[B421] |
27270-G5100 |
US $897.74 |
||
|
27610
|
27610
27270-G5102 Cooling Unit Assy9305--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝ ｼﾖｳ[B421] |
27270-G5102 |
US $897.74 |
||
|
27610
|
27610
27275-G5110 Cooling Unit Assy8811--01 ~ ; *T.SB +*T.LB; ﾃﾞｲ-ﾗ- OP[B421] |
27275-G5110 |
US $897.74 |
||
|
27611M
|
27611M
27288-G5100 Case-Cooling Unit8811--01 ~ 9305--01; *T.SB +*T.LB; RH ｴｱｺﾝﾖｳ |
27288-G5100 |
US $22.32 |
||
|
27611N
|
27611N
27289-G5100 Case-Cooling Unit8811--01 ~ 9305--01; *T.SB +*T.LB; LH ｴｱｺﾝﾖｳ |
27289-G5100 |
US $23.90 |
||
|
27612
|
27612
27285-G5100 Case-Upper, Cooling Unit8811--01 ~ 9305--01; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
27285-G5100 |
US $51.98 |
||
|
27612
|
27612
27285-G5102 Case-Upper, Cooling Unit9305--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
27285-G5102 |
US $51.98 |
||
|
27613
|
27613
27286-G5100 Case-Lower, Cooling Unit8811--01 ~ 9305--01; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
27286-G5100 |
US $51.98 |
||
|
27613
|
27613
27286-G5102 Case-Lower, Cooling Unit9305--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
27286-G5102 |
US $51.98 |
||
|
27614
|
27614
27295-G5100 Bracket-Cooling Unit, No 18811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
27295-G5100 |
US $2.74 |
||
|
27614
|
27614
27152-G5100 Bracket-Thermo Switch8811--01 ~ ; T.SB +T.LB |
27152-G5100 |
US $7.49 |
||
|
27614N
|
27614N
27152-G5100 Bracket-Thermo Switch8811--01 ~ ; T.SB +T.LB |
27152-G5100 |
US $7.49 |
||
|
27616
|
27616
27296-G5100 Bracket-Cooling Unit, No 28811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
27296-G5100 |
US $3.17 |
||
|
27619M
|
27619M
27859-G5101 Hose-Drain8811--01 ~ ; *T.SB +*T.LB; NO.1 ｴｱｺﾝﾖｳ |
27859-G5101 |
US $11.52 |
||
|
27619M
|
27619M
27858-G5100 Hose-Drain8811--01 ~ ; *T.SB +*T.LB; NO.2 ｴｱｺﾝﾖｳ |
27858-G5100 |
US $16.85 |
||
|
27619MA
|
27619MA
27858-G5100 Hose-Drain8811--01 ~ ; *T.SB +*T.LB; NO.2 ｴｱｺﾝﾖｳ |
27858-G5100 |
US $16.85 |
||
|
27619P
|
27619P
27859-G6100 Hose-Drain8811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
27859-G6100 |
US $6.34 |
||
|
27620
|
27620
27281-G5100 Evaporator Assy-Cooler8811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ[B421] |
27281-G5100 |
US $444.62 |
||
|
27620
|
27620
27288G5300 Insulator8811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
27288G5300 |
US $1.01 |
||
|
27620F
|
27620F
27288G5300 Insulator8811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
27288G5300 |
US $1.01 |
||
|
27621G
|
27621G
27857-11C00 Connector-Bend8811--01 ~ ; T.SB +T.LB |
27857-11C00 |
US $4.61 |
||
|
27624
|
27624
92200-G5100 Valve Assy-Expansion8811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ[B421] |
92200-G5100 |
US $90.72 |
||
|
27626E
|
27626E
01651-00173 GROMMET-EVAPORATOR TUBE8811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
01651-00173 |
US $2.45 |
||
|
27674M
|
27674M
27674-G5100 Switch-Thermo8811--01 ~ ; T.SB +T.LB; [B421] |
27674-G5100 |
US $103.25 |
||
|
27715M
|
27715M
92445-G5100 Tube Assy-Evaporator, High8811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
92445-G5100 |
US $12.24 |
||
|
27715N
|
27715N
92455-G5100 Tube Assy-Evaporator, Low8811--01 ~ ; *T.SB +*T.LB; ｴｱｺﾝﾖｳ |
92455-G5100 |
US $21.02 |
||
