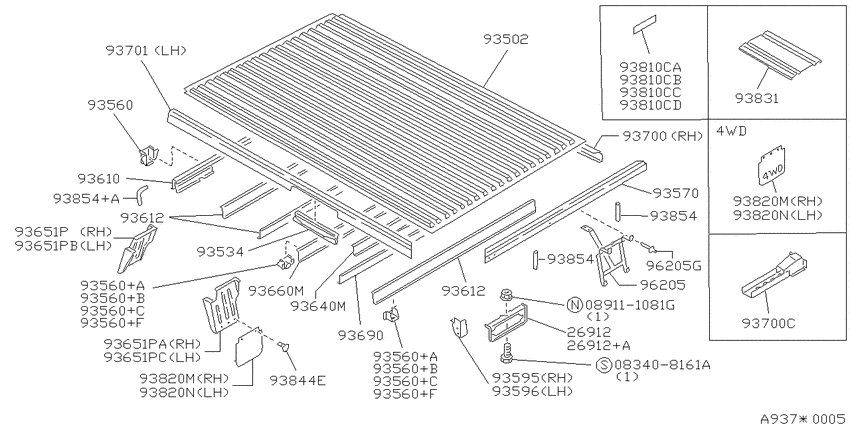

Floor board (1988-11-01 ~ ; T.SB +T.LB) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A15S
- transmission
- MT
- grade
- DX
- body
- T.LB
- floor/drive
- FD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083408161A
|
083408161A
08340-8161A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08340-8161A |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
26912
|
26912
26950G8300 Bracket-Combination Lamp, Rh8811--01 ~ ; T.SB +T.LB; [H602] |
26950G8300 |
US $37.30 |
||
|
26912
|
26912
26950-G8310 Bracket-Combination Lamp, Rh8811--01 ~ ; *T.SB +*T.LB; A ｼﾔｼ- ﾖｳ |
26950-G8310 |
US $37.30 |
||
|
26912+A
|
26912+A
26950-G8310 Bracket-Combination Lamp, Rh8811--01 ~ ; *T.SB +*T.LB; A ｼﾔｼ- ﾖｳ |
26950-G8310 |
US $37.30 |
||
|
93502
|
93502
93512-G3200 ﾊﾟﾈﾙ,ﾌﾛｱ ｾﾝﾀ-8811--01 ~ ; T.LB |
93512-G3200 |
US $1,582 |
||
|
93534
|
93534
J3536-G8300
ｺﾈｸﾀ-,ﾚ-ﾙ
8811--01 ~ ; T.SB +T.LB |
J3536-G8300 |
— | ||
|
93560
|
93560
J3740-G8305
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S; NO.1 |
J3740-G8305 |
— | ||
|
93560
|
93560
J3752-G8305
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S; NO.2 |
J3752-G8305 |
— | ||
|
93560
|
93560
J3750-G8310
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S |
J3750-G8310 |
— | ||
|
93560
|
93560
J3751-G8310
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S |
J3751-G8310 |
— | ||
|
93560+A
|
93560+A
J3752-G8305
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S; NO.2 |
J3752-G8305 |
— | ||
|
93560+A
|
93560+A
J3752-G8305
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S; NO.2 |
J3752-G8305 |
— | ||
|
93560+B
|
93560+B
J3750-G8310
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S |
J3750-G8310 |
— | ||
|
93560+B
|
93560+B
J3750-G8310
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S |
J3750-G8310 |
— | ||
|
93560+C
|
93560+C
J3751-G8310
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S |
J3751-G8310 |
— | ||
|
93560+C
|
93560+C
J3751-G8310
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S |
J3751-G8310 |
— | ||
|
93570
|
93570
J3790-G8300
ﾚ-ﾙ,ﾘﾔ
8811--01 ~ ; T.SB +T.LB |
J3790-G8300 |
— | ||
|
93595
|
93595
J3840-G8305
ﾌﾞﾚ-ｽ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｹﾞ-ﾄ ﾊﾞﾝﾊﾟ- rh
8811--01 ~ ; T.SB +T.LB |
J3840-G8305 |
— | ||
|
93596
|
93596
J3841-G8305
ﾌﾞﾚ-ｽ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｹﾞ-ﾄ ﾊﾞﾝﾊﾟ- lh
8811--01 ~ ; T.SB +T.LB |
J3841-G8305 |
— | ||
|
93610
|
93610
J3610-G8310
ﾎﾞﾙｽﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛｱ ﾌｱ-ｽﾄ
8811--01 ~ ; T.SB +T.LB |
J3610-G8310 |
— | ||
|
93612
|
93612
93613-G3211 ﾎﾞﾙｽﾀ-,ﾌﾛｱ ﾘﾔ ﾎﾞﾃﾞ-8811--01 ~ ; T.LB; NO.2 NO.3 |
93613-G3211 |
US $69.12 |
||
|
93612
|
93612
93613-G3211 ﾎﾞﾙｽﾀ-,ﾌﾛｱ ﾘﾔ ﾎﾞﾃﾞ-8811--01 ~ ; T.LB; NO.2 NO.3 |
93613-G3211 |
US $69.12 |
||
|
93640M
|
93640M
J3622-G8300
ﾎﾞﾙｽﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾐﾄﾞﾙ
8811--01 ~ ; T.SB +T.LB |
J3622-G8300 |
— | ||
|
93651P
|
93651P
J3810G8300
ﾌｴﾝﾀﾞ- rh
8811--01 ~ ; T.SB +T.LB; RH FR |
J3810G8300 |
— | ||
|
93651P
|
93651P
J3811-G8300
ﾌｴﾝﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ
8811--01 ~ ; T.SB +T.LB; RH RR |
J3811-G8300 |
— | ||
|
93651P
|
93651P
J3811-G8300
ﾌｴﾝﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ
8811--01 ~ ; T.SB +T.LB; LH FR |
J3811-G8300 |
— | ||
|
93651P
|
93651P
J3810G8300
ﾌｴﾝﾀﾞ- rh
8811--01 ~ ; T.SB +T.LB; LH RR |
J3810G8300 |
— | ||
|
93651PA
|
93651PA
J3811-G8300
ﾌｴﾝﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ
8811--01 ~ ; T.SB +T.LB; RH RR |
J3811-G8300 |
— | ||
|
93651PB
|
93651PB
J3811-G8300
ﾌｴﾝﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ
8811--01 ~ ; T.SB +T.LB; LH FR |
J3811-G8300 |
— | ||
|
93651PC
|
93651PC
J3810G8300
ﾌｴﾝﾀﾞ- rh
8811--01 ~ ; T.SB +T.LB; LH RR |
J3810G8300 |
— | ||
|
93660M
|
93660M
J3630-G8305
ﾎﾞﾙｽﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛｱ f
8811--01 ~ 9008--01; T.SB +T.LB |
J3630-G8305 |
— | ||
|
93690
|
93690
J3690-G8310
ﾎﾞﾙｽﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛｱ ﾃ-ﾙ
8811--01 ~ ; T.SB +T.LB |
J3690-G8310 |
— | ||
|
93700
|
93700
J3522-G8600
ｼﾙ,ﾒ-ﾝ
0000--01 ~ ; T.LB |
J3522-G8600 |
— | ||
|
93700
|
93700
J3624-G8300
ﾌﾟﾚ-ﾄ
8811--01 ~ ; T.SB +T.LB; ﾏｴｶﾞﾜ |
J3624-G8300 |
— | ||
|
93700C
|
93700C
J3624-G8300
ﾌﾟﾚ-ﾄ
8811--01 ~ ; T.SB +T.LB; ﾏｴｶﾞﾜ |
J3624-G8300 |
— | ||
|
93701
|
93701
J3523-G8600
ｼﾙ,ﾒ-ﾝ
8811--01 ~ ; T.LB |
J3523-G8600 |
— | ||
|
93810CD
|
93810CD
J3696-G8400
ﾌﾟﾚ-ﾄ
8811--01 ~ ; T.LB; ｳｼﾛｶﾞﾜ |
J3696-G8400 |
— | ||
|
93820M
|
93820M
93822-G8300
ｶﾞ-ﾄﾞ,ｽﾌﾟﾗﾂｼﾕ ﾘﾔ rh
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S |
93822-G8300 |
— | ||
|
93820M
|
93820M
93822-G8300
ｶﾞ-ﾄﾞ,ｽﾌﾟﾗﾂｼﾕ ﾘﾔ rh
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S |
93822-G8300 |
— | ||
|
93820N
|
93820N
93823-G8300
ｶﾞ-ﾄﾞ,ｽﾌﾟﾗﾂｼﾕ ﾘﾔ lh
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S |
93823-G8300 |
— | ||
|
93820N
|
93820N
93823-G8300
ｶﾞ-ﾄﾞ,ｽﾌﾟﾗﾂｼﾕ ﾘﾔ lh
8811--01 ~ 9008--01; &T.SB.A12S +T.LB.FD.2WD.LD20 +T.LB.A15S |
93823-G8300 |
— | ||
|
93831
|
93831
74586-G3700 ｲﾝｼﾕﾚ-ﾀ-,ﾋ-ﾄ ﾘﾔ ﾌﾛｱ8811--01 ~ ; T.LB.A15S |
74586-G3700 |
US $59.76 |
||
|
93844E
|
93844E
8492901F00 Clip-Harness8811--01 ~ ; T.SB +T.LB |
8492901F00 |
US $1.24 |
||
|
93854
|
93854
93806-G8300
ｽﾃ-,ｻｲﾄﾞ ｶﾞ-ﾄﾞ
8811--01 ~ ; T.SB +T.LB |
93806-G8300 |
— | ||
|
93854
|
93854
93806-T6100 ﾌﾂｸ,ﾛ-ﾌﾟ8811--01 ~ 9012--01; T.SB +T.LB |
93806-T6100 |
US $19.58 |
||
|
93854
|
93854
93806-G8300
ｽﾃ-,ｻｲﾄﾞ ｶﾞ-ﾄﾞ
8811--01 ~ ; T.SB +T.LB |
93806-G8300 |
— | ||
|
93854
|
93854
93806-T6100 ﾌﾂｸ,ﾛ-ﾌﾟ8811--01 ~ 9012--01; T.SB +T.LB |
93806-T6100 |
US $19.58 |
||
|
93854+A
|
93854+A
93806-T6100 ﾌﾂｸ,ﾛ-ﾌﾟ8811--01 ~ 9012--01; T.SB +T.LB |
93806-T6100 |
US $19.58 |
||
|
96205
|
96205
96220G8305
Bracket
8811--01 ~ ; *T.SB +*T.LB; A ｼﾔｼ- ﾖｳ |
96220G8305 |
— | ||
|
96205
|
96205
J6220-G8300
ﾌﾞﾗｹﾂﾄ,ﾗｲｾﾝｽ ﾌﾟﾚ-ﾄ
8811--01 ~ ; T.SB +T.LB |
J6220-G8300 |
— | ||
|
96205
|
96205
00604-80970 RIVET-BLIND8811--01 ~ ; T.SB +T.LB |
00604-80970 |
US $0.86 |
||
|
96205G
|
96205G
00604-80970 RIVET-BLIND8811--01 ~ ; T.SB +T.LB |
00604-80970 |
US $0.86 |
