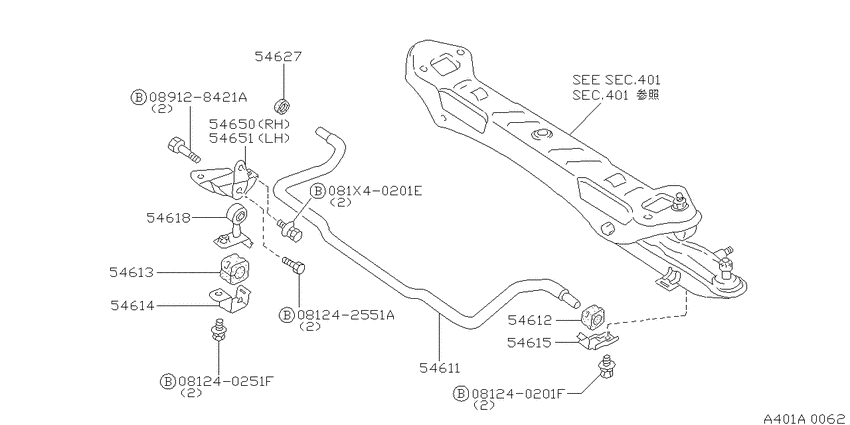

Front suspension (1988-11-01 ~ ; スタビライザー; "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A15S
- transmission
- MT
- grade
- DX
- body
- T.LB
- floor/drive
- FD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081240201F
|
081240201F
08124-0201F
Bolt-hexagon
|
08124-0201F |
— | ||
|
081240251F
|
081240251F
081240251F
Bolt-hexagon
|
081240251F |
— | ||
|
081242551A
|
081242551A
081242551A
Bolt-hexagon
|
081242551A |
— | ||
|
081X40201E
|
081X40201E
081X4-0201E
Bolt-hexagon
|
081X4-0201E |
— | ||
|
089128421A
|
089128421A
089128421A NUTHEX |
089128421A |
from US $0.65 |
||
|
54611
|
54611
54611-G5410 Stabilizer-Front8811--01 ~ 9008--01; A*FD.2WD.LD20 +*T.2WD.SB.A15S.DX +*T.2WD.SB.LD20.DX +T.2WD.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
54611-G5410 |
US $485.69 |
||
|
54612
|
54612
54612-G5400 Bushing-Stabilizer8811--01 ~ 9008--01; A*FD.2WD.LD20 +*T.2WD.SB.A15S.DX +*T.2WD.SB.LD20.DX +T.2WD.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
54612-G5400 |
US $9.22 |
||
|
54613
|
54613
54613-G5410 Bush-Stabilizer8811--01 ~ 9008--01; A*FD.2WD.LD20 +*T.2WD.SB.A15S.DX +*T.2WD.SB.LD20.DX +T.2WD.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
54613-G5410 |
US $6.05 |
||
|
54614
|
54614
54614-G5400 Bracket-Stabilizer8811--01 ~ 9008--01; A*FD.2WD.LD20 +*T.2WD.SB.A15S.DX +*T.2WD.SB.LD20.DX +T.2WD.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
54614-G5400 |
US $19.30 |
||
|
54615
|
54615
54615-G5401
Bracket Assy-Front Stabilizer
8811--01 ~ 9008--01; A*FD.2WD.LD20 +*T.2WD.SB.A15S.DX +*T.2WD.SB.LD20.DX +T.2WD.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
54615-G5401 |
— | ||
|
54618
|
54618
54617-G5400 Rod Assy-Connecting, Stabilizer8811--01 ~ 9008--01; A*FD.2WD.LD20 +*T.2WD.SB.A15S.DX +*T.2WD.SB.LD20.DX +T.2WD.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
54617-G5400 |
US $57.17 |
||
|
54627
|
54627
54627-G5400 Bushing-Stabilizer8811--01 ~ 9008--01; A*FD.2WD.LD20 +*T.2WD.SB.A15S.DX +*T.2WD.SB.LD20.DX +T.2WD.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
54627-G5400 |
US $5.18 |
||
|
54650
|
54650
54650-G8300 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｺﾈｸﾃｲﾝｸﾞ ﾛﾂﾄﾞ rh8811--01 ~ 9008--01; A*FD.2WD.LD20 +*T.2WD.SB.A15S.DX +*T.2WD.SB.LD20.DX +T.2WD.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
54650-G8300 |
US $31.25 |
||
|
54651
|
54651
54651-G8300 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｺﾈｸﾃｲﾝｸﾞ ﾛﾂﾄﾞ lh8811--01 ~ 9008--01; A*FD.2WD.LD20 +*T.2WD.SB.A15S.DX +*T.2WD.SB.LD20.DX +T.2WD.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
54651-G8300 |
US $31.25 |
