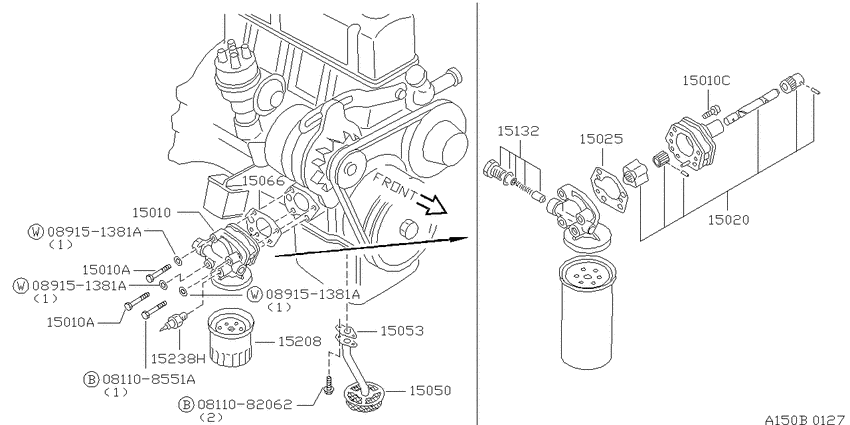

Lubricating system (1988-11-01 ~ ; A15S) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A15S
- transmission
- MT
- grade
- DX
- body
- T.LB
- floor/drive
- FD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082062
|
0811082062
08110-82062
Bolt-hexagon
|
08110-82062 |
— | ||
| replacement | |||||
|
0811082062
|
0811082062
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081108551A
|
081108551A
081108551A
Bolt-hexagon
|
081108551A |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
15010
|
15010
15010M3001 Pump Assy-Oil8811--01 ~ ; A15S |
15010M3001 |
US $145.55 |
||
|
15010
|
15010
15036-18000 Bolt8811--01 ~ ; A15S |
15036-18000 |
US $2.45 |
||
|
15010
|
15010
01431-00131 BOLT-OIL PUMP8811--01 ~ ; A15S |
01431-00131 |
US $1.73 |
||
|
15010A
|
15010A
15036-18000 Bolt8811--01 ~ ; A15S |
15036-18000 |
US $2.45 |
||
|
15010A
|
15010A
15036-18000 Bolt8811--01 ~ ; A15S |
15036-18000 |
US $2.45 |
||
|
15010C
|
15010C
01431-00131 BOLT-OIL PUMP8811--01 ~ ; A15S |
01431-00131 |
US $1.73 |
||
|
15020
|
15020
15020-H9700 Shaft Assy-Oil Pump8811--01 ~ ; A15S |
15020-H9700 |
US $34.85 |
||
|
15025
|
15025
15025-18003 Gasket-Oil Pump8811--01 ~ ; A15S |
15025-18003 |
US $4.85 |
||
|
15050
|
15050
15050-H9702 Strainer Assy-Oil8811--01 ~ ; A15S |
15050-H9702 |
US $22.46 |
||
|
15053
|
15053
15053-18000 Gasket-Oil Strainer8811--01 ~ ; A15S |
15053-18000 |
US $1.73 |
||
|
15066
|
15066
15066-H1000
Gasket-Oil Pump To Cylinder Block
8811--01 ~ 9111--01; A15S |
15066-H1000 |
— | ||
| replacement | |||||
|
15066
|
15066
15066-H1001 Gasket-Oil Pump To Cylinder Block8811--01 ~ 9111--01; A15S |
15066-H1001 |
US $4.30 |
||
|
15066
|
15066
15066-H1001 Gasket-Oil Pump To Cylinder Block9111--01 ~ ; A15S |
15066-H1001 |
US $4.30 |
||
|
15132
|
15132
15132-H1000 Valve Assy-Oil Regulator8811--01 ~ ; A15S |
15132-H1000 |
US $4.46 |
||
|
15208
|
15208
AY100NS007 Filter Assy-Oil8811--01 ~ ; A15S |
AY100NS007 |
US $11.13 |
||
|
15238H
|
15238H
25240-89910
Switch Assy-Oil Pressure
8811--01 ~ ; A15S |
25240-89910 |
— | ||
| replacement | |||||
|
15238H
|
15238H
25240G150A SW OIL PRESSURE8811--01 ~ ; A15S |
25240G150A |
US $18.43 |
||
